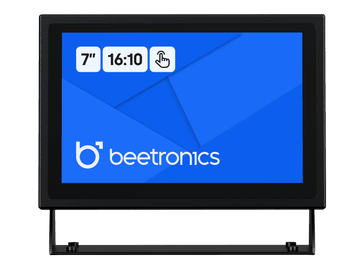

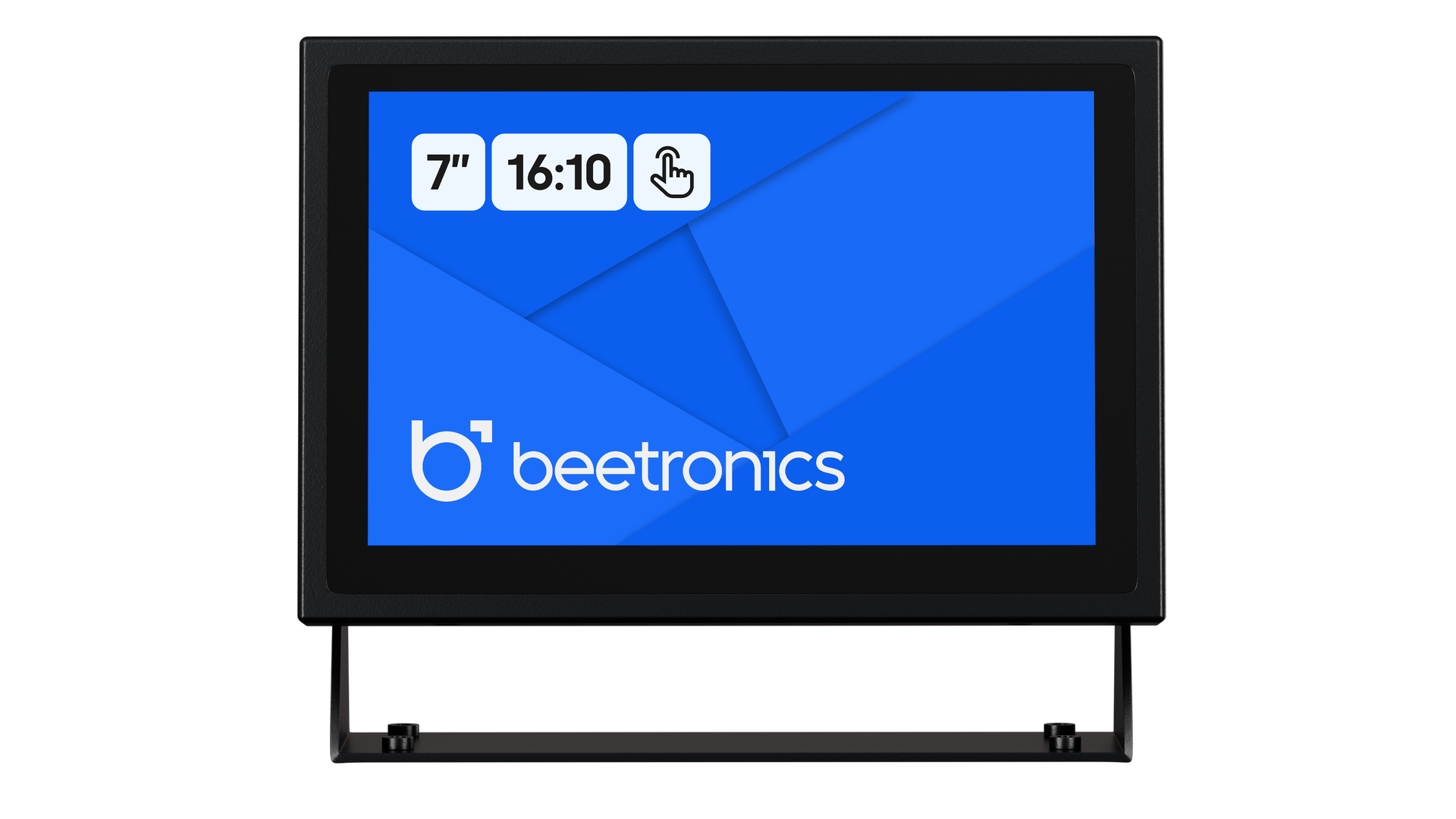

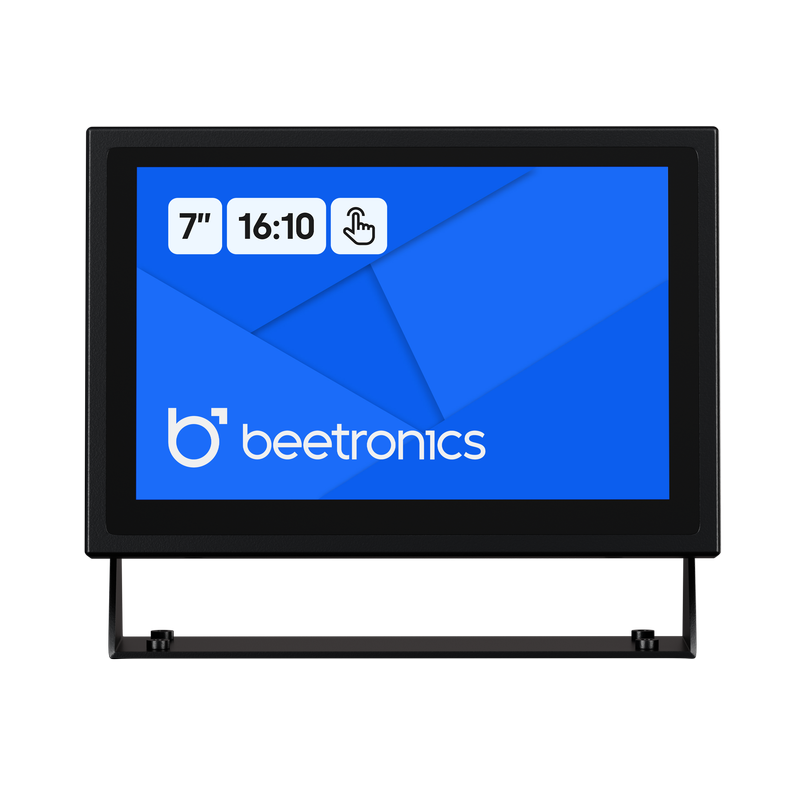

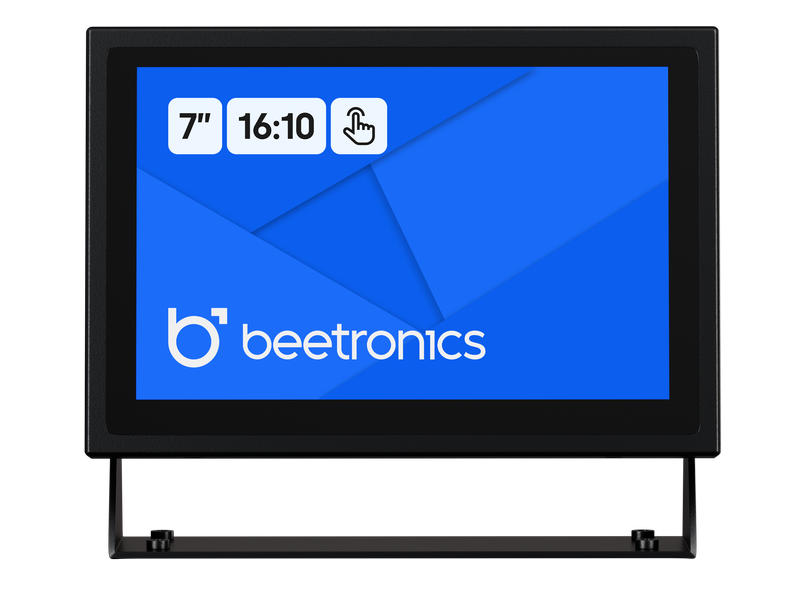

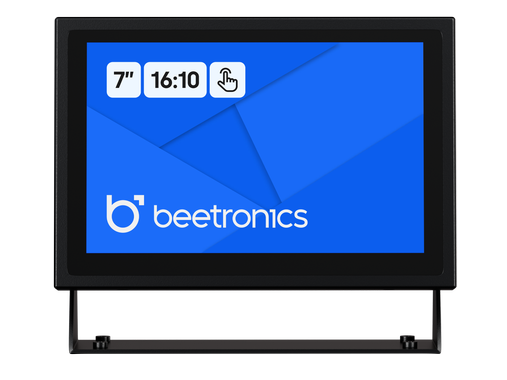

7 inch touchscreen metal

  1. High resolution multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop, flush and wall mountable
  4. 181 x 131 x 39 mm
Item number: 7TS7M
100+ units in stock

Order before 18:00 for delivery on monday

€ 289,00 € 238,84 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

This high resolution 7 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 7TS7M provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.


High resolution multi-touch panel

Fitted with a native high resolution IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 7TS7M has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

7 inch touchscreen metal monitor

Windows, Mac, Linux & Android compatible

The 7TS7M is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

Touchscreen 7" hdmi vga usb windows mac linux android

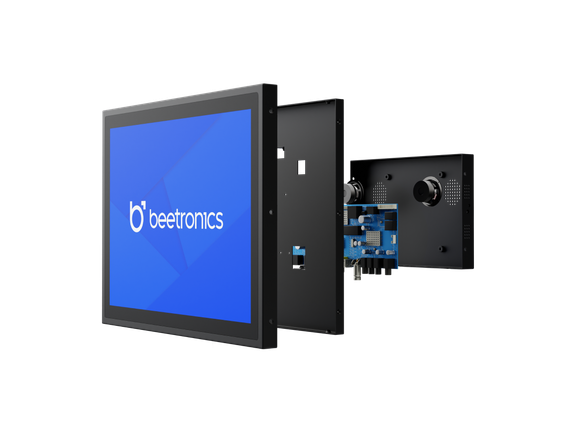

Designed for professional use

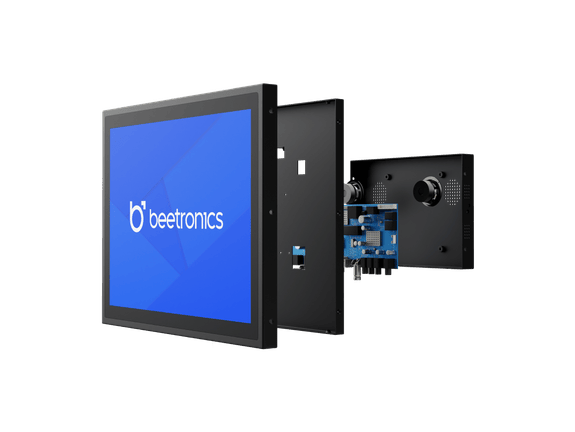

The 7TS7M is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing the 7TS7M is ideal for professional use.

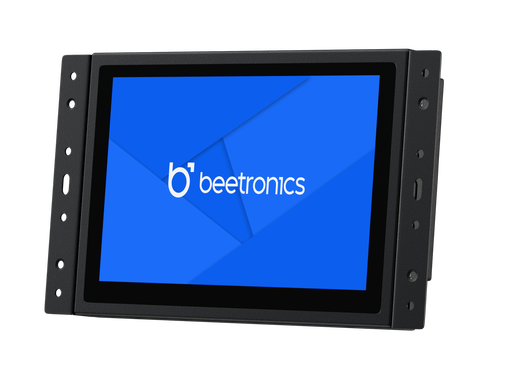

multitouch touchscreen flush mount

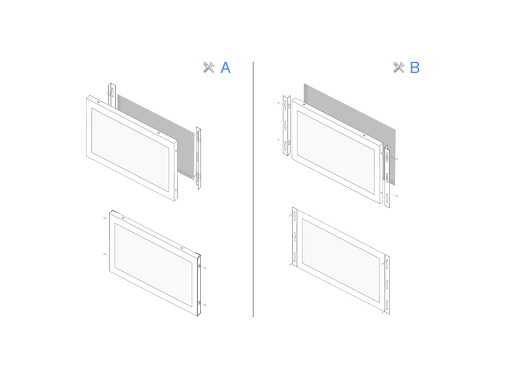

Desktop, flush and wall mountable

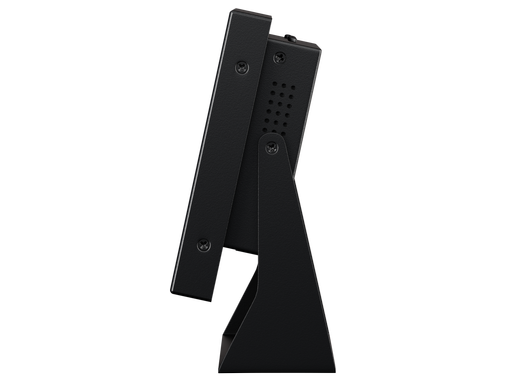

The Beetronics 7TS7M has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.

touchscreen 7 inch with stand
General
Manufacturer
Beetronics
Item number
7TS7M
Product name
7 inch touchscreen metal
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Diagonal size
7 inch (17,8 cm)
Aspect ratio
16:10 (16:9, 4:3 adjustable)
Native resolution
1280 x 800
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
215 PPI
Viewing angle
178° horizontal, 178° vertical
Brightness
400 cd/m2
Contrast
800:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Control
Stylus, hand, glove
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX output
1x
USB
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
980 gram (1598 gram with stand)
Width
181 mm
Height
123 mm (+0 to 39 mm with stand)
Thickness
39 mm
Display dimensions
169 x 111 mm
Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<12 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

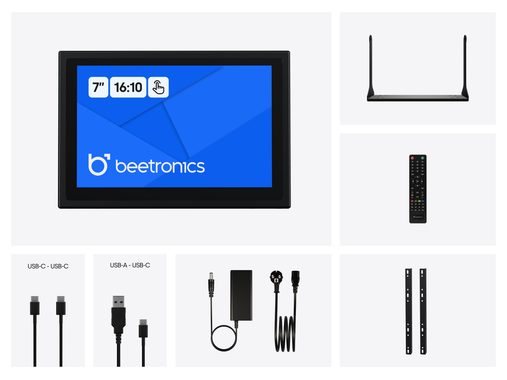

Package content
Includes
Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
