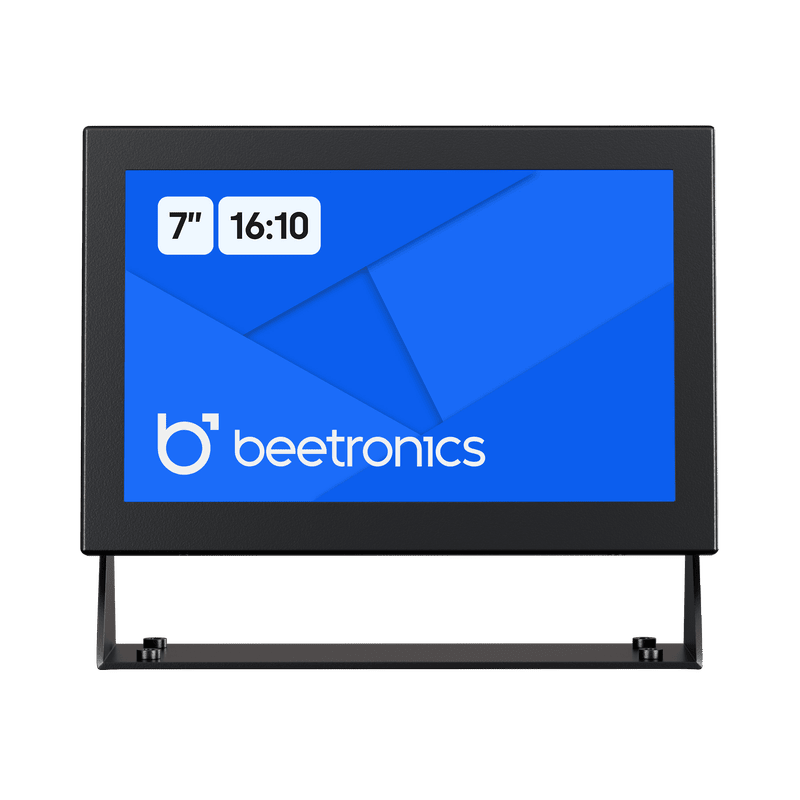

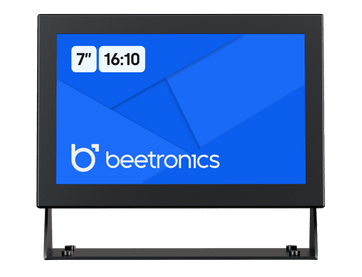

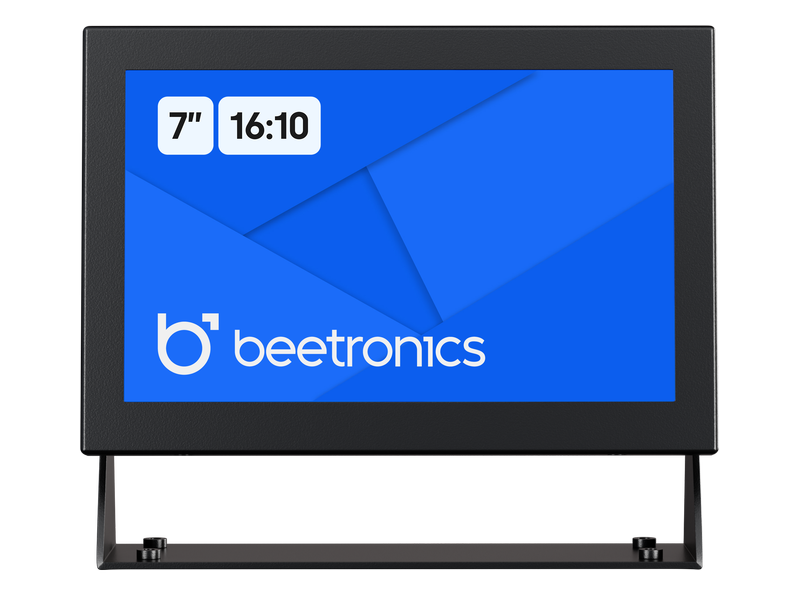

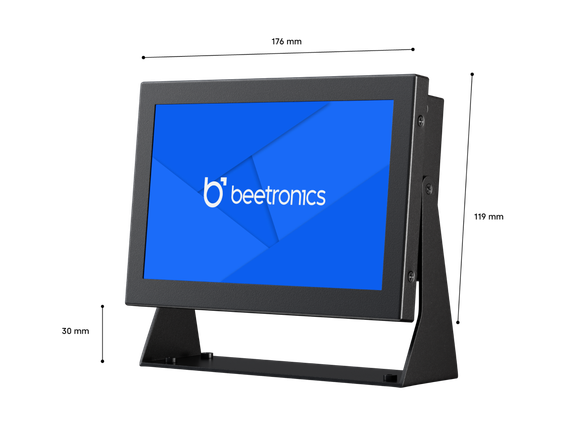

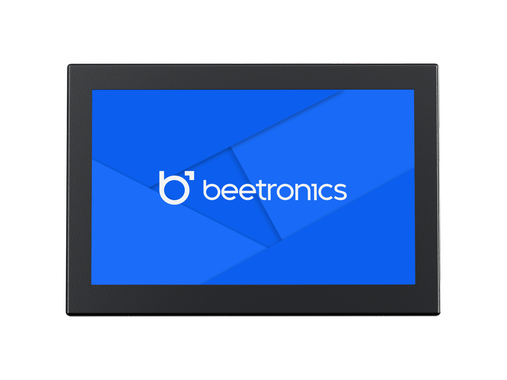

This 7 inch metal monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 7 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 7HD7M can be connected via HDMI, VGA, BNC or RCA connections.

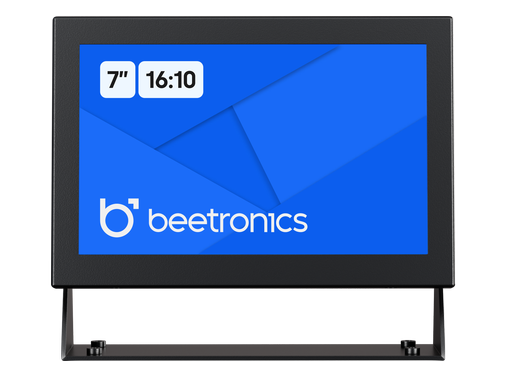

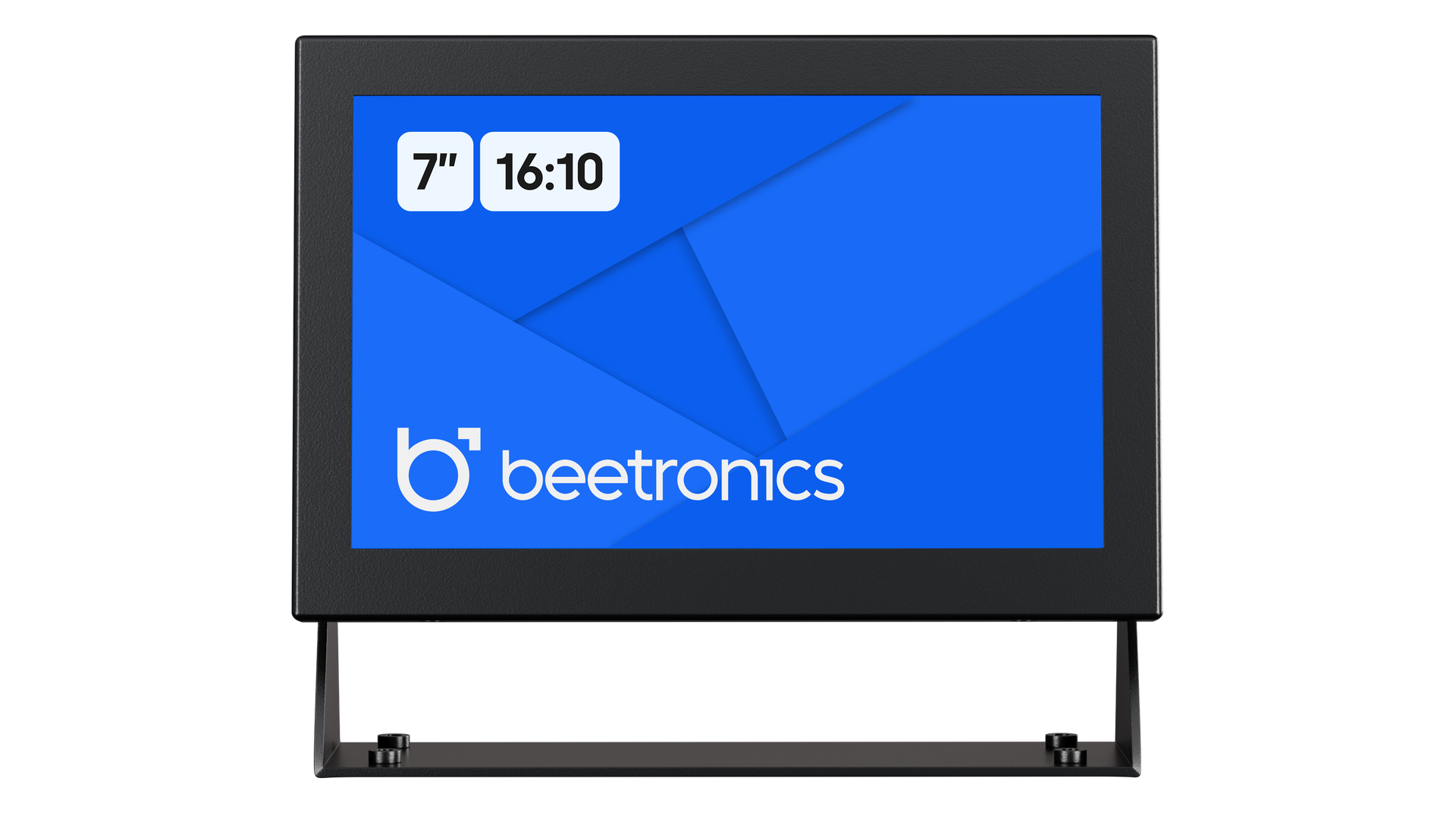

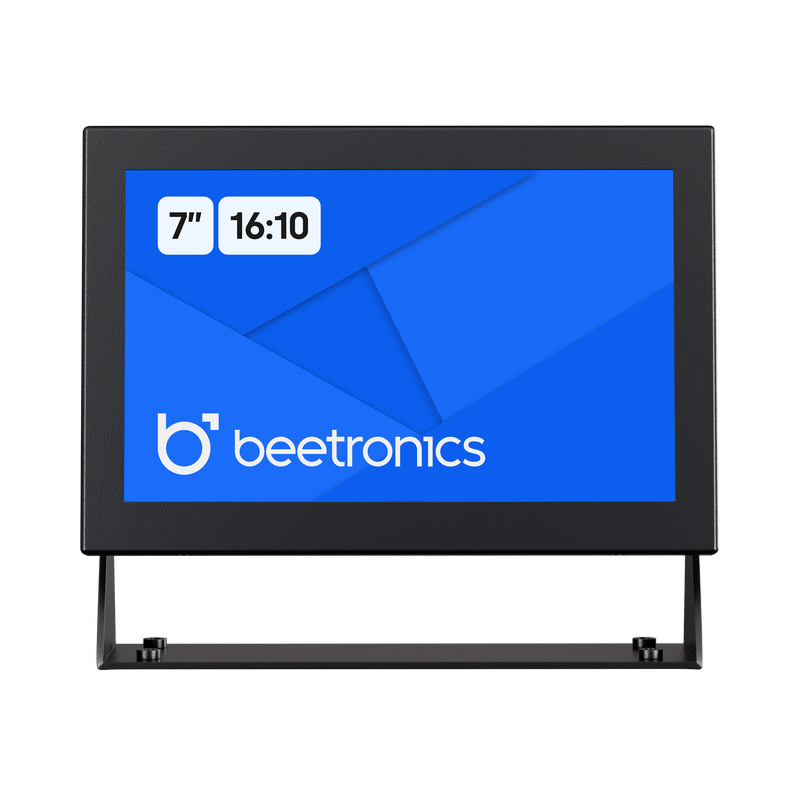

Fitted with a high resolution IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

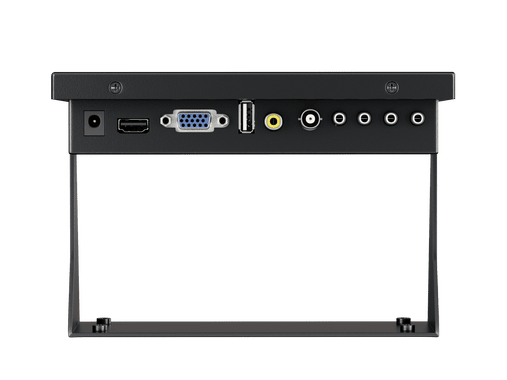

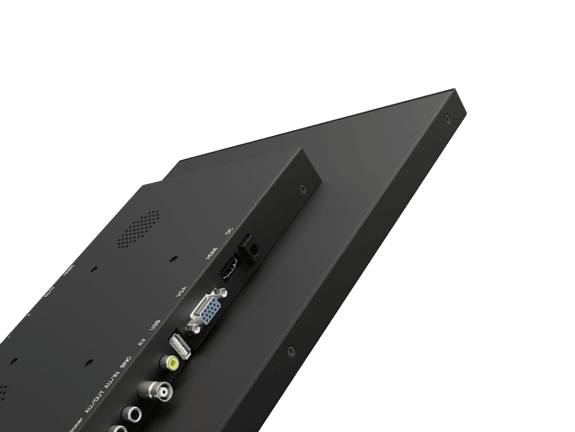

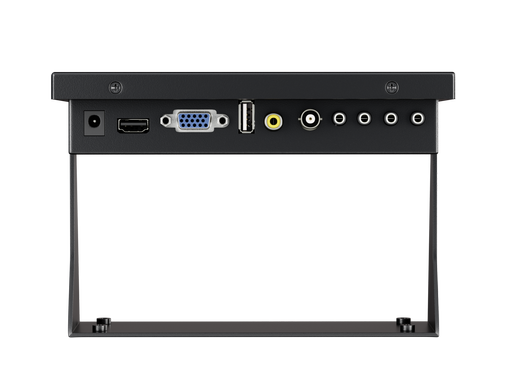

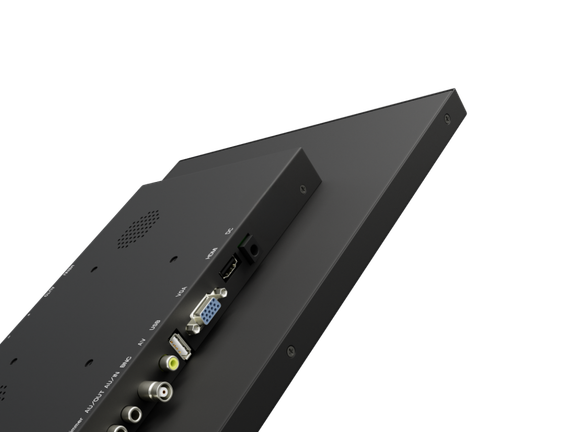

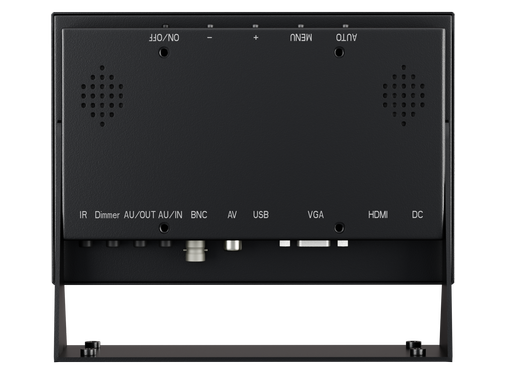

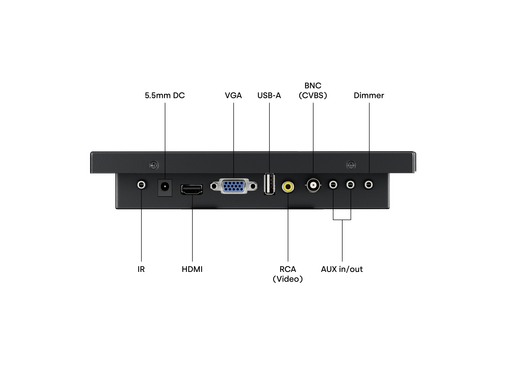

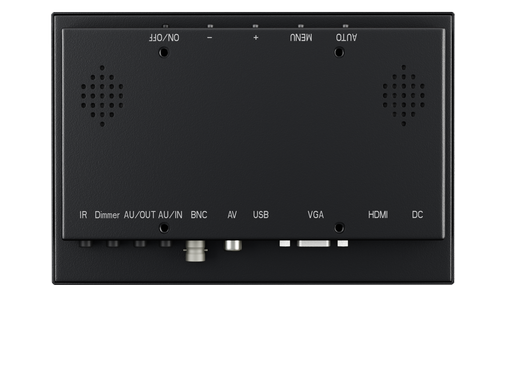

The 7HD7M has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.
The 7HD7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 28 Volts and features a fully dimmable backlight.

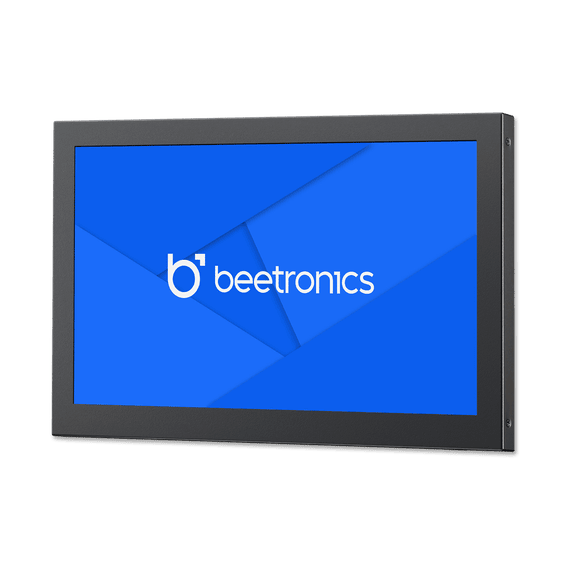

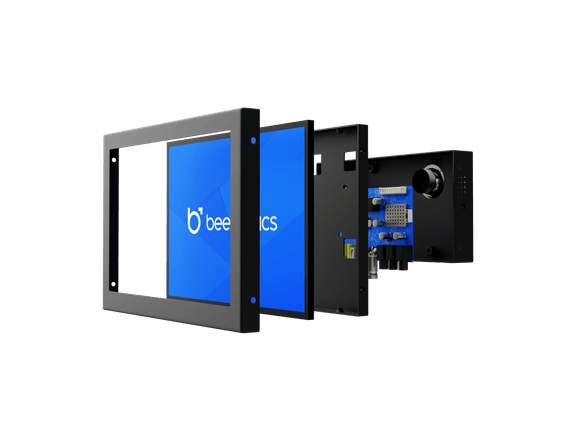

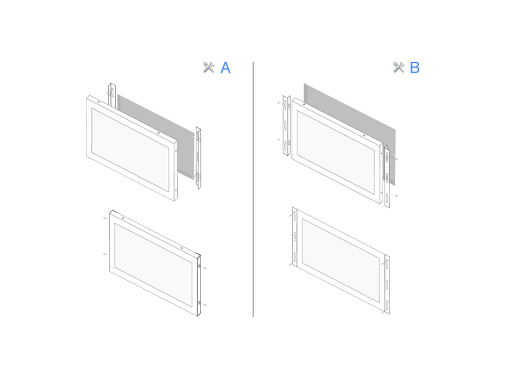

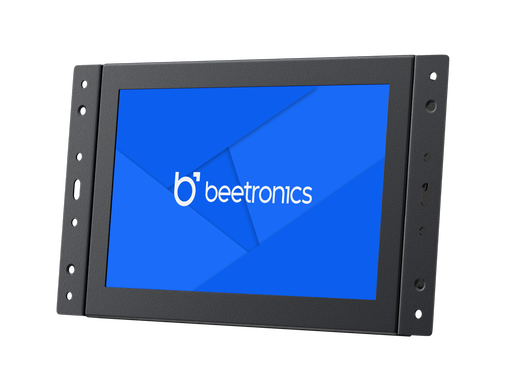

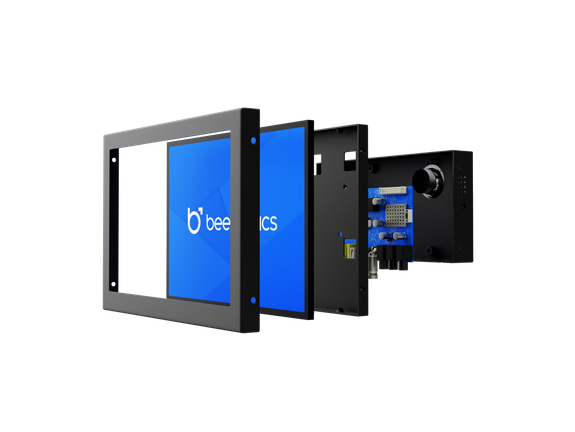

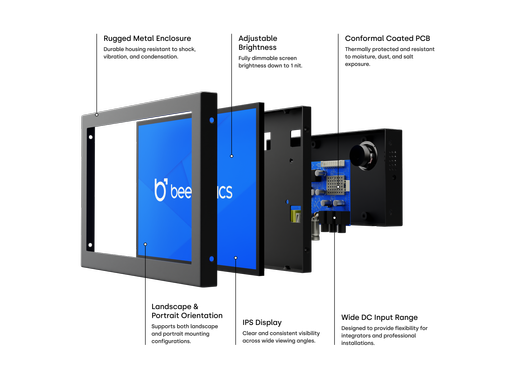

Thanks to numerous mounting options the 7 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

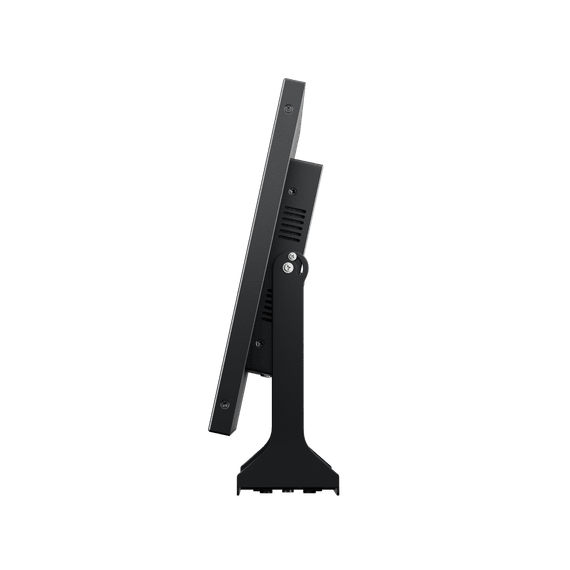

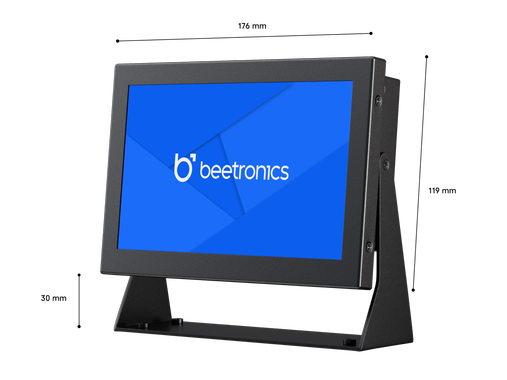

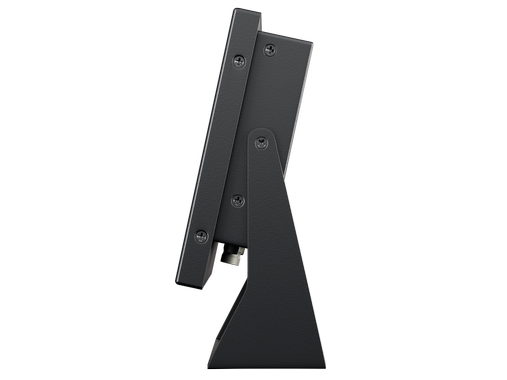

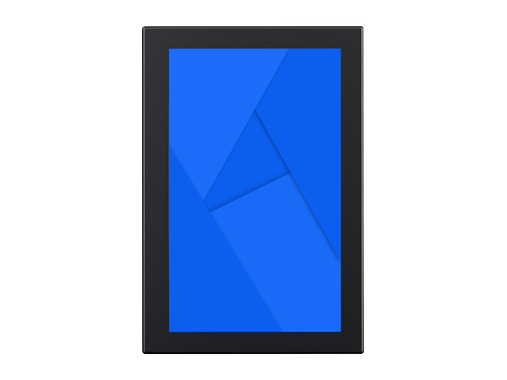

The Beetronics 7HD7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
7HD7M
|
Previous model |
7HDM
|
Product name |
7 inch monitor metal
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
Matte, LED-IPS
|
Diagonal size |
7 inches (177 mm)
|
Aspect ratio |
16:10 (16:9, 4:3 adjustable)
|
Native resolution |
1280 x 800
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
215 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
350 cd/m2
|
Contrast |
800:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
600 gram (800 gram with stand)
|

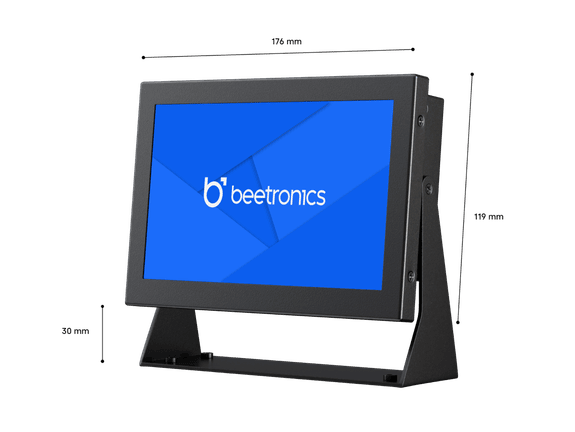

Width |
176 mm
|
Height |
119 mm
|
Thickness |
36 mm
|
Display dimensions |
150 x 94 mm
|
Technical drawing | |
3D drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 9-28V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
5.4 Watt
|
Environmental | |
---|---|
Operating temperature |
-20°C to +60°C
|
Storage temperature |
-20°C to +70°C
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH, IC, UKCA
|
Package content | |
---|---|

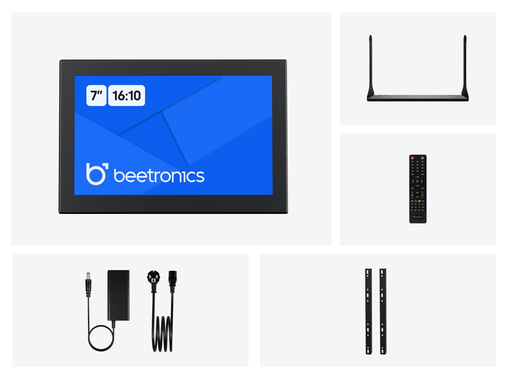

Includes |
Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D drawing | Download CAD/STP |
Datasheet | Download PDF |
Files |
---|
