10 Inch Touchscreen Metal
Model: 10TS7M
100+ units in stock
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal
10 Inch Touchscreen Metal

10 Inch Touchscreen Metal

Model: 10TS7M
100+ units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

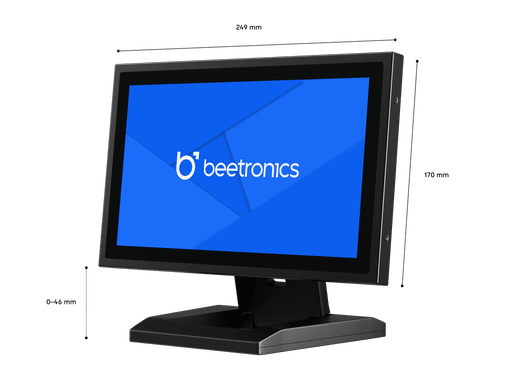

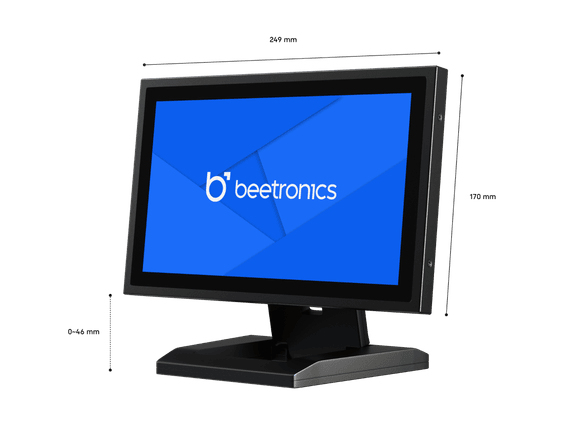

  4. External dimensions: 249 x 170 x 40 mm
  5. More specifications
Display Type
Monitor
Touchscreen
€ 458,59 incl.
Order before 11:55 PM for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

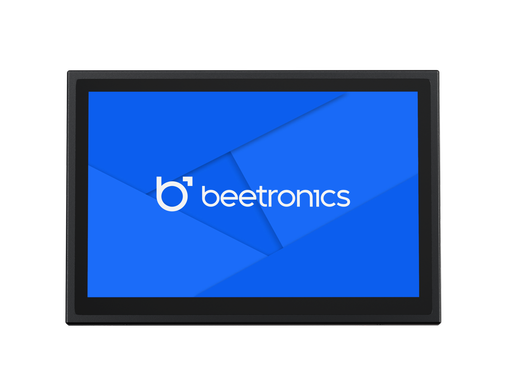

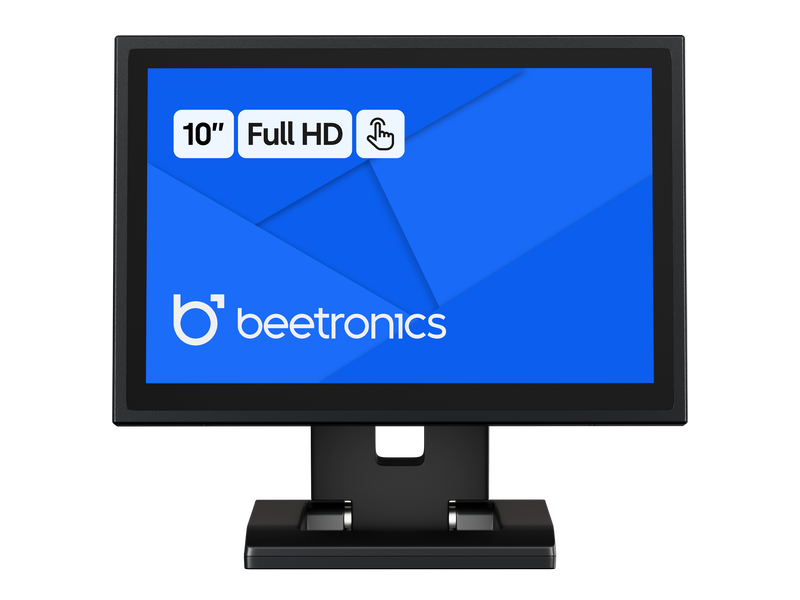

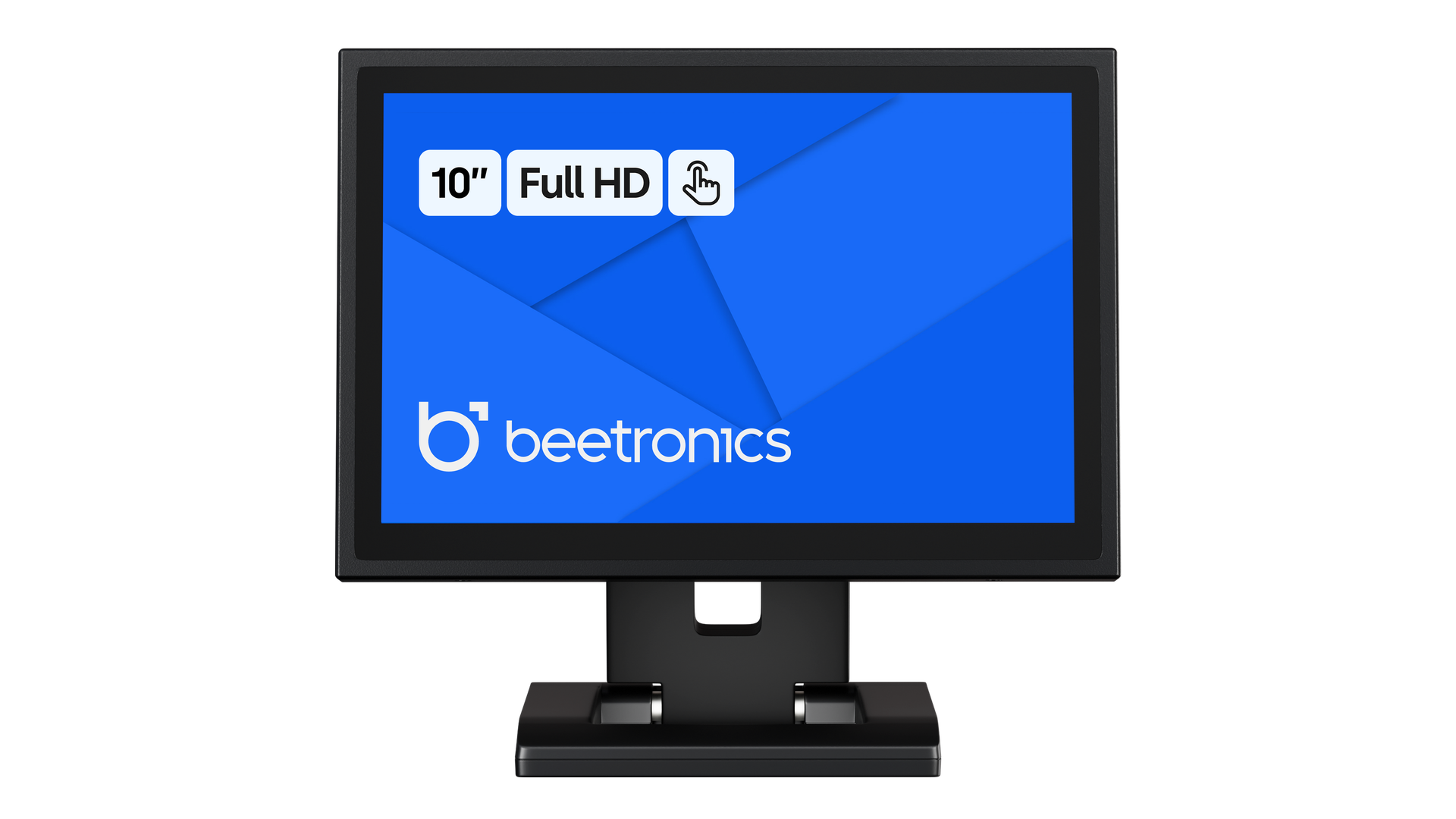

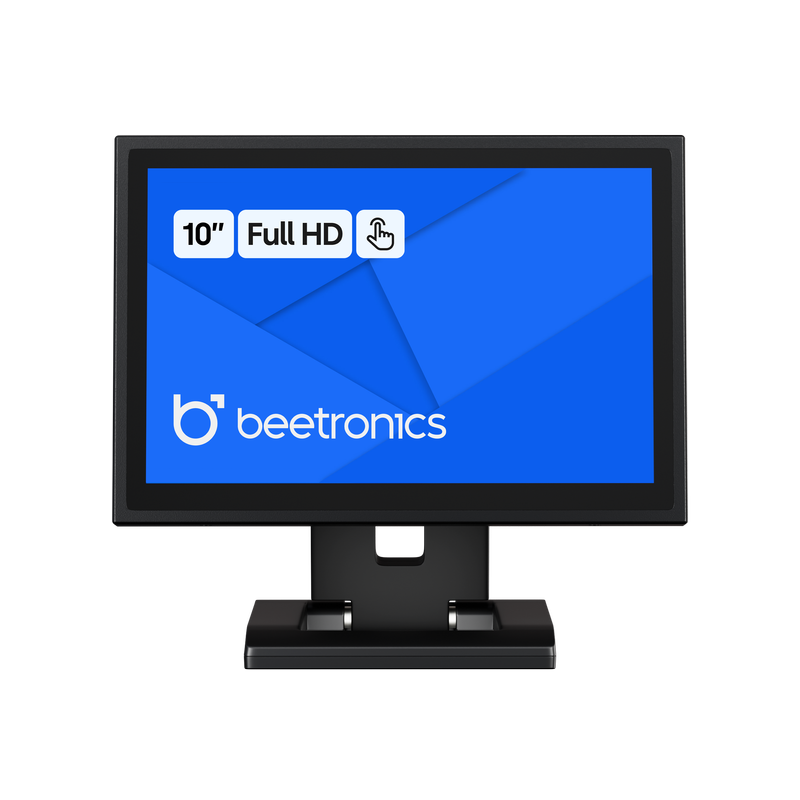

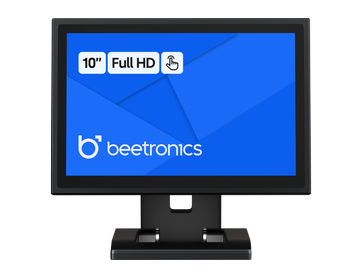

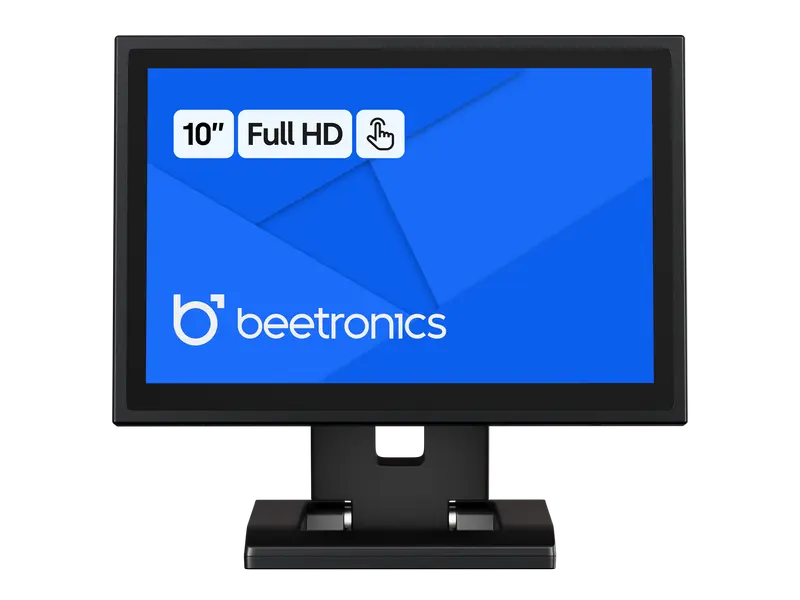

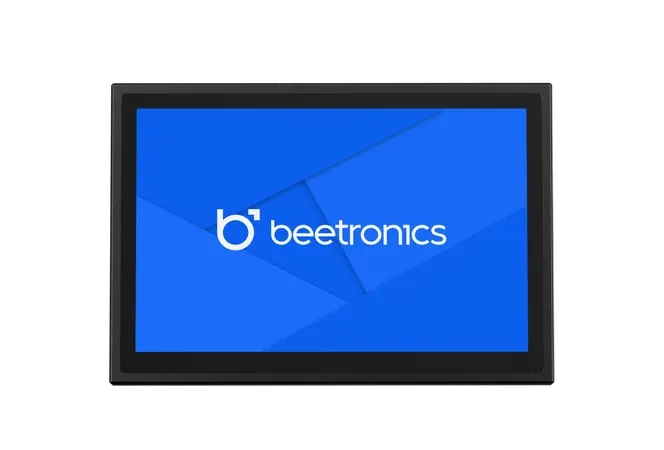

This Full HD 10 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 10TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 10TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

10 Inch Touchscreen Metal

Compatible with Windows,
macOS, ChromeOS and Linux

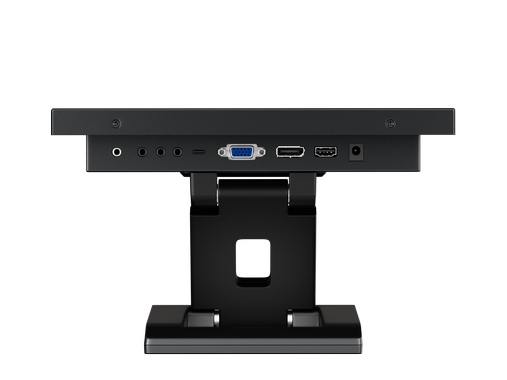

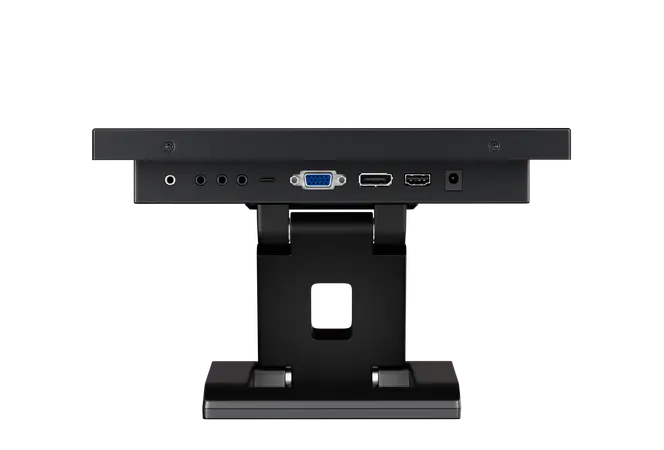

The 10 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

10 Inch Touchscreen Metal

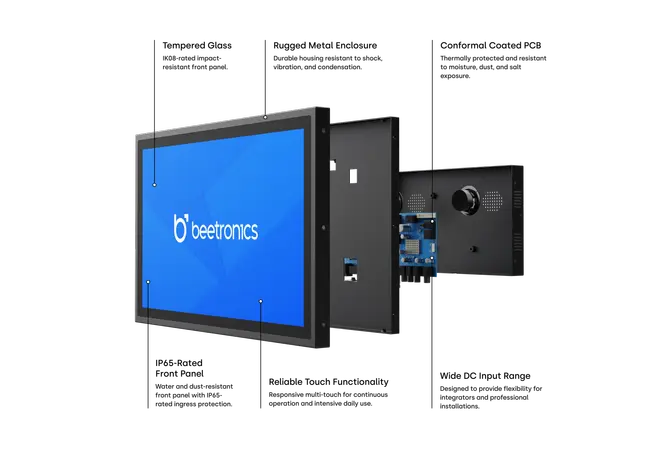

Designed for professional use

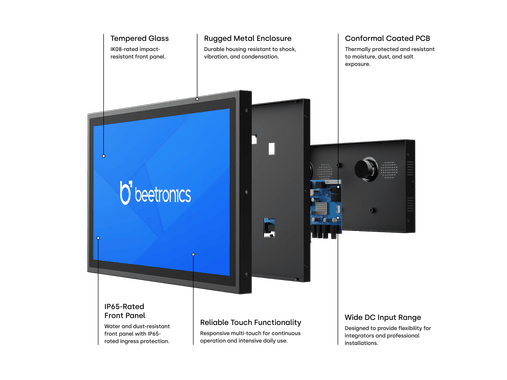

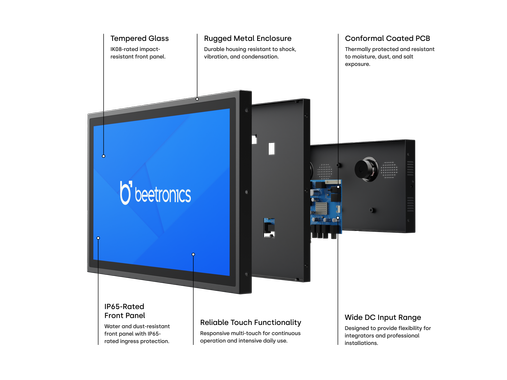

The 10TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

10 Inch Touchscreen Metal

Easily integrated

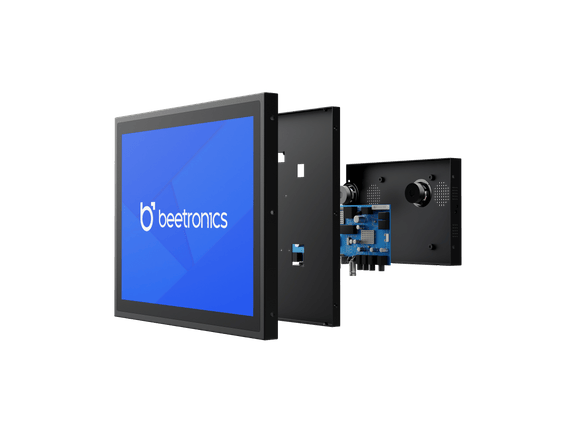

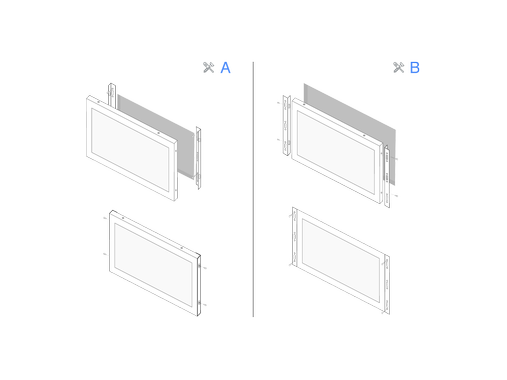

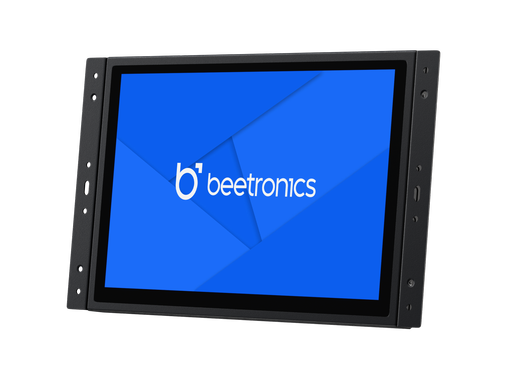

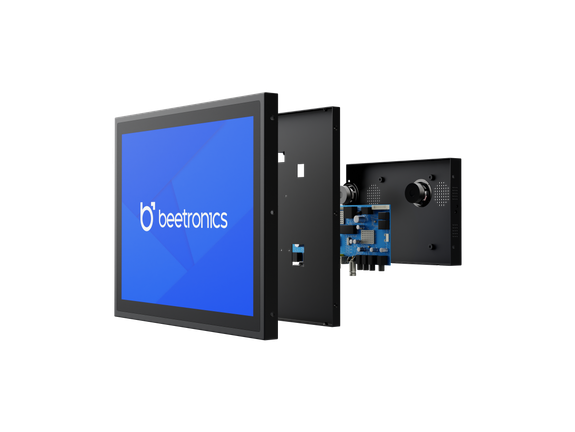

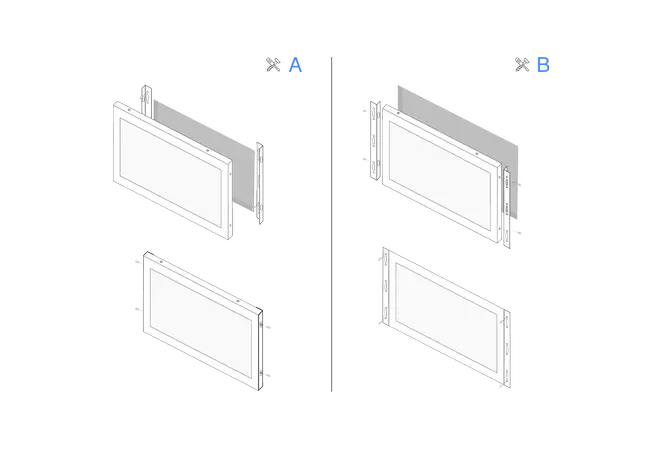

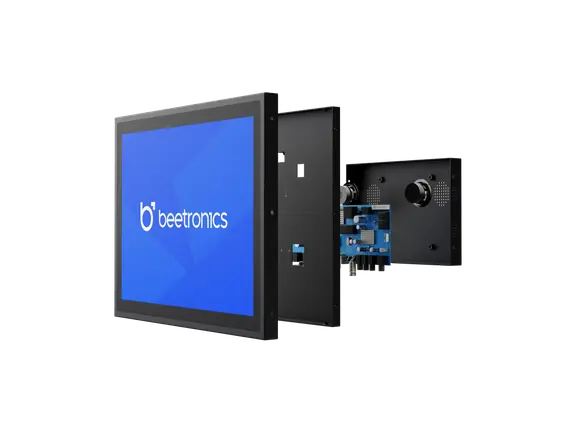

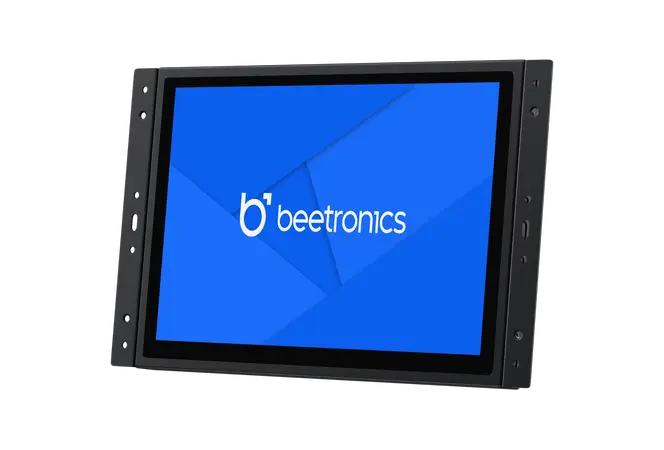

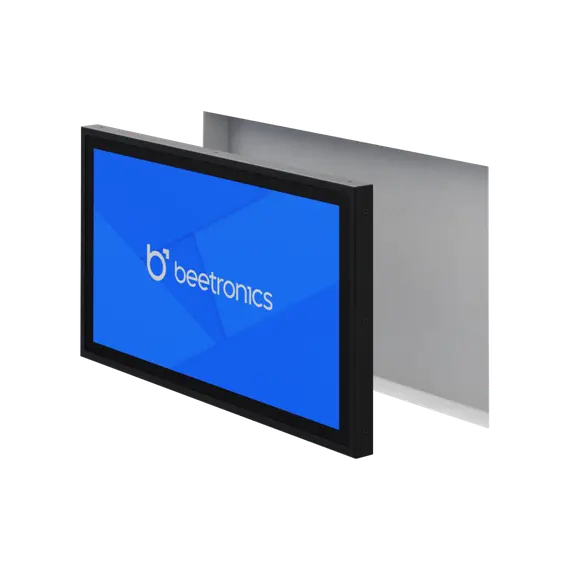

Thanks to numerous mounting options, the 10 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

10 Inch Touchscreen Metal

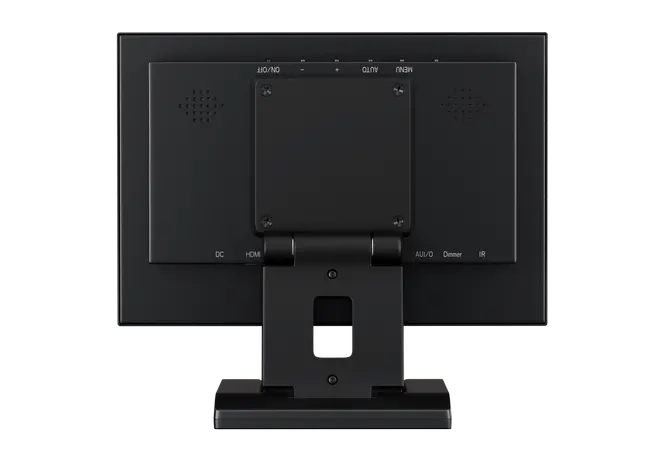

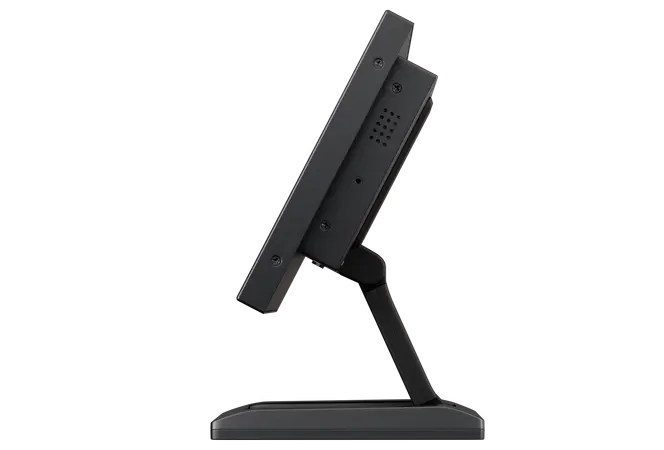

Desktop and wall mounting

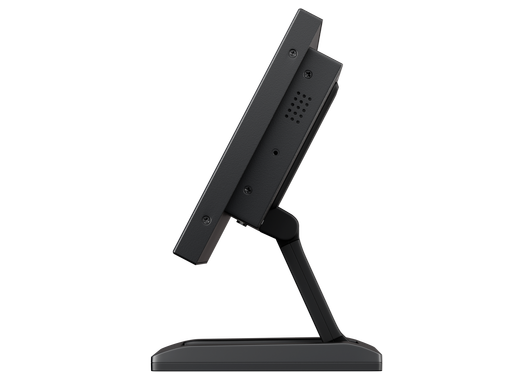

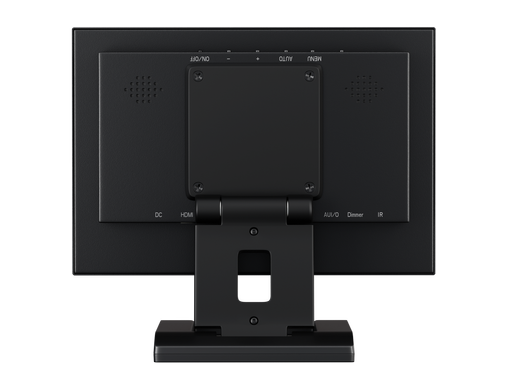

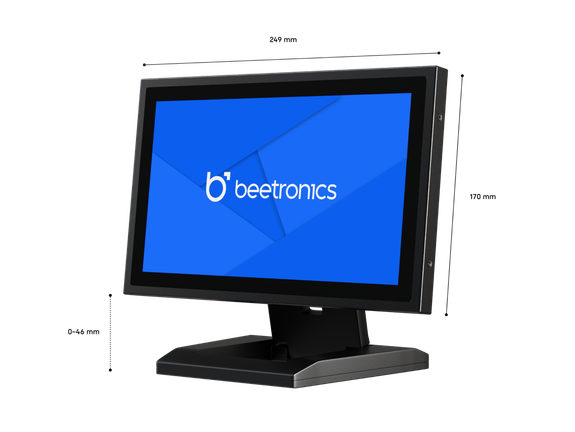

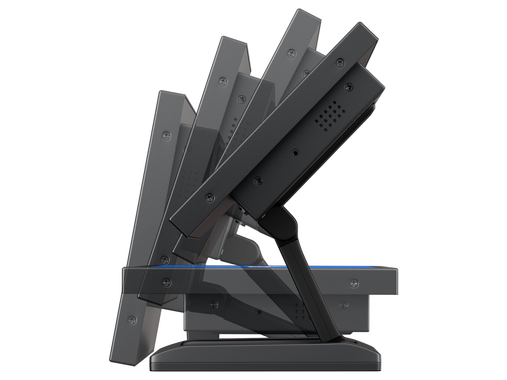

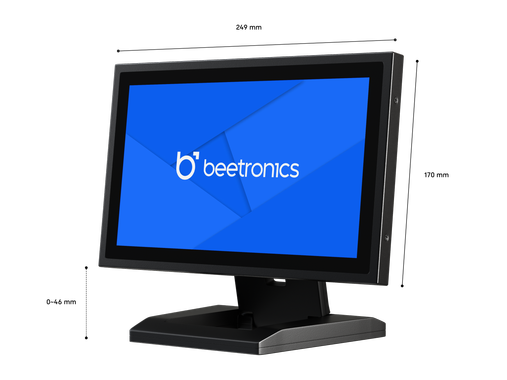

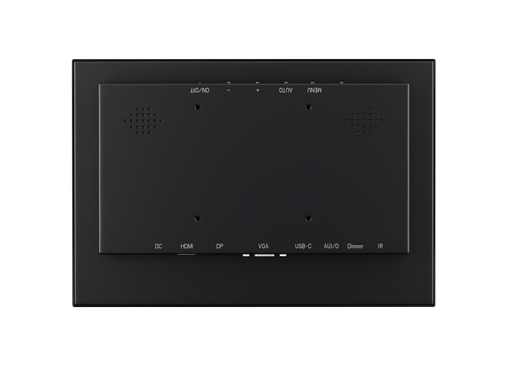

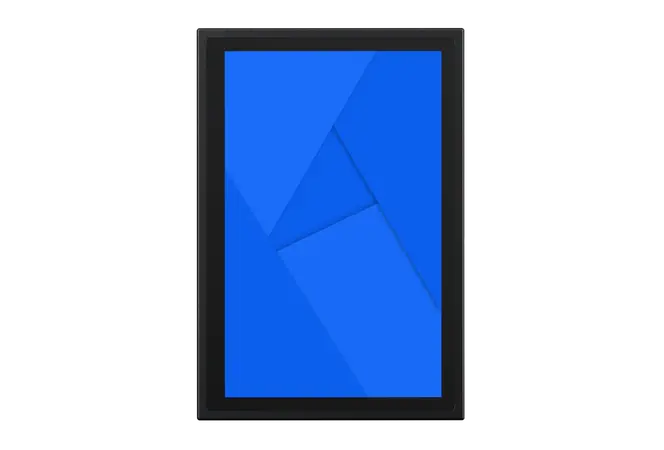

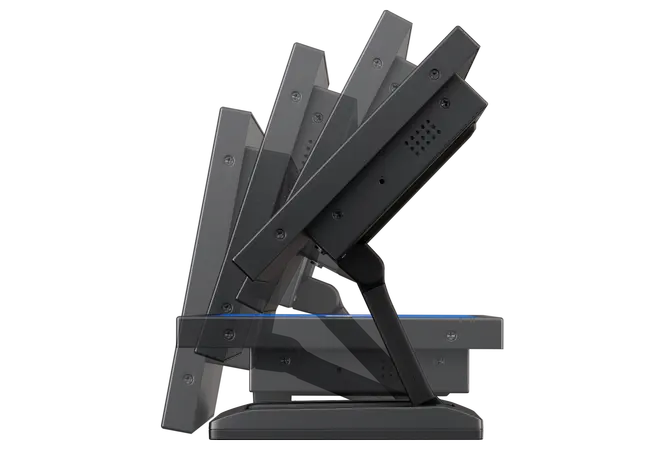

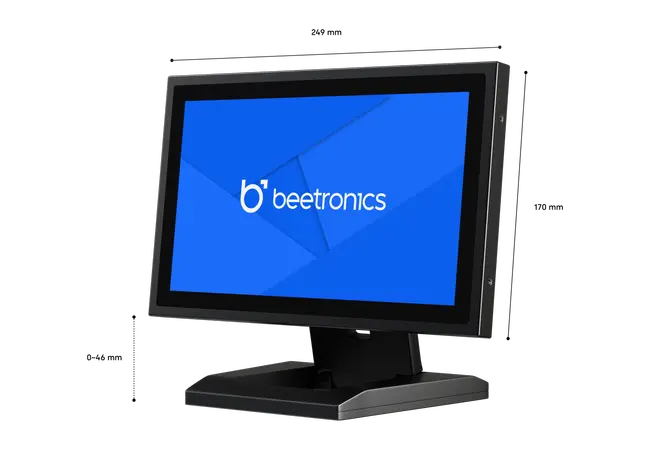

The Beetronics 10TS7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

10 Inch Touchscreen Metal
General
Manufacturer
Beetronics
Item number
10TS7M
Product name
10 Inch Touchscreen Metal
Warranty
2 years
Datasheet
User Manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
10.1 inches (258 mm)
Panel type
IPS-LCD
16:10 (16:9, 4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1200 (max), 640 x 480 (min)
Backlight
LED
Brightness
300 cd/m2
Contrast
1500:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

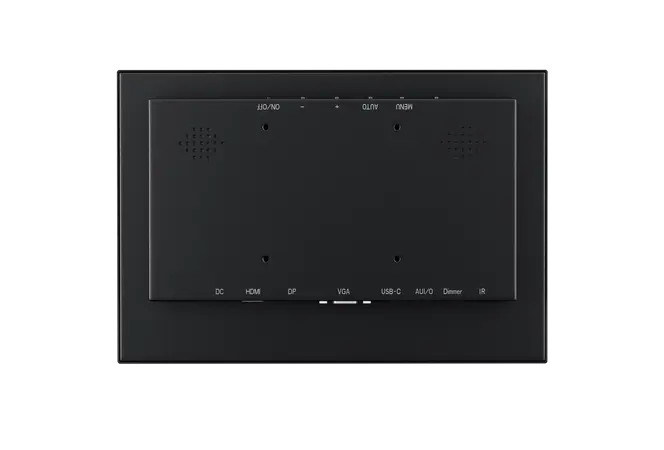

Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
1350 grams (1750 grams with stand)
Width
249 mm
Height
170 mm
Thickness
40 mm
Display dimensions
218 x 136 mm
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
Typical 9.8 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 80% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK07
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

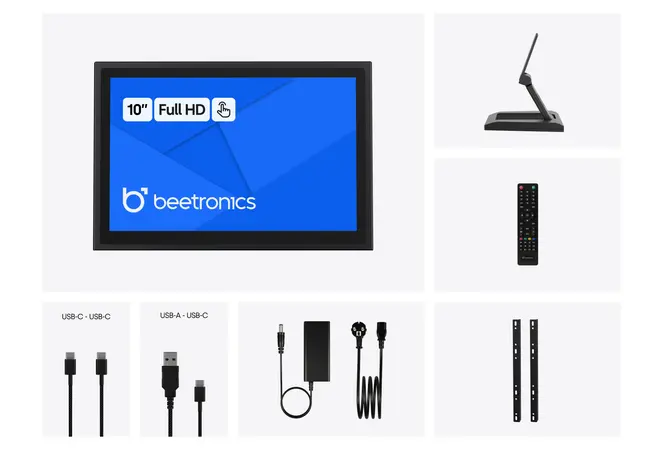

Package content
Includes

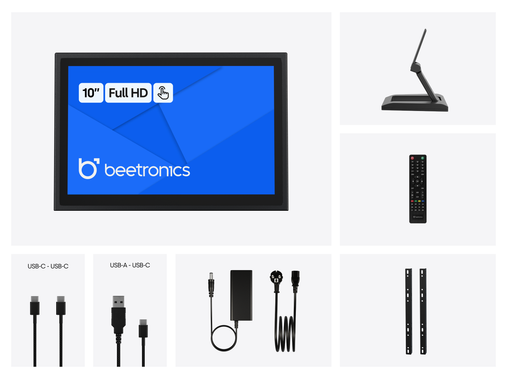

Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK3 included as standard
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
10 Inch Touchscreen Metal
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
