19 Inch Touchscreen Metal
Model: 19TS7M
36 units in stock
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal
19 Inch Touchscreen Metal

19 Inch Touchscreen Metal

Model: 19TS7M
36 units in stock
  1. Full HD multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 480 x 294 x 45 mm
  5. More specifications
Display Type
Monitor
Touchscreen
€ 688,49 incl.
Order by 16:00 for Delivery on Monday
  • Description
  • Specifications
  • Connectivity
  • Downloads

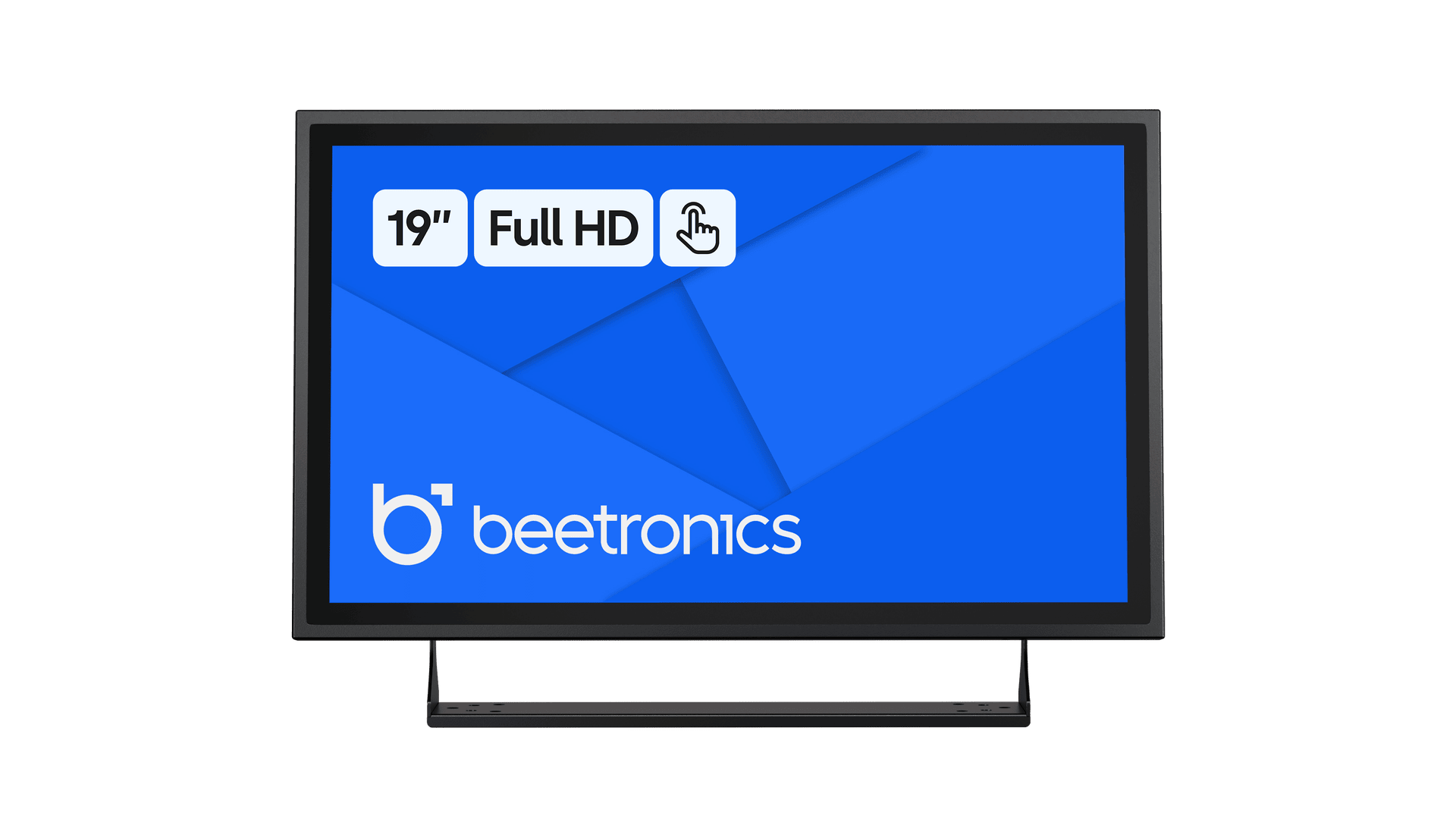

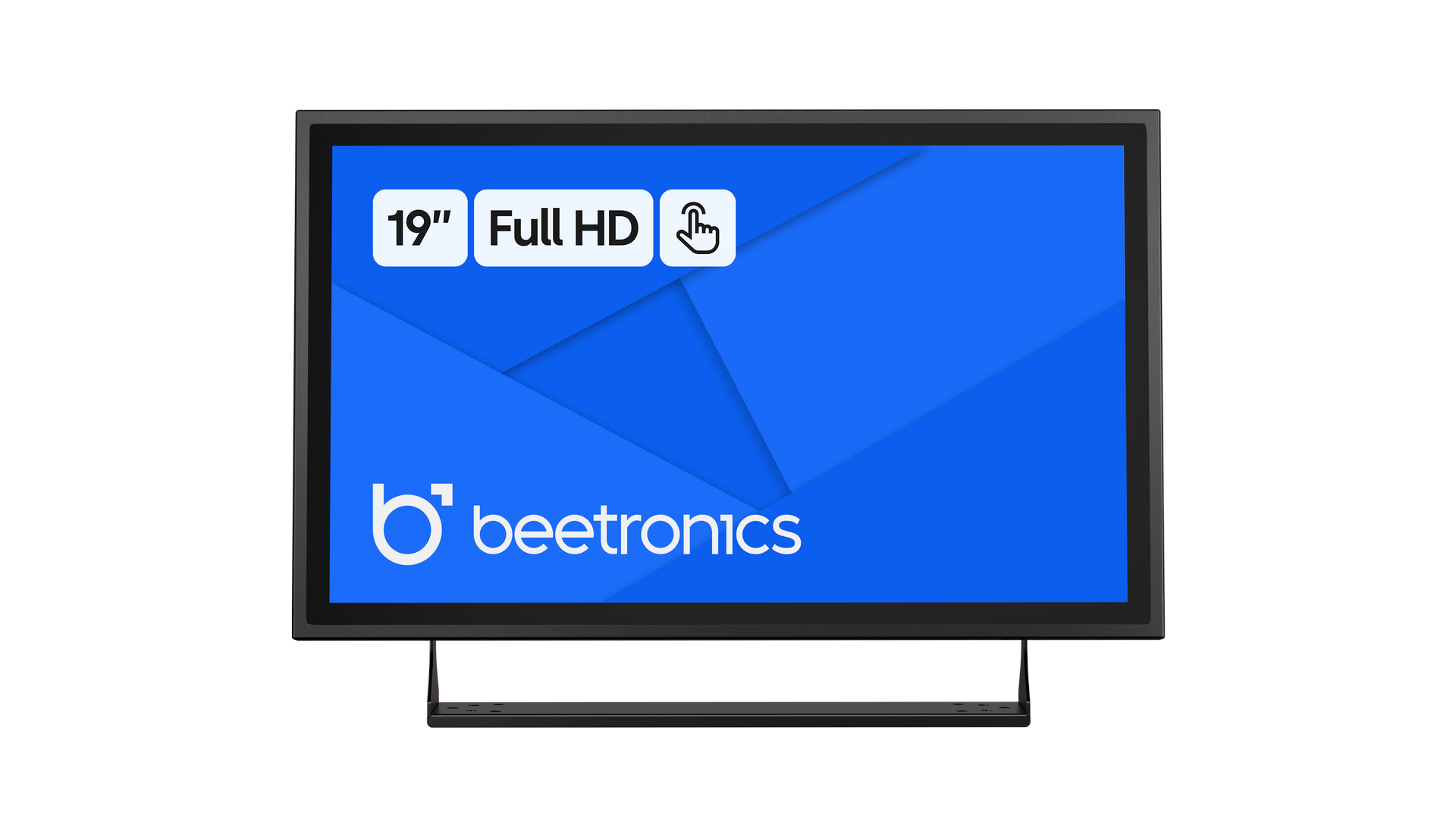

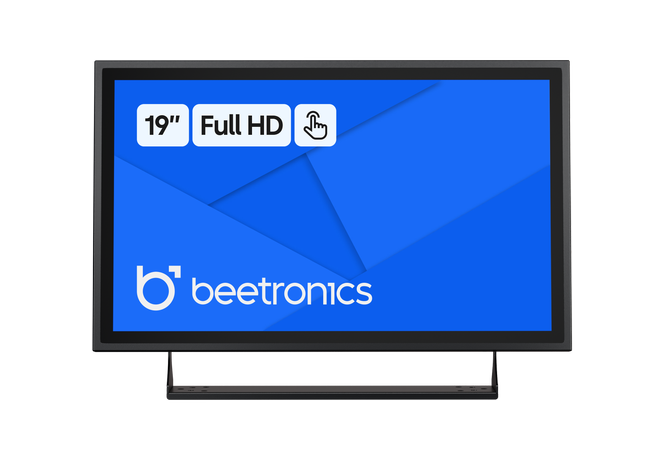

This Full HD 19 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 19TS7M delivers best-in-class picture quality with excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Full HD Multi-Touch Panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 19TS7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

19 Inch Touchscreen Metal

Compatible With Windows,
macOS, ChromeOS and Linux

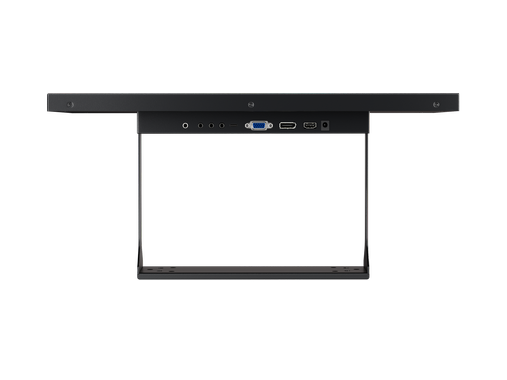

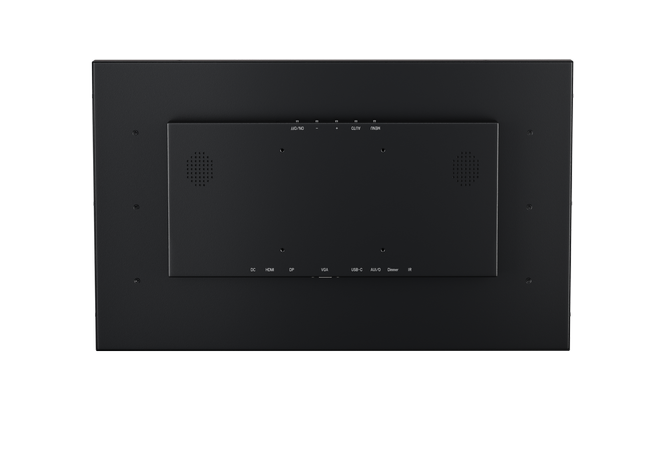

The 19-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

19 Inch Touchscreen Metal

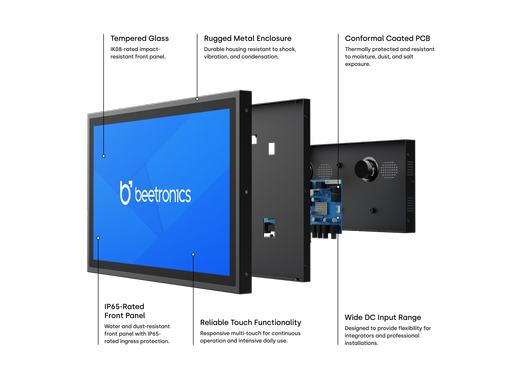

Designed for Professional Use

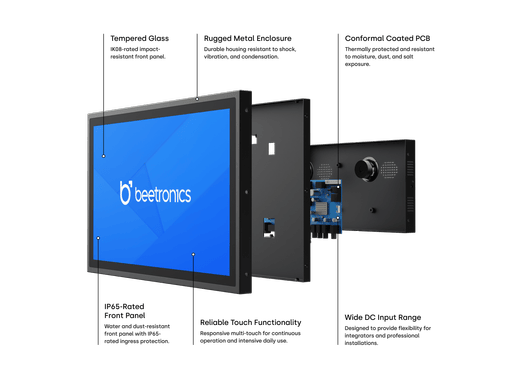

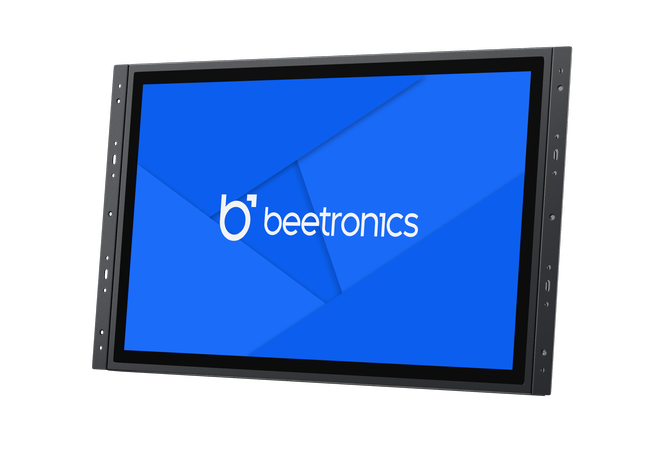

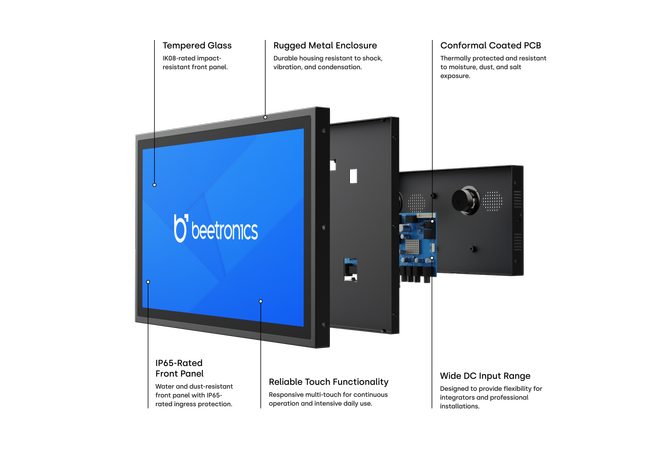

The 19TS7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

19 Inch Touchscreen Metal

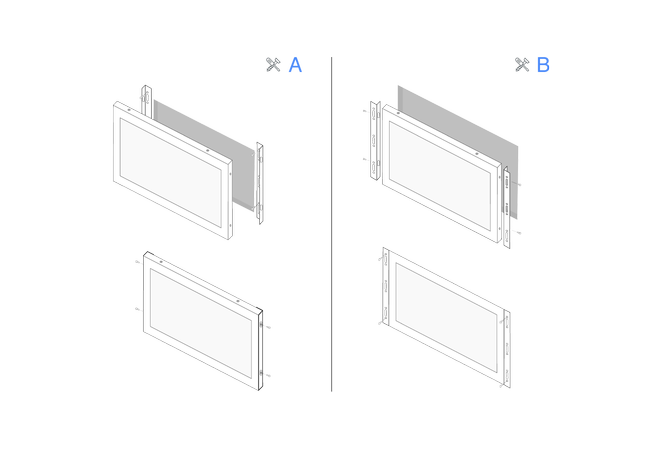

Easily Integrated

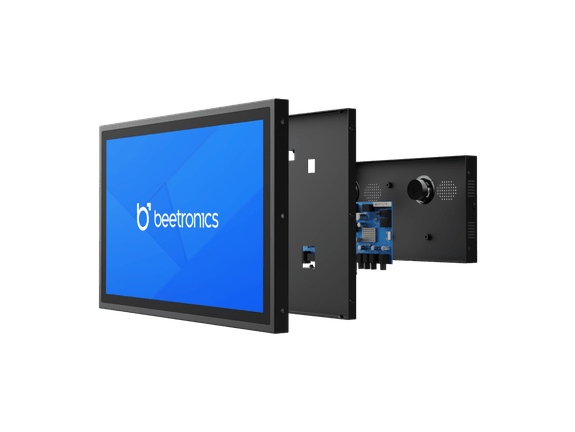

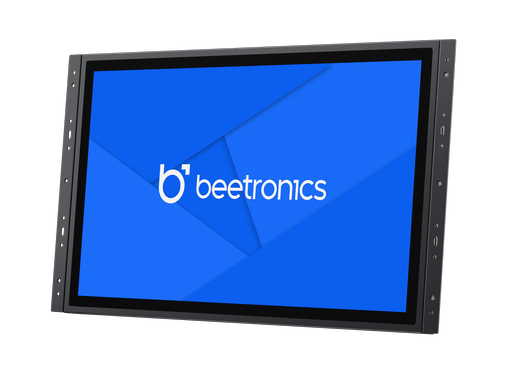

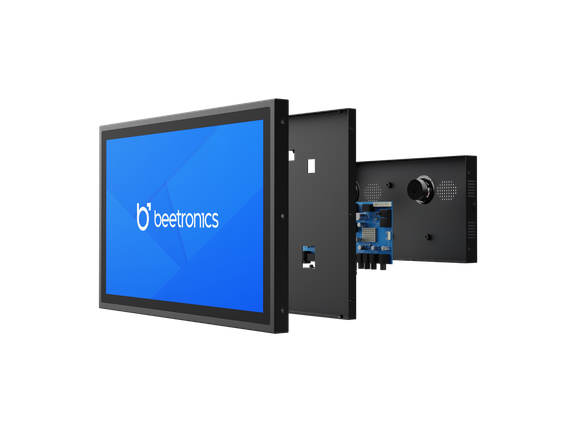

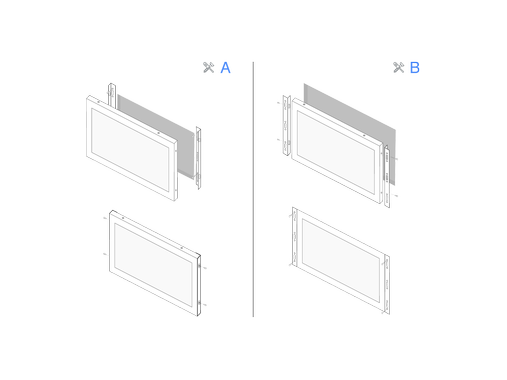

Thanks to numerous mounting options, the 19 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

19 Inch Touchscreen Metal

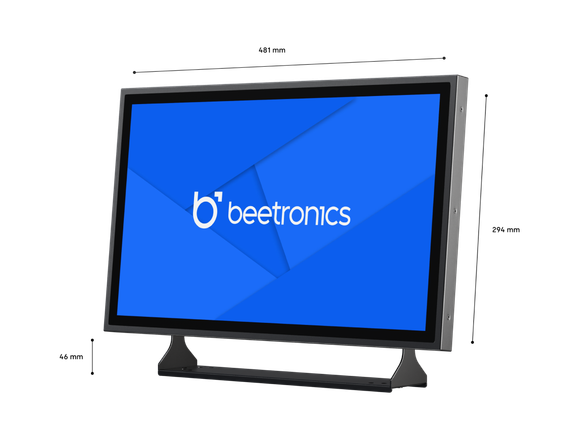

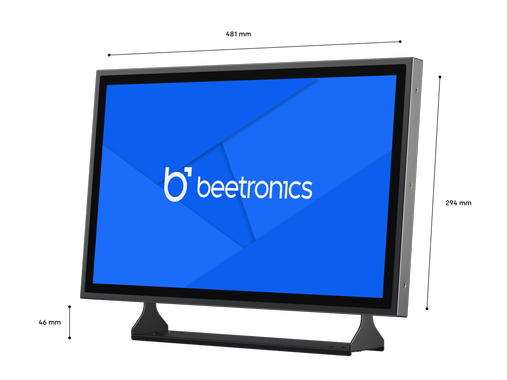

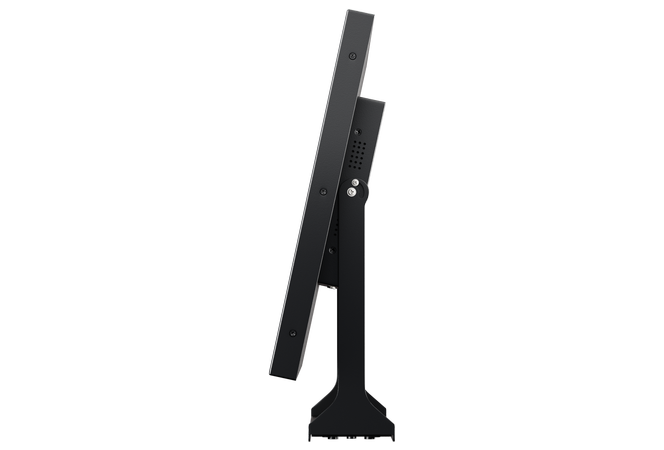

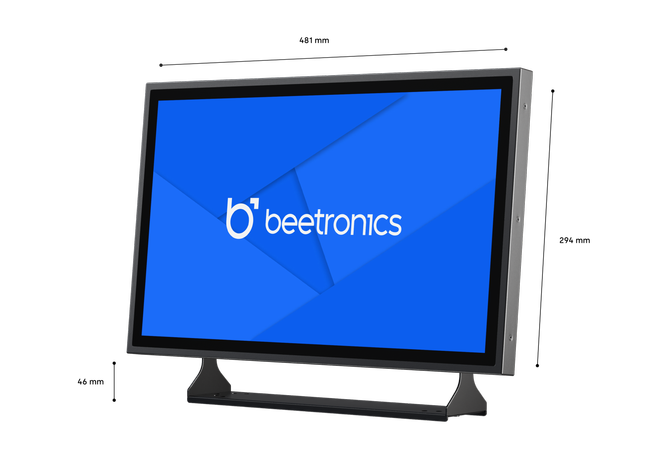

Desktop and Wall Mounting

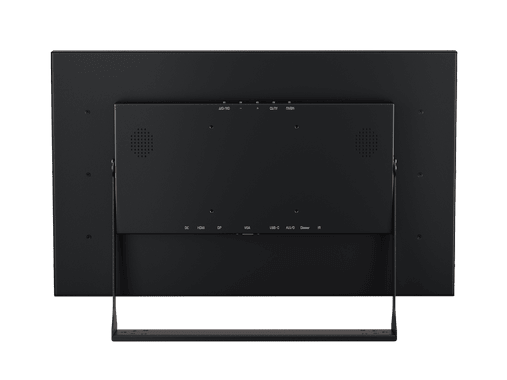

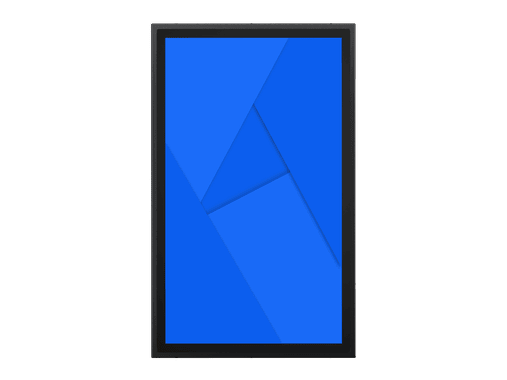

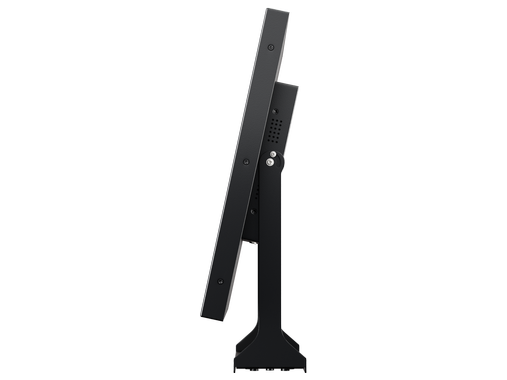

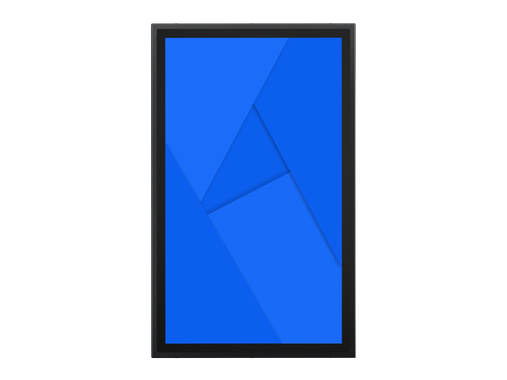

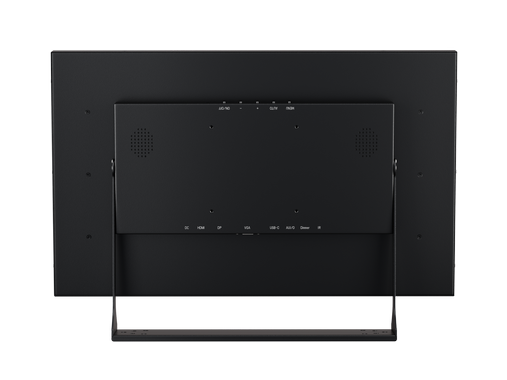

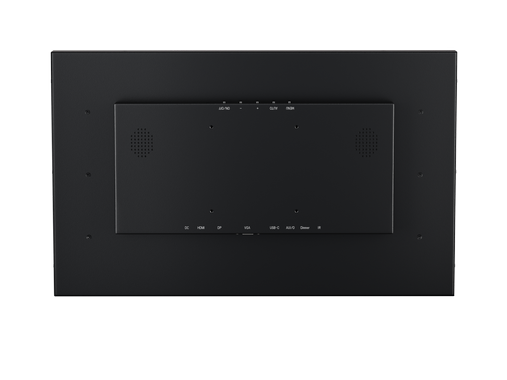

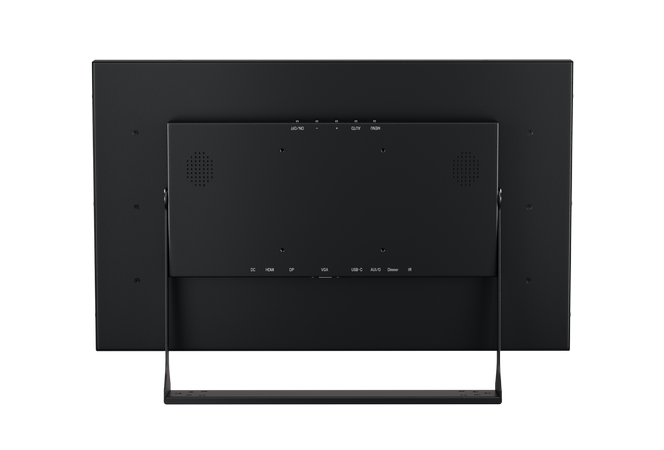

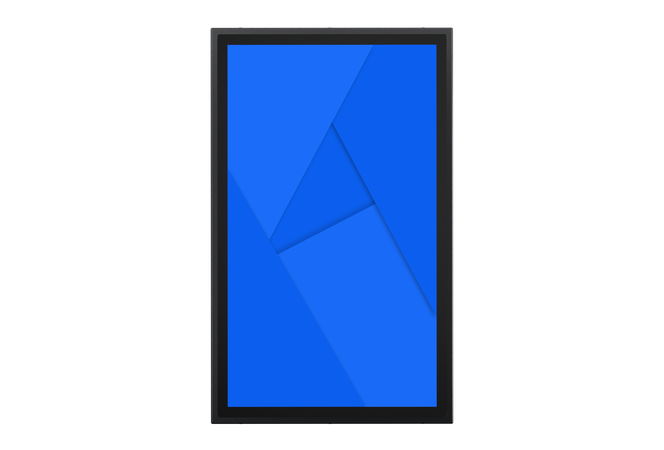

The Beetronics 19TS7M  has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

19 Inch Touchscreen Metal
General
Manufacturer
Beetronics
Item Number
19TS7M
Product Name
19 Inch Touchscreen Metal
Warranty
2 Years
Datasheet
User Manual
Quickstart
Supported Operating Systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Sequoia, Sonoma, Ventura
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Panel
Diagonal Size
19.5 Inches (499 mm)
Panel Type
IPS-LCD
16:9 (4:3 Adjustable)
Response Time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
300 cd/m2
Contrast
3000:1
Colour Encoding System
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Surface
Tempered glas
Capacitive, 10-Point Multi-Touch (PCAP)
Touch control
Stylus, Hand, Glove

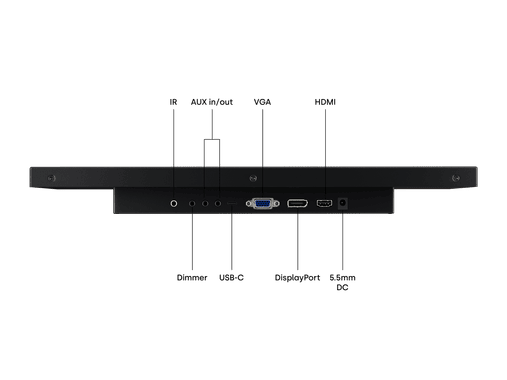

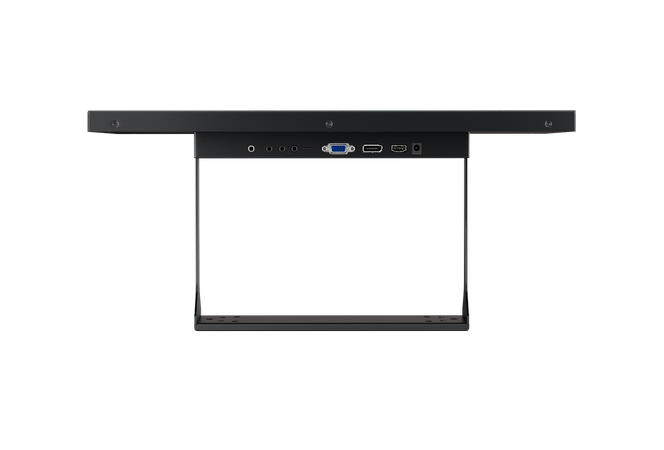

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, Audio, Touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x

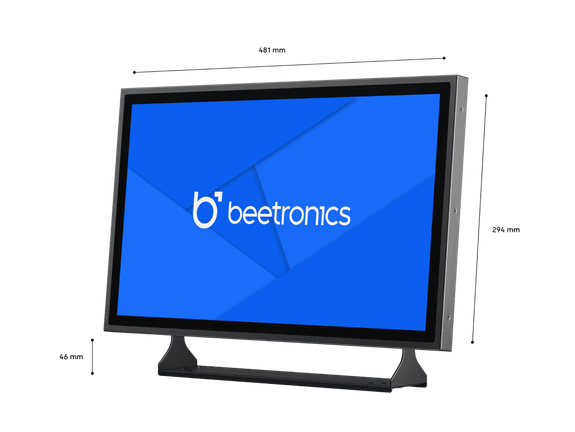

Size & Weight
Colour
Black
Dimensions (Without Stand)
480 x 294 x 45 mm
Active Area
463 x 276 mm
Weight
4600 Grams (5400 Grams With Stand)
Technical Drawing
3D Drawing
Features & Functions
Audio
Integrated Speakers
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable Backlight Brightness
Orientation
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-33V
Consumption
Typical 21.0 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-20°C to +60°C
Storage Temperature
-20°C to +70°C
Operating Humidity
20% - 85% Non-Condensing
Mounting
VESA 100x100mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Certifications & Standards
IP65 Front Panel
Impact Protection
IK08
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, C-Tick, UKCA, e-Mark, EN50155, EN60601-1, EN60601-1-2, CCC

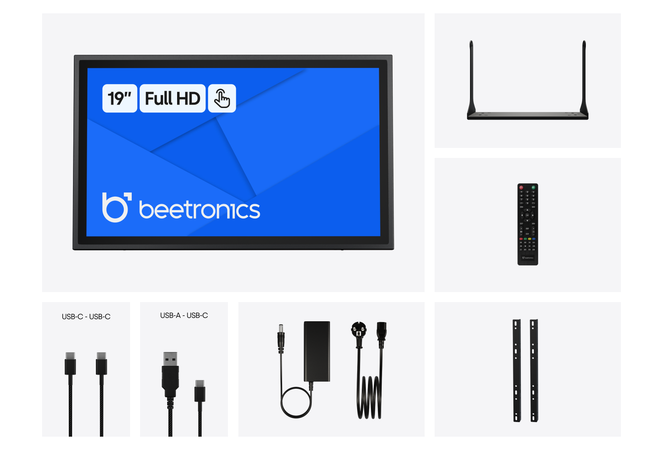

Package Content
Includes

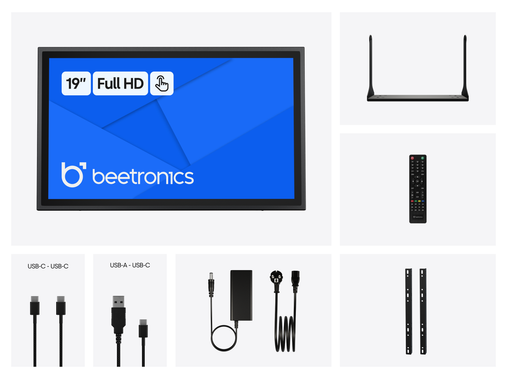

Touchscreen, USB Cable, Remote Control, AC Power Adapter, Stand, Installation Strips, Manual
Compatible Accessories
Infrared Extension
Compatible With Infrared Extender (IRC7)
Dimmer
Compatible With External Dimmer (DMK7/DMK8)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
Compatible With VDK7 Metal Stand
Touch Pen
Compatible With CTS7 Capacitive Touchscreen Stylus
19 Inch Touchscreen Metal
Downloads
User Manual
Quickstart
Technical Drawing
3D Drawing
Datasheet
