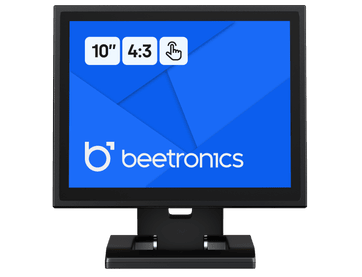

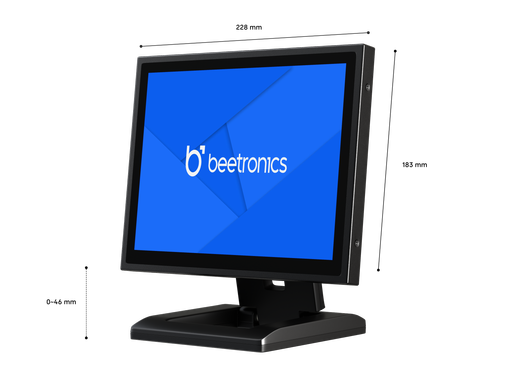

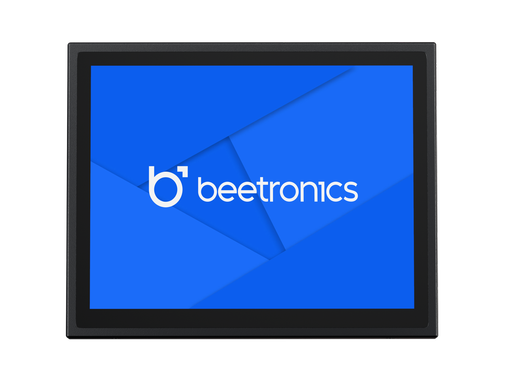

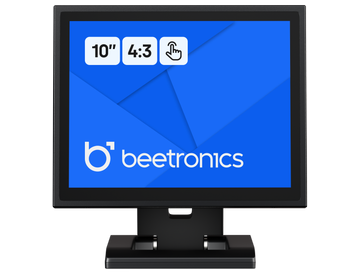

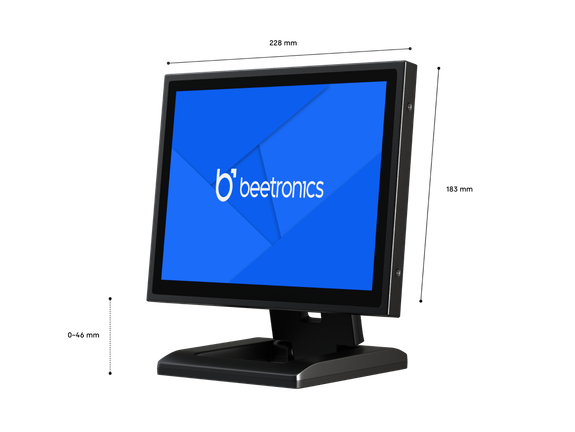

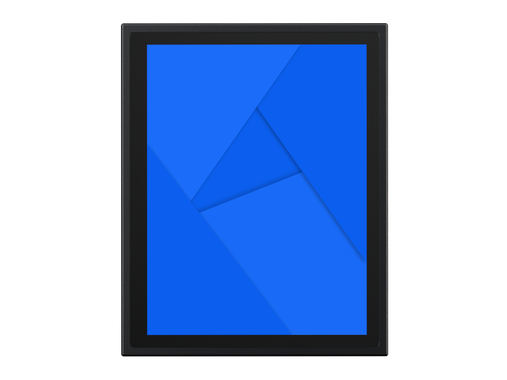

This 10 inch touchscreen monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The touchscreen is equipped with an IPS panel with a 4:3 aspect ratio which provides crystal-clear image quality with excellent 178° viewing angles. The 10TS4M can be connected through a HDMI, VGA, BNC or RCA connection.
Fitted with a 4:3 IPS panel, the monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.
The 10TS4M touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

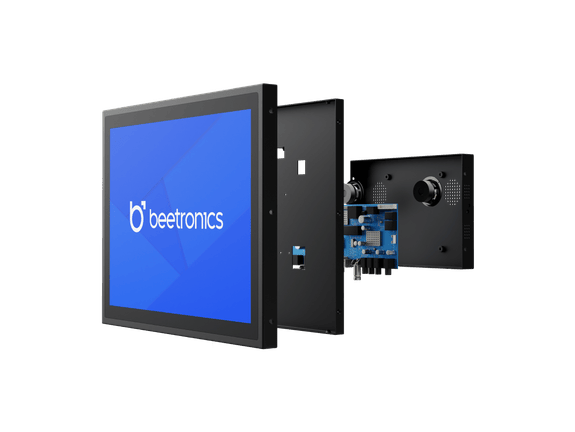

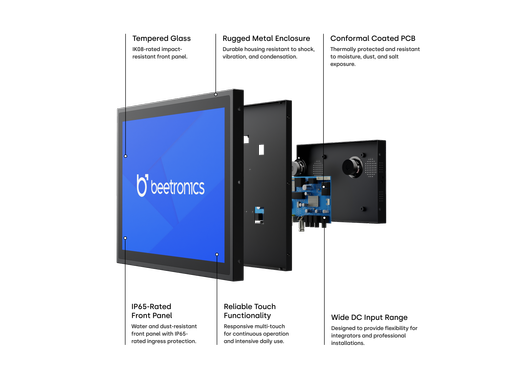

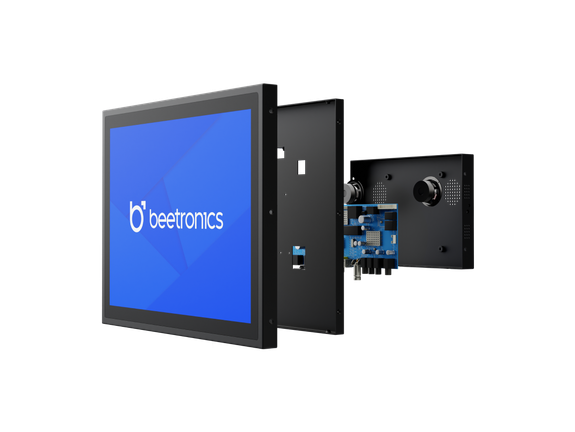

The 10TS4M is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 10TS4M is ideal for professional use.

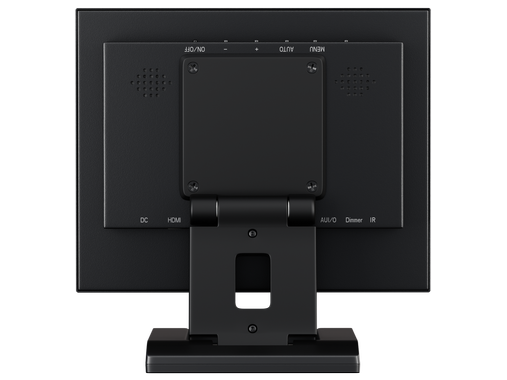

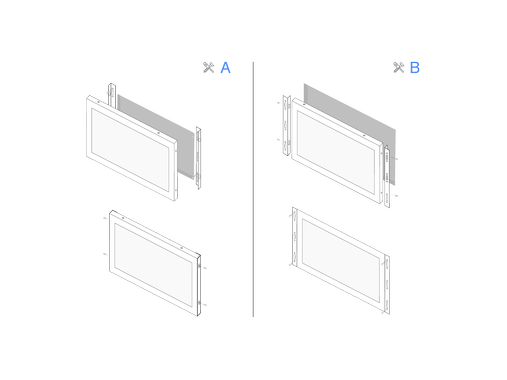

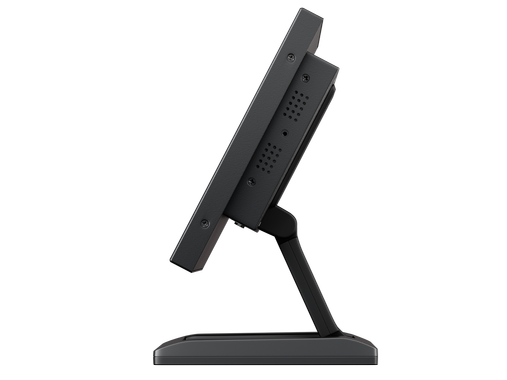

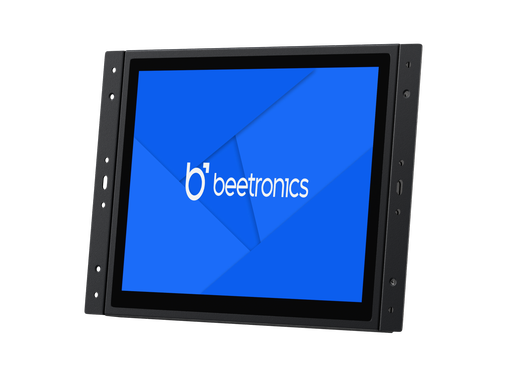

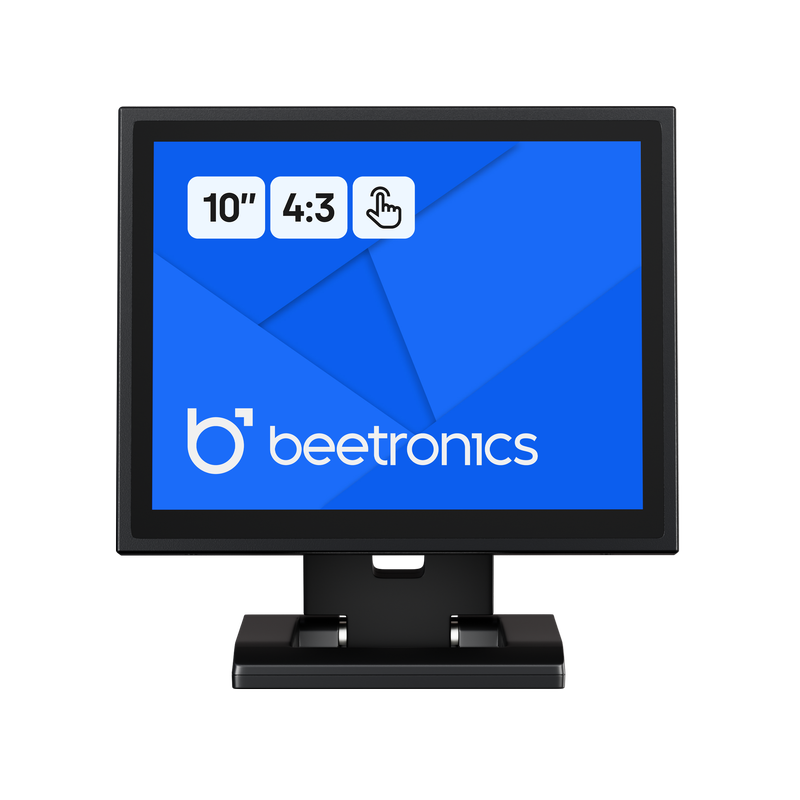

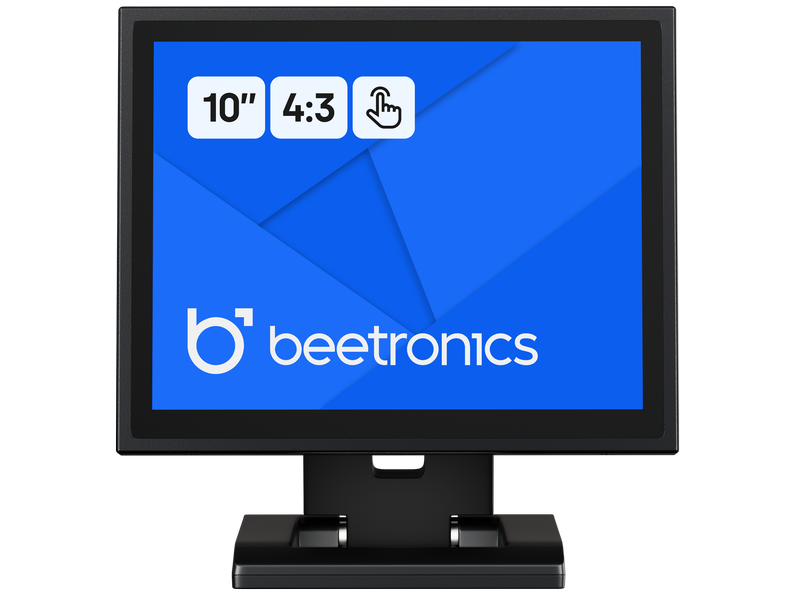

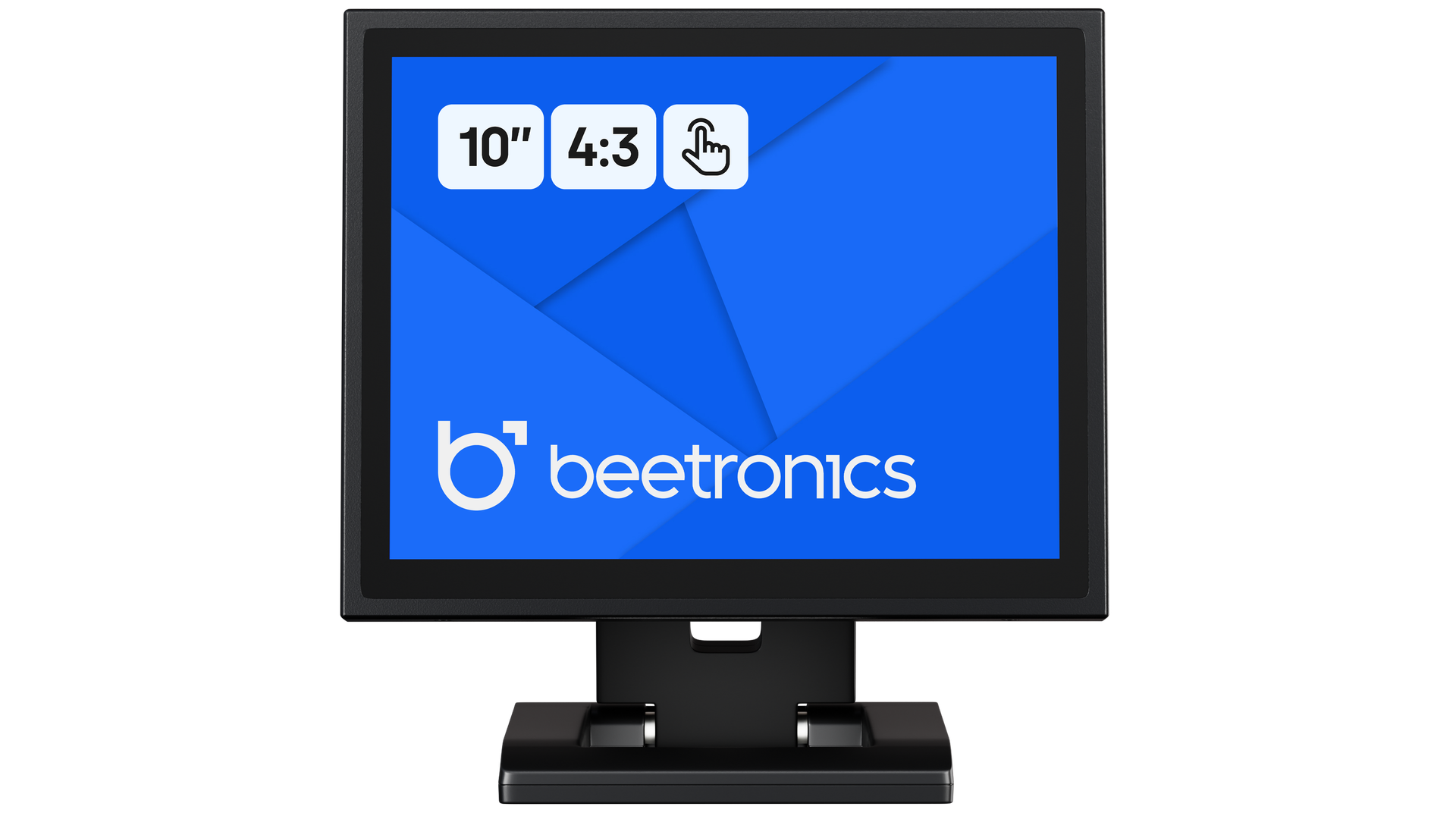

The Beetronics 10TS4M has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
10TS4M
|
Product name |
10 inch touchscreen metal (4:3)
|
Warranty |
2 years
|
Datasheet | |
Manual |
Supported operating systems | |
---|---|
Windows |
(Windows 7, 8, 10)
|
Windows Embedded |
(Windows embedded 7, 8, 10)
|
Mac |
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
|
Linux |
|
Android |
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
|
Drivers |
No drivers needed. Plug & Play
|
Panel | |
---|---|
Type |
LED-IPS
|
Screen diagonal |
9.7 inches (247 mm)
|
Aspect ratio |
4:3
|
Native resolution |
1024 x 768
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
132 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
350 cd/m2
|
Contrast |
800:1
|
Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
Control |
Stylus, hand, glove
|

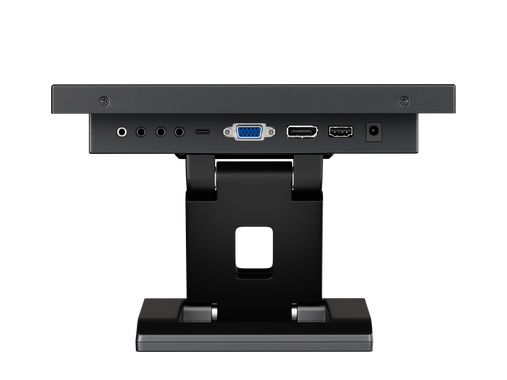

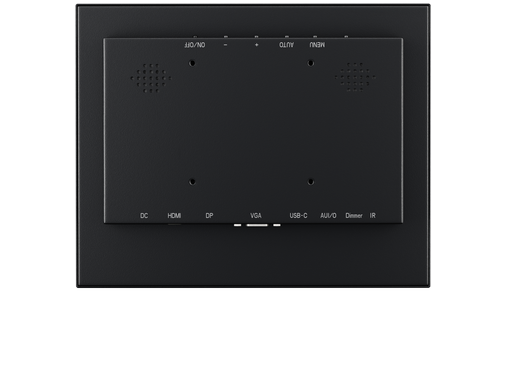

Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX output |
1x
|
USB |
Only for touchscreen functionality
|

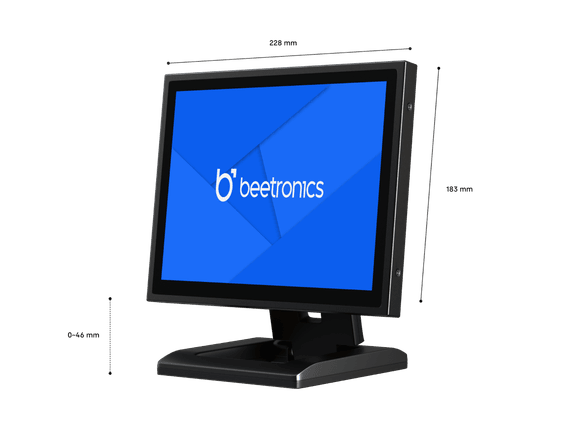

Size & weight | |
---|---|
Colour |
Black
|
Weight |
1410 gram (1830 gram with stand)
|
Width |
227 mm
|
Height |
183 mm (+0 to 39 mm with stand)
|
Thickness |
38 mm
|
Display dimensions |
197 x 148 mm
|
Technical drawing | |
3D drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 12V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<15 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |

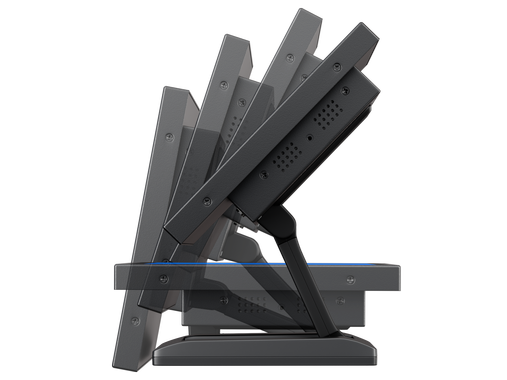

Adjustable and detachable
|
Certifications & Standards | |
---|---|
IP rating |
IP65 front panel
|
Certifications |
CE, FCC, RoHS, REACH
|

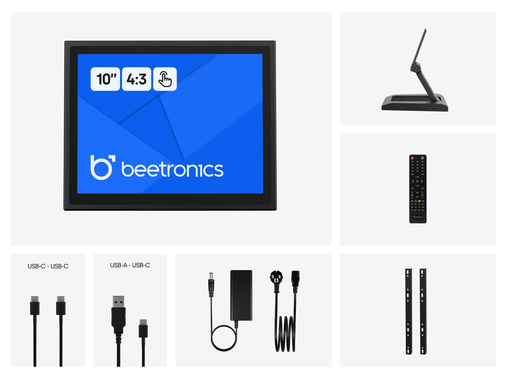

Package content | |
---|---|
Includes |
Touchscreen, USB cable, Remote control, Mains adaptor, Stand, Installation strips, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
3D drawing | Download CAD/STP |
Datasheet | Download PDF |
