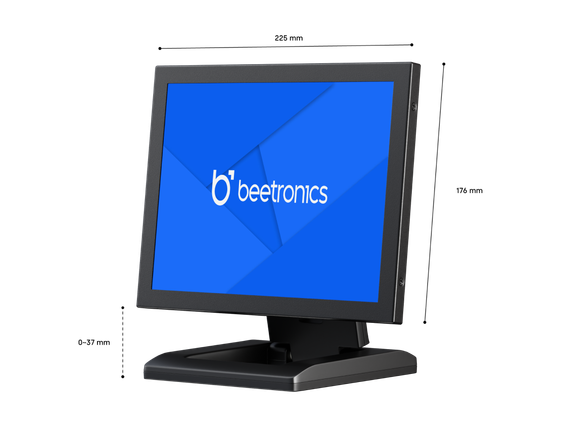

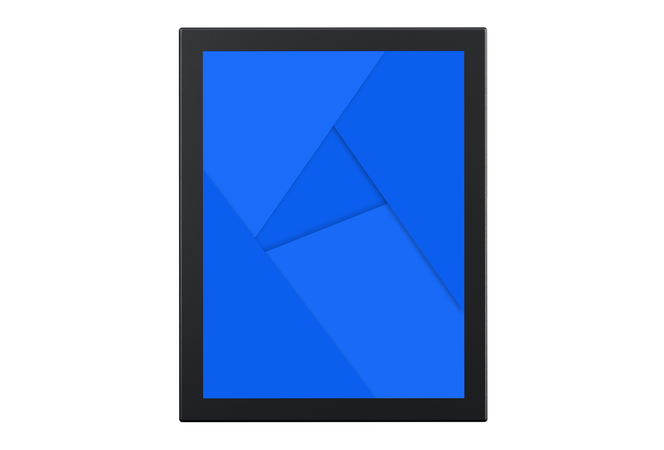

10 inch monitor metal (4:3)

  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC and RCA
  3. Desktop, flush and wall mountable
  4. 225 x 176 x 33 mm
Item number: 10VG7M
100+ units in stock

Order before 23:59 for delivery on Monday

€ 289,00 € 238,84 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

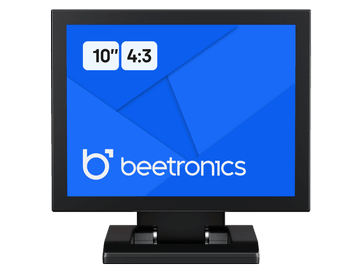

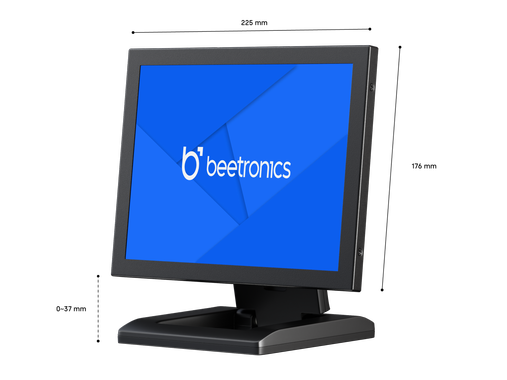

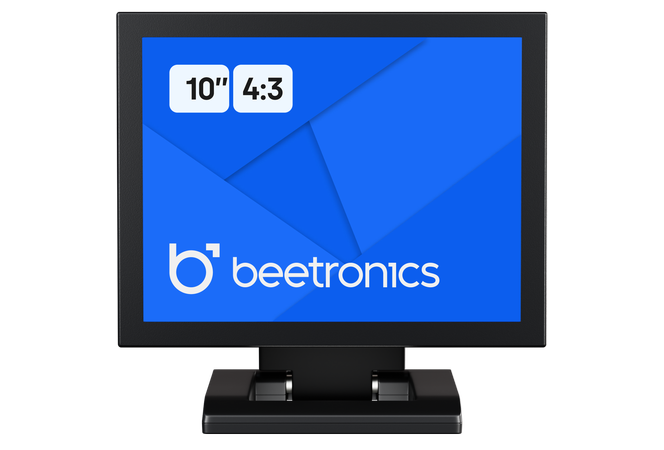

This 10 inch monitor has a matte IPS panel with a  4:3 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 10 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.

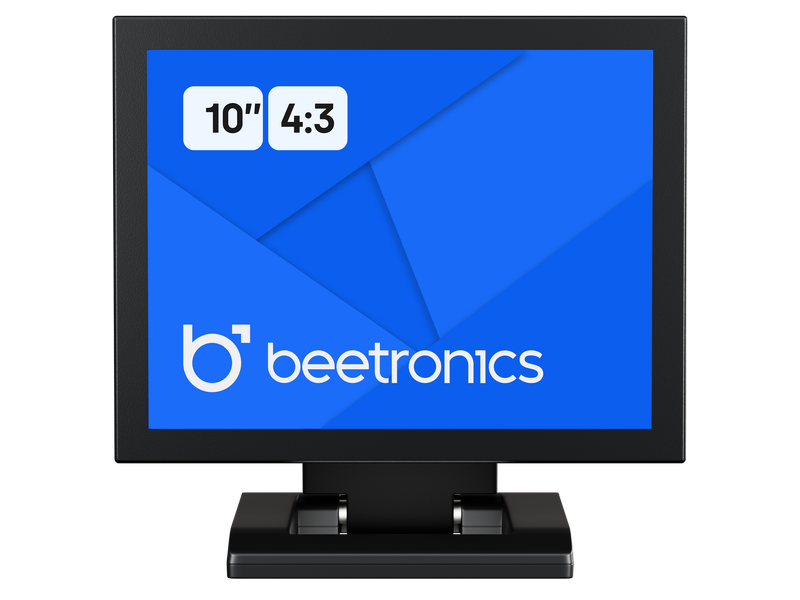

4:3 aspect ratio

This 10 inch monitor is equipped with a 4:3 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor is designed to display 4:3 ratio resolutions and is able to scale any resolution up to 1080p.

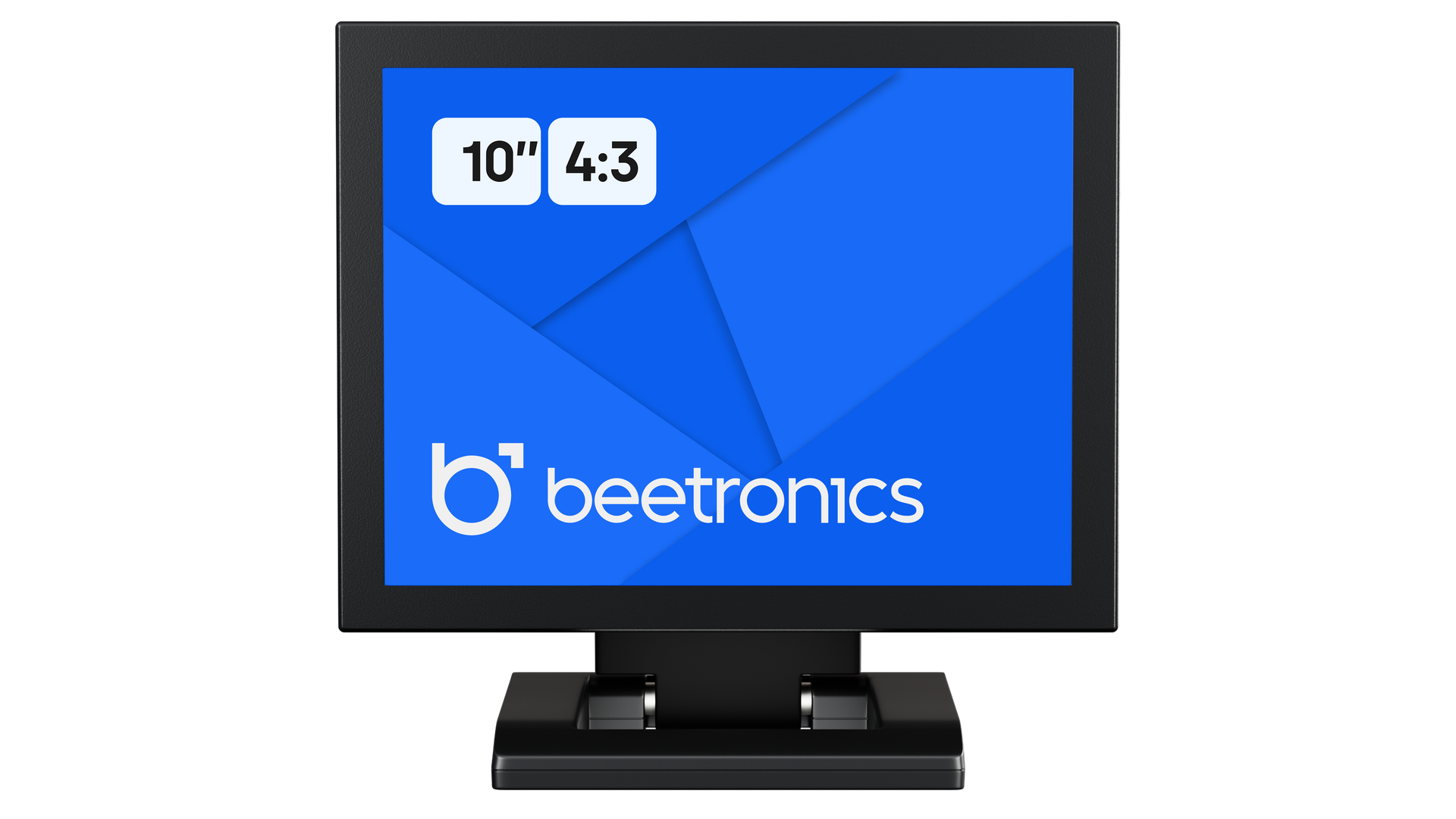

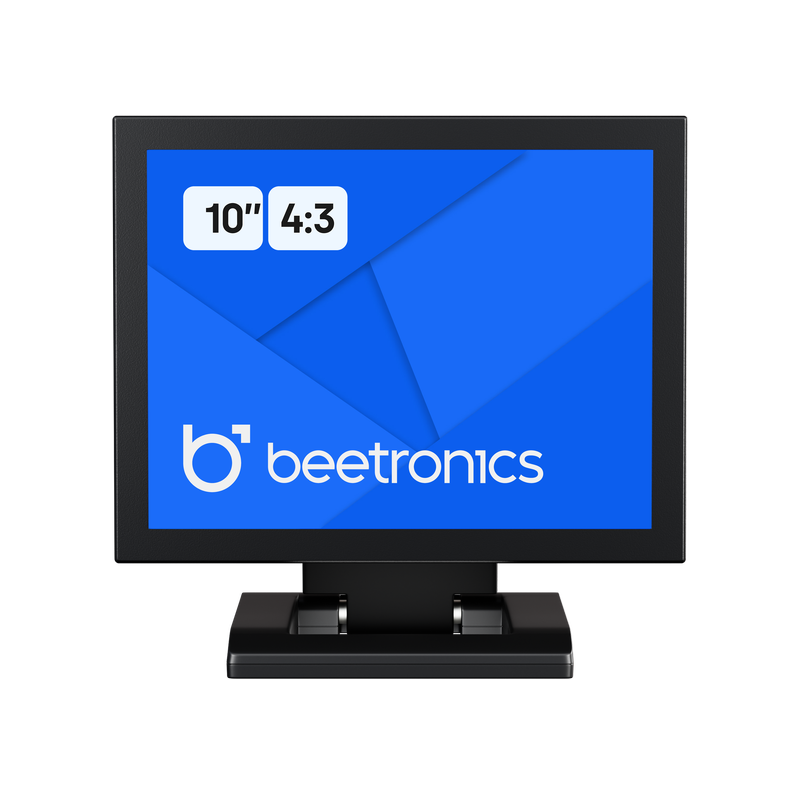

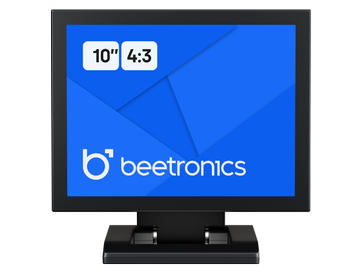

10 inch monitor with 4:3 ratio

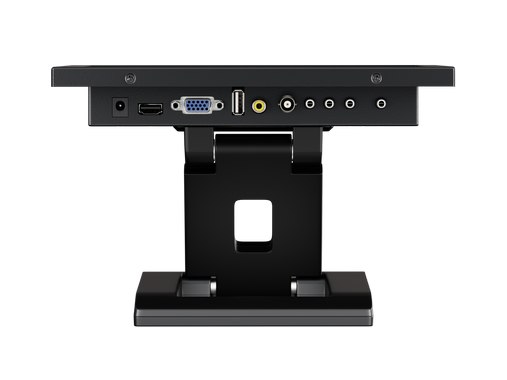

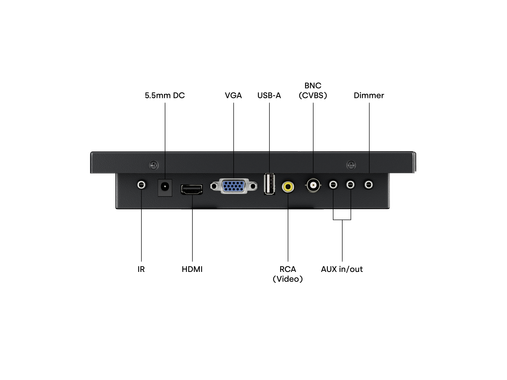

Versatile connectivity

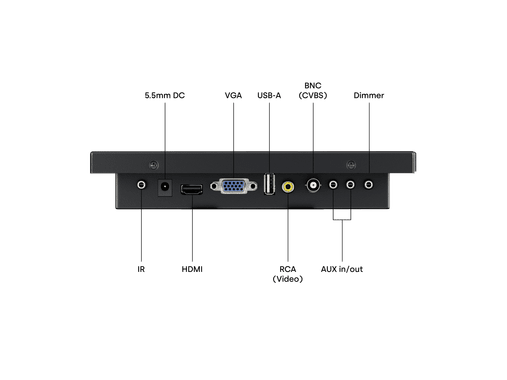

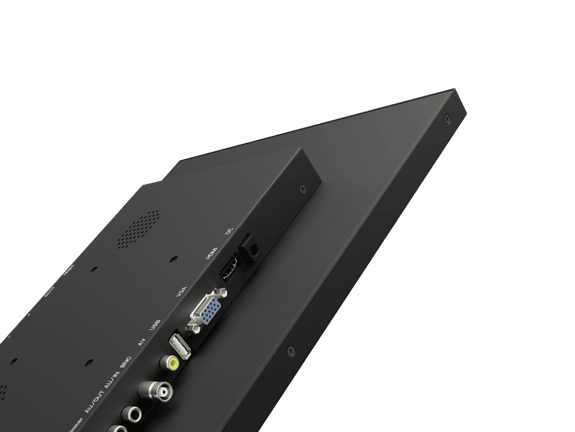

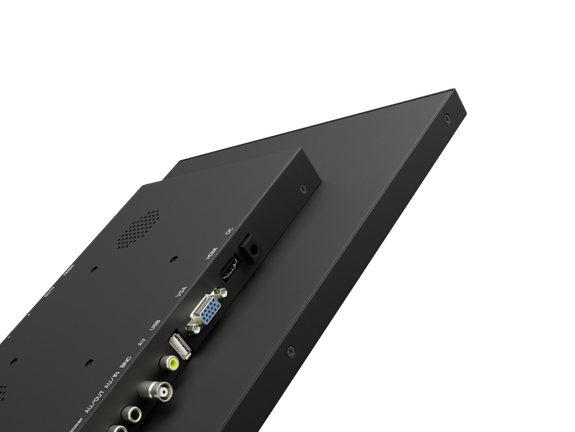

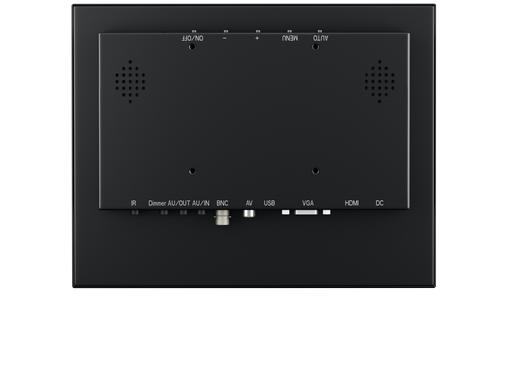

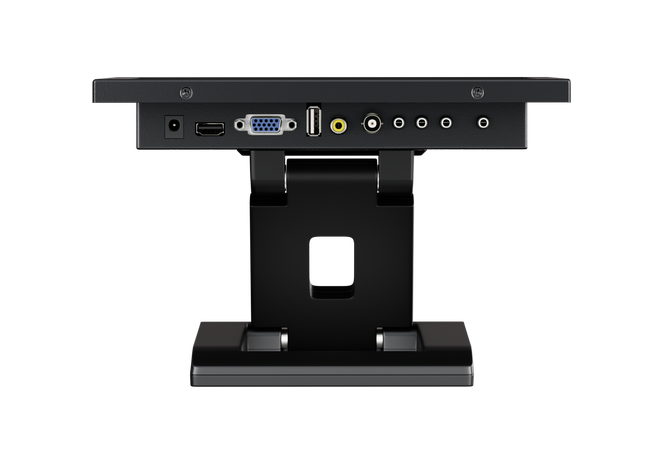

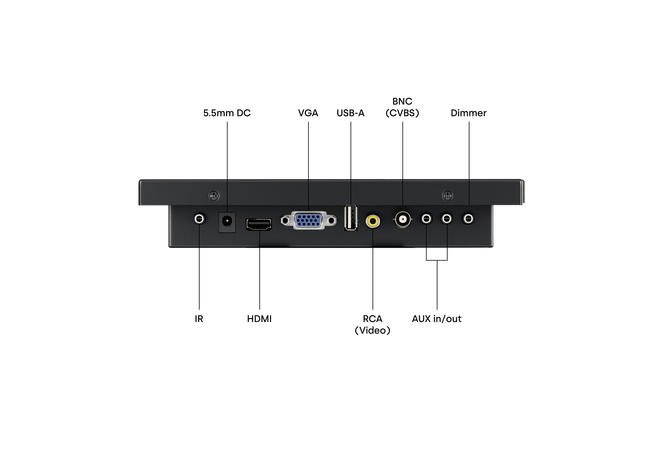

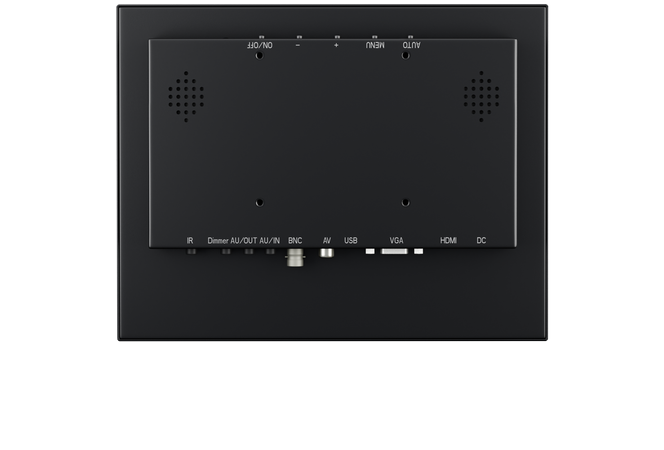

The Beetronics 10VG7M  features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.

10 inch 4:3 ratio screen hdmi bnc

Designed for professional use

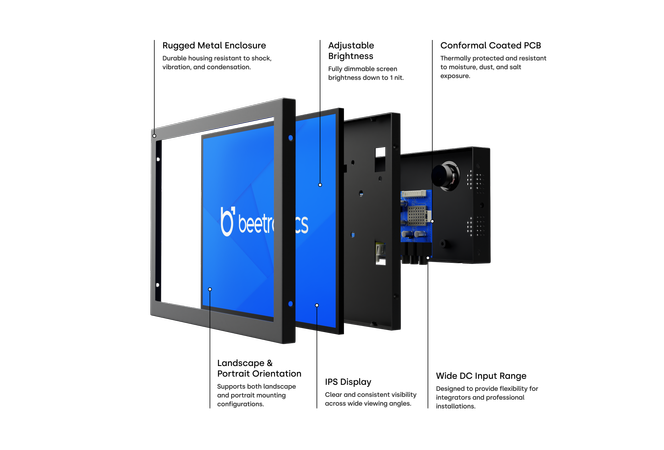

The 10VG7M is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

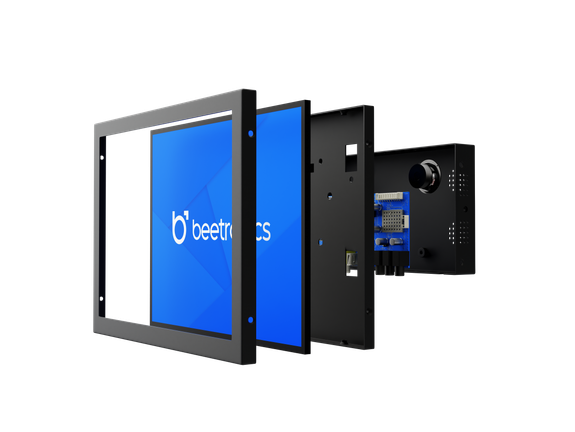

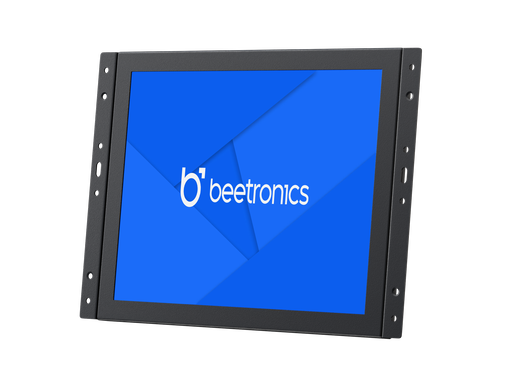

10 inch flush mount open frame monitor

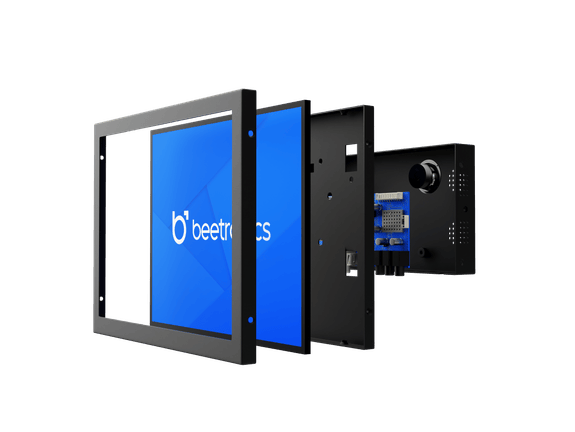

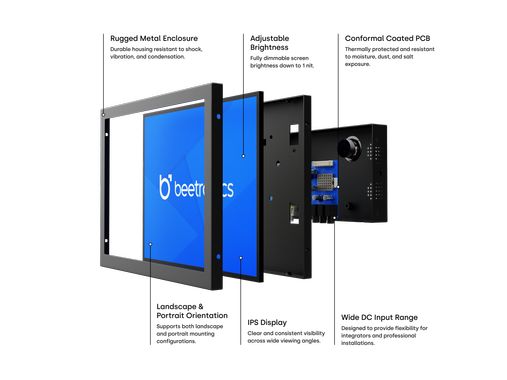

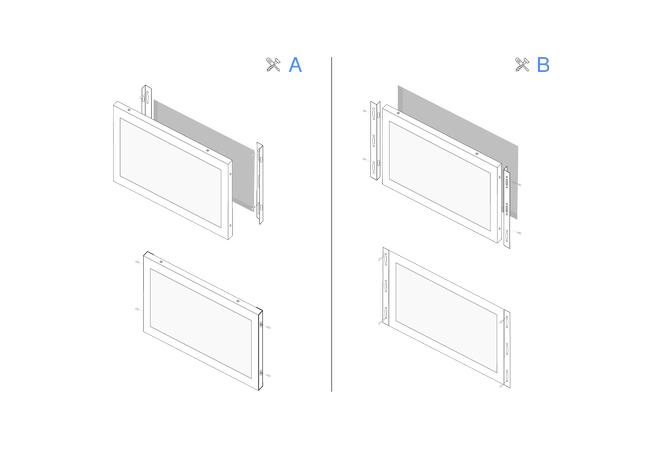

Easily integrated

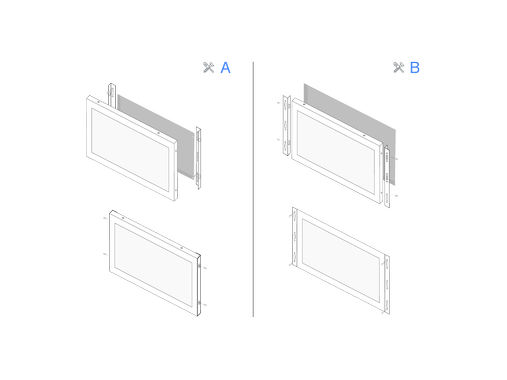

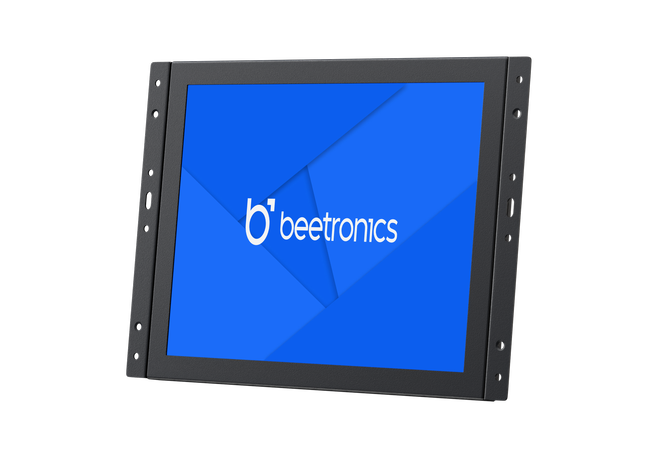

Thanks to numerous mounting options the 10 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

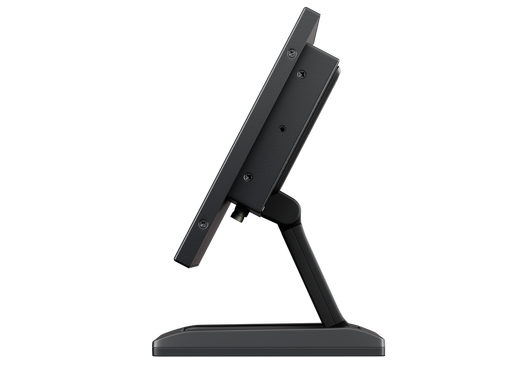

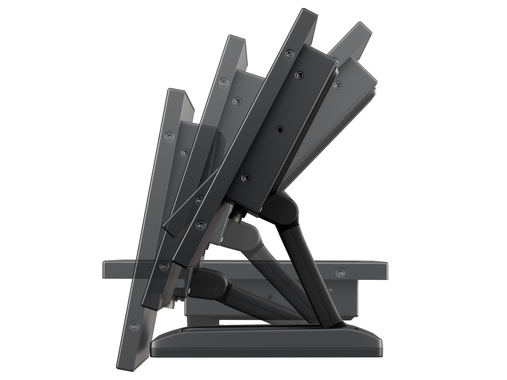

10 inch monitor collapsible stand

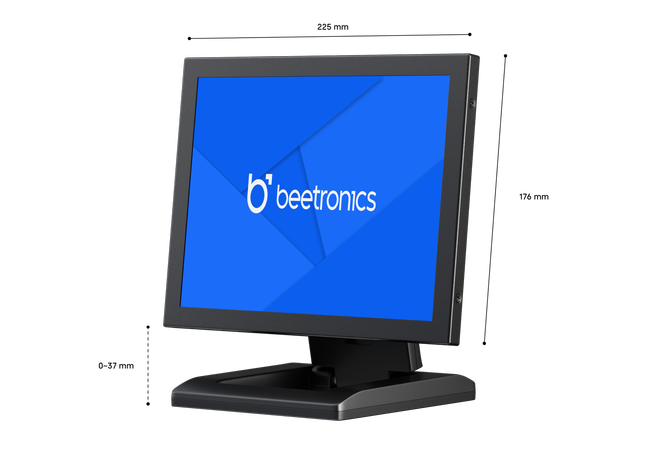

Desktop or wall mounting

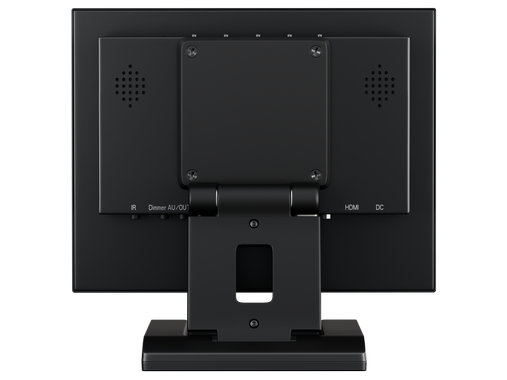

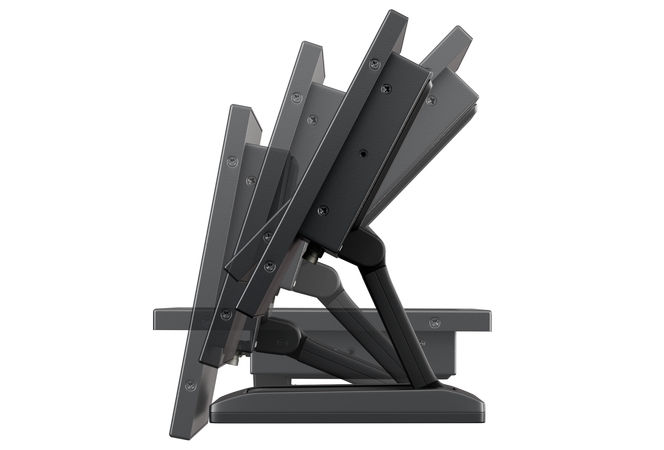

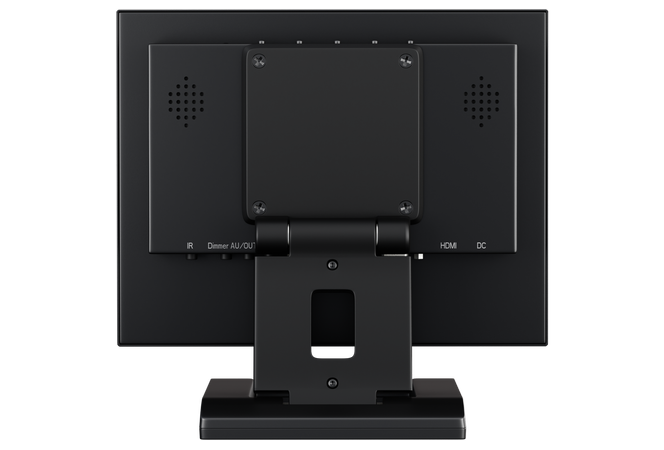

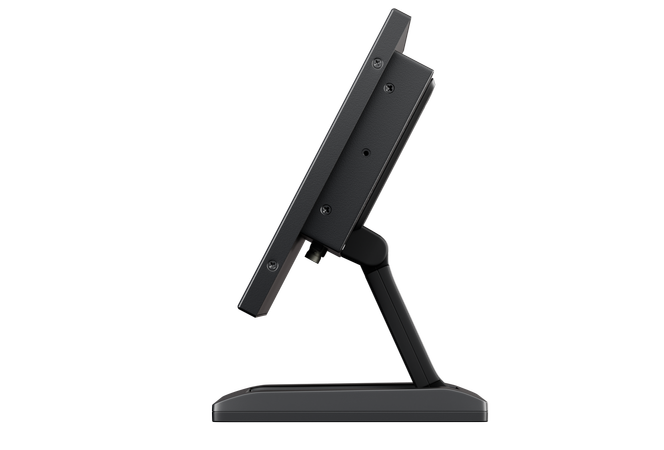

The Beetronics 10VG7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket.

10 inch flush mount open frame monitor
General
Manufacturer
Beetronics
Item number
10VG7M
Previous model
10VG3
Product name
10 inch monitor metal (4:3)
Warranty
2 years
Datasheet
Manual
Panel
Type
Matte, LED-IPS
Diagonal size
9.7 inches (249 mm)
Aspect ratio
4:3
Native resolution
1024 x 768
Supported resolutions
1920 x 1200 (max), 640 x 480 (min)
Pixels per inch
127 PPI
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
350 cd/m2
Contrast
800:1
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX input
1x
AUX output
1x
USB
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
Size & weight
Colour
Black
Weight
1250 gram (1670 gram with stand)

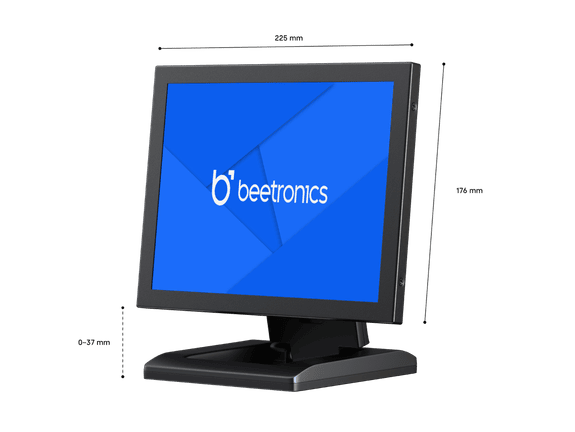

Width
225 mm
Height
176 mm (+0 to 39 mm with stand)
Thickness
33 mm
Display dimensions
199 x 150 mm
Technical drawing
3D drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 9-33V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<12 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH

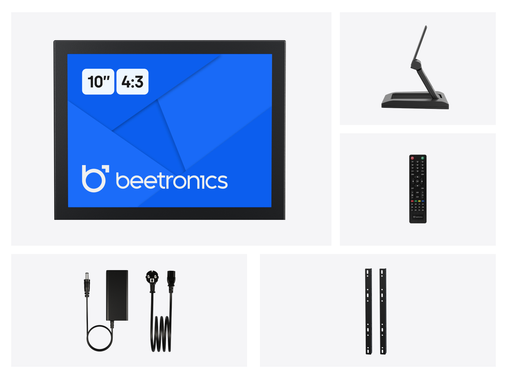

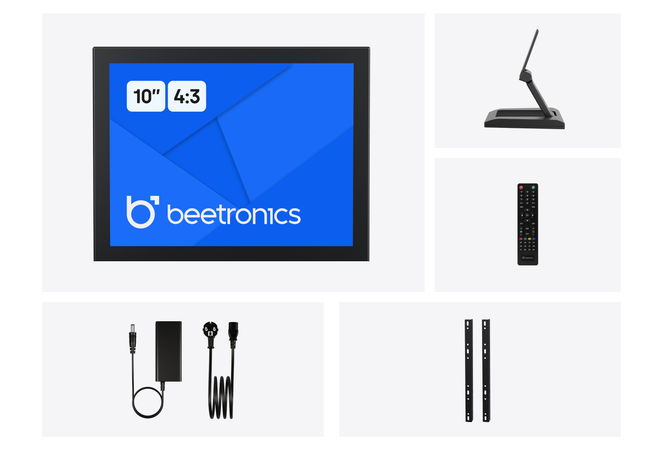

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA (video)
RCA
3.5mm (input)
AUX_audio_35mm
3.5mm (output)
AUX_audio_35mm
USB(media)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
3D drawing   Download CAD/STP
Datasheet   Download PDF
