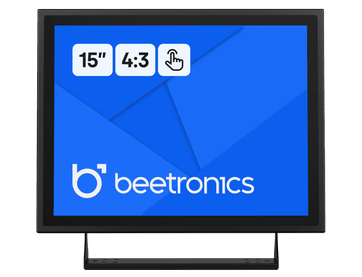

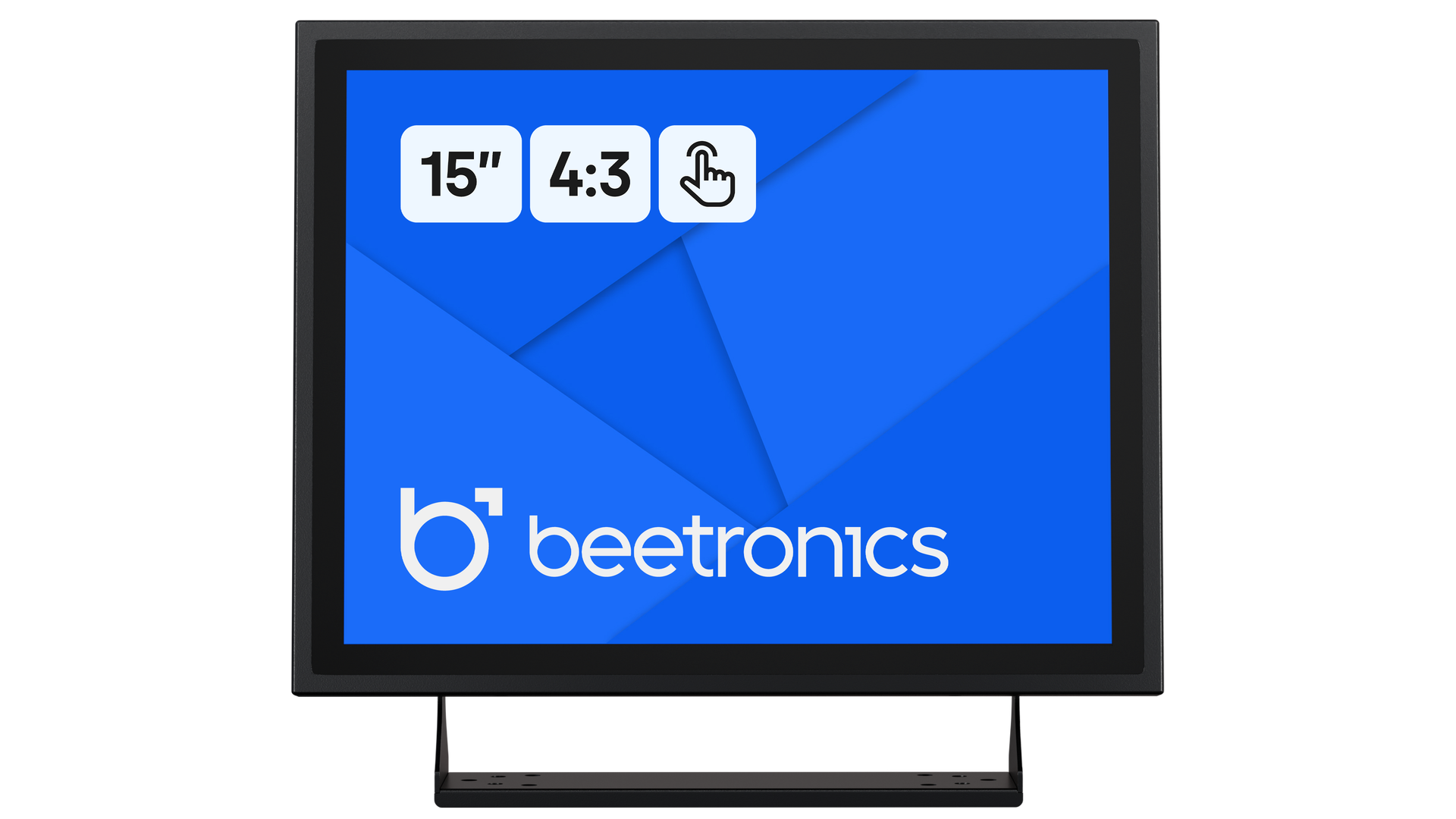

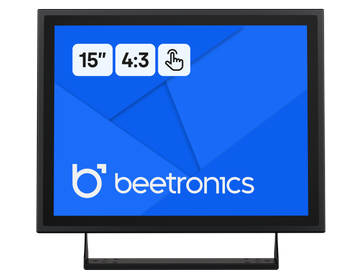

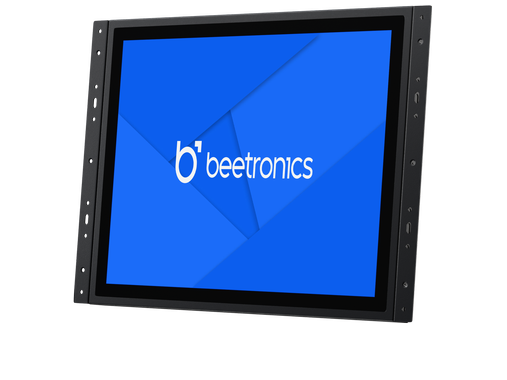

15 Inch Touchscreen Metal (4:3)

Model: 15TSV7M
100+ units in stock
Features
  1. 4:3 multi-touch panel
  2. Input: HDMI, DisplayPort, USB-C, VGA
  3. Mounting: Flush, embedded, wall, desktop
  4. External dimensions: 345 x 269 x 47 mm

This 15 inch touchscreen has a reliable multi-touch panel with a 4:3 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

Display Type
Monitor
Touchscreen
€ 399,00
€ 482,79 Incl.
Order by 16:00 for delivery on Monday.
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Product Highlights
15 Inch Touchscreen Metal (4:3)

4:3 Multi-Touch Panel

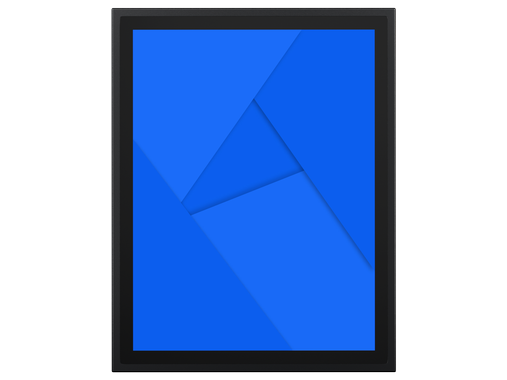

This 15 inch touchscreen is equipped with a 4:3 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 15TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

15 Inch Touchscreen Metal (4:3)

Compatible With Windows, macOS, ChromeOS and Linux

The 15-inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The monitor offers versatile connectivity and can be connected via HDMI, DisplayPort, USB-C, or VGA for the display. The touch functionality can easily be activated via USB-C or the included USB-A cable. Once connected to the source, the display is automatically recognised and is immediately ready for use.

15 Inch Touchscreen Metal (4:3)

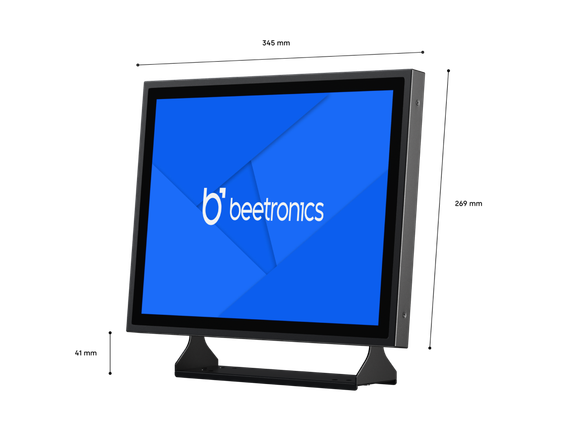

Designed for Professional Use

The 15TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9-36 Volts and features a fully dimmable backlight.

Mounting Options

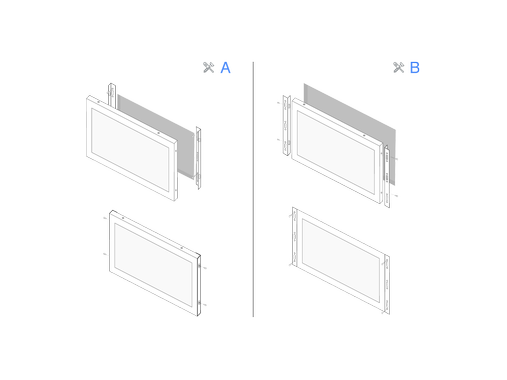

Flush-Mount

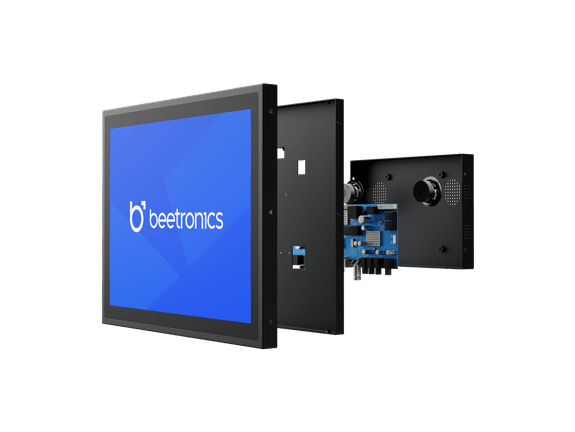

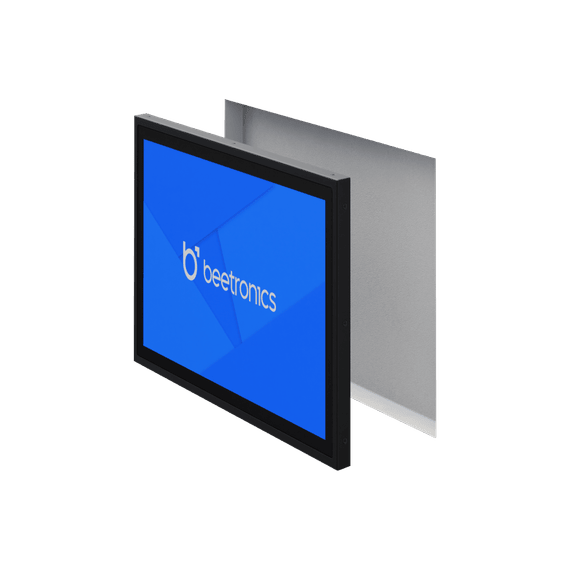

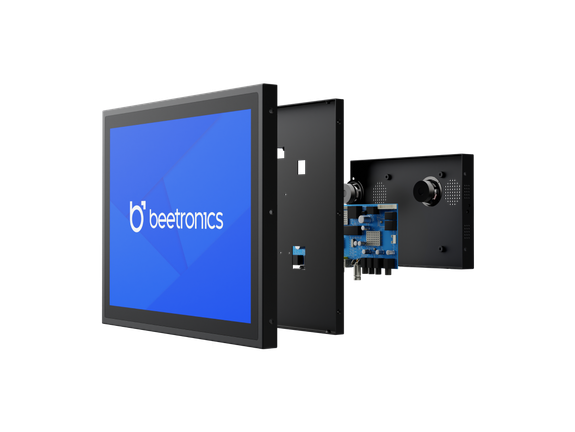

The touchscreen is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

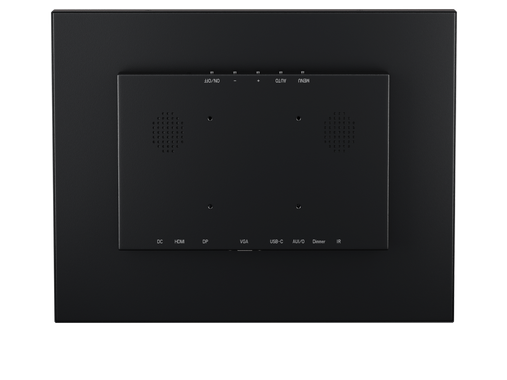

The touchscreen includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

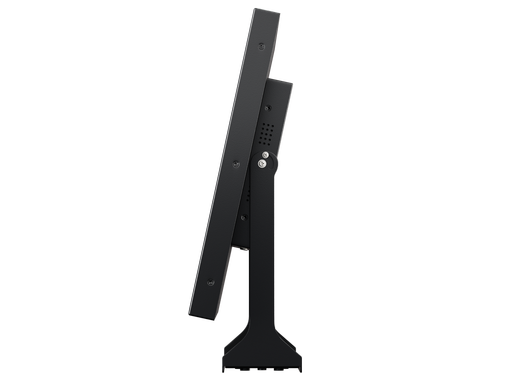

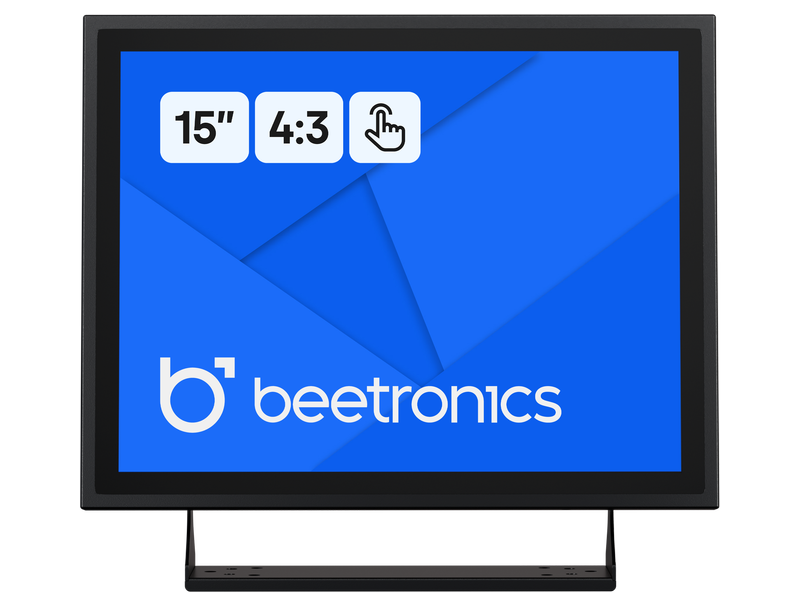

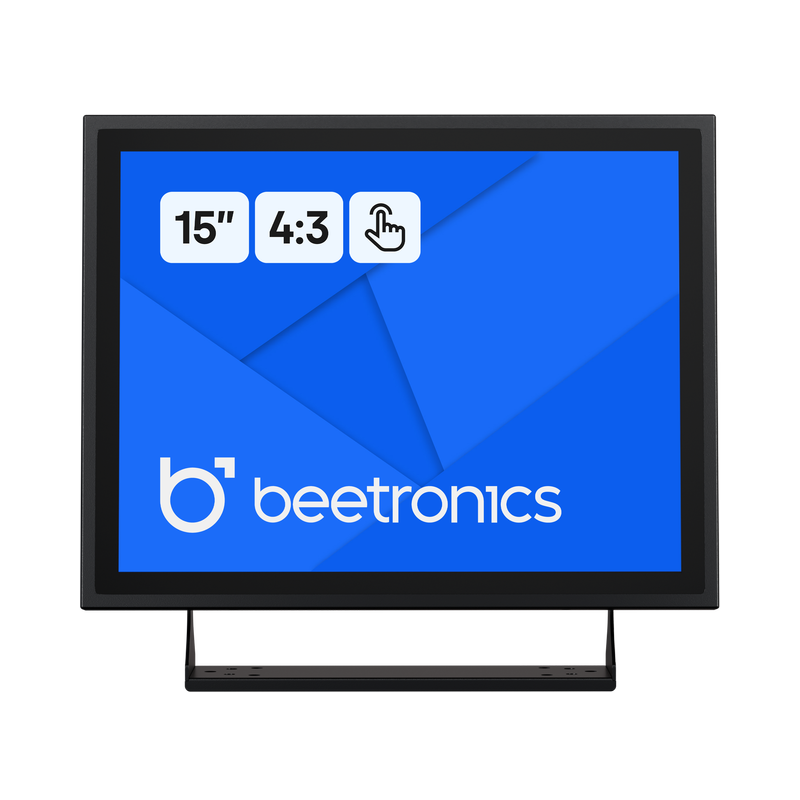

Stand

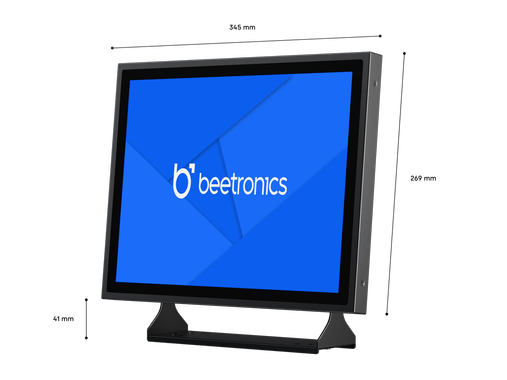

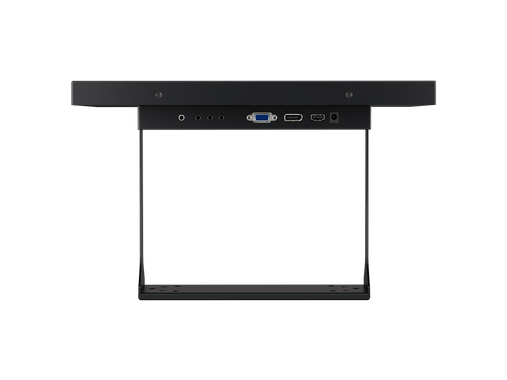

The touchscreen comes with a durable metal bracket that allows for 180-degree tilting. The bracket features screw holes for secure mounting to a surface, making it ideal for desktop, wall, or ceiling installations. If needed, the bracket can be easily removed, giving access to the universal 75mm VESA mount. This allows the touchscreen to be mounted using a variety of universal stands or brackets in both landscape and portrait orientations.

Specifications
General
Manufacturer
Beetronics
Product Name
15 Inch Touchscreen Metal (4:3)
Item Number
15TSV7M
Previous Model
15TSM
Product Type
Touchscreen
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF
Display Architecture
Aspect Ratio
4:3
Native Resolution
1024 x 768
Pixels Per Inch
85 PPI
Diagonal Size
15.0 Inches (381 mm)
Panel Type
IPS-LCD
Backlight
LED
Surface
Tempered glas
Supported Orientation
Landscape, Portrait, Face-up
Display Performance
Maximum Brightness
300 nits (typical)
Minimum Brightness
1 nit
Contrast
1500:1
Viewing Angle
178° Horizontal, 178° Vertical
Response Time
10 ms
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Touch Technology
Touch Technology
Capacitive (PCAP)
Touch Points
10-Point (Multi-Touch)
Touch Interface
USB HID-Compliant
Touch Control
Stylus, Hand, Glove
Gesture Support
Tap, swipe, scroll, pinch-to-zoom (dependent on host system OS and application)
Touch Drivers
Download Touchscreen Driver
Operational Features
Audio
Dual Integrated Speakers
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Software & Compatibility
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Tahoe, Sequoia, Sonoma
Linux
All Linux Distributions
ChromeOS
All ChromeOS Versions
Brightsign
All BrightsignOS Versions
Samsung DeX
All Samsung DeX Versions

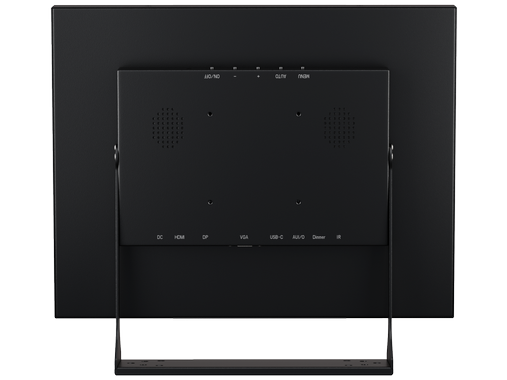

Connectivity
HDMI
1x
DisplayPort
1x
VGA
1x
USB-C
1x Video, Audio, Touch
USB-A
Via USB-C to USB-A adapter. This only activates the touch functionality and should be combined with HDMI, the DisplayPort, or VGA for image display.
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Mechanical
Dimensions (Without Stand)
345 x 269 x 47 mm
Active Area
328 x 252 mm
Weight
3000 Grams (3600 Grams With Stand)
Colour
Black
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP
Mounting
Wall Mount
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Supported Mounting Orientations
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-36V
Consumption
13 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Operating Humidity
10% - 90% Non-Condensing
Ingress Protection (IP)
IP65 Front Panel
Impact Protection (IK)
IK08
MTBF
50K
Compliance & Regulations
Regional Standards
CE, UKCA, FCC (Part 15), ISED (ICES-003), CCC
Environmental Standards
RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards
Maritime: IEC 60945, DNV-CG-0339 (Requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455; Medical: EN 60601-1, EN 60601-1-2 (Requires BEE-PSU1-MED)
Compliance Scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement
Download PDF

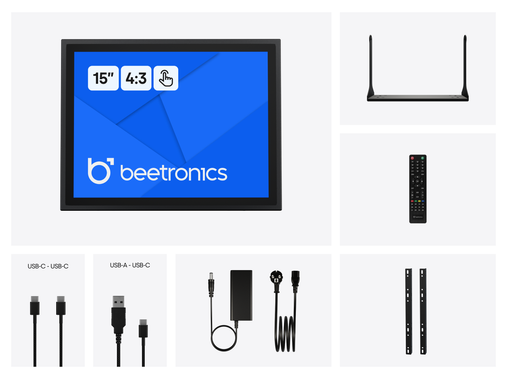

Package Content
Includes
Touchscreen, USB-C to USB-C Cable, USB-C to USB-A Cable, Mounting Strips, Stand, Remote Control, Power Adapter, Quickstart
