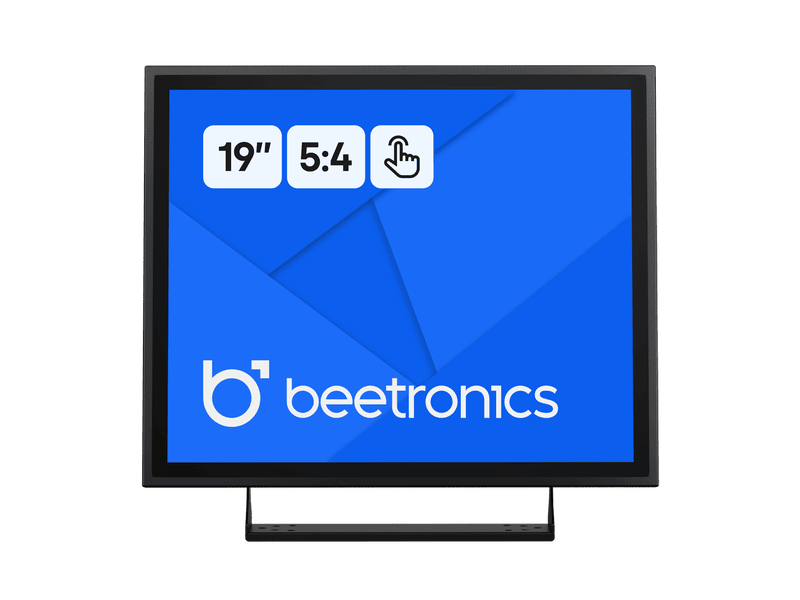

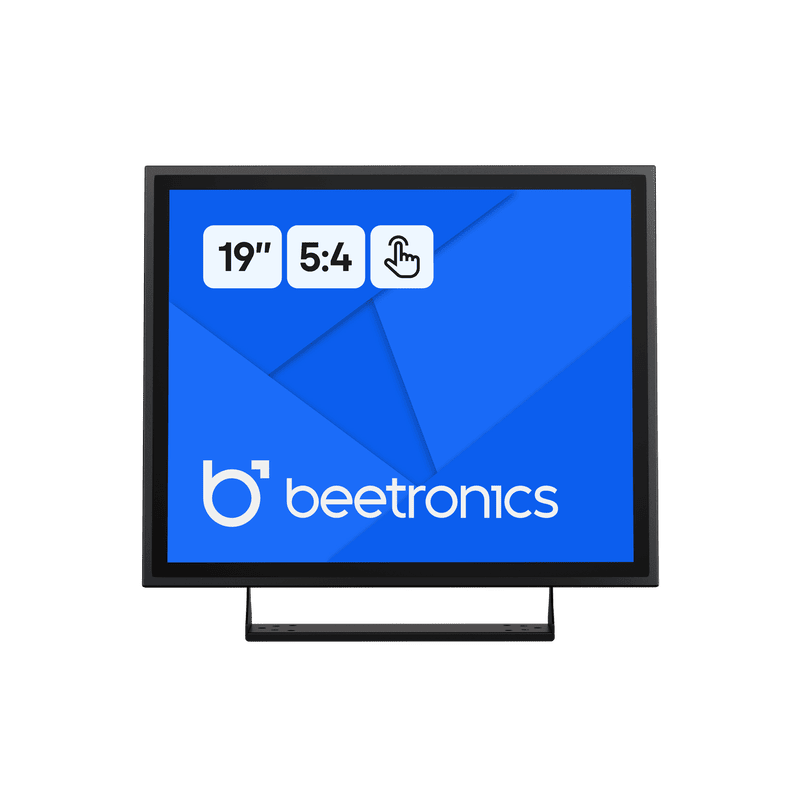

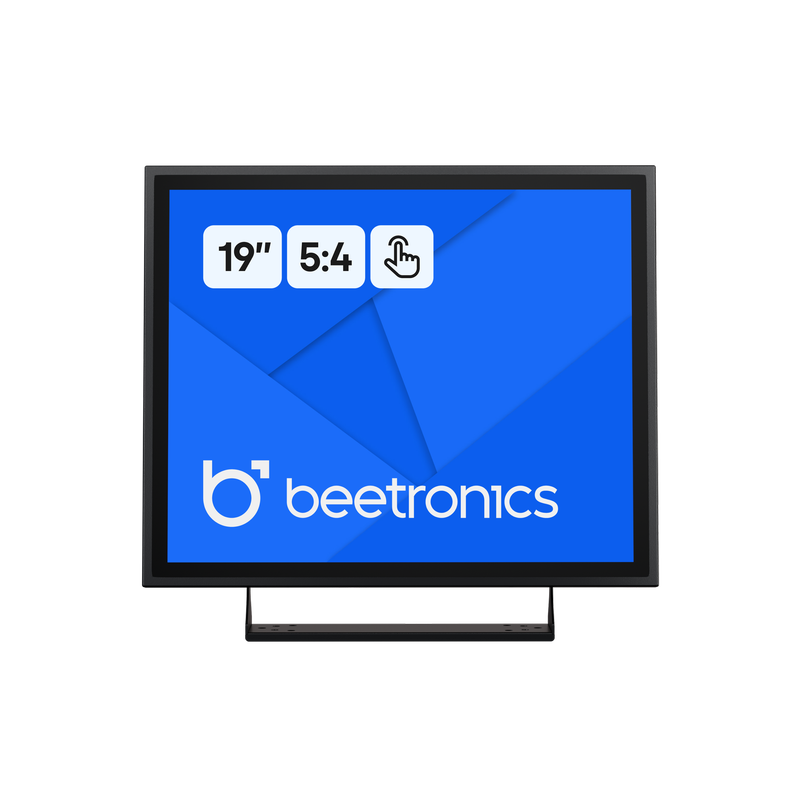

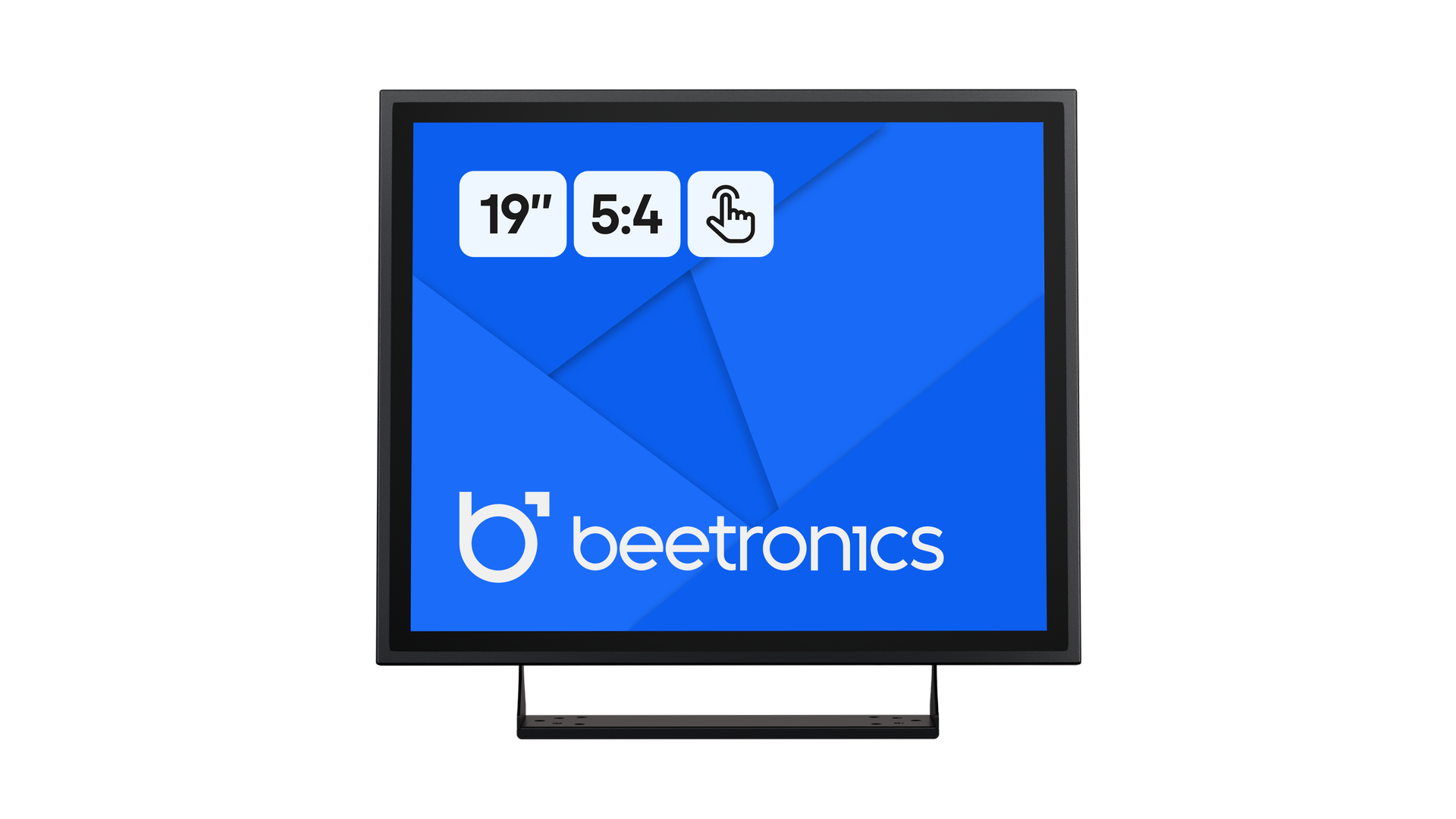

19 Inch Touchscreen Metal (5:4)
Model: 19TSV7M
100+ units in stock

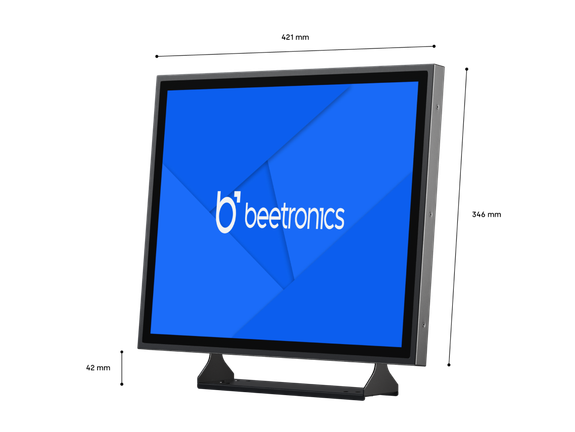

19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4)

19 Inch Touchscreen Metal (5:4)

Model: 19TSV7M
100+ units in stock
  1. 5:4 multi-touch panel
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

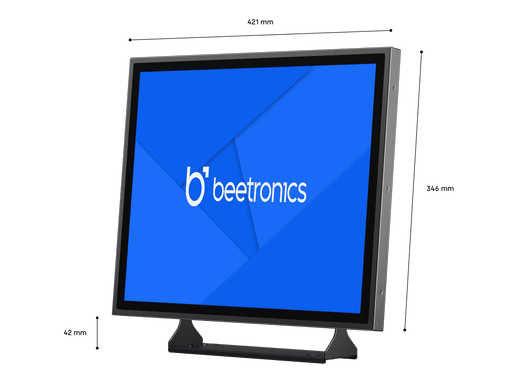

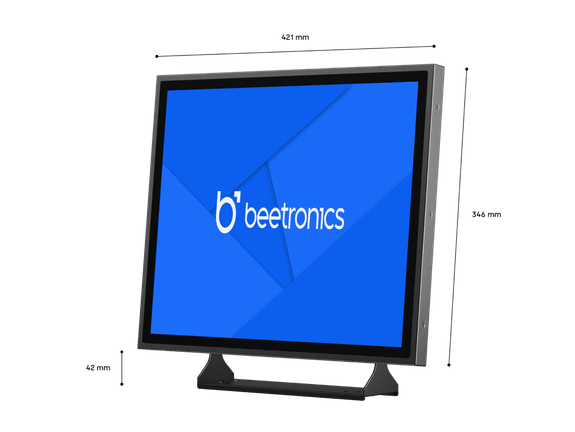

  4. External dimensions: 421 x 346 x 45 mm
  5. More specifications
Display Type
Monitor
Touchscreen
€ 567,49 incl.
Order by 16:00 for Delivery on Tuesday
  • Description
  • Specifications
  • Connectivity
  • Downloads

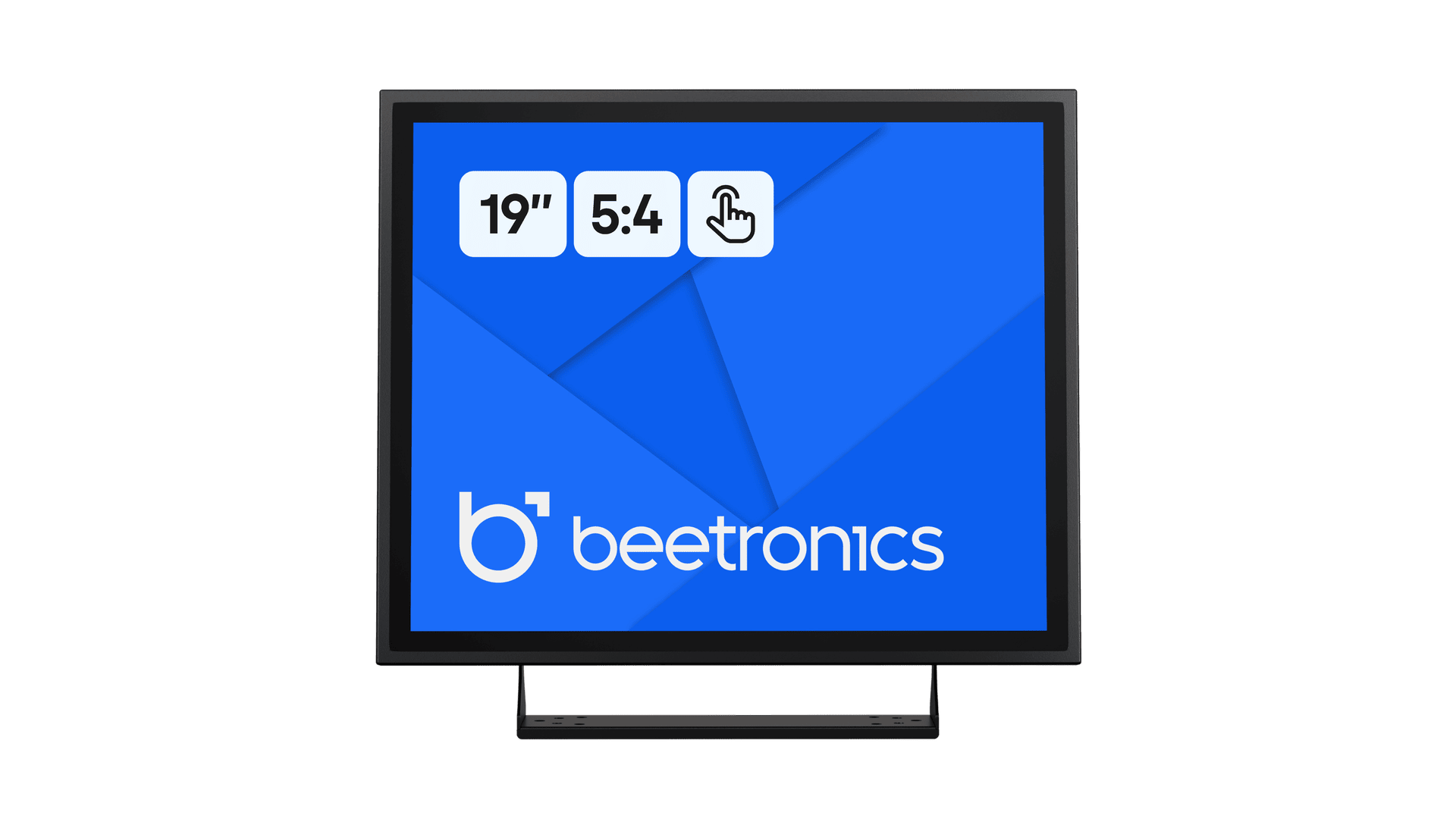

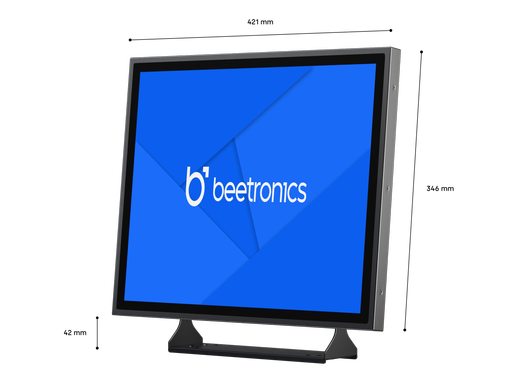

This 19 inch touchscreen has a reliable multi-touch panel with a 5:4 aspect ratio. The monitor delivers excellent 178° viewing angles and is compatible with devices running a Windows, macOS, ChromeOS or Linux operating system. The touchscreen monitor is designed for professional applications, easy to integrate and suitable for intensive use.

5:4 multi-touch panel

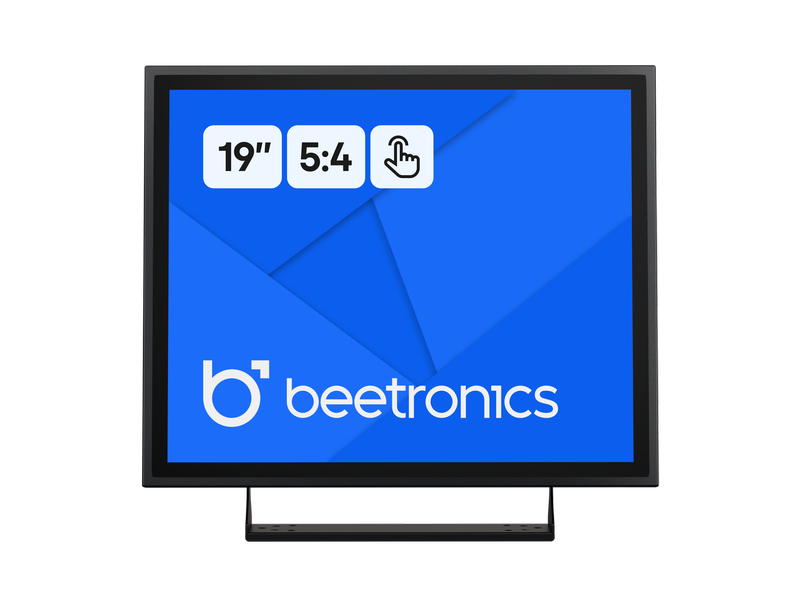

This 19 inch touchscreen is equipped with a 5:4 aspect ratio IPS panel. The touchscreen delivers excellent 178° viewing angles and is able to scale any resolution up to 1080p. The 19TSV7M has a capacitive multi-touch screen that can process 10 points of contact simultaneously. This provides extremely accurate operation and supports gestures like swiping, zooming, pinching, etc.

19 Inch Touchscreen Metal (5:4)

Compatible with Windows,
macOS, ChromeOS and Linux

The 19 inch touchscreen monitor is compatible with devices using a Windows, macOS, ChromeOS, or Linux operating system. The touchscreen offers versatile connectivity and can be connected via HDMI, VGA, RCA or BNC for the display. The touch functionality can easily be activated via the included USB-A cable. Once connected to the source, the display is automatically recognized and is immediately ready for use.

19 Inch Touchscreen Metal (5:4)

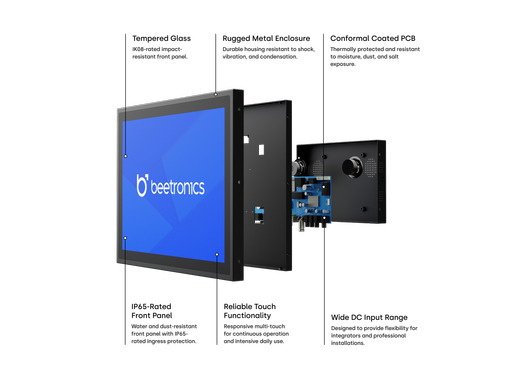

Designed for professional use

The 19TSV7M is designed for continuous operation and professional use. The touchscreen is manufactured with high-quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9-33 Volts and features a fully dimmable backlight.

19 Inch Touchscreen Metal (5:4)

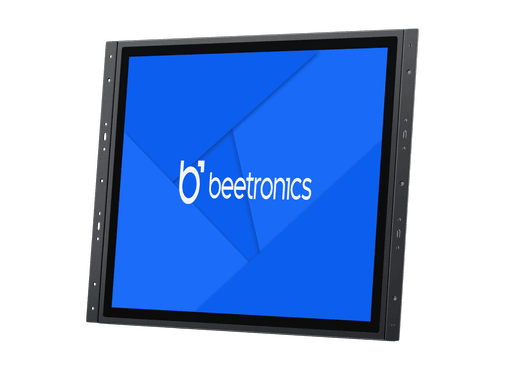

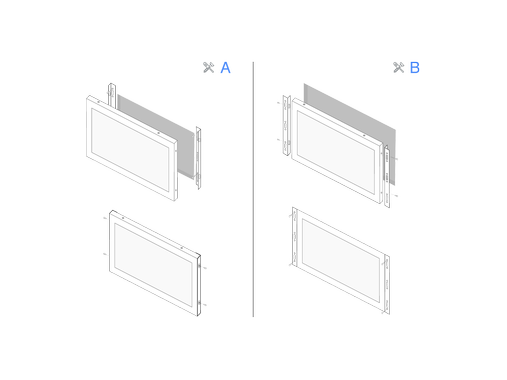

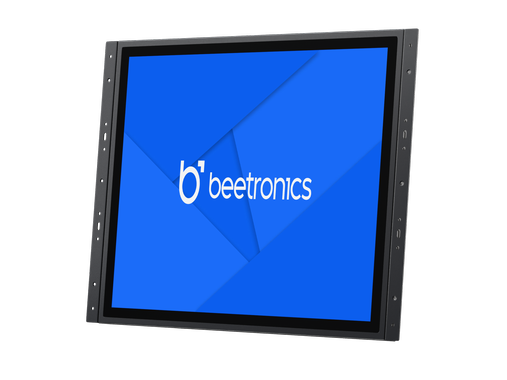

Easily integrated

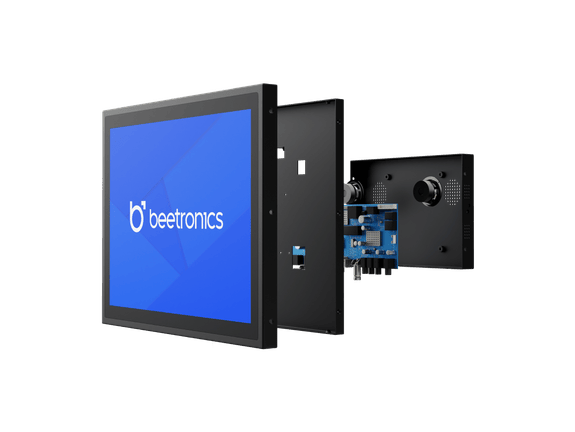

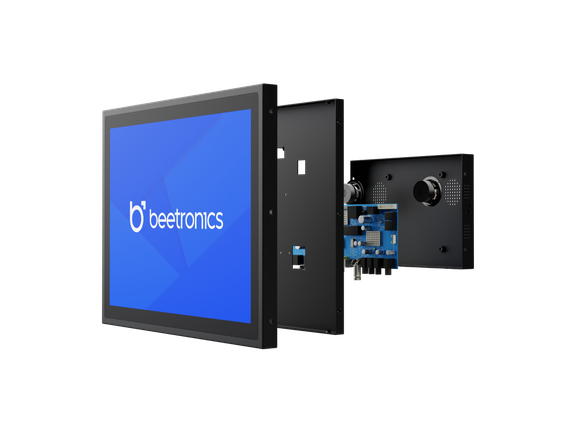

Thanks to numerous mounting options, the 19 inch metal touchscreen can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the touchscreen monitor in any environment.

19 Inch Touchscreen Metal (5:4)

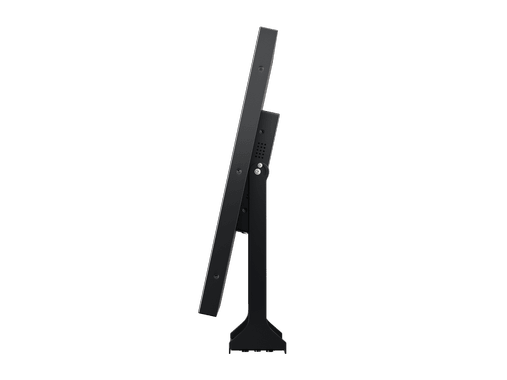

Desktop or wall mounting

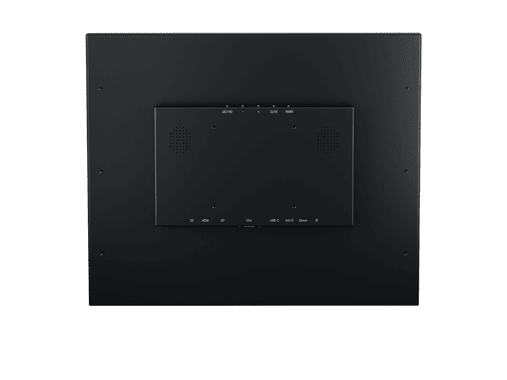

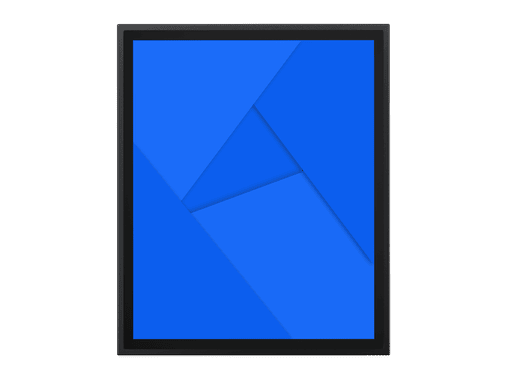

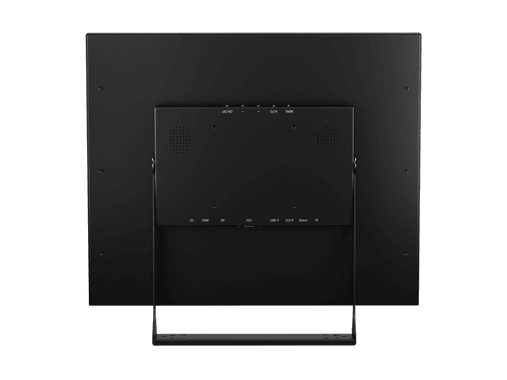

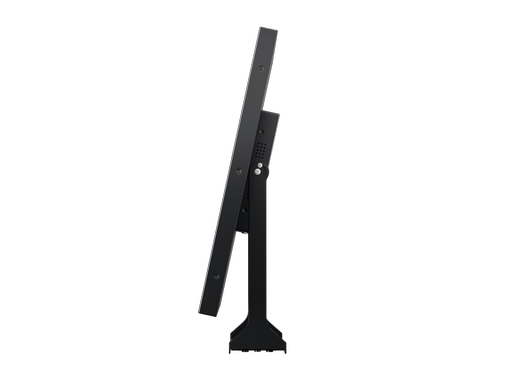

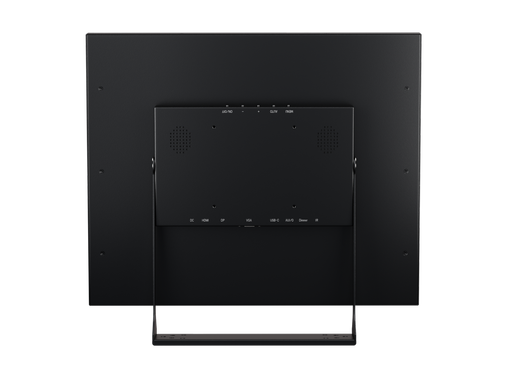

The Beetronics 19TSV7M has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 100mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.

19 Inch Touchscreen Metal (5:4)
General
Manufacturer
Beetronics
Item number
19TSV7M
Product name
19 Inch Touchscreen Metal (5:4)
Warranty
2 years
Datasheet
User Manual
Quickstart
Supported operating systems
Windows
Windows 8, 10, 11
Windows Embedded
Windows Embedded 8 Industry, 8.1 Industry, IoT Enterprise
macOS
Big Sur, Monterey, Ventura, Sonoma
Linux
All Linux distributions
ChromeOS
All ChromeOS versions
Brightsign
All BrightsignOS versions
Panel
Diagonal size
19.0 inches (484 mm)
Panel type
IPS-LCD
Response time
10 ms
MTBF
50K
1080p/1080i, 720p, 576p/576i, 480p/480i
Backlight
LED
Brightness
470 cd/m2
Contrast
1500:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Surface
Mat tempered glas
Capacitive, 10-point multi-touch (PCAP)
Touch control
Stylus, hand, glove

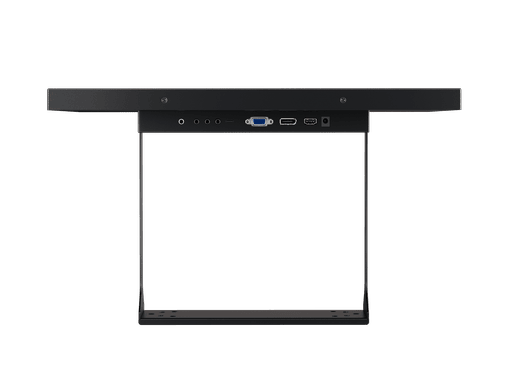

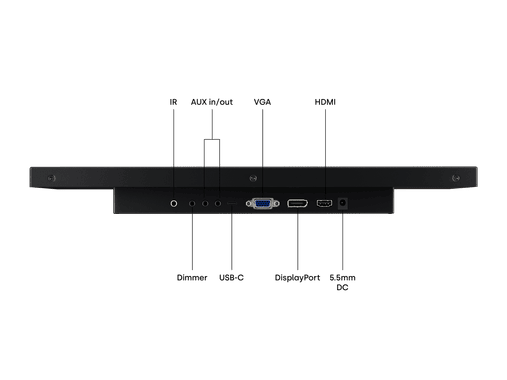

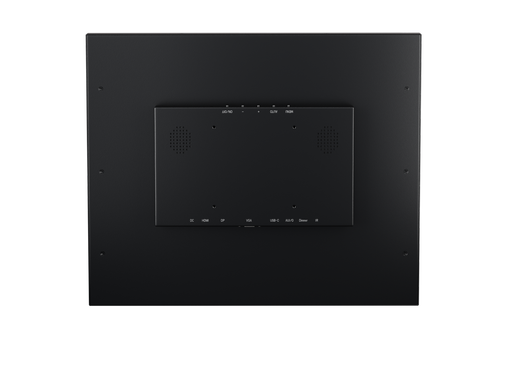

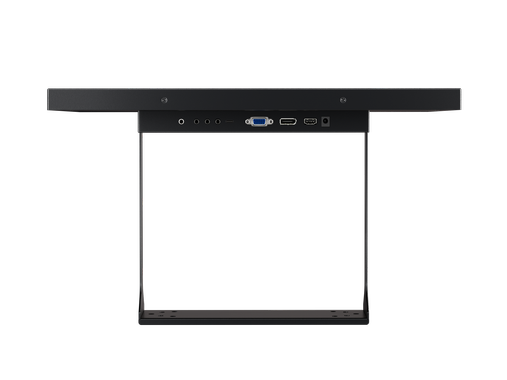

Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
Only for touchscreen functionality
Size & weight
Colour
Black
Dimensions (without stand)
421 x 346 x 45 mm
Active area
463 x 276 mm
Weight
4200 grams (4900 grams with stand)
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

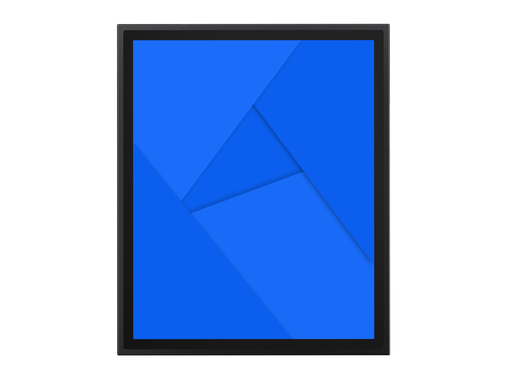

Orientation
Landscape, portrait, face-up
Power
Input voltage
DC 9-33V
Consumption
Typical 22.4 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-3A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 90% non-condensing
Mounting
VESA (100 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
IP65 front panel
Impact protection
IK07
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

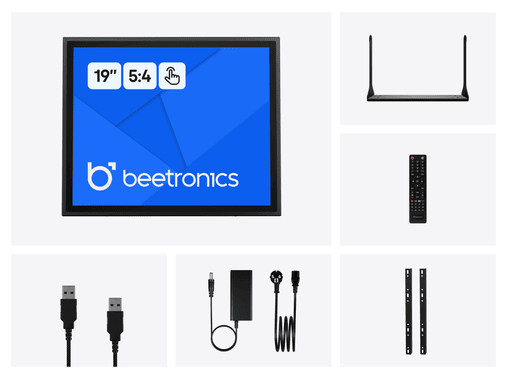

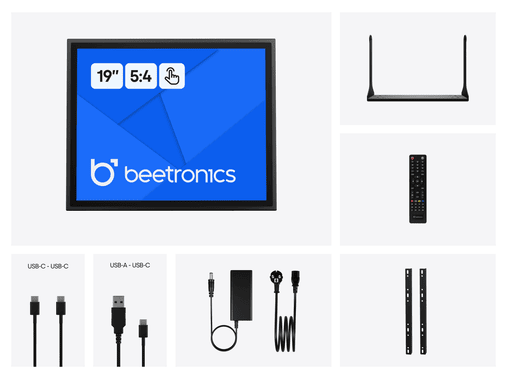

Package content
Includes
Touchscreen, USB cable, Remote control, AC power adapter, Stand, Installation strips, Manual
Compatible accessories
Infrared extension
Compatible with infrared extender (IRC7)
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
Compatible with VDK7 metal stand
Touch Pen
Compatible with CTS7 capacitive touchscreen stylus
19 Inch Touchscreen Metal (5:4)
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
Product name Model In Stock Quantity Price
19 Inch Touchscreen Metal (5:4)
19 Inch Touchscreen Metal (5:4) € 469,00
19TSV7M
€ 469,00
Wall Mount Bracket, Flat
VWB1
€ 25,00
Metal Stand (19 to 27 Inch Displays)
VDK7
€ 65,00
19 Inch Rack Mount Kit
RMK2
€ 49,00
Capacitive Touchscreen Stylus
CTS7
€ 15,00
HDMI Cable - 2m
HDMI Cable - 2m € 15,00
KHD2
€ 15,00
External Dimmer - 5m
DMK7
€ 25,00
External Multi-Dimmer - 5m
DMK8
€ 49,00
