Model: 12HD7M
100+ units in stock
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

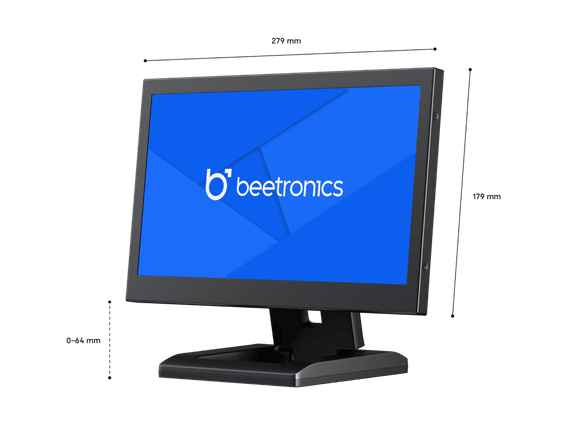

  4. External dimensions: 279 x 179 x 35 mm
  5. More specifications
Display Type
€ 381,15 incl.
Order by 16:00 for Delivery on Friday
  • Description
  • Specifications
  • Connectivity
  • Downloads

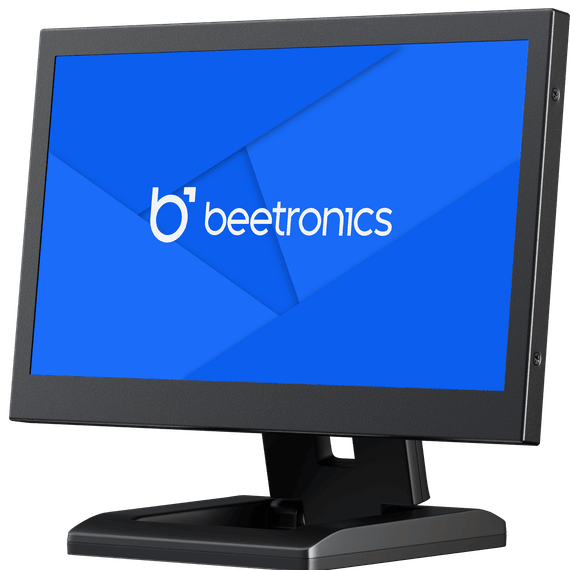

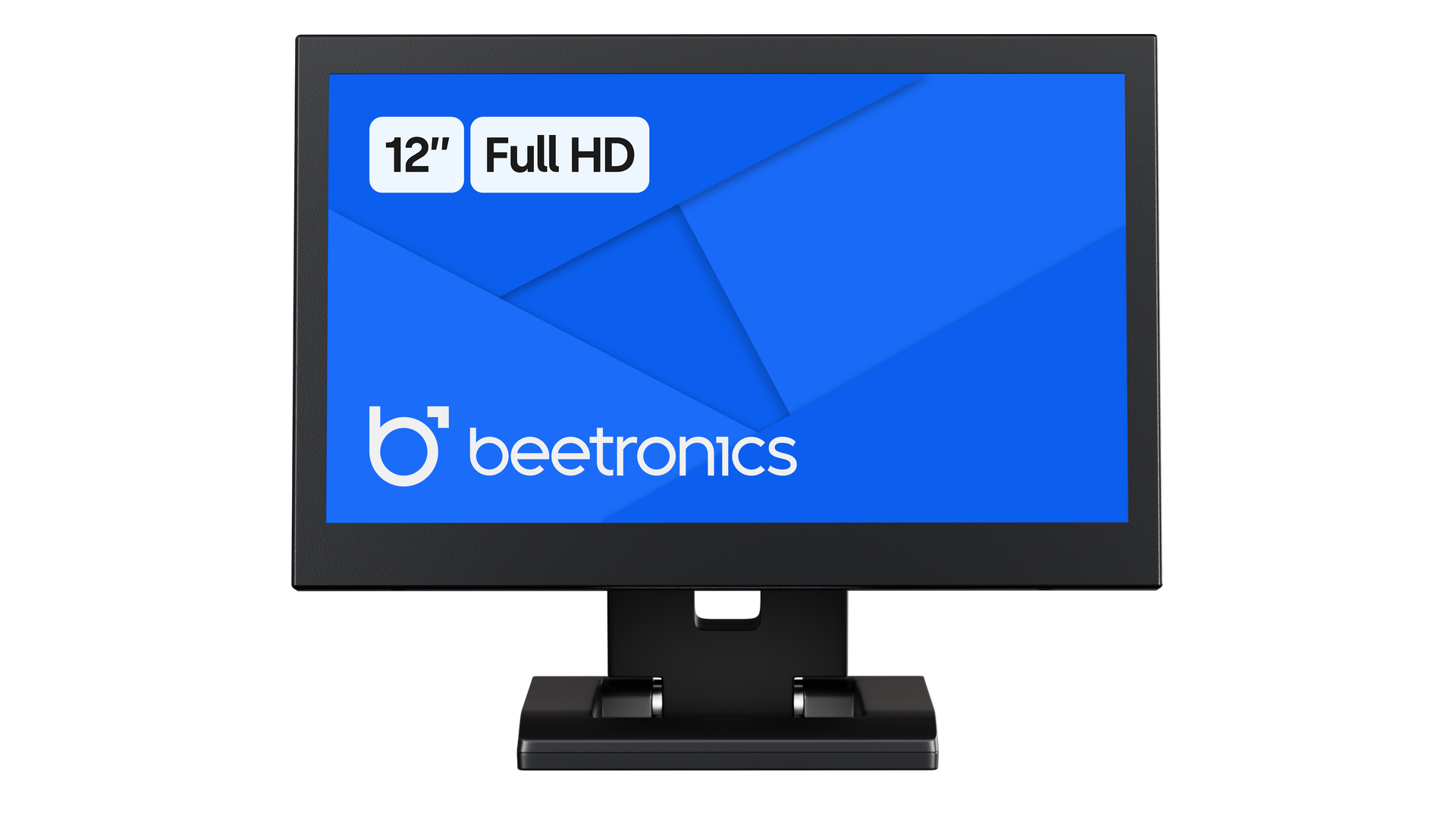

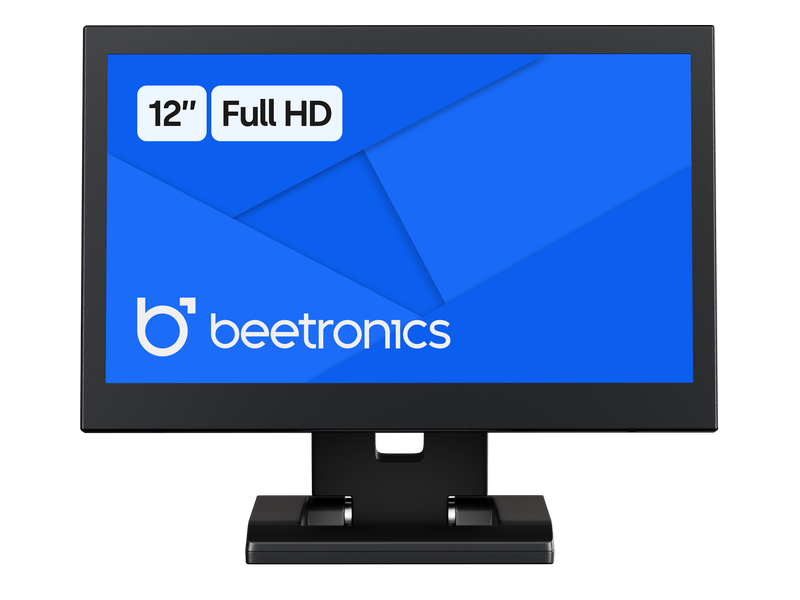

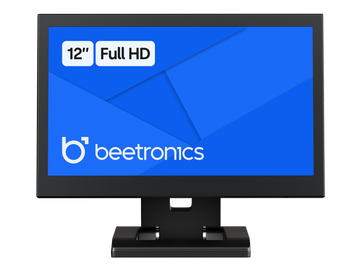

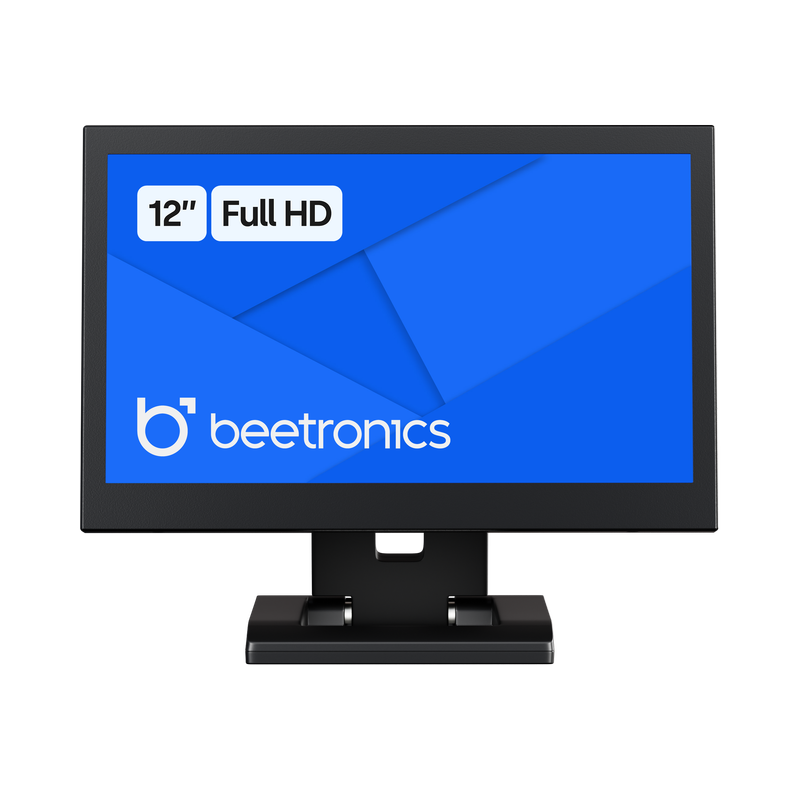

This 12 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. It has a sturdy metal housing and is ideal for desktop, flush and wall mounting. The 12HD7M can be connected via HDMI, VGA, BNC or RCA connections.

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

12 Inch Monitor Metal

Versatile connectivity

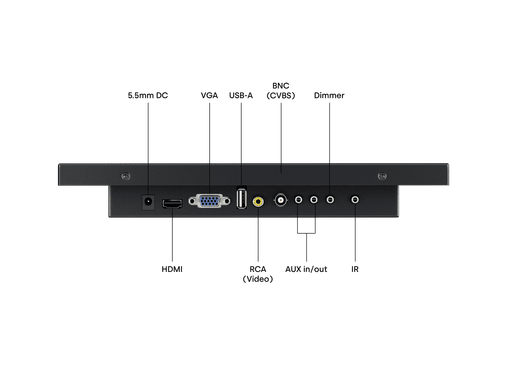

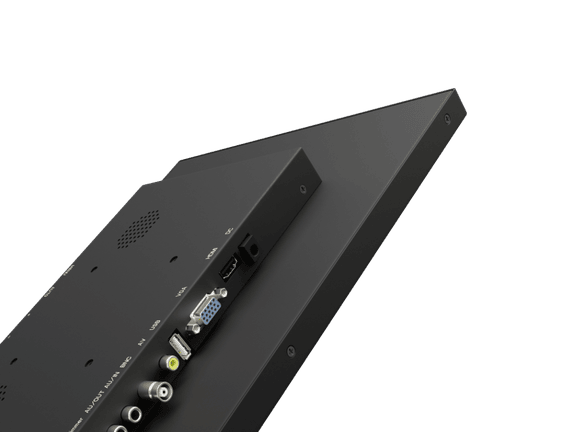

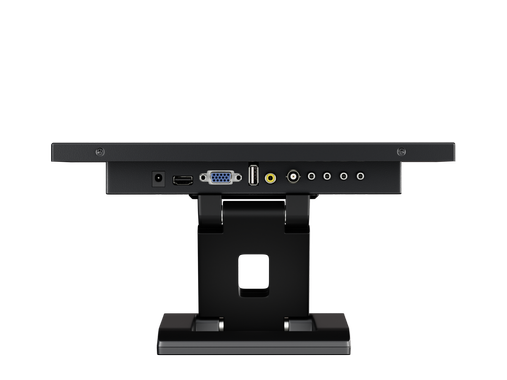

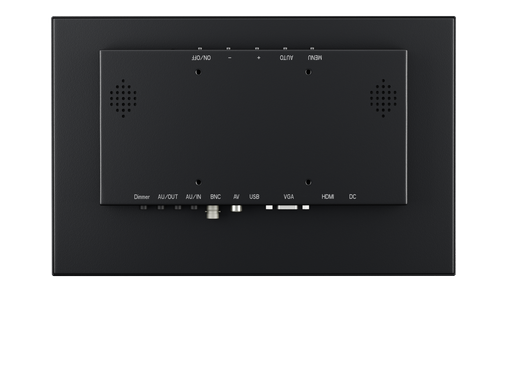

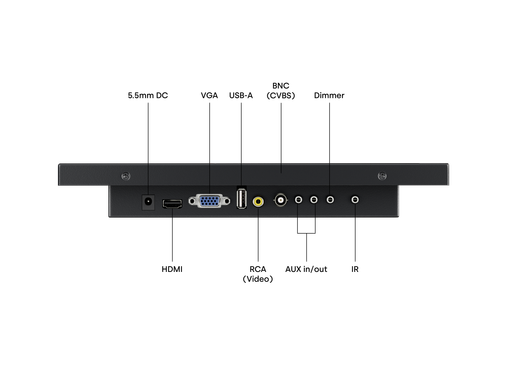

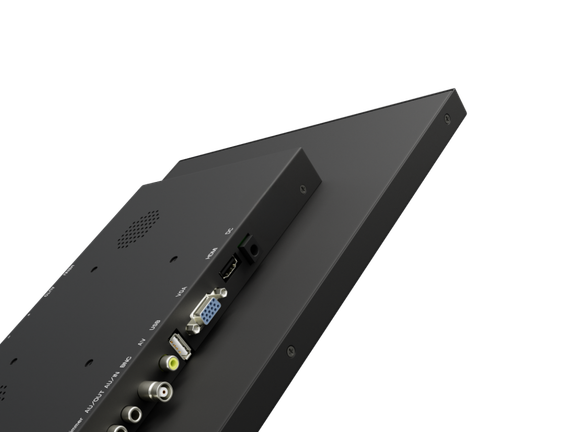

The 12HD7M has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

12 Inch Monitor Metal

Designed for professional use

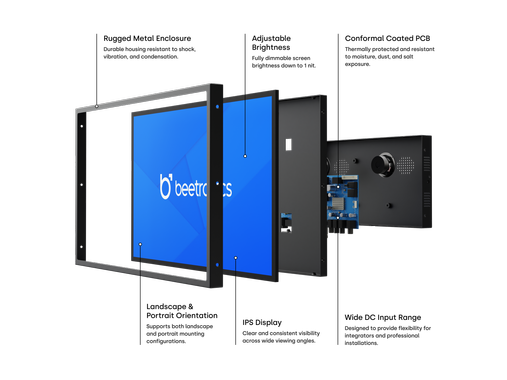

The 12HD7M is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

12 Inch Monitor Metal

Seamless Integration

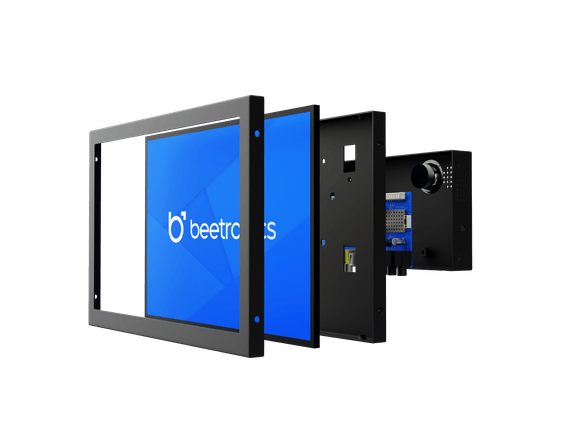

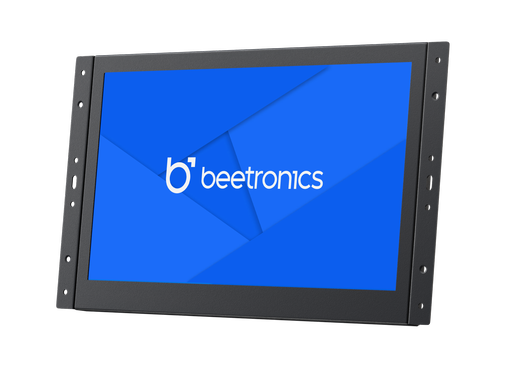

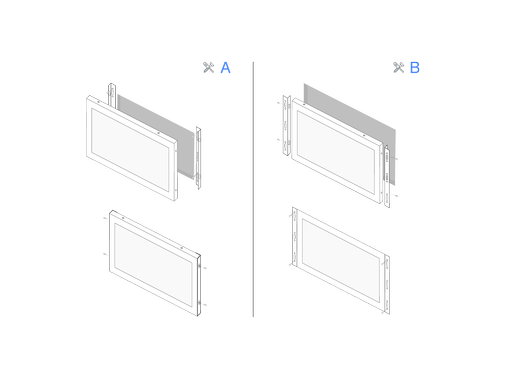

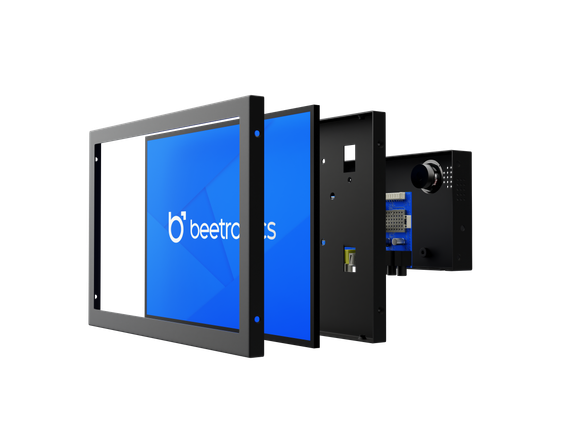

Thanks to numerous mounting options the 12 inch metal monitor can be seamlessly integrated in any application. The supplied mounting strips and easy-to-disassemble casing enable various flush mounting options, making it easy to neatly embed the monitor in any environment.

12 Inch Monitor Metal

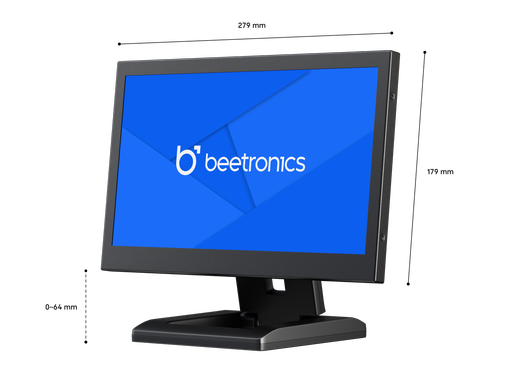

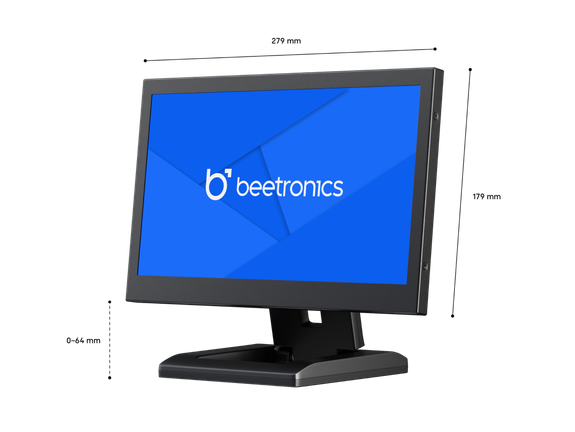

Desktop or wall mounting

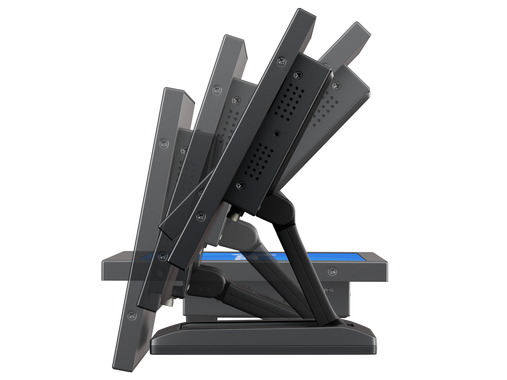

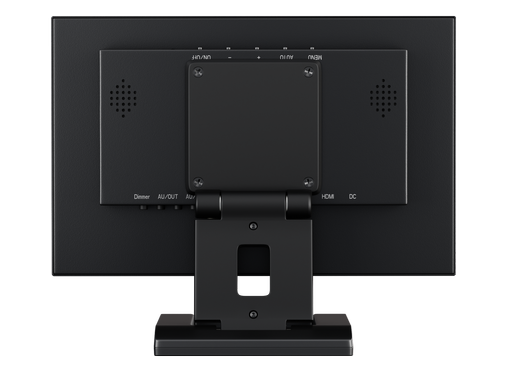

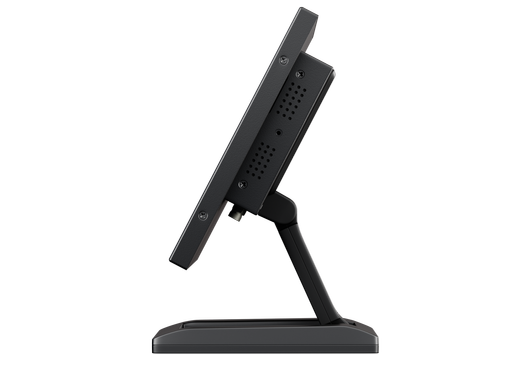

The Beetronics 12HD7M is equipped with a fully collapsible stand. The stand can be easily removed from the back, to enable access to the 75mm VESA mount. The VESA mount makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

12 Inch Monitor Metal
General
Manufacturer
Beetronics
Item number
12HD7M
Previous model
12HDM
Product name
12 Inch Monitor Metal
Warranty
2 years
Datasheet
User Manual
Quickstart
Panel
Diagonal size
11.6 inches (295 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
Size & weight
Colour
Black
Weight
1300 grams (1700 grams with stand)
Width
279 mm
Height
179 mm
Thickness
36 mm
Display dimensions
257 x 145 mm
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Orientation

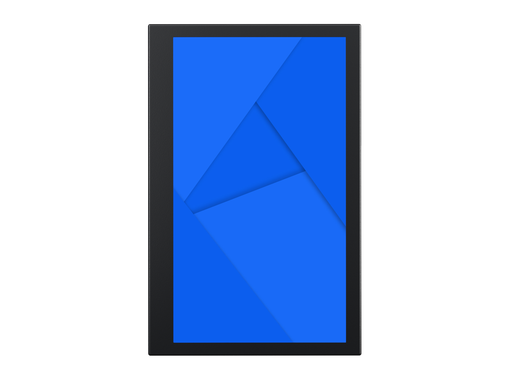

Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
Power consumption (typical): 8.9 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 80% non-condensing
Mounting
VESA (75 mm)
Flush mount
Mounting strips included
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC

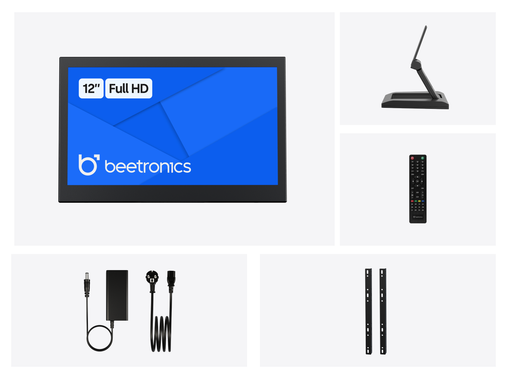

Package content
Includes
Monitor, Stand, Remote control, Mounting strips, AC power adapter, Manual
Compatible accessories
Dimmer
Compatible with external dimmer (DMK7/DMK8)
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK3 included as standard
12 Inch Monitor Metal
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
