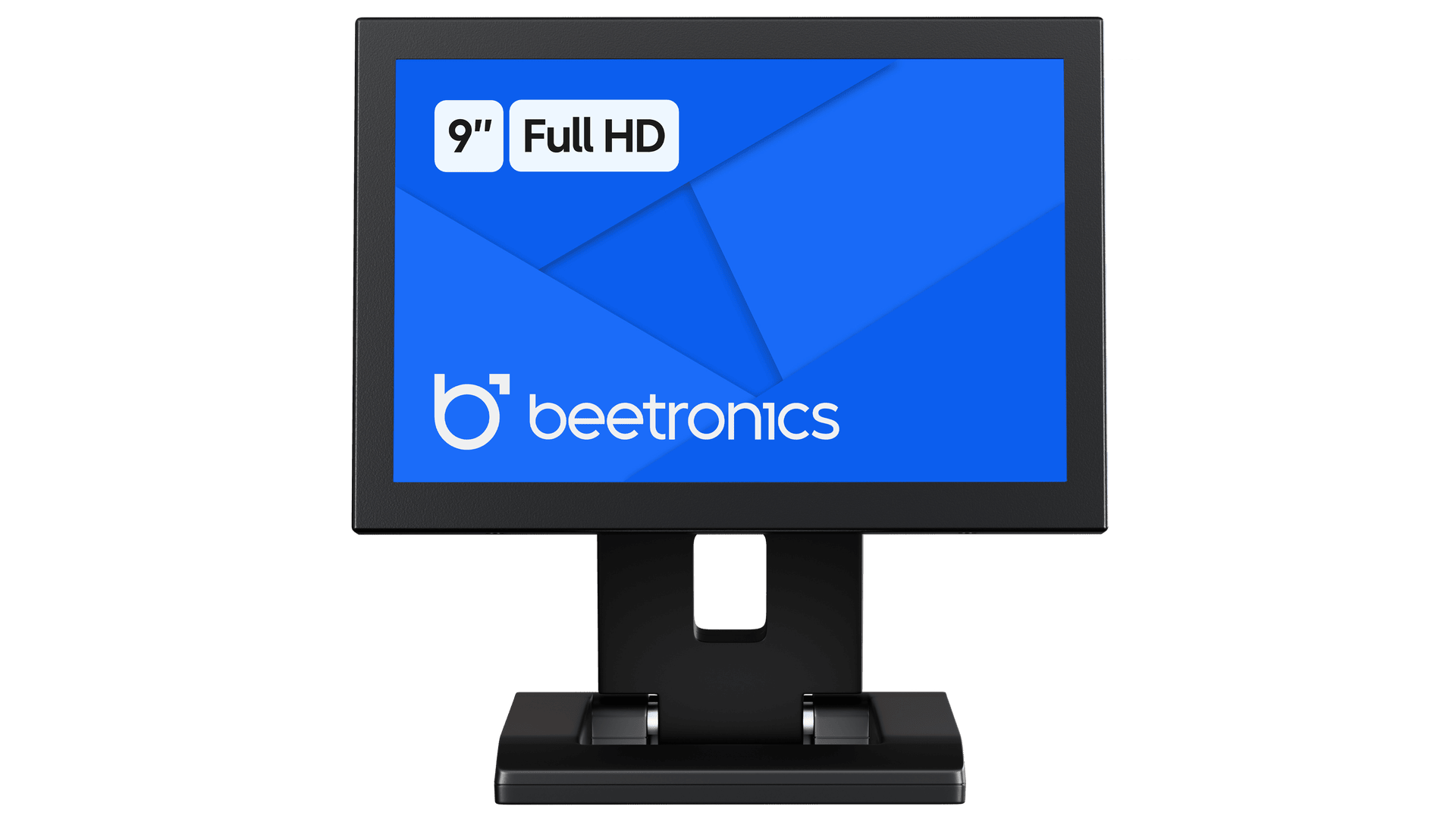

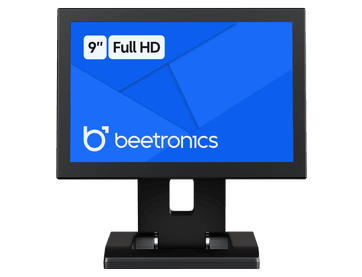

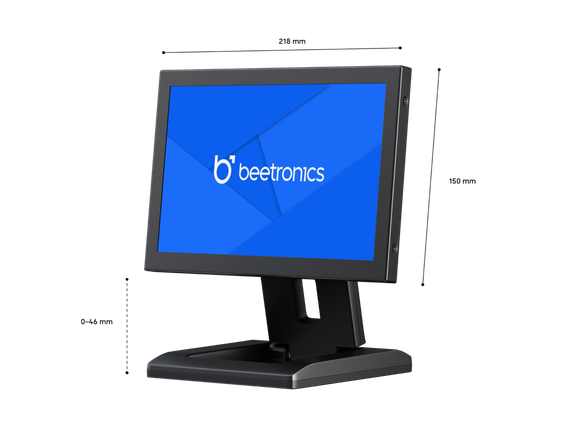

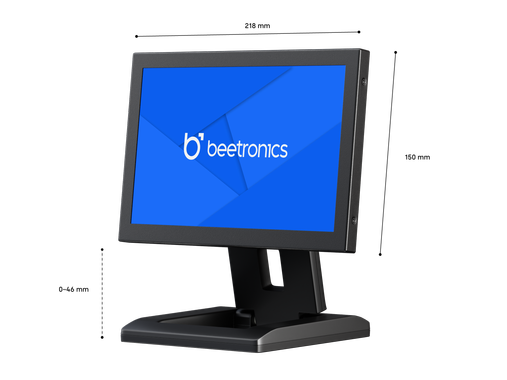

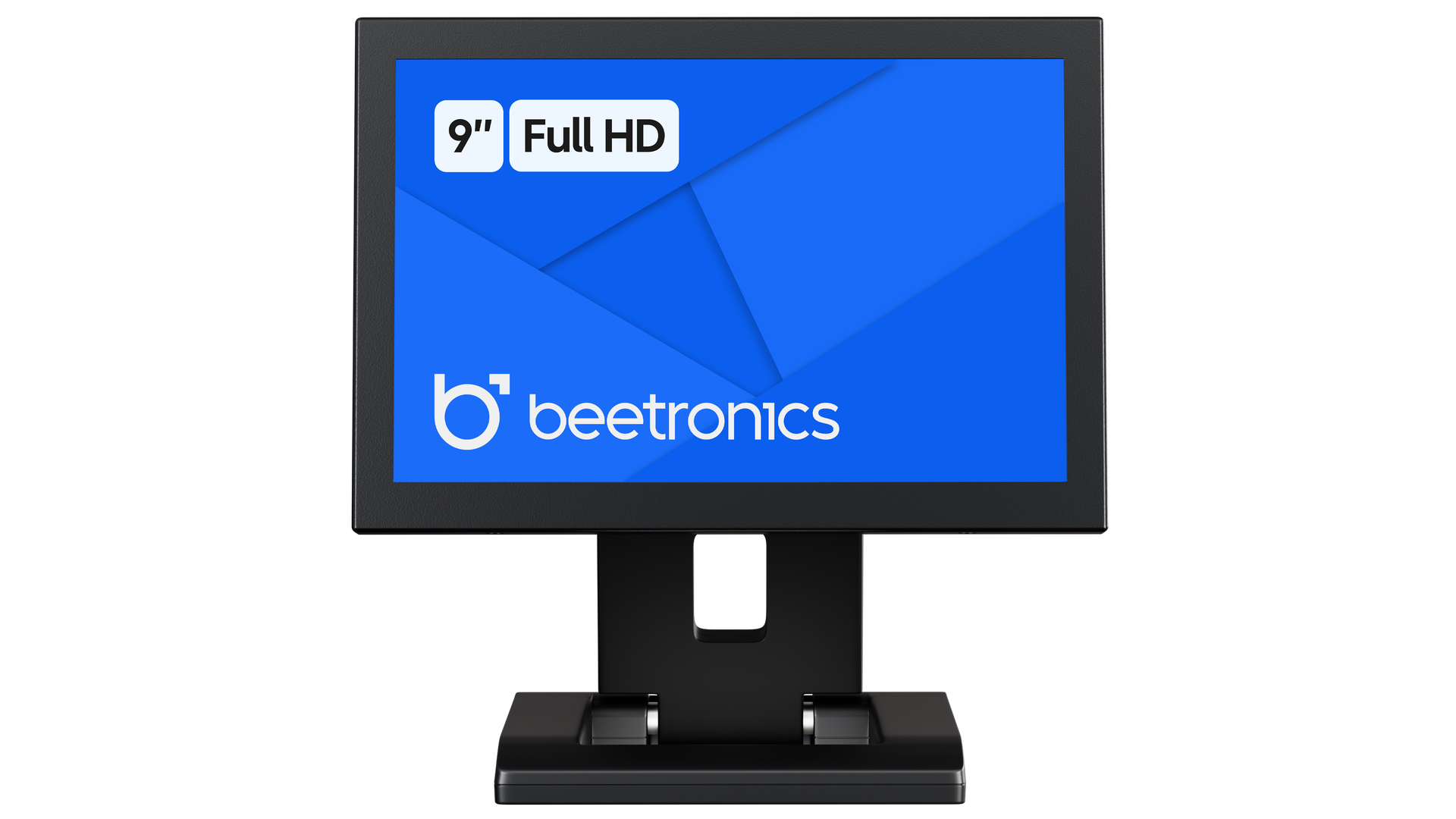

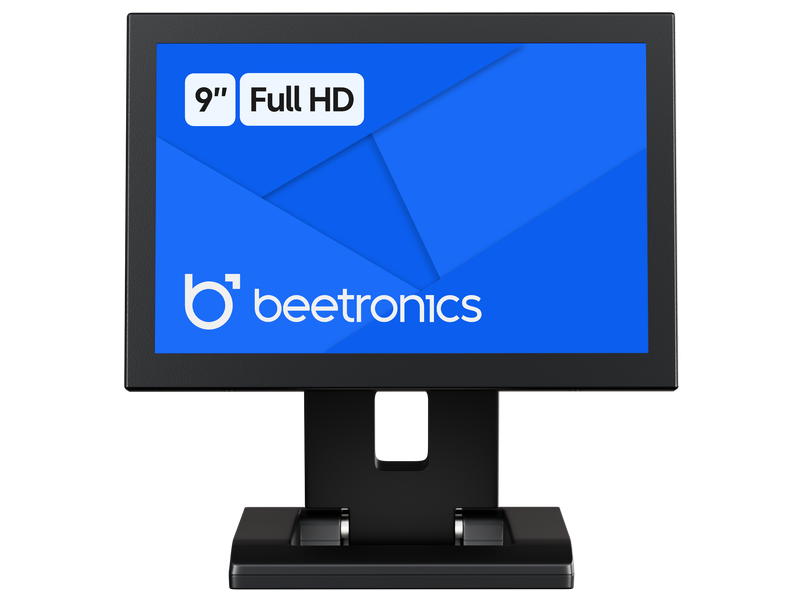

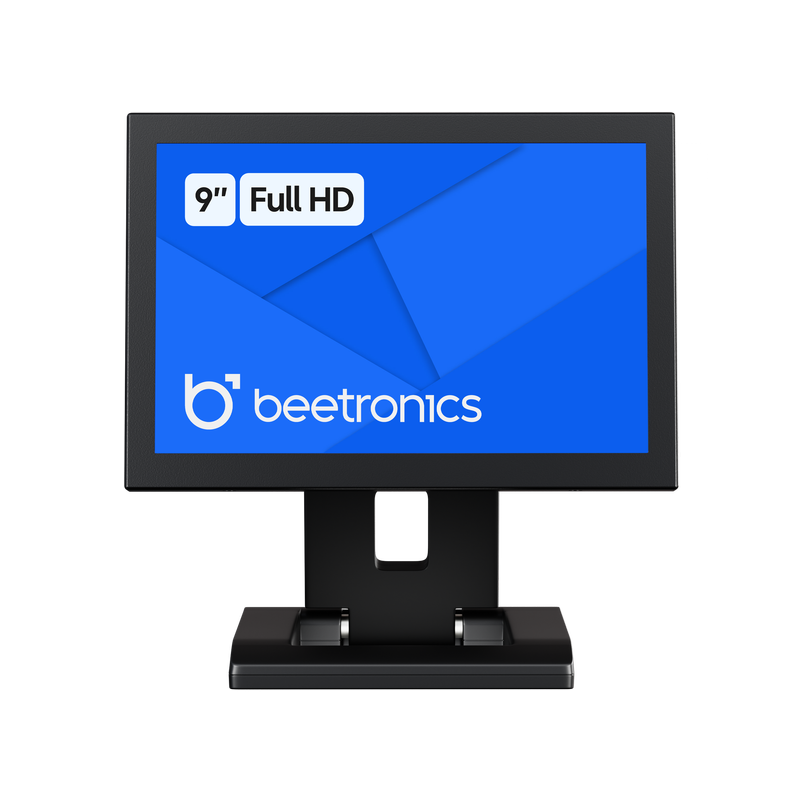

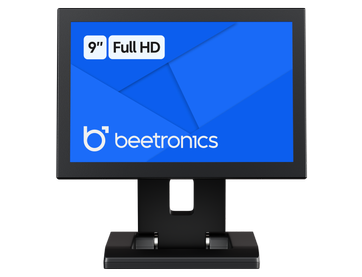

This Full HD 9 inch monitor has a sturdy metal housing and is suitable for desktop, flush and wall mounting. The monitor has a LED-IPS panel which provides crystal-clear image quality with excellent 178° viewing angles. The 9HDM can be connected through a HDMI, VGA, BNC or RCA connection.
Fitted with a native Full HD IPS panel, the monitor delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1200p.

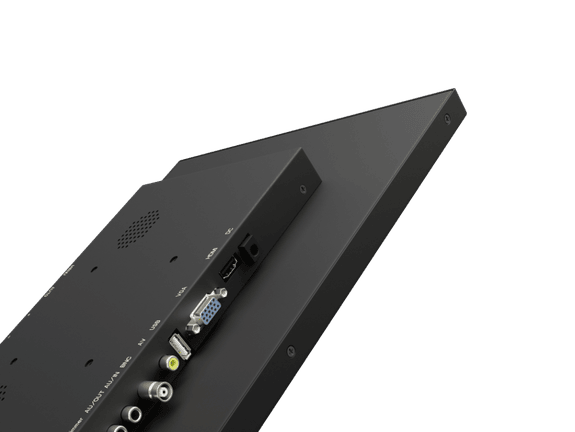

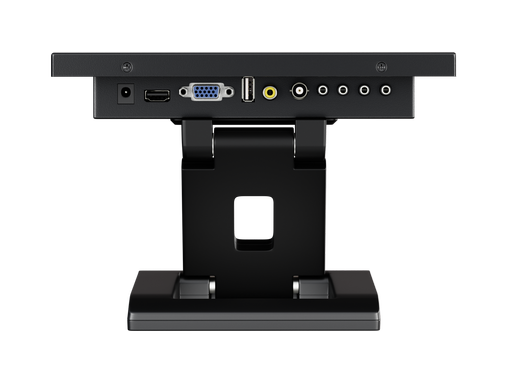

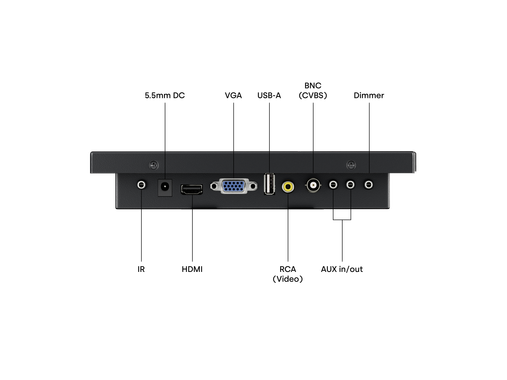

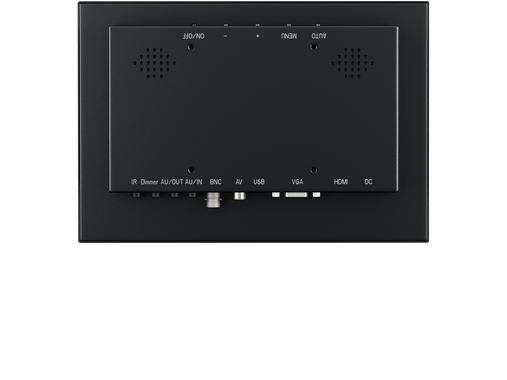

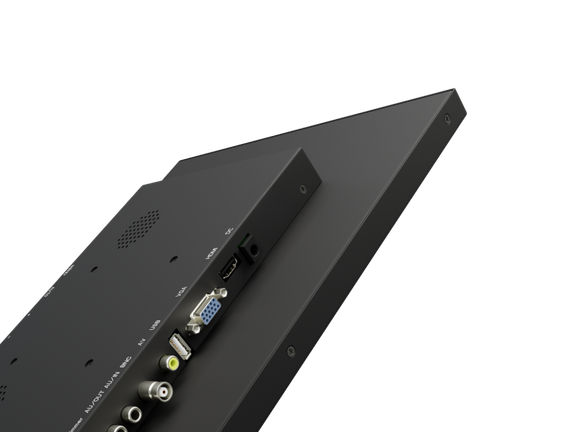

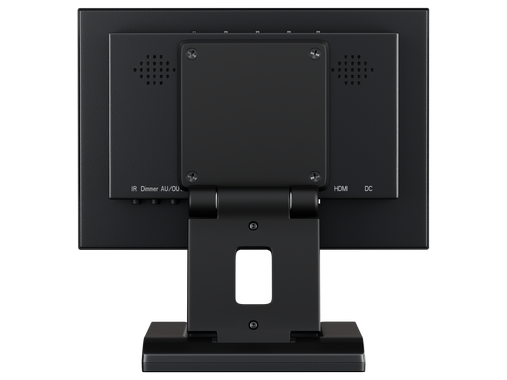

The 9HDM has a HDMI, VGA, BNC and RCA connection. The connections are located on the back of the monitor and are facing downwards, making installation easy in any situation. You can setup the monitor to automatically switch on when it detects a current or video signal.

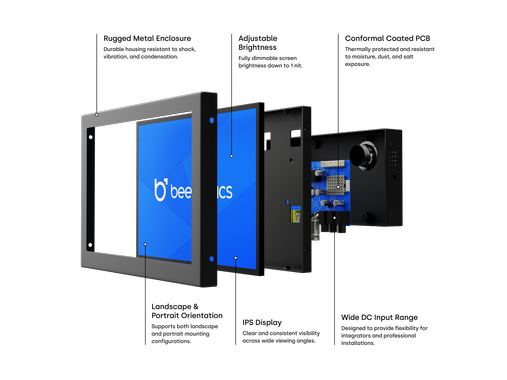

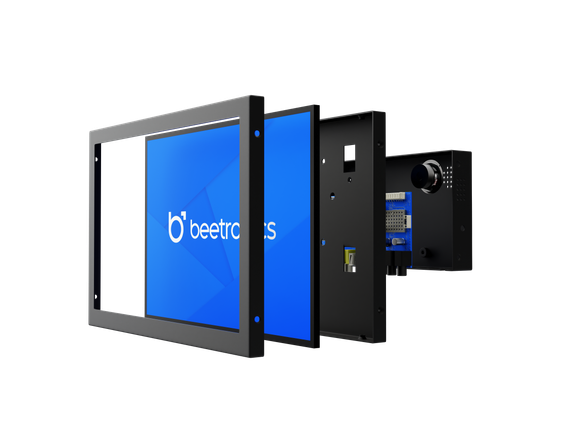

The 9HDM has a sturdy metal housing and dimmable panel. The monitor is manufactured with high quality components that guarantee reliable operation. The 9HDM is suitable for continuous operation and ideal for professional use.

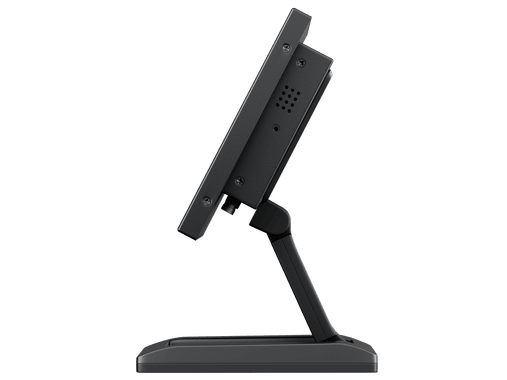

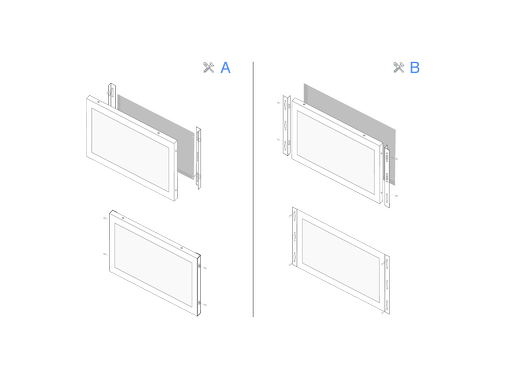

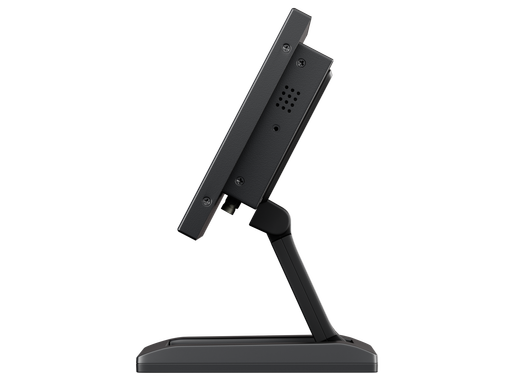

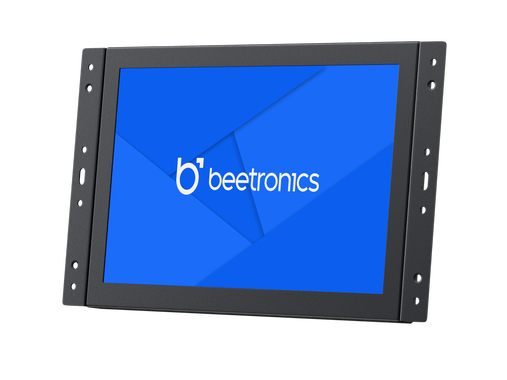

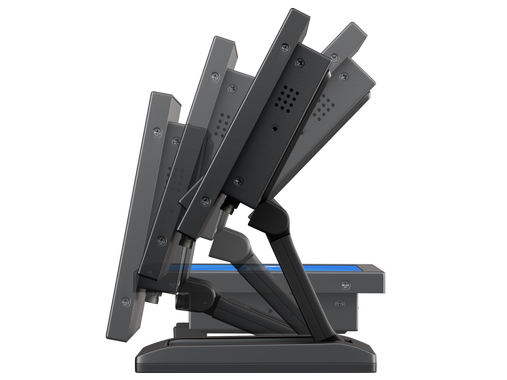

The Beetronics 9HDM is has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket. In addition, thanks to the included mounting strips, it is also possible to flush mount the monitor or integrate it into your own application.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
9HDM
|
Product name |
9 inch monitor metal
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
Matte, LED-IPS
|
Diagonal size |
9 inch (22,8 cm)
|
Aspect ratio |
16:10 (16:9, 4:3 adjustable)
|
Native resolution |
1920 x 1200
|
Supported resolutions |
1920 x 1200 (max), 640 x 480 (min)
|
Pixels per inch |
251 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Brightness |
350 cd/m2
|
Contrast |
900:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
1150 gram (1570 gram with stand)
|

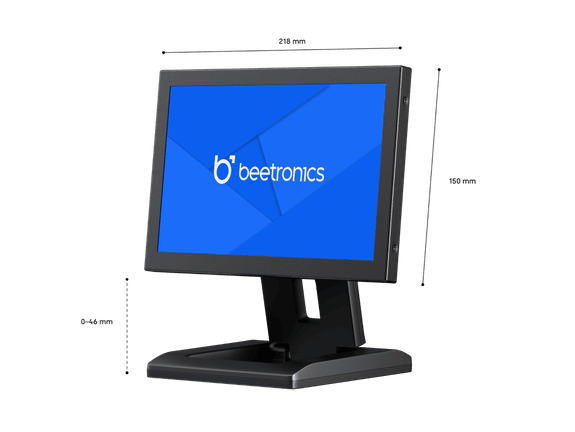

Width |
218 mm
|
Height |
150 mm (+0 to 39 mm with stand)
|
Thickness |
34 mm
|
Display dimensions |
193 x 121 mm
|
Technical drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 12V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<12 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Mounting strips included
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH
|
Package content | |
---|---|
Includes |

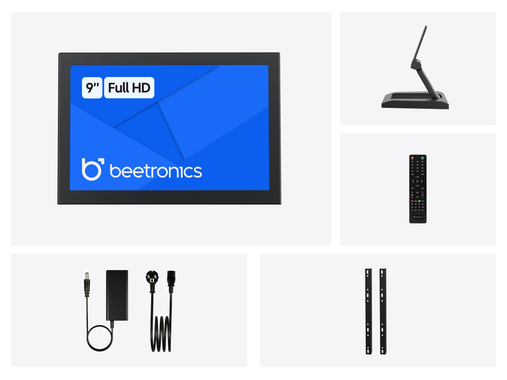

Monitor, Stand, Remote control, Mounting strips, Mains adaptor, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
Datasheet | Download PDF |
