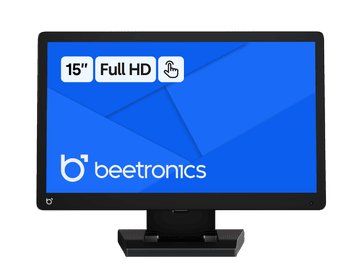

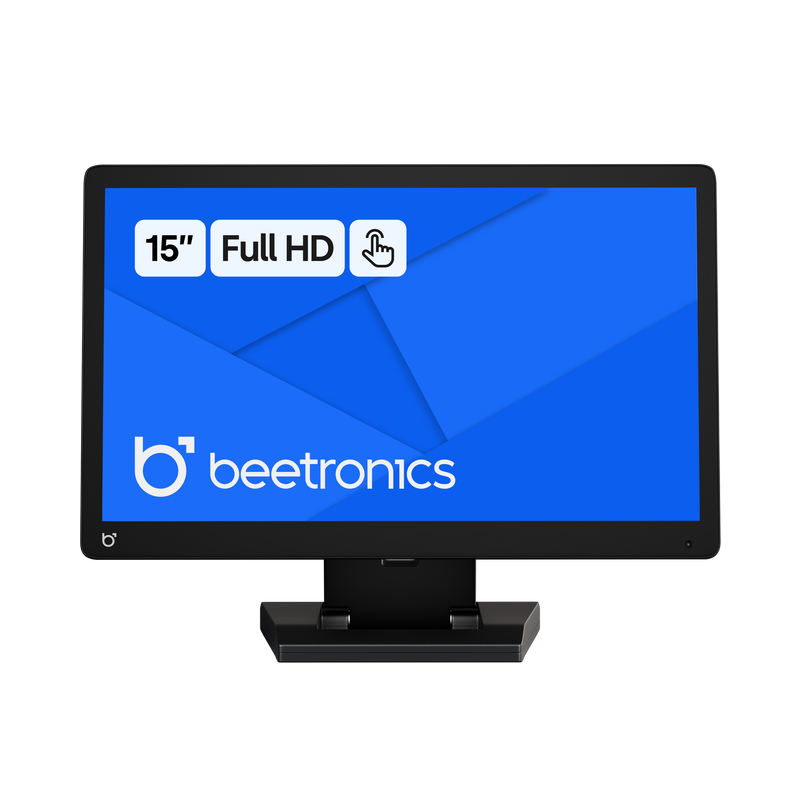

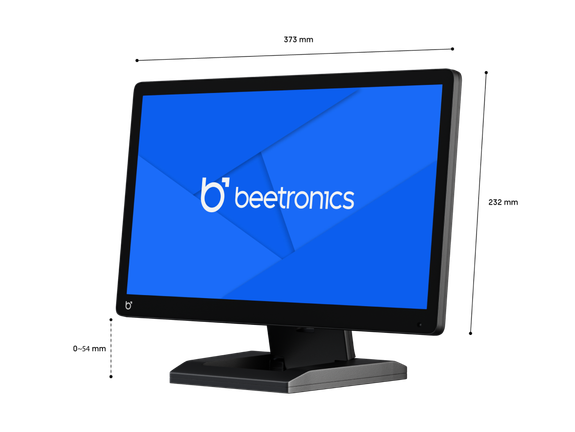

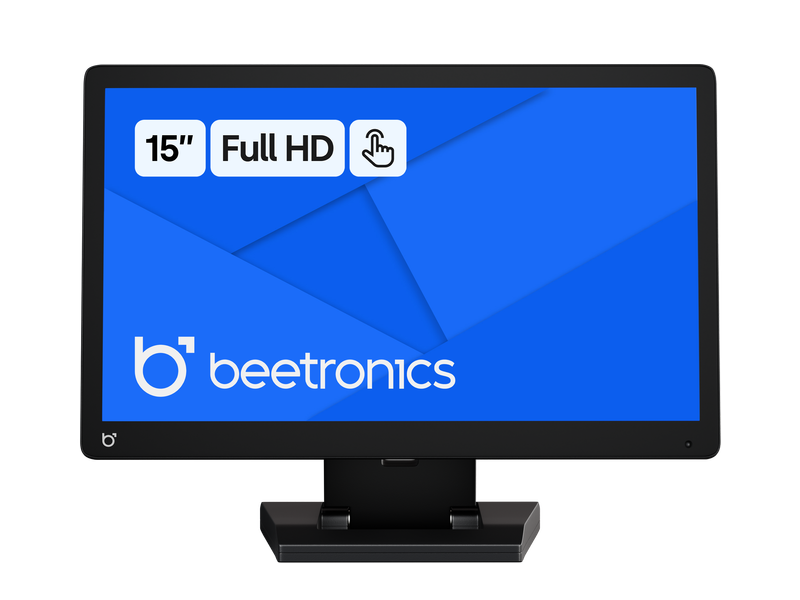

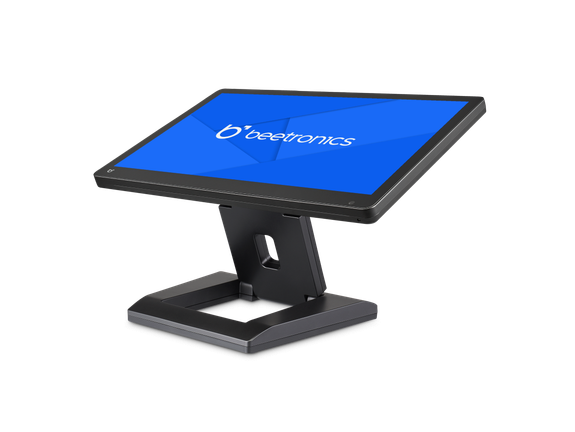

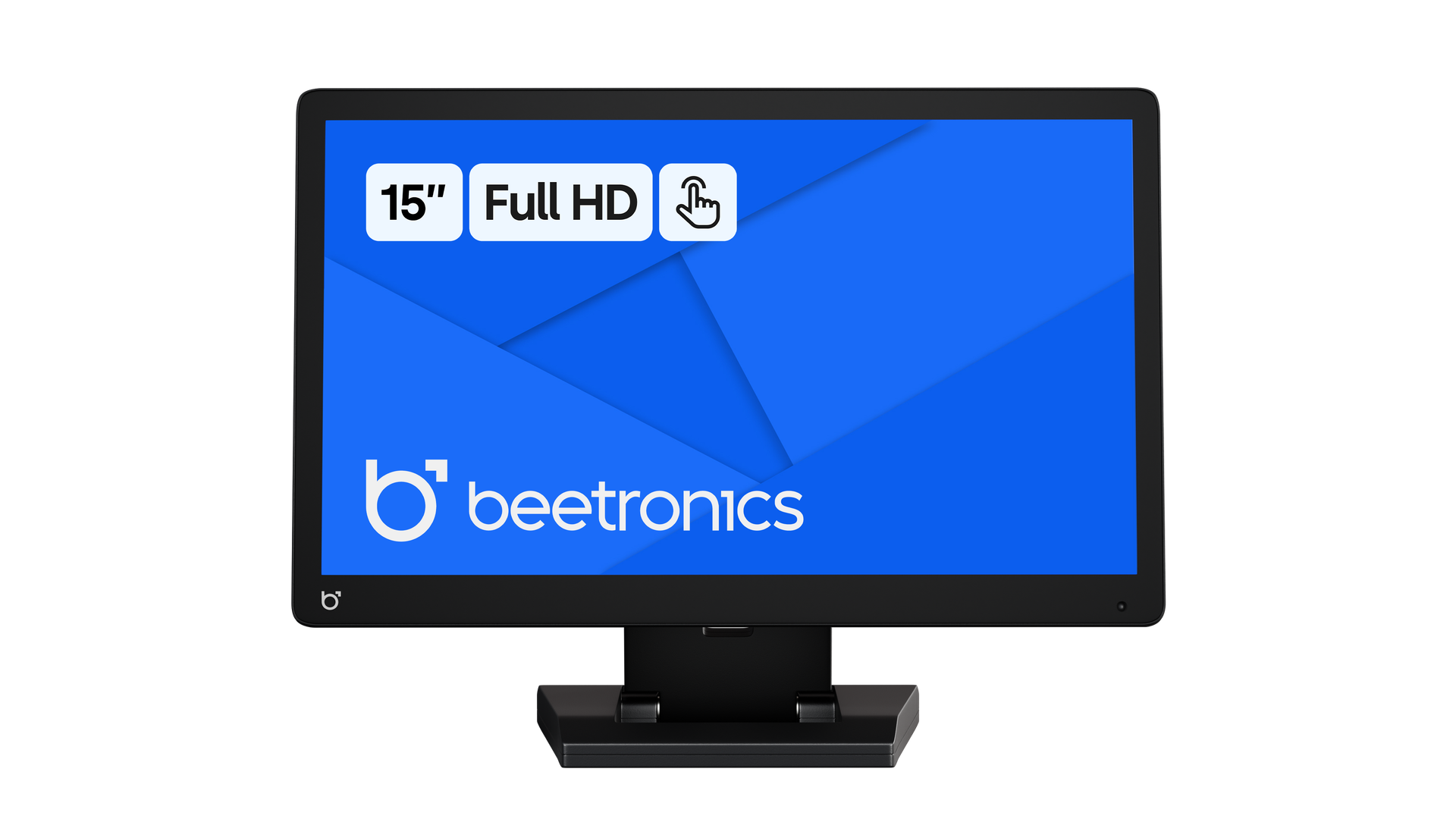

This Full HD 15 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 15TS7 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac & Linux operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 15TS7 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

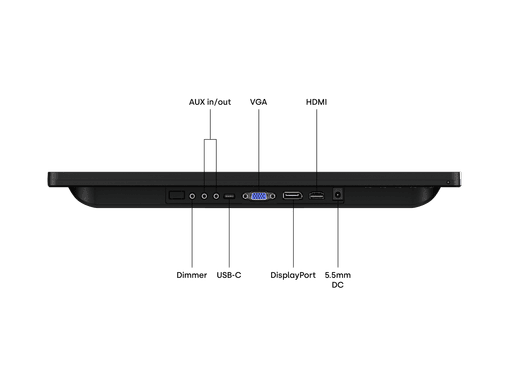

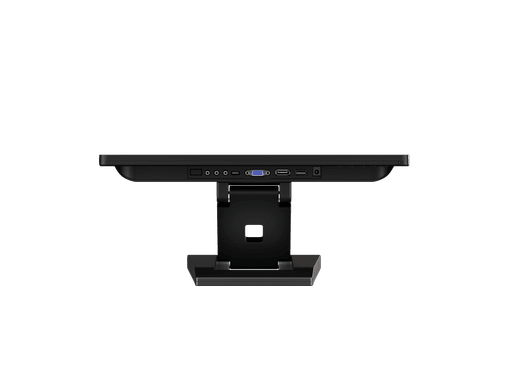

This touchscreen is compatible with Windows, Mac & Linux operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
The 15TS7 is designed for continuous operation and professional use. The touchscreen is manufactured with high quality components, guaranteeing reliable and accurate operation even in the most challenging environments. The IP65 rated front panel protects the screen from water and dust. The touchscreens accepts a wide range of input-voltage from 9 to 28 Volts and features a fully dimmable backlight.

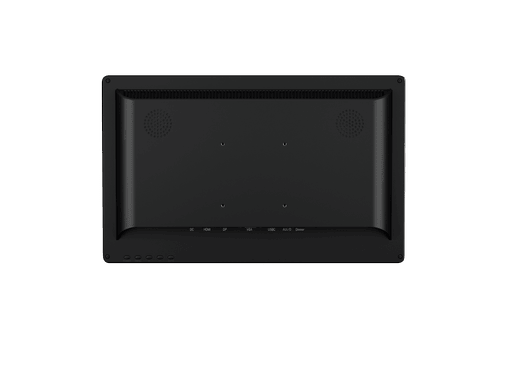

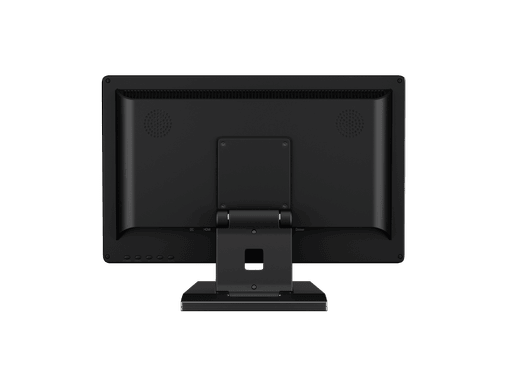

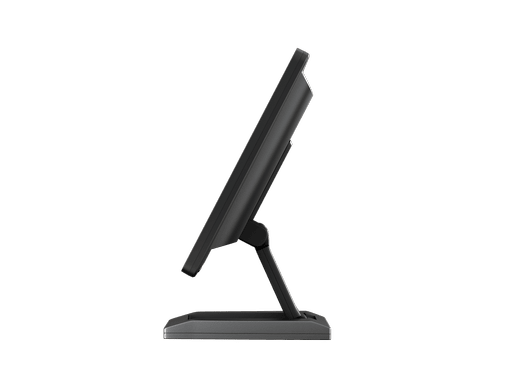

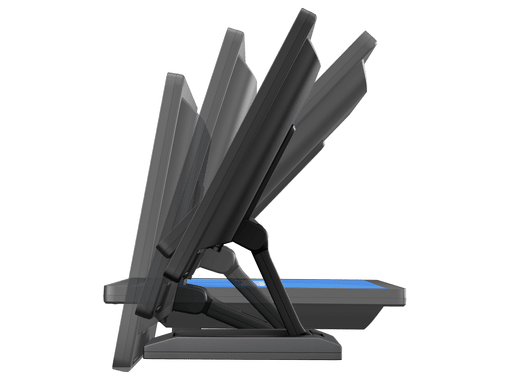

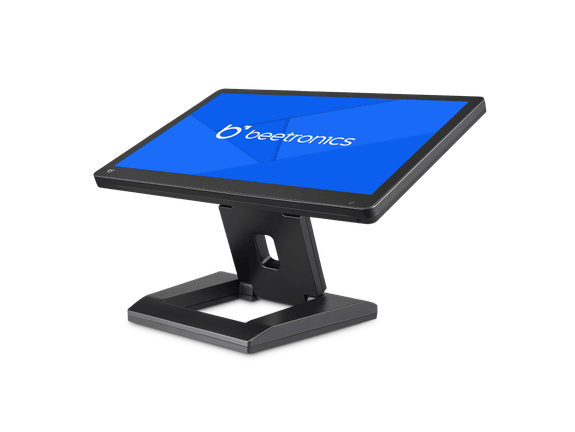

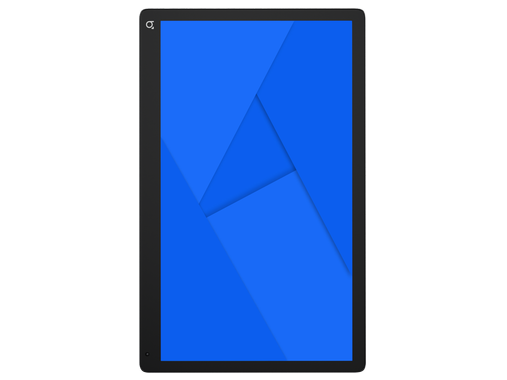

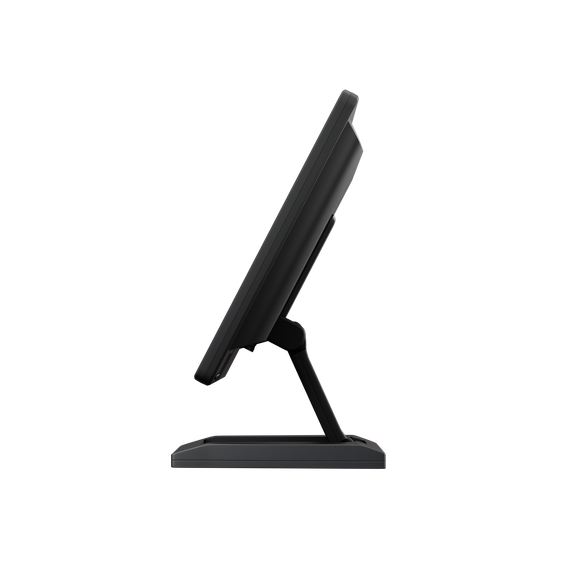

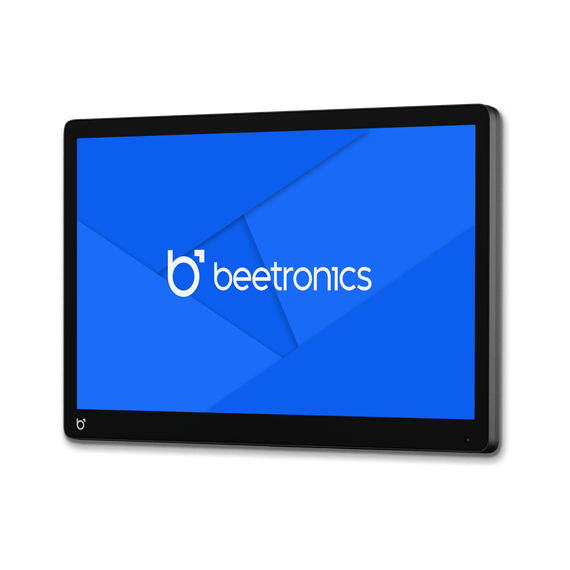

The Beetronics 15TS7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the touchscreen to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
15TS7
|
Product name |
15 inch touchscreen
|
Warranty |
2 years
|
Datasheet | |
Manual | |
Drivers |
Supported operating systems | |
---|---|
Windows |
Windows 8, 10, 11
|
Windows Embedded |
Windows Embedded 8 Industry, Windows Embedded 8.1 Industry, Windows IoT Enterprise
|
macOS |
Catalina, Big Sur, Monterey
|
Linux |
All Linux distributions
|
Panel | |
---|---|
Type |
LED-IPS
|
Diagonal size |
15.6 inches (396 mm)
|
Aspect ratio |
16:9 (4:3 adjustable)
|
Native resolution |
1920 x 1080
|
Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
146 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
350 cd/m2
|
Contrast |
700:1
|
Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
Control |
Stylus, hand, glove
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
Only for touchscreen functionality
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
1200 gram (1800 gram with stand)
|

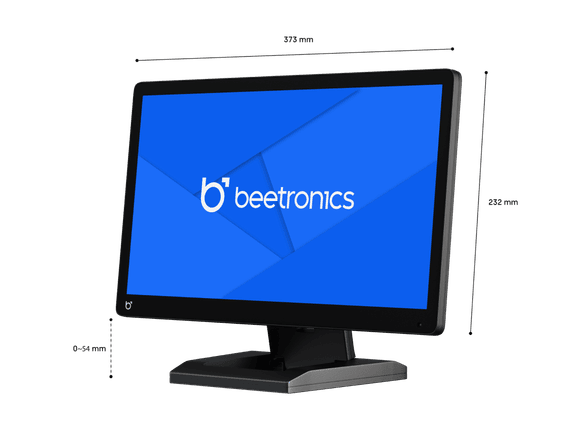

Width |
373 mm
|
Height |
232 mm
|
Thickness |
33 mm
|
Display dimensions |
345 x 192 mm
|
Technical drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 9-28V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
7.8 Watt
|
Environmental | |
---|---|
Operating temperature |
-20°C to +60°C
|
Storage temperature |
-20°C to +70°C
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Possible, no accessories available
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
IP rating |
IP65 front panel
|
Certifications |
CE, FCC, RoHS, REACH, IC, UKCA
|

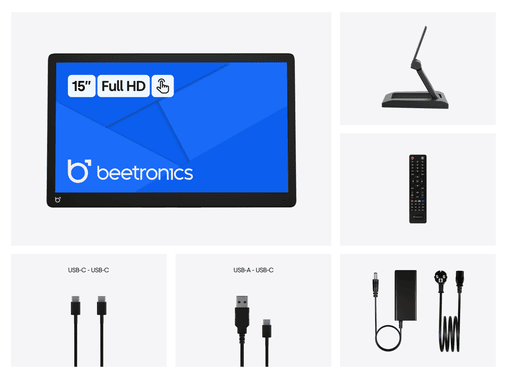

Package content | |
---|---|
Includes |
Touchscreen, Mains adaptor, Remote control, USB cable, Stand, Manual
|
Manual | Download PDF |
Technical drawing | Download PDF |
Datasheet | Download PDF |
Drivers | Download touchscreen driver |
Files |
---|
Product name | Item number | In stock | Quantity | Price |
---|---|---|---|---|
![]()
15 inch touchscreen
|
15TS7 |
|
|
€ 459,00 |
![]() |
VWB1 |
|
|
€ 25,00 |
![]() |
KHD2 |
|
|
€ 15,00 |
![]() |
VGA1 |
|
|
€ 15,00 |
![]() |
DMK7 |
|
|
€ 25,00 |
|
