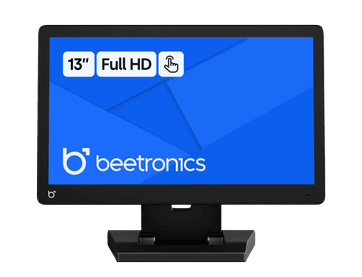

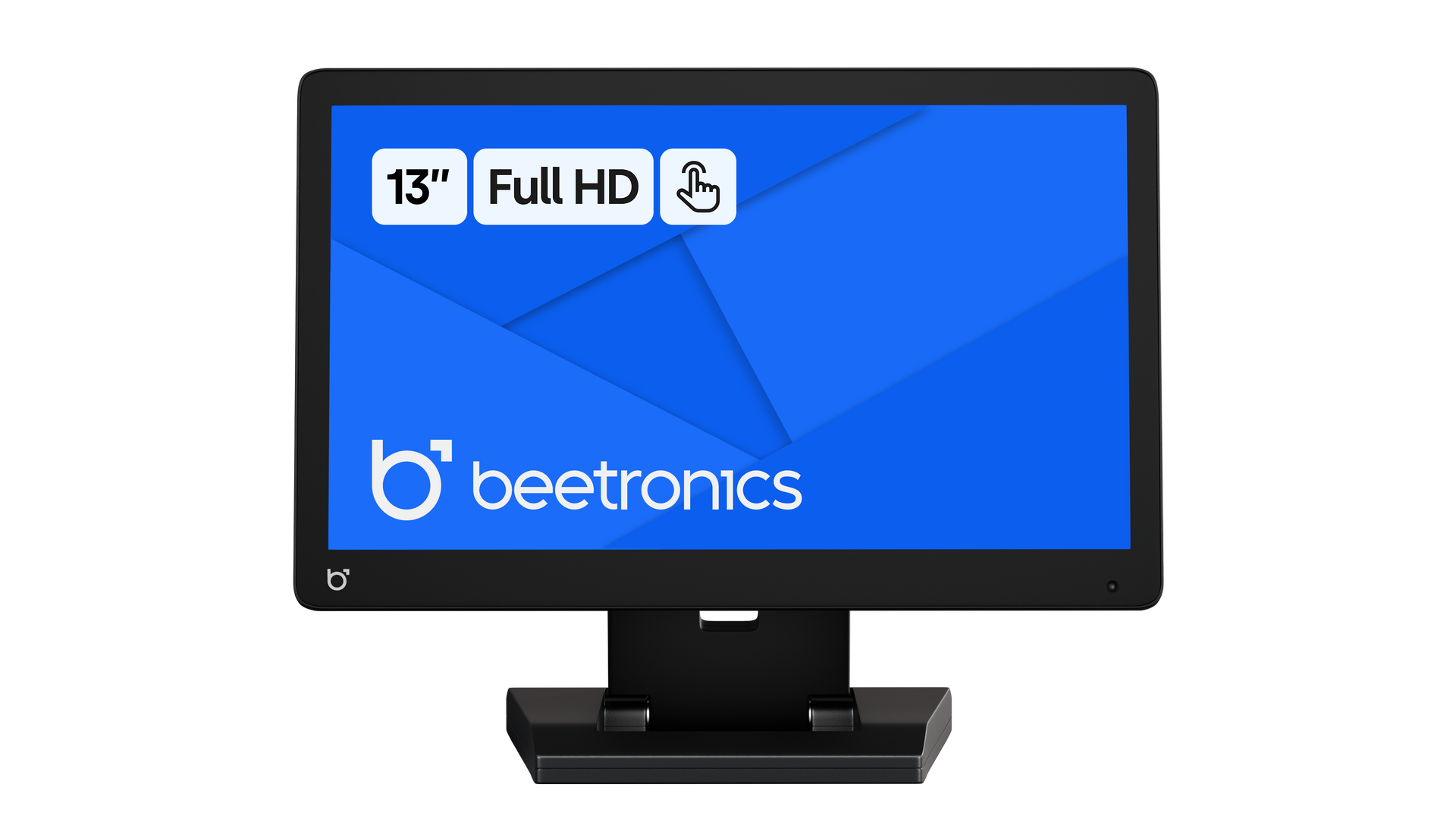

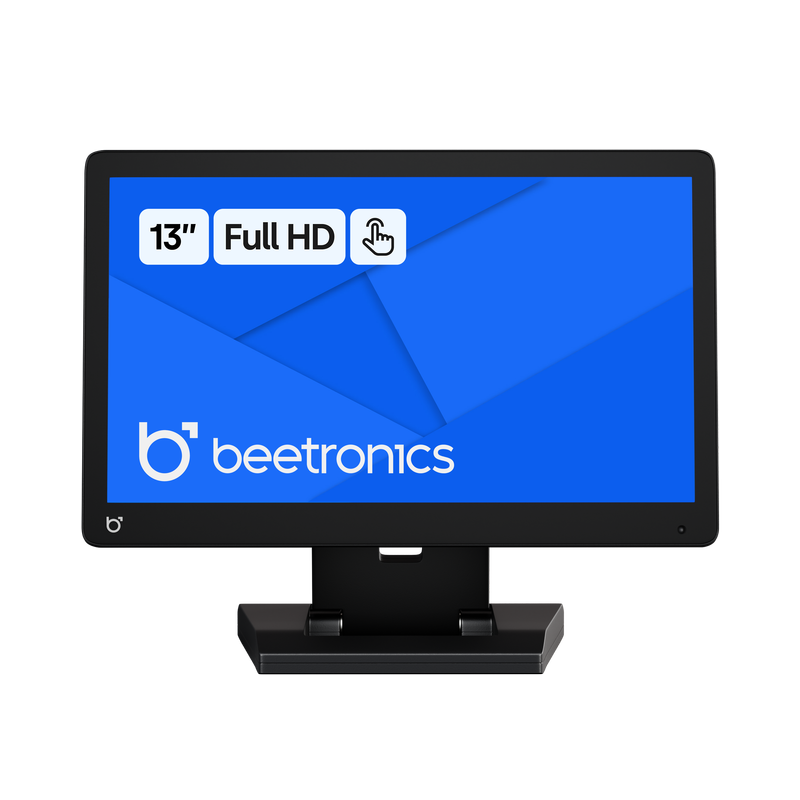

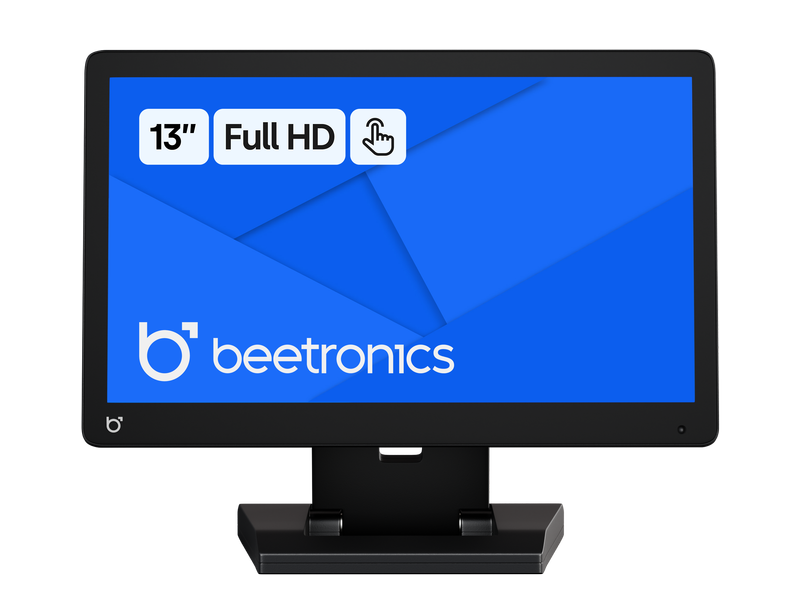

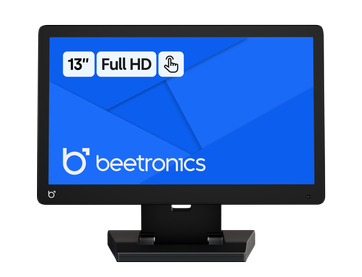

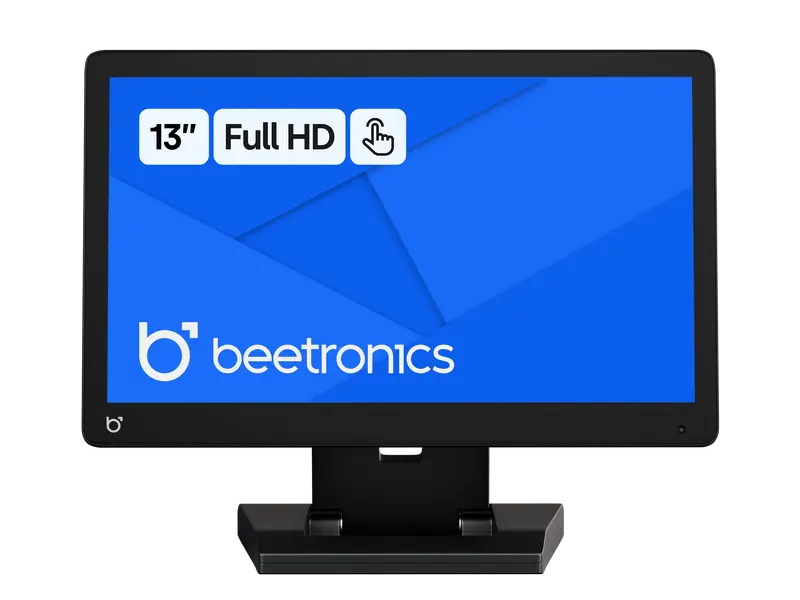

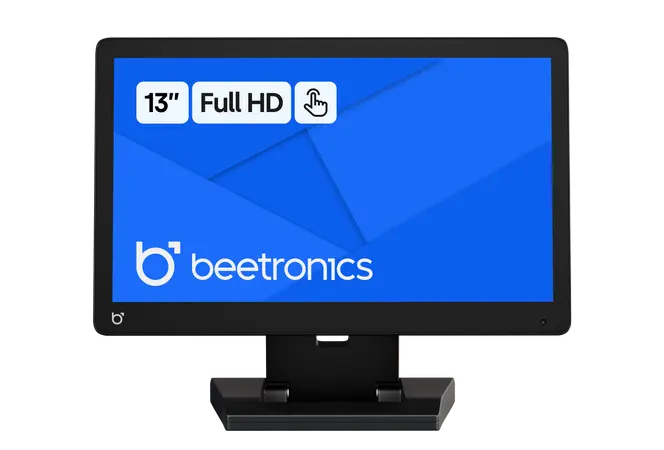

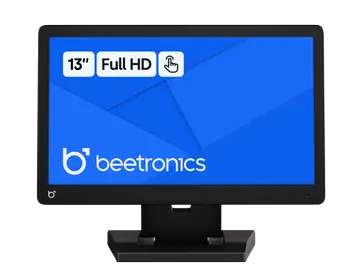

13 inch touchscreen

  1. Full HD multi-touch panel
  2. Windows, Mac, Linux & Android compatible
  3. Desktop and wall mountable

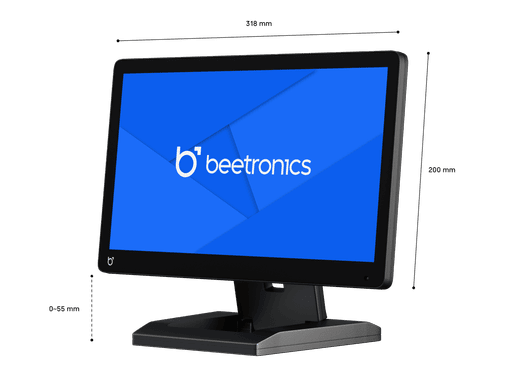

  4. 319 x 200 x 33 mm
Item number: 13TS3
100+ units in stock

Order before 18:00 for delivery on wednesday

€ 379,00 € 313,22 Ex VAT
  • Description
  • Specifications
  • Connections
  • Downloads

This Full HD 13 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 13TS3 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.


Full HD multi-touch panel

Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 13TS3 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

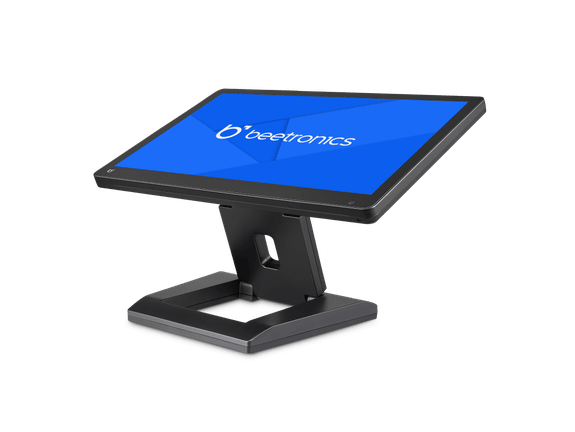

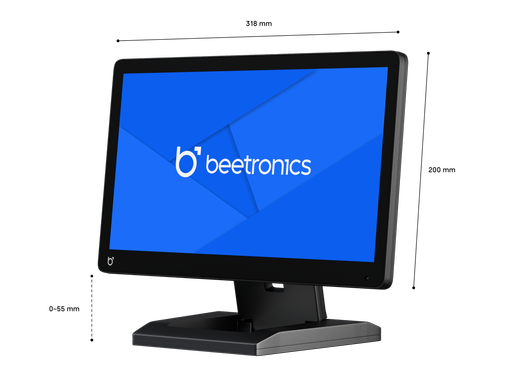

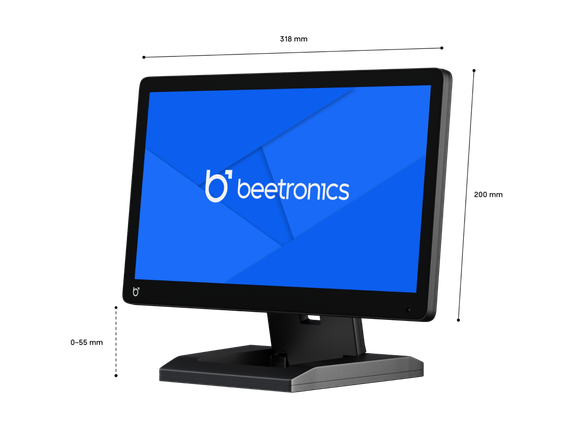

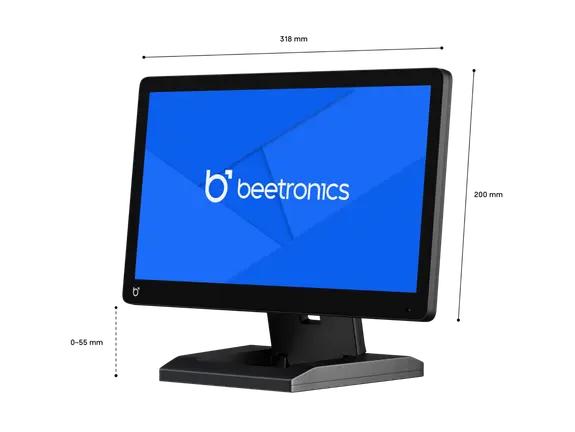

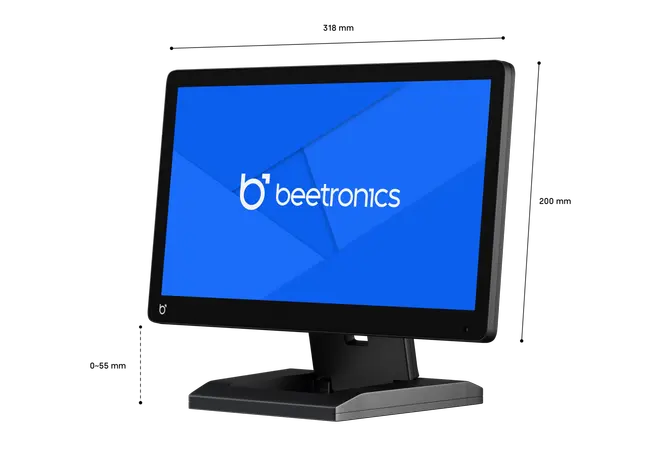

13 inch touchscreen with stand

Windows, Mac, Linux & Android compatiblele

This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.

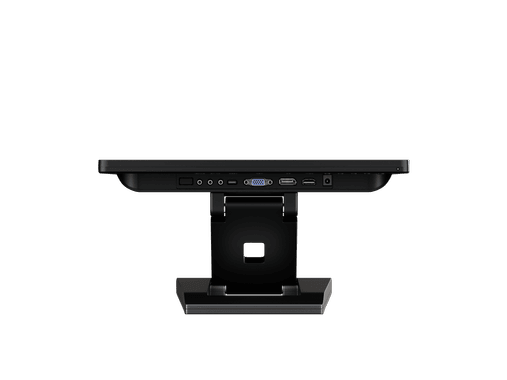

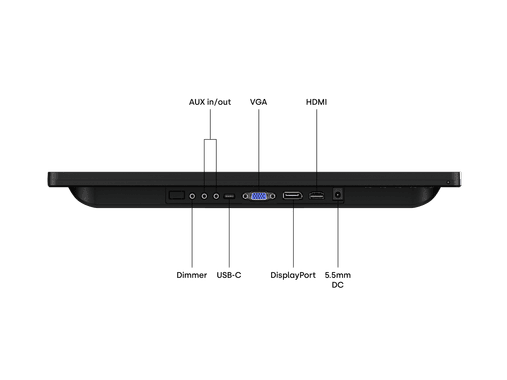

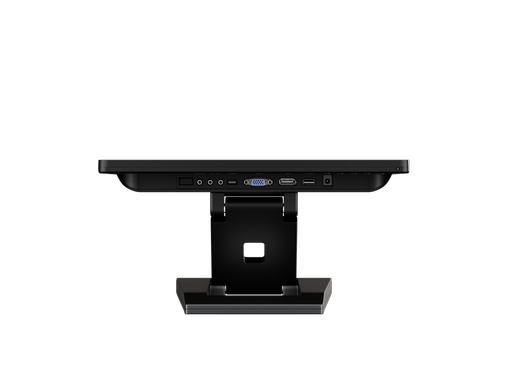

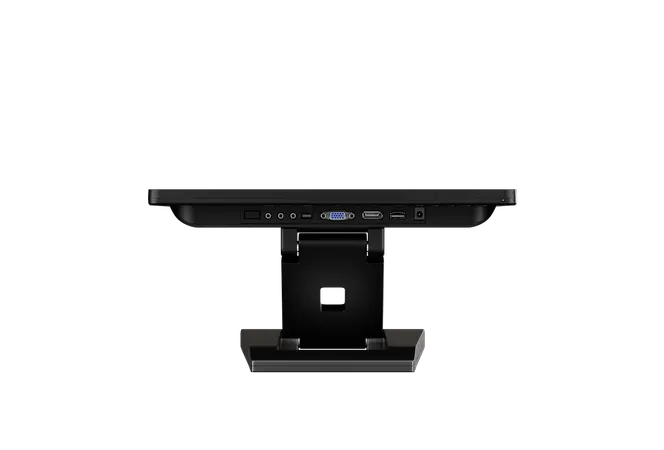

13 inch touchscreen with hdmi, vga, bnc and rca connections

Designed for professional use

The 13TS3 touchscreen  is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 13TS3 is ideal for professional use.

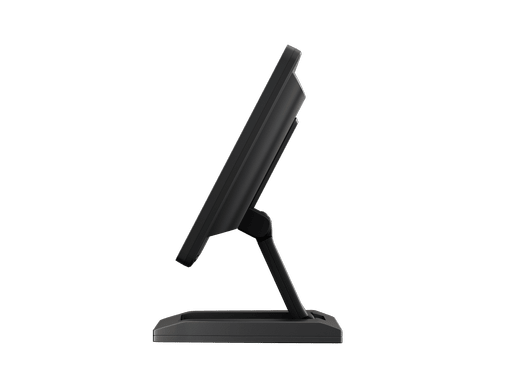

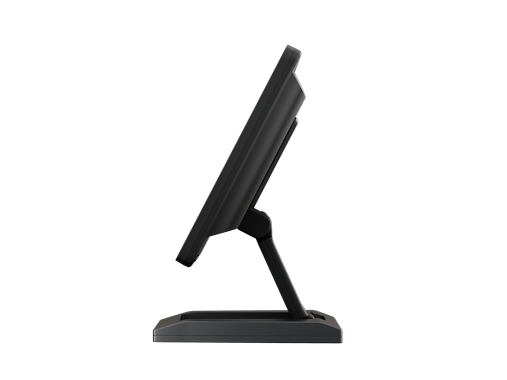

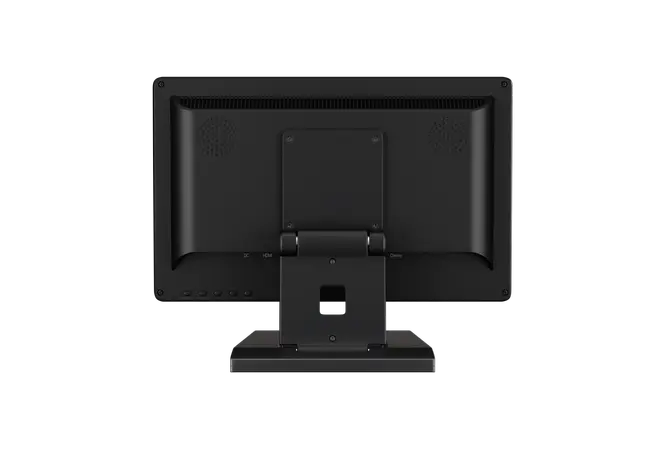

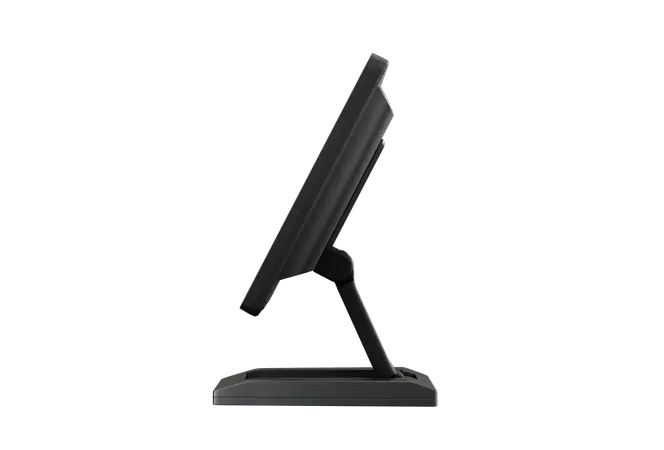

13 inch touchscreen with stand

Desktop and wall mountable

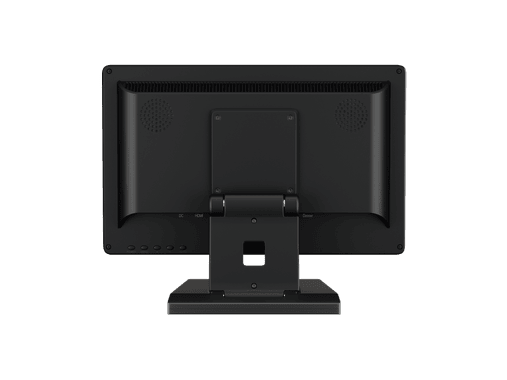

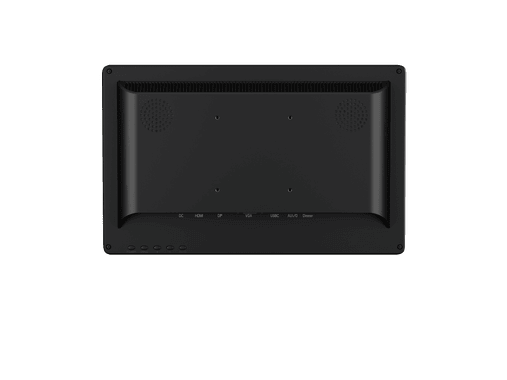

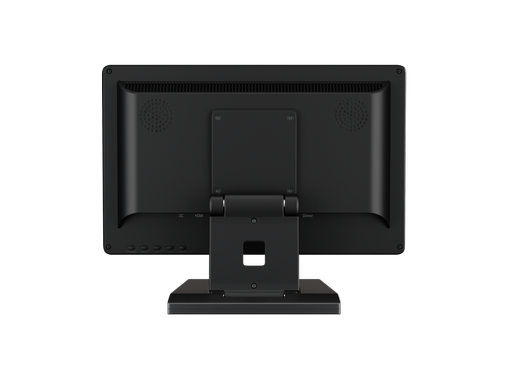

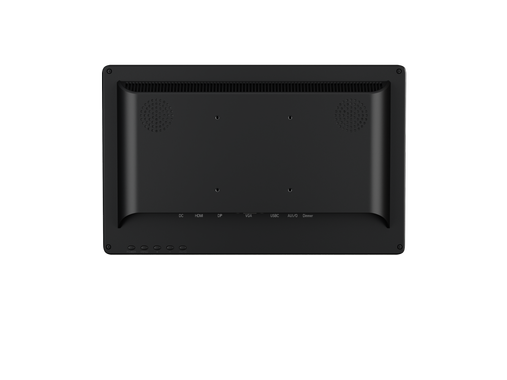

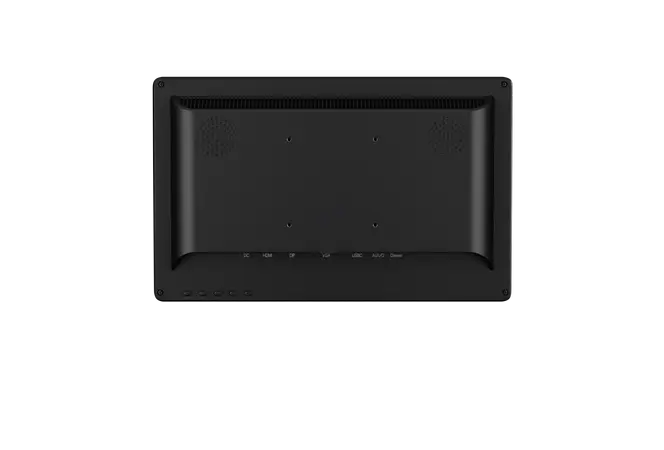

The Beetronics 13TS3 has a fully collapsible stand. The stand can easily be removed if desired, which means that you can use the 75mm VESA mount. This allows the monitor to be attached to a universal wall bracket.

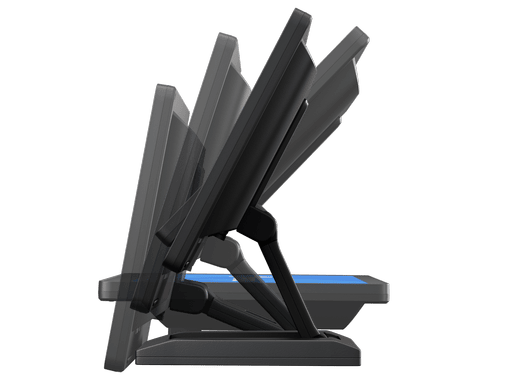

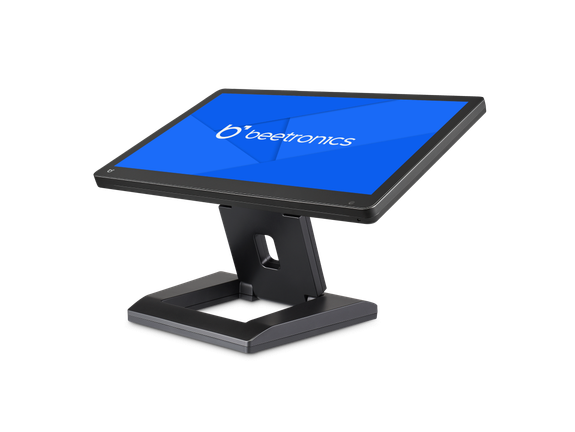

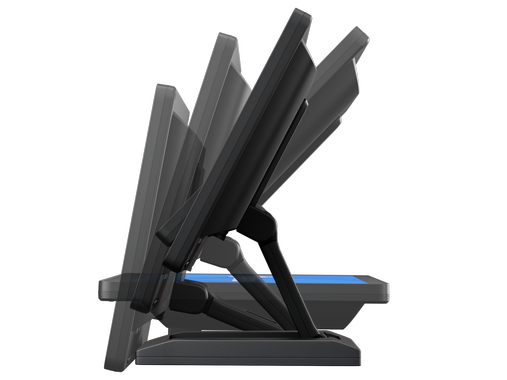

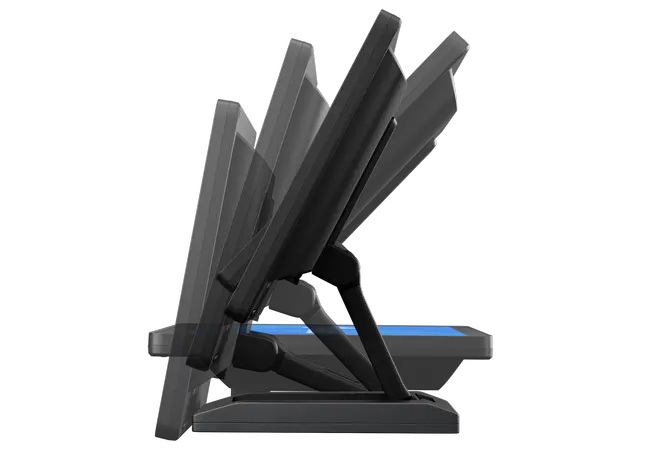

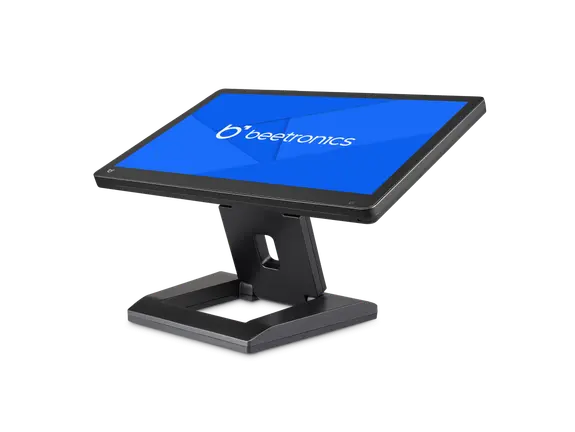

13 inch touchscreen with collapsible stand
General
Manufacturer
Beetronics
Item number
13TS3
Product name
13 inch touchscreen
Warranty
2 years
Datasheet
Manual
Supported operating systems
Windows
(Windows 7, 8, 10)
Windows Embedded
(Windows embedded 7, 8, 10)
Mac
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
Linux
Android
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
Drivers
No drivers needed. Plug & Play
Panel
Type
LED-IPS
Diagonal size
13.3 inch (33,8 cm)
Aspect ratio
16:9 (4:3 adjustable)
Native resolution
1920 x 1080
Supported resolutions
1920 x 1080 (max), 640 x 480 (min)
Pixels per inch
165 PPI
Viewing angle
178° horizontal, 178° vertical
Colour encoding system
PAL/NTSC/SECAM
Brightness
400 cd/m2
Contrast
1000:1
Touch technology
Capacitive, 10-point multitouch (PCAP)
Control
Stylus, hand, glove
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA video
1x
AUX output
1x
USB
Only for touchscreen functionality
Size & weight
Colour
Black
Weight
890 gram (1310 gram with stand)

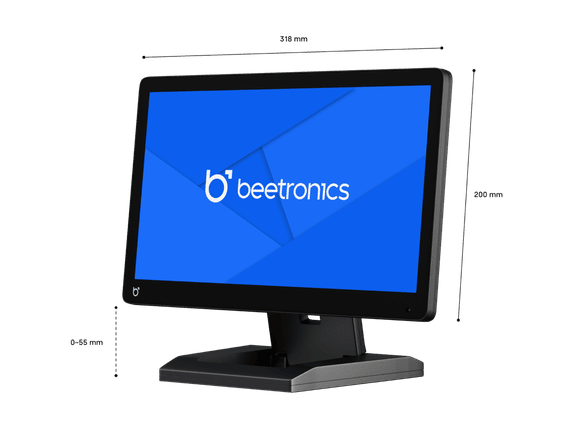

Width
319 mm
Height
200 mm (+0 to 37 mm with stand)
Thickness
33 mm
Display dimensions
305 x 188 mm
Technical drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically
Power
Input voltage
DC 12V
Power supply
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
Consumption
<15 Watt (0.5 Watt standby)
Environmental
Operating temperature
-20c° to +60c°
Storage temperature
-20c° to +70c°
Operating humidity
20% - 90% non-condensing
Mounting
Wall mount
VESA (75 mm)
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Certifications & Standards
IP rating
IP65 front panel
Certifications
CE, FCC, RoHS, REACH

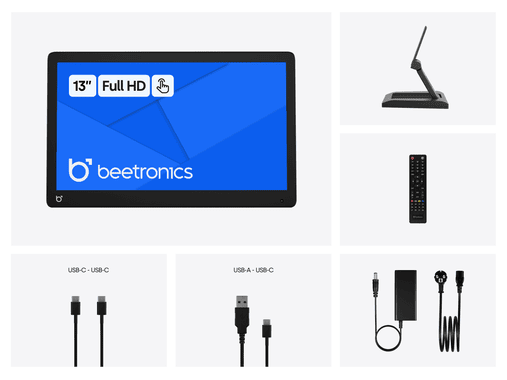

Package content
Includes

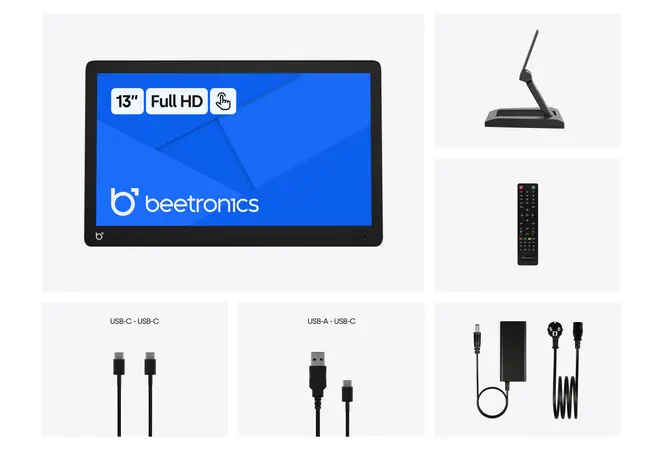

Touchscreen, Mains adaptor, Remote control, USB cable, Stand, Manual

HDMI
HDMI
VGA
VGA
BNC
BNC
RCA(video)
RCA
AUX(output)
AUX_audio_35mm
USB(touch)
usb_touch
Manual   Download PDF
Technical drawing   Download PDF
Datasheet   Download PDF
Files
Product name Item number In stock Quantity Price
13 inch touchscreen
13 inch touchscreen
13TS3
€ 379,00
Wall Mount Bracket, flat
VWB1
€ 29,00
Cable HDMI 2m
KHD2
€ 19,00
VGA Cable - 2m
VGA1
€ 15,00
