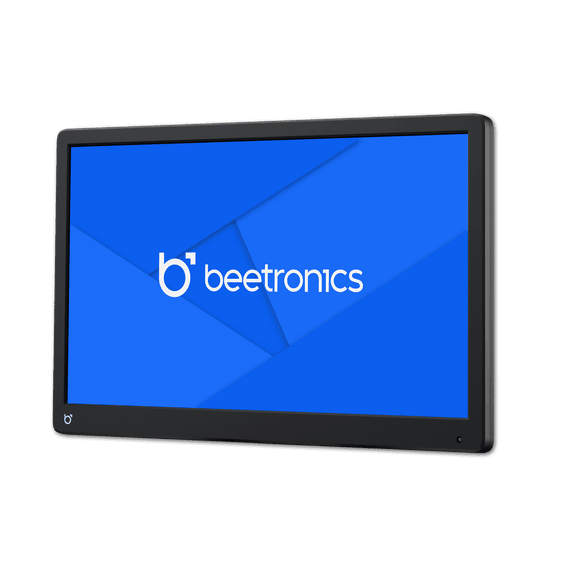

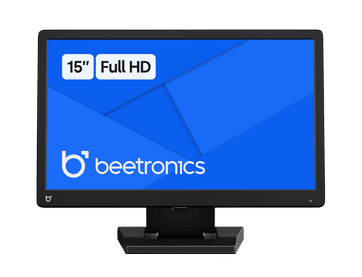

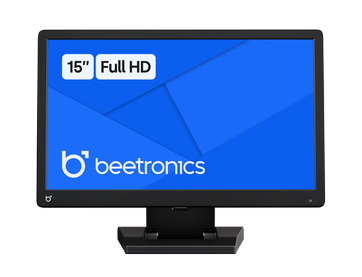

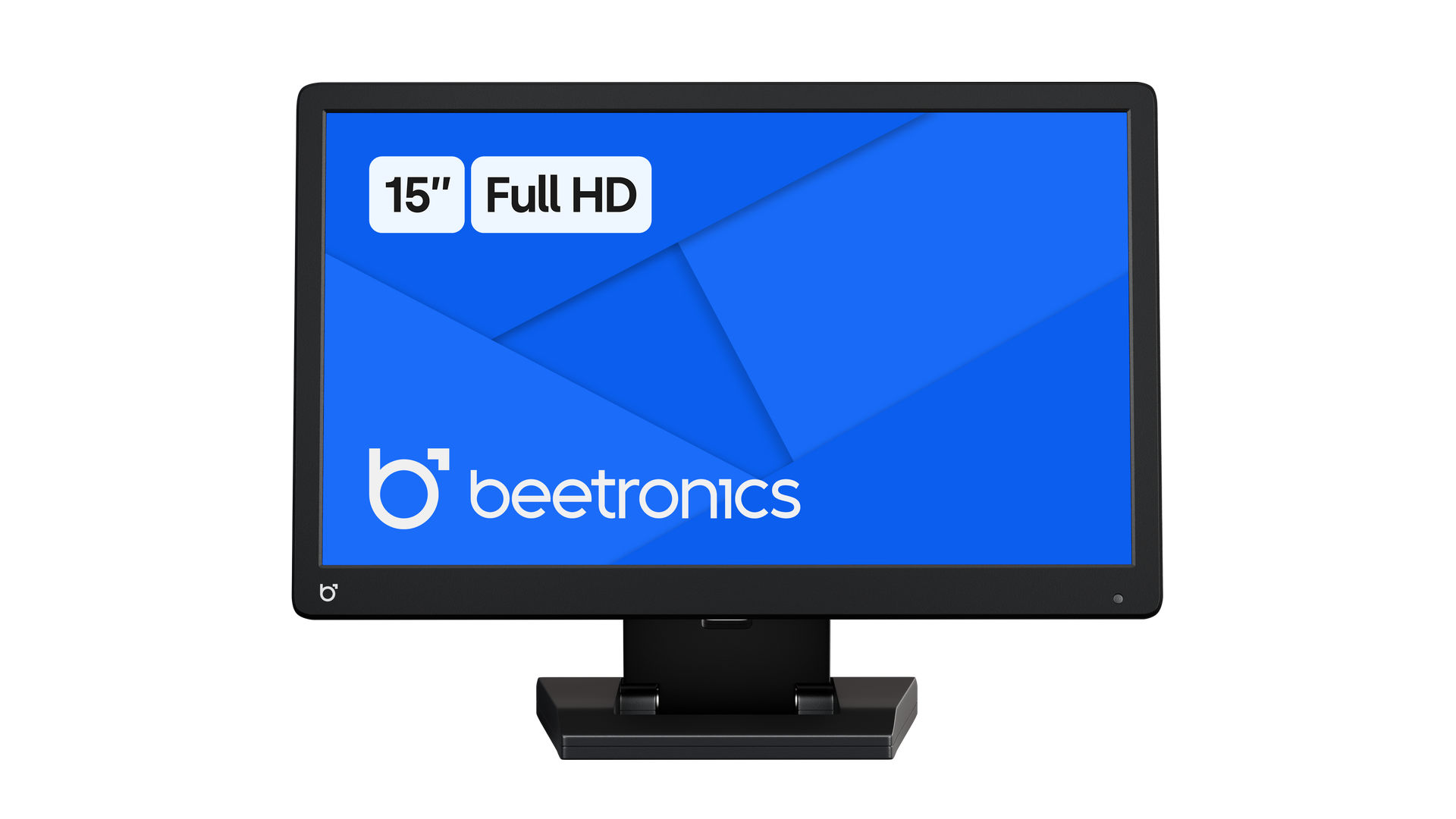

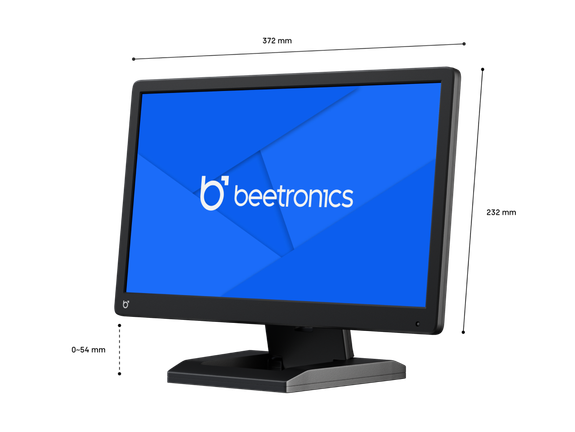

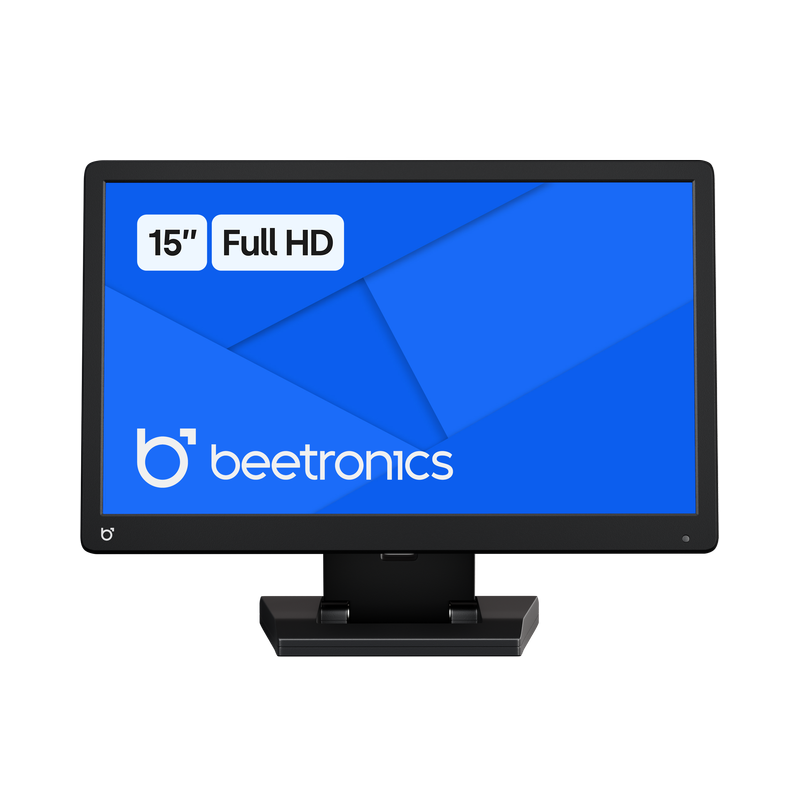

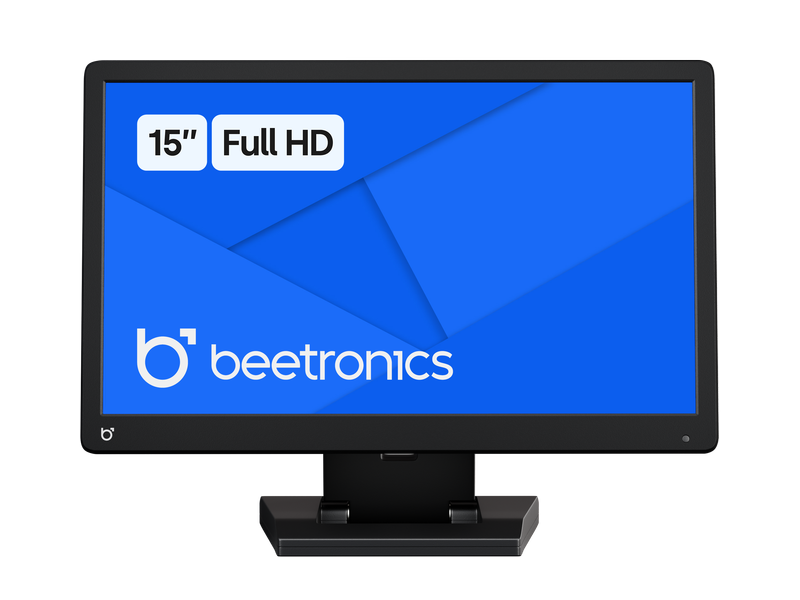

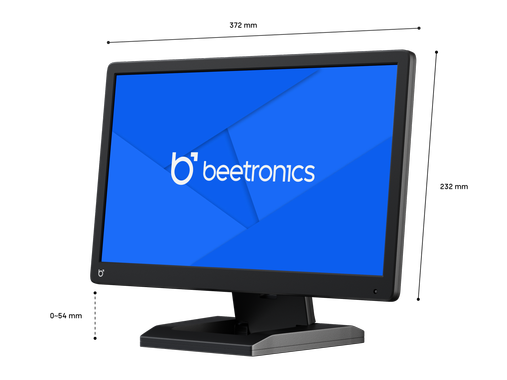

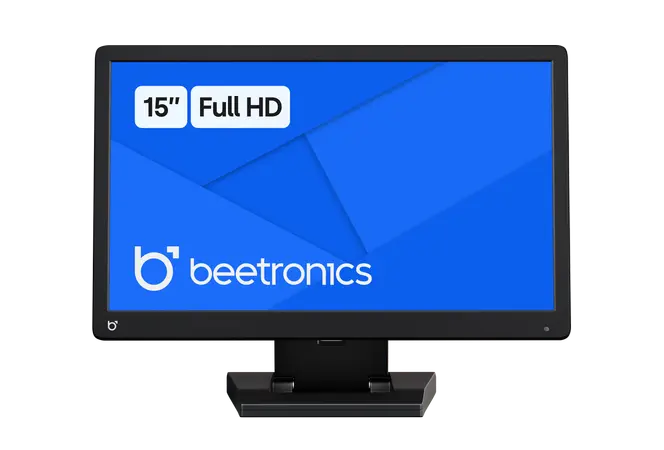

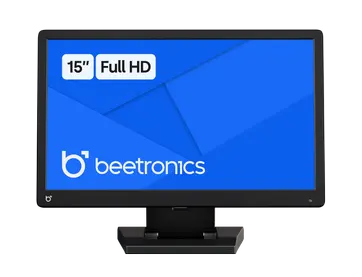

This 15 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 15 inch monitor has a lightweight housing and is ideal for desktop and wall mounting. The 15HD7 can be connected via HDMI, VGA, BNC or RCA connections.

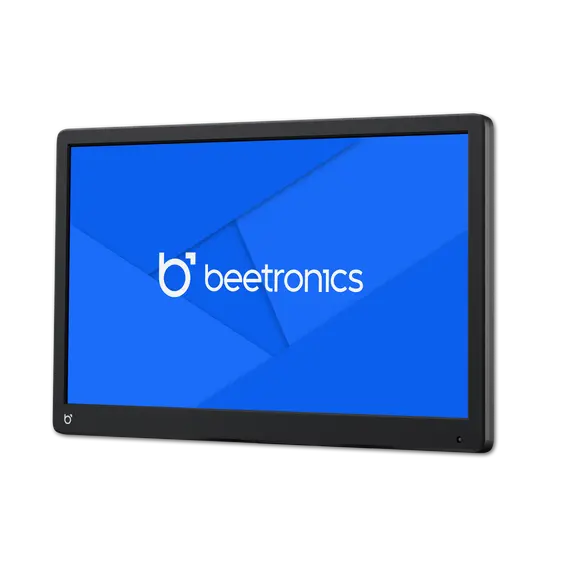

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

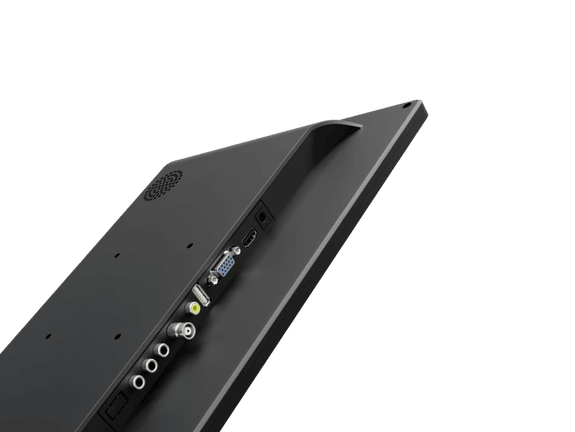

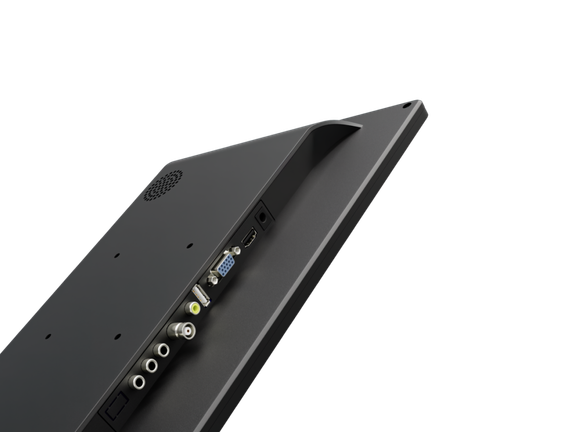

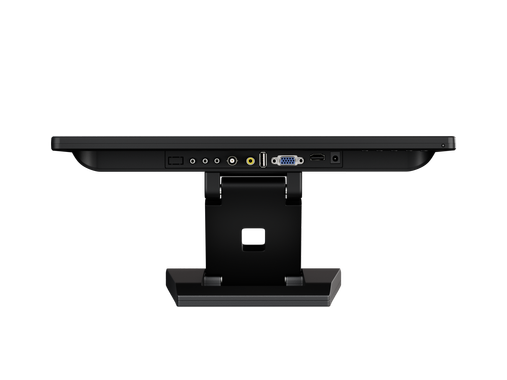

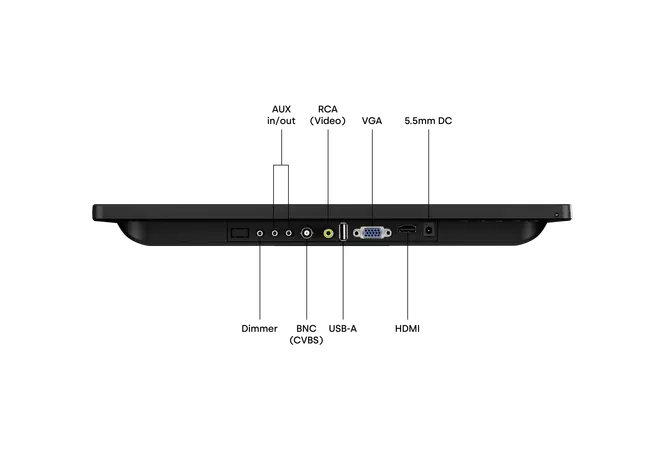

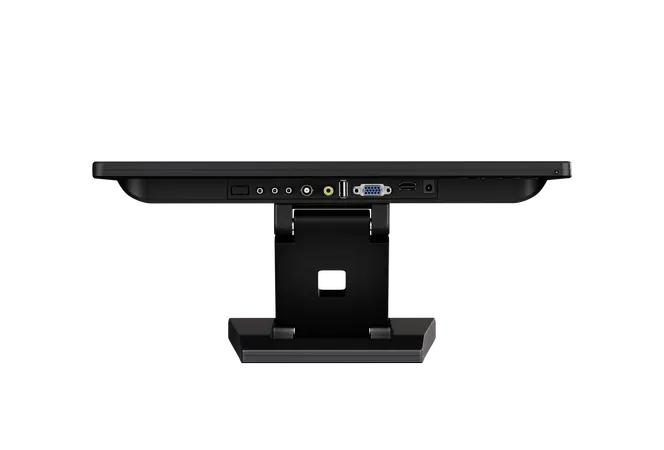

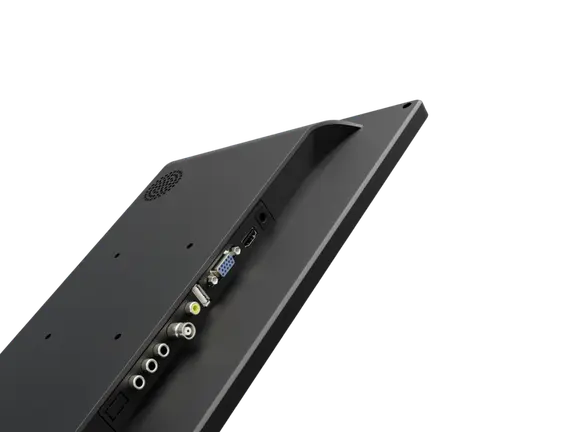

The 15HD7 has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.
The 15HD7 is designed for continuous operation and professional use. The monitor is manufactured with high quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 10 to 33 Volts and features a fully dimmable backlight.

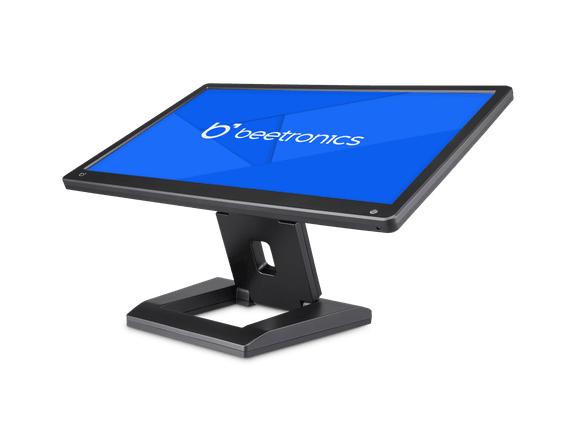

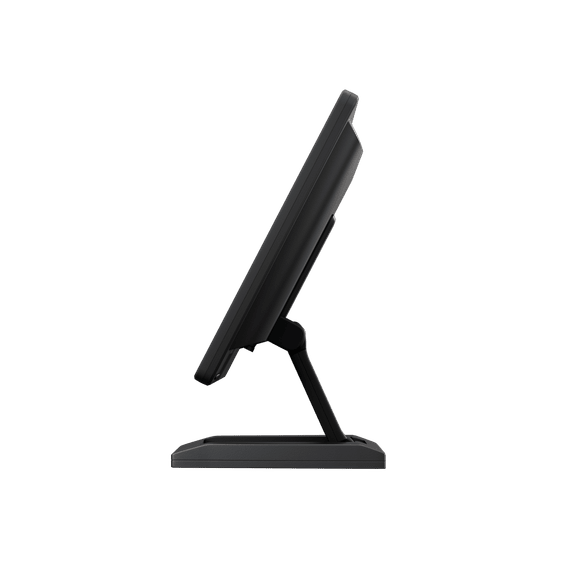

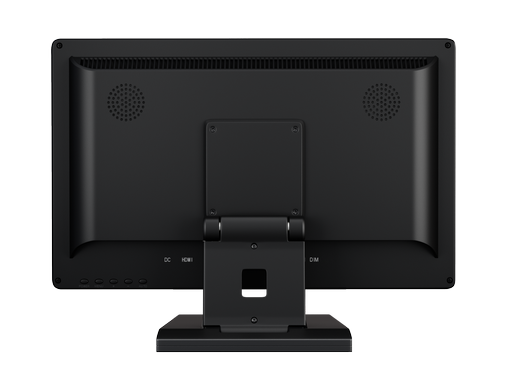

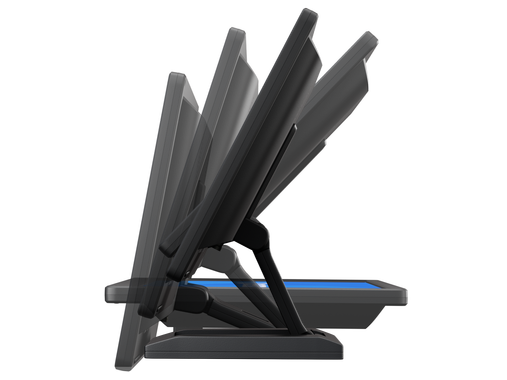

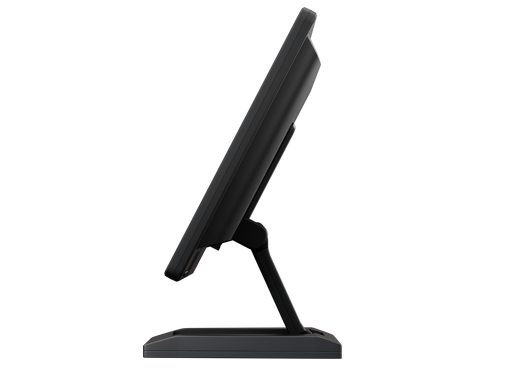

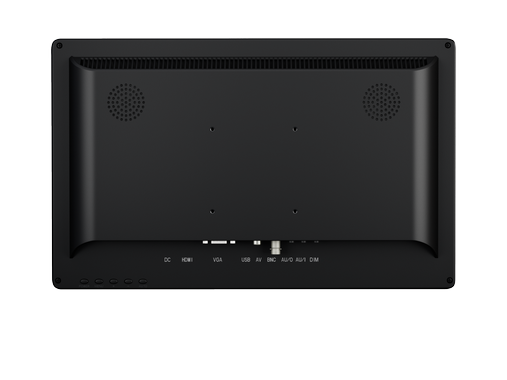

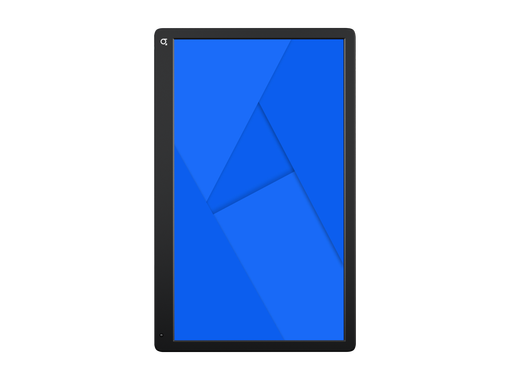

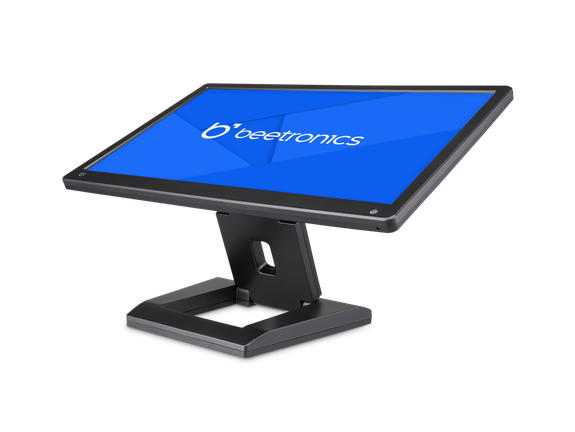

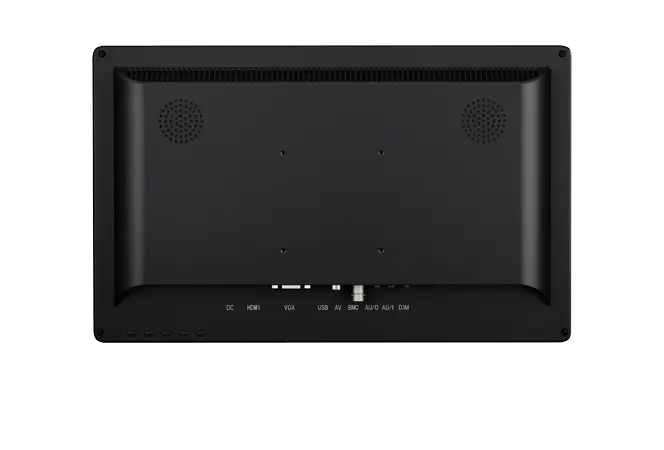

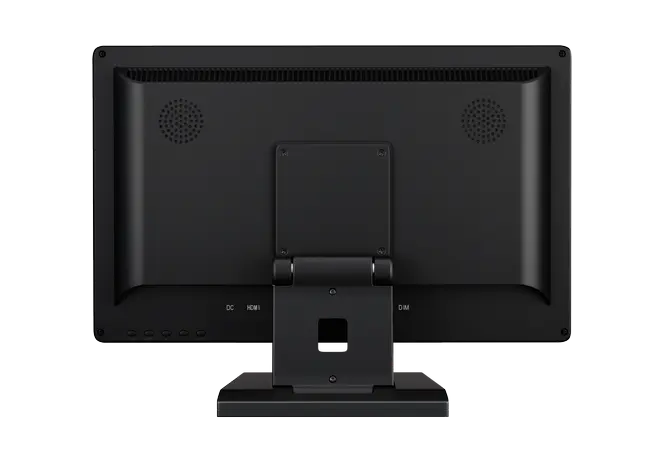

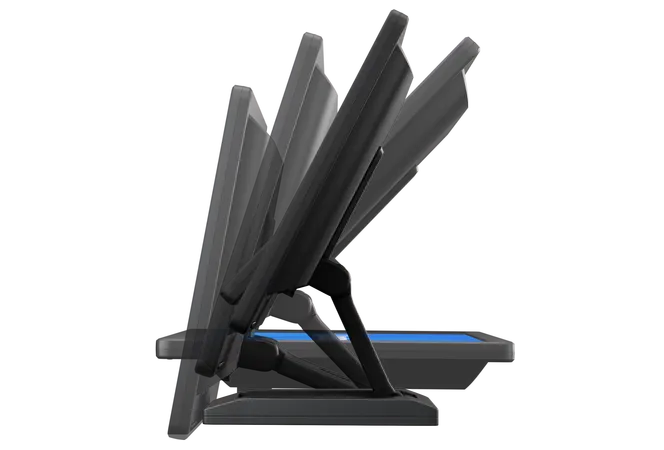

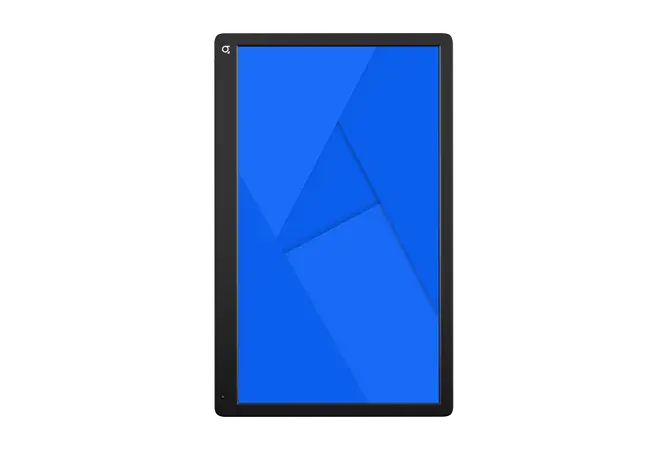

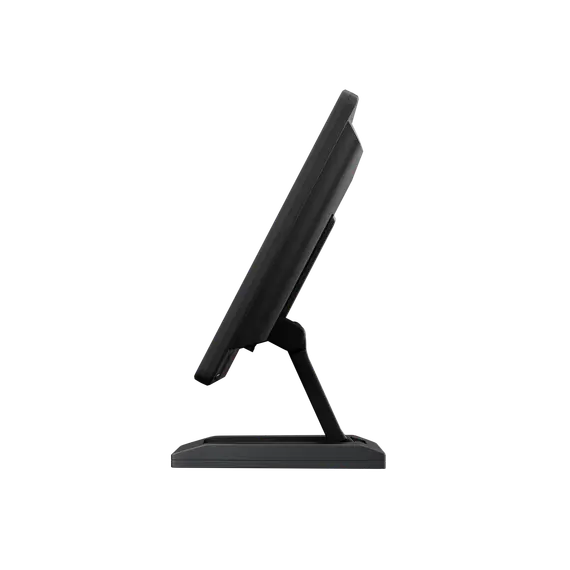

The Beetronics 15HD7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.
General | |
---|---|
Manufacturer |
Beetronics
|
Item number |
15HD7
|
Previous model |
15HD2
|
Product name |
15 inch monitor
|
Warranty |
2 years
|
Datasheet | |
Manual |
Panel | |
---|---|
Type |
Matte, LED-IPS
|
Diagonal size |
15.6 inches (396 mm)
|
Aspect ratio |
16:9 (4:3 adjustable)
|
Native resolution |
1920 x 1080
|
Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
Pixels per inch |
146 PPI
|
Viewing angle |
178° horizontal, 178° vertical
|
Colour encoding system |
PAL/NTSC/SECAM
|
Brightness |
400 cd/m2
|
Contrast |
700:1
|
Connectivity | |
---|---|
HDMI |
1x
|
VGA |
1x
|
BNC (CVBS) |
1x
|
RCA video |
1x
|
AUX input |
1x
|
AUX output |
1x
|
USB |
1x (MP4, AVI, MKV, MOV, MPG, MP3, WMA, JPG, JPEG, PNG)
|
Size & weight | |
---|---|
Colour |
Black
|
Weight |
980 gram (1598 gram with stand)
|

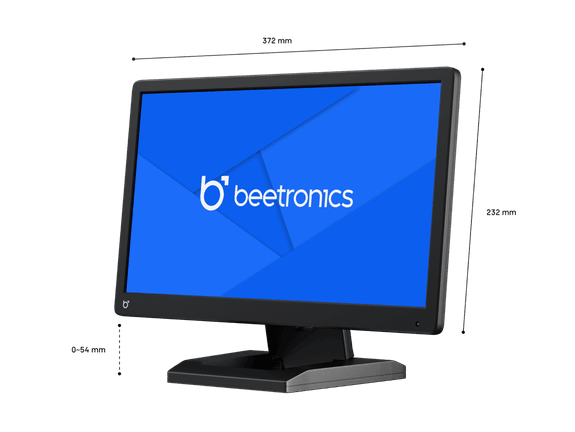

Width |
373 mm
|
Height |
232 mm (+0 to 45 mm with stand)
|
Thickness |
33 mm
|
Display dimensions |
345 x 195 mm
|
Technical drawing |
Features and functions | |
---|---|
Audio |
Integrated speakers
|
Key-lock |
The control buttons can be blocked
|
Auto-on |
Automatically powers on when it receives current or a signal
|
Dimmable |
Adjustable backlight brightness
|
Mirroring |
Image can be mirrored, horizontally and vertically
|
Power | |
---|---|
Input voltage |
DC 10-33V
|
Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
Consumption |
<15 Watt (0.5 Watt standby)
|
Environmental | |
---|---|
Operating temperature |
-20c° to +60c°
|
Storage temperature |
-20c° to +70c°
|
Operating humidity |
20% - 90% non-condensing
|
Mounting | |
---|---|
Wall mount |
VESA (75 mm)
|
Flush mount |
Possible, no accessories available
|
Stand |
Adjustable and detachable
|
Certifications & Standards | |
---|---|
Certifications |
CE, FCC, RoHS, REACH
|
Package content | |
---|---|

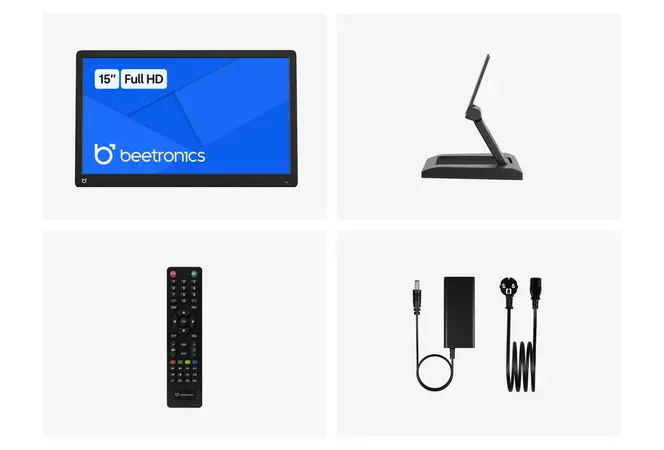

Includes |

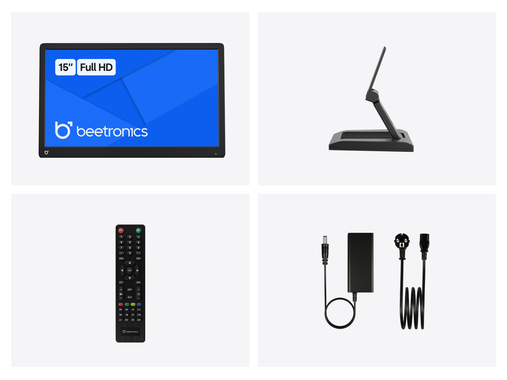

Monitor, Manual, Remote control, Mains adaptor, Stand
|
Manual | Download PDF |
Technical drawing | Download PDF |
Datasheet | Download PDF |
Files |
---|
Product name | Item number | In stock | Quantity | Price |
---|---|---|---|---|
![]()
15 inch monitor
|
15HD7 |
|
|
€ 249,00 |
![]() |
VWB1 |
|
|
€ 25,00 |
![]() |
KHD2 |
|
|
€ 15,00 |
![]() |
VGA1 |
|
|
€ 15,00 |
|
