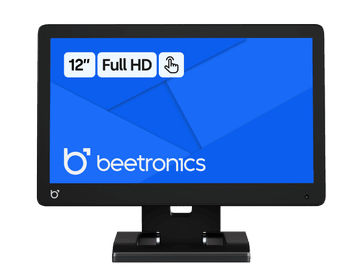

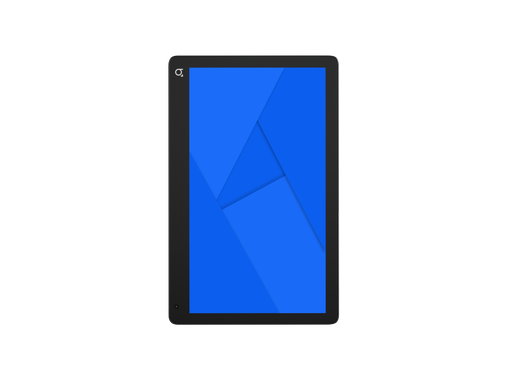

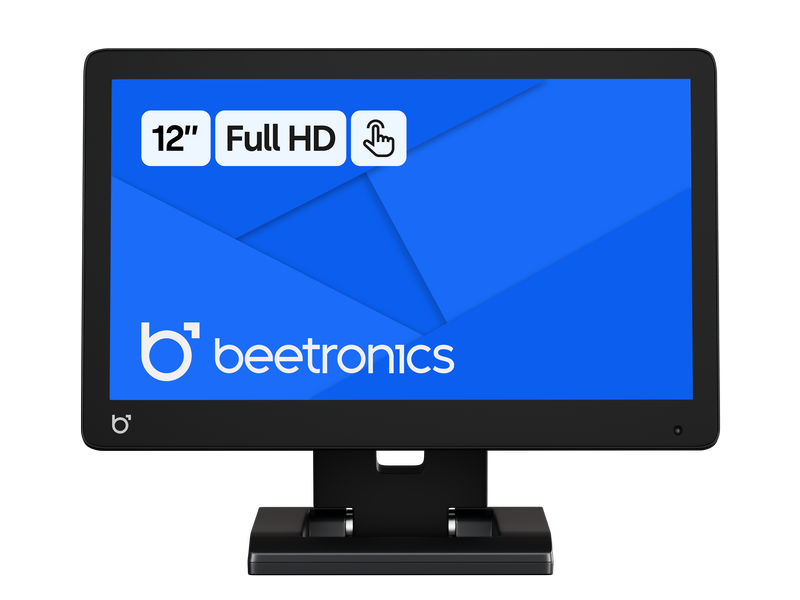

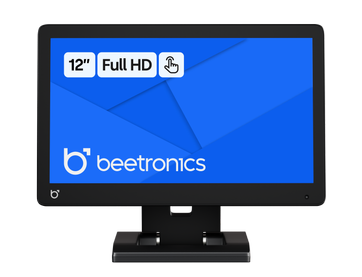

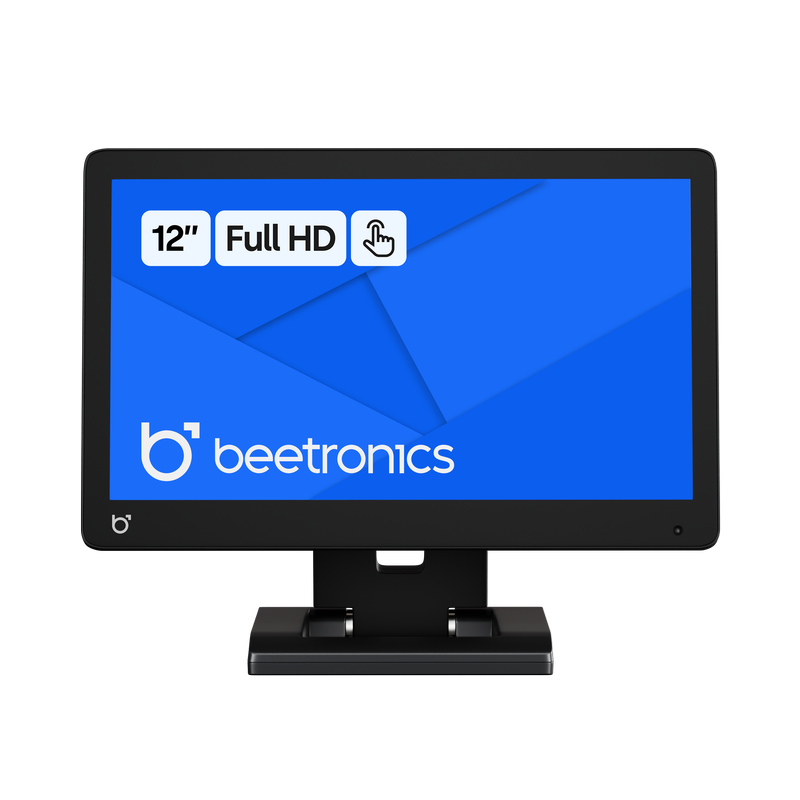

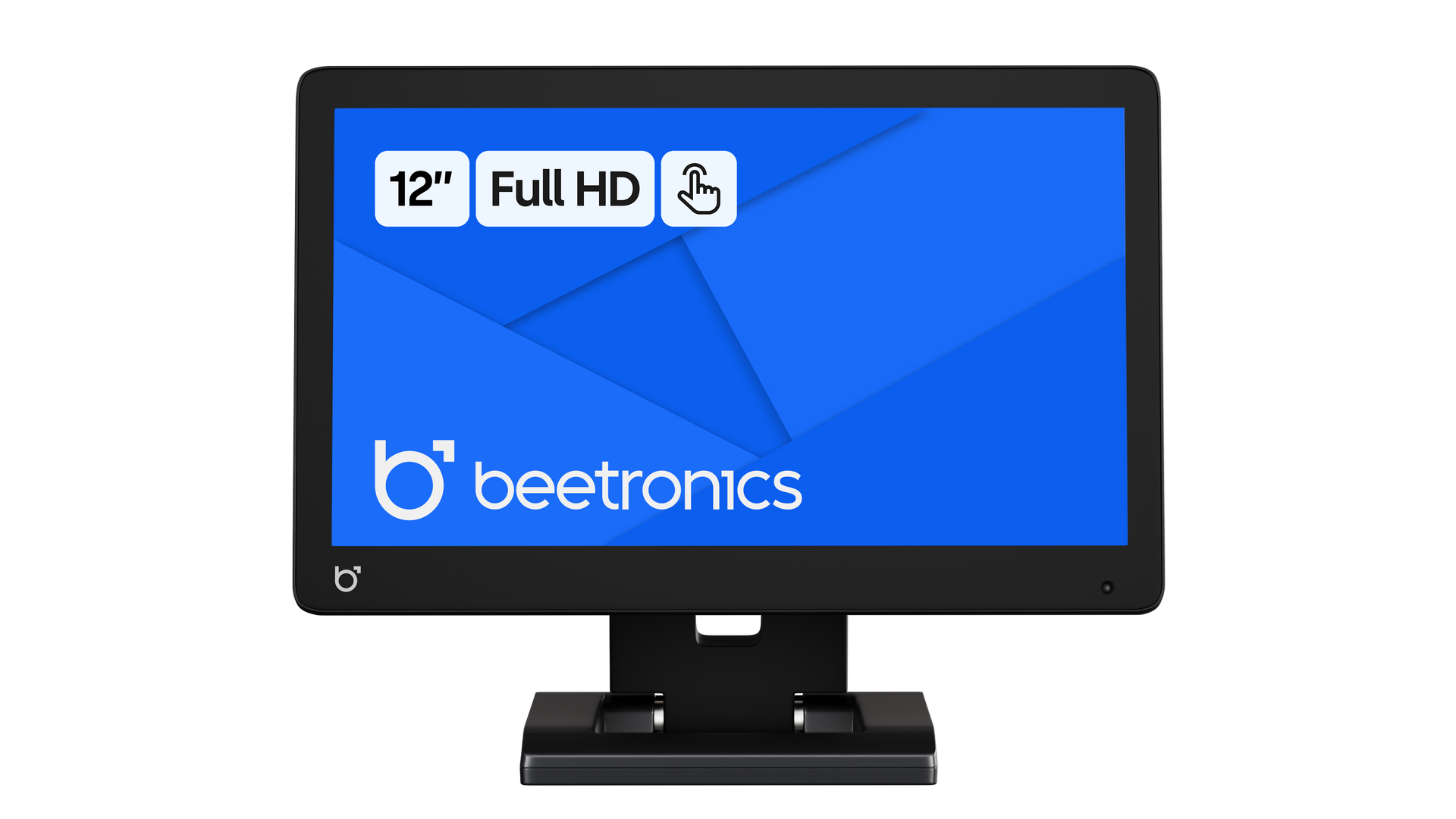

This Full HD 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS3 provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 12TS3 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.

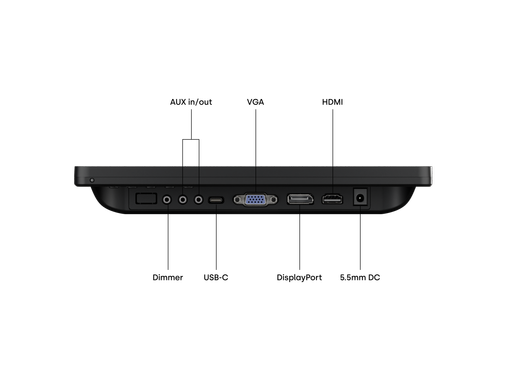

This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
The 12TS3 touchscreen is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 12TS3 is ideal for professional use.

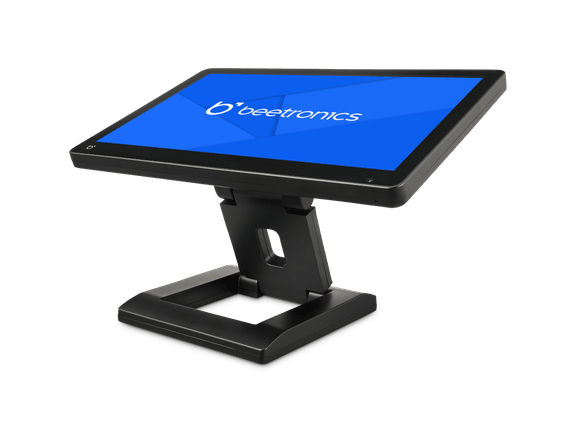

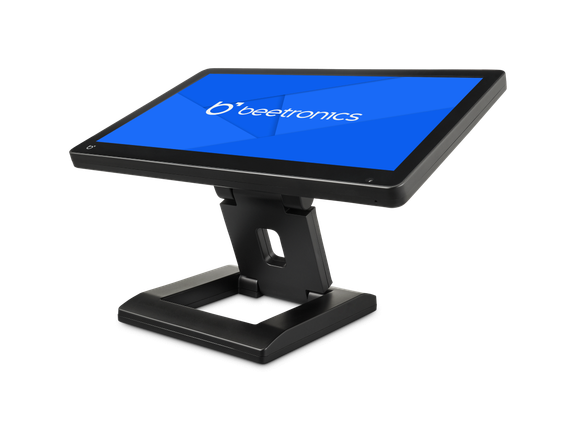

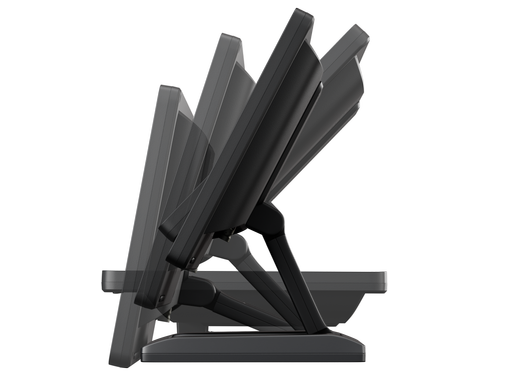

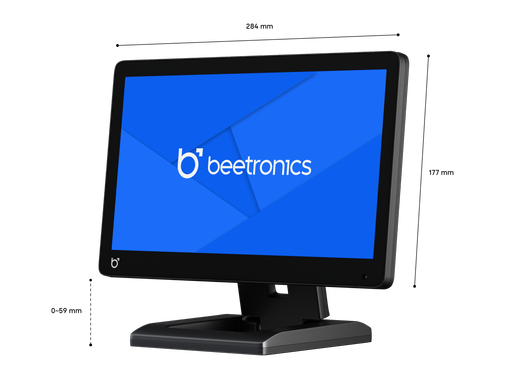

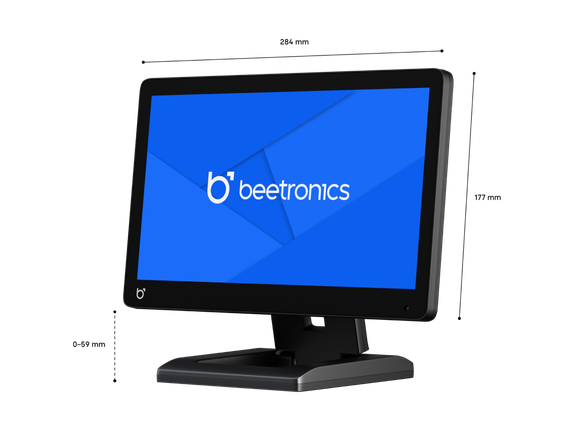

The monitor is supplied with a sturdy stand that is fully adjustable and can be folded flat. This stand can be easily removed to allow use of the 75mm VESA mount. The VESA mount enables the monitor to be attached to a universal wall bracket.
|Product name||12 inch touchscreen|
|Supported operating systems|
|Windows||(Windows 7, 8, 10)|
|Windows Embedded||(Windows embedded 7, 8, 10)|
|Mac||(Yosemite, El Capitan, Sierra, High Sierra, Mojave)|
|Android||(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)|
|Drivers||No drivers needed. Plug & Play|
|Diagonal size||11.6 inch (29,5 cm)|
|Native resolution||1920 x 1080|
|Supported resolutions||1920 x 1080 (max), 640 x 480 (min)|
|Pixels per inch||184 PPI|
|Touch technology||Capacitive, 10-point multitouch (PCAP)|
|Control||Stylus, hand, glove|
|Viewing angle||178° horizontal, 178° vertical|
|Colour encoding system||PAL/NTSC/SECAM|
|Aspect ratio||16:9 (4:3 adjustable)|
|Current||12 Volt (Mains adaptor included)|
|Consumption||<15 Watt (0.5 Watt standby)|
|Operation temperature||-20c° to +60c°|
|USB||Only for touchscreen functionality|

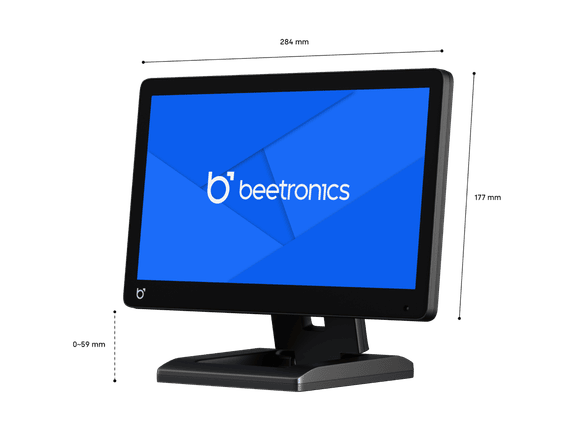

|Size & weight|
|Weight||780 gram (1200 gram with stand)|
|Height||179 mm (+0 to 39 mm with stand)|
|Display dimensions||257 x 145 mm|
|Technical drawing||Download PDF|
|Features and functions|
|Key-lock||The control buttons can be blocked|
|Auto-on||Automatically powers on when it receives current or a signal|
|Dimmable||Adjustable backlight brightness|
|Mirroring||Image can be mirrored, horizontally and vertically|
|Wall mount||VESA (75 mm)|
|Flush mount||Possible, no accessories available|
|Stand||Adjustable and detachable|
