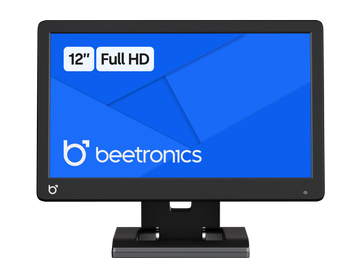

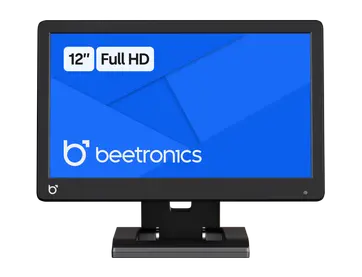

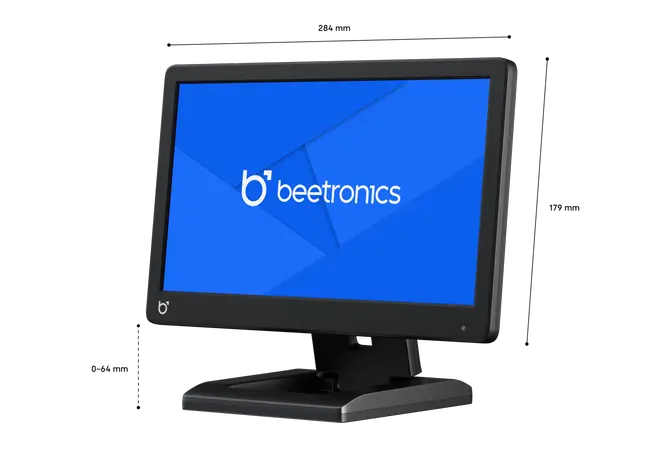

12 Inch Monitor
Model: 12HD7
100+ units in stock
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor
12 Inch Monitor

12 Inch Monitor

Model: 12HD7
100+ units in stock
  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop
  4. External dimensions: 284 x 177 x 27 mm
  5. More specifications
Display Type
€ 332,75 incl.
Order by 16:00 for Delivery on Monday
  • Description
  • Specifications
  • Connectivity
  • Downloads

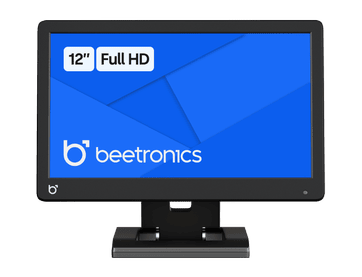

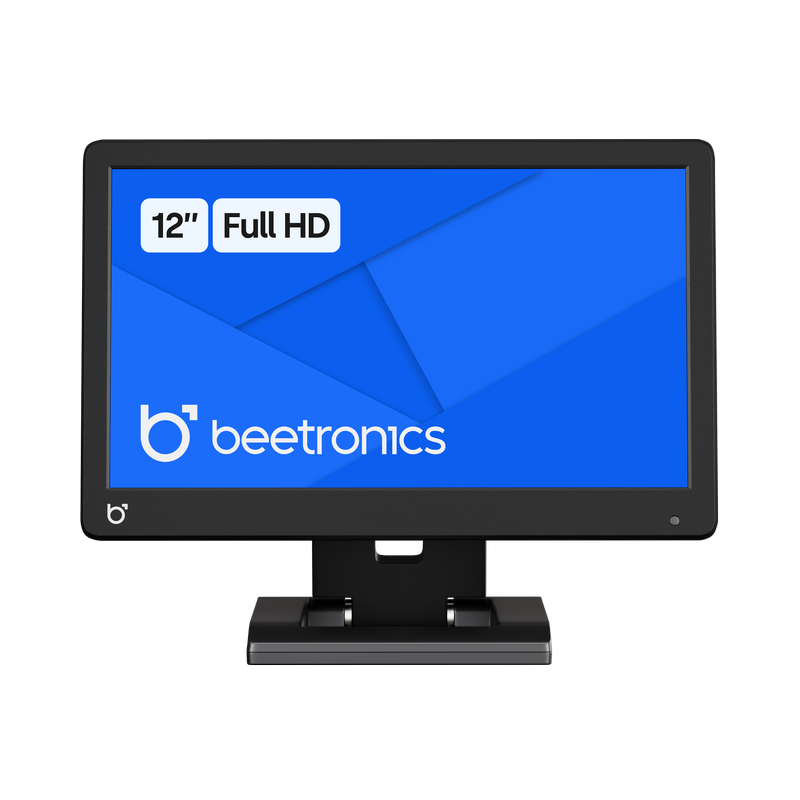

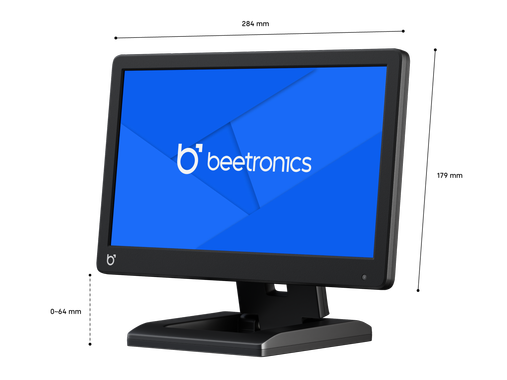

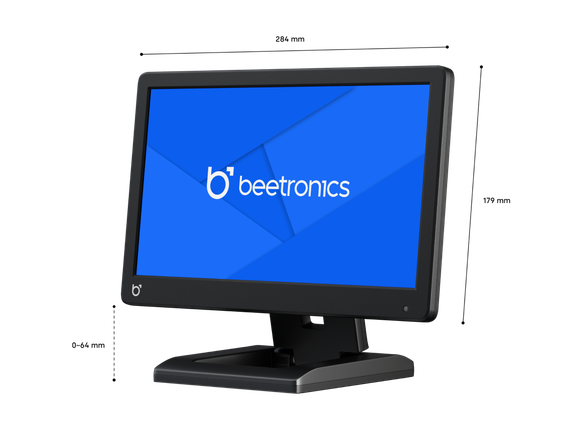

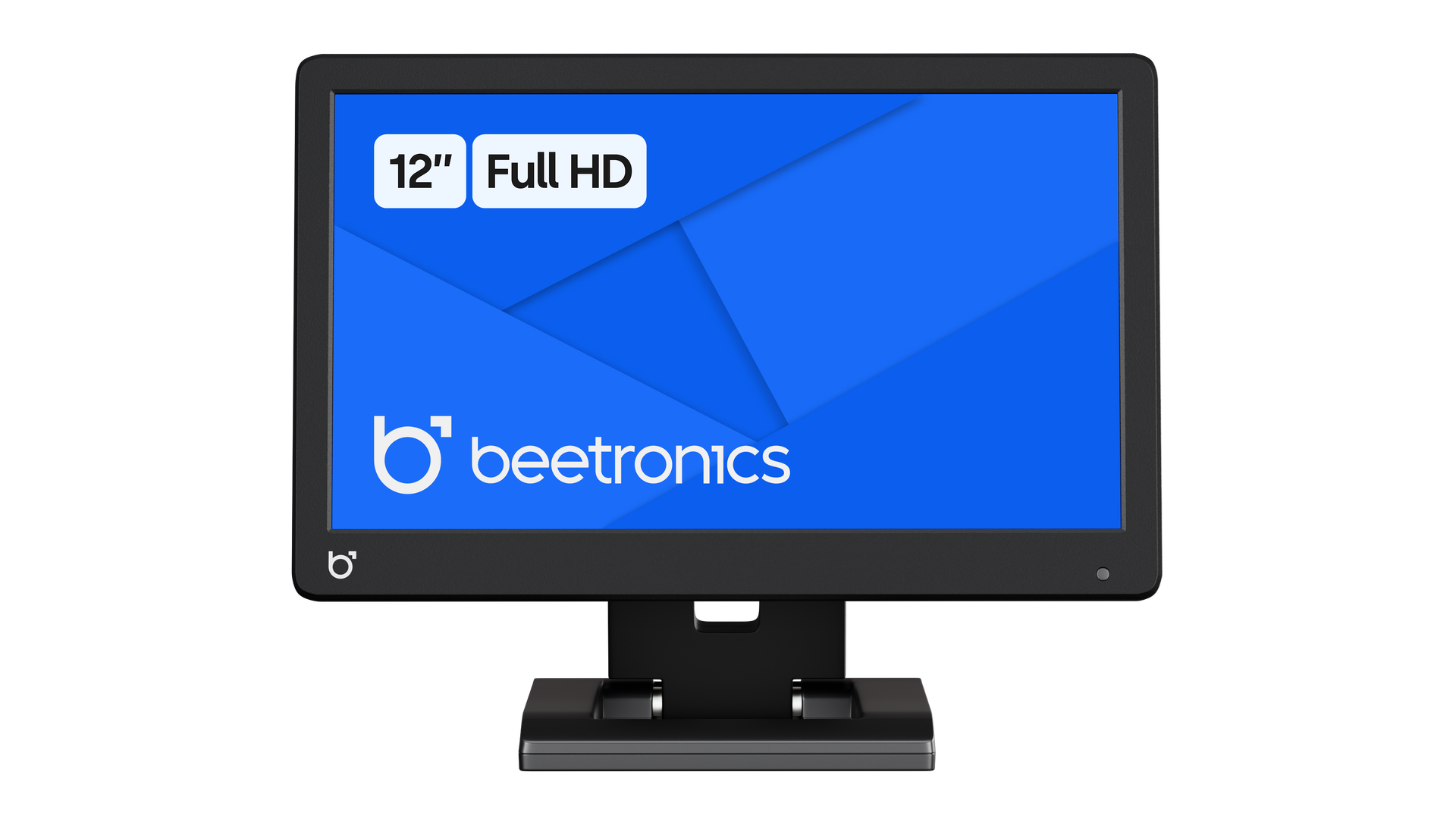

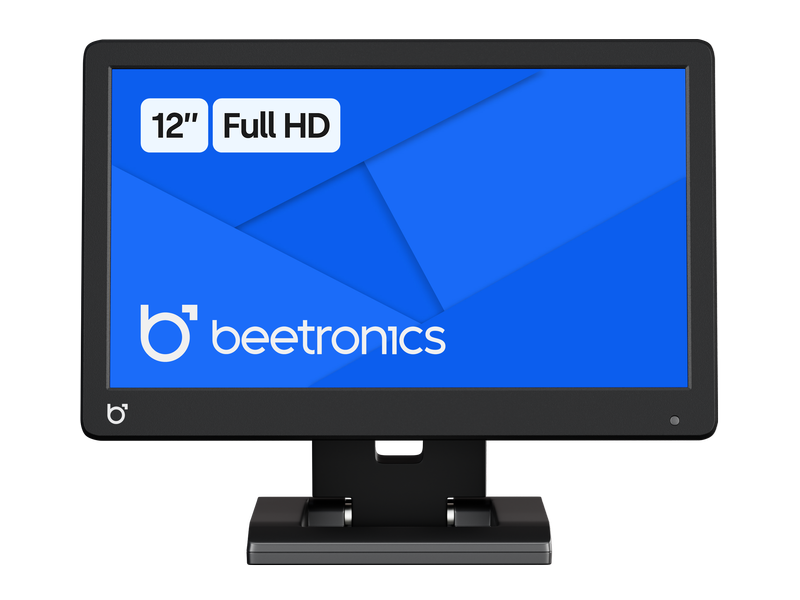

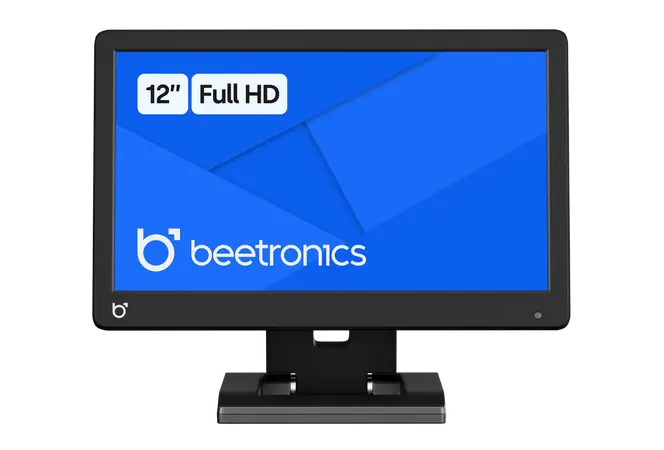

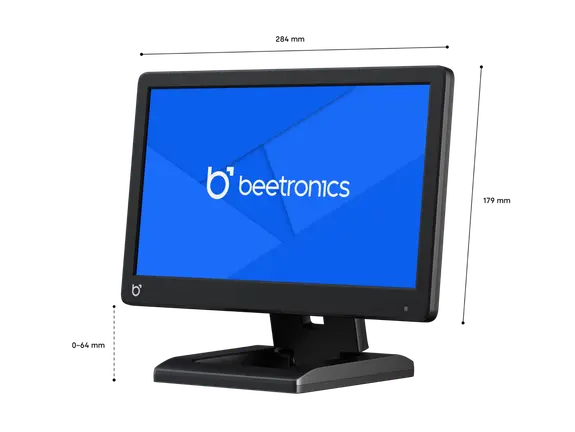

This 12 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 12 inch monitor has a lightweight housing and is ideal for desktop and wall mounting. The 12HD7 can be connected via HDMI, VGA, BNC or RCA connections.

Outstanding Full HD image quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

12 Inch Monitor

Versatile connectivity

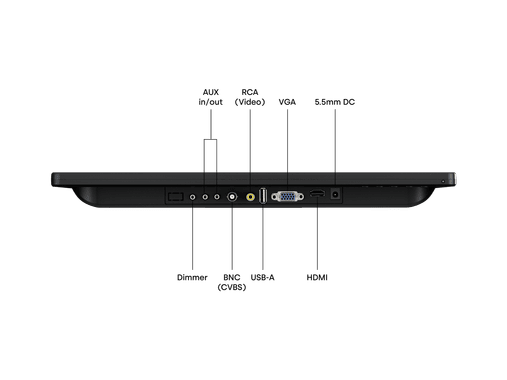

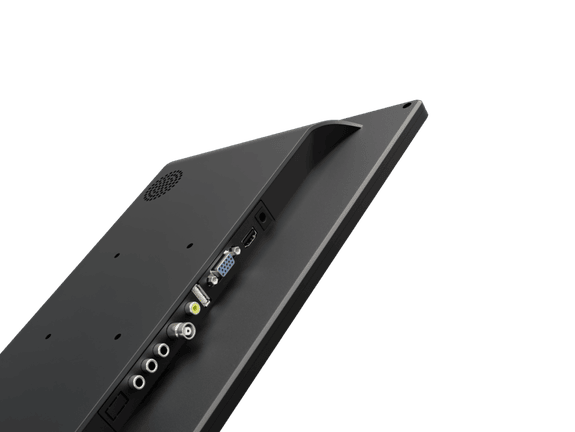

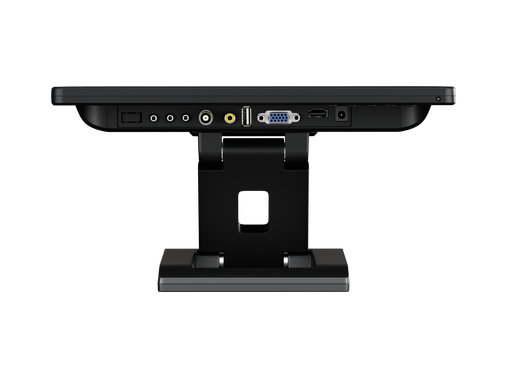

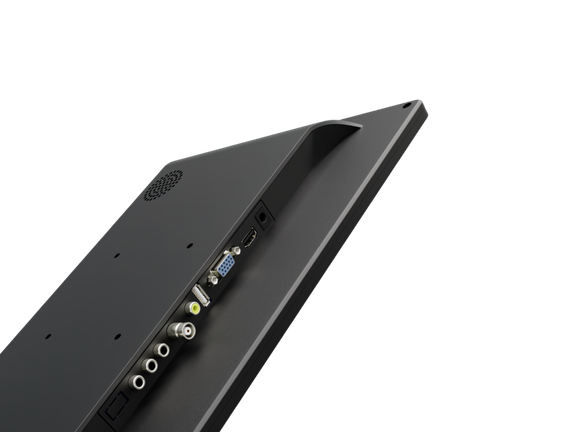

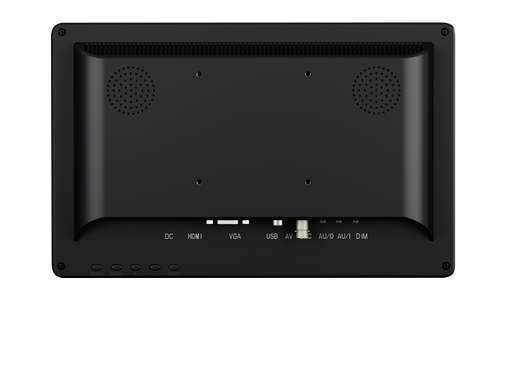

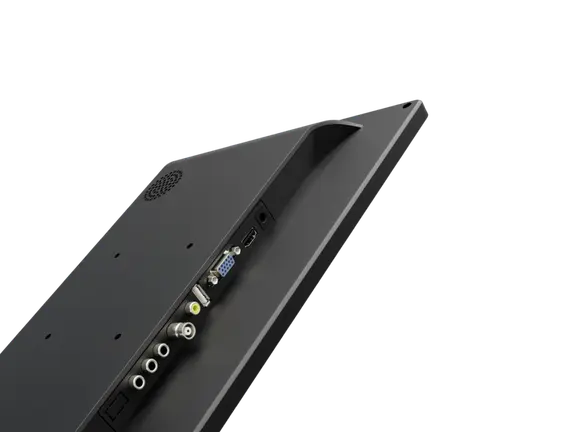

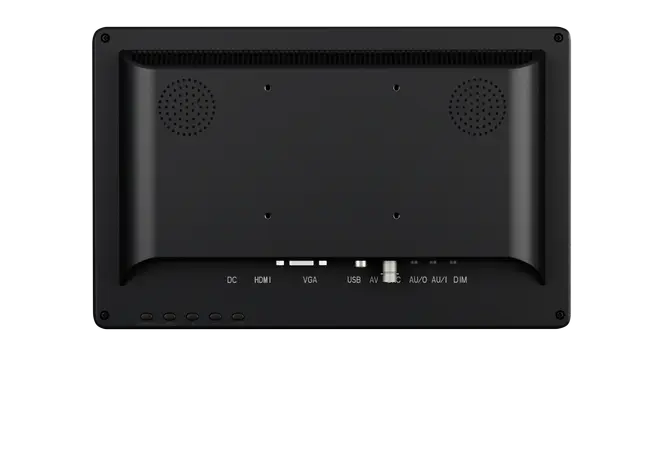

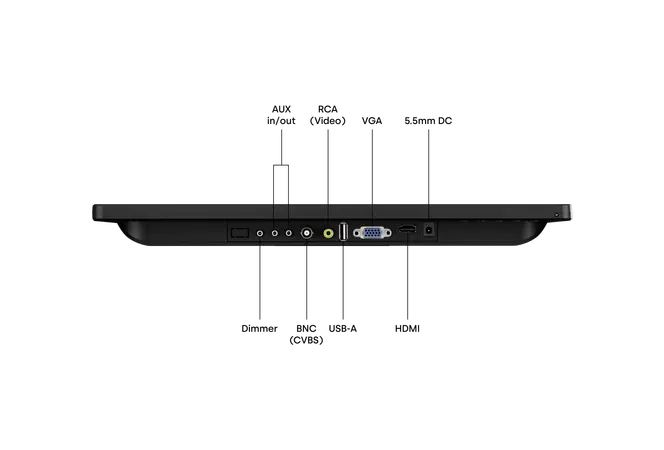

The 12HD7 has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

12 Inch Monitor

Designed for professional use

The 12HD7 is designed for continuous operation and professional use. The monitor is manufactured with high-quality components, guaranteeing reliable operation even in the most challenging environments. The monitor accepts a wide range of input-voltage from 9 to 33 Volts and features a fully dimmable backlight.

12 Inch Monitor

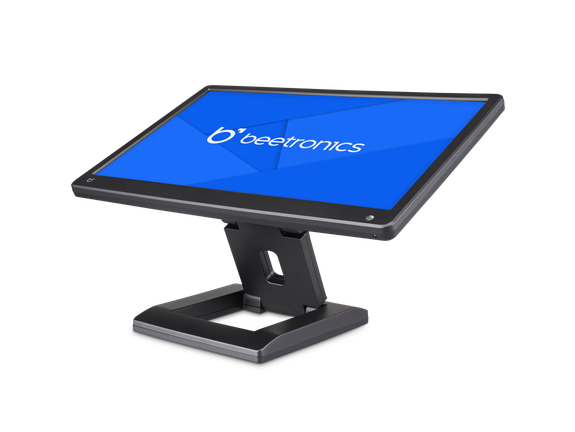

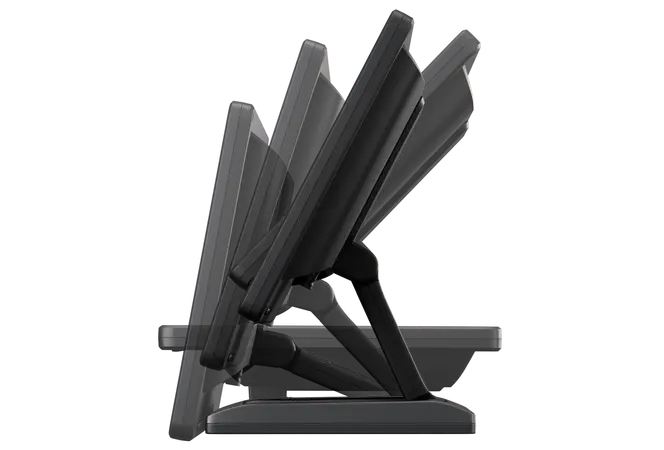

Desktop or wall mounting

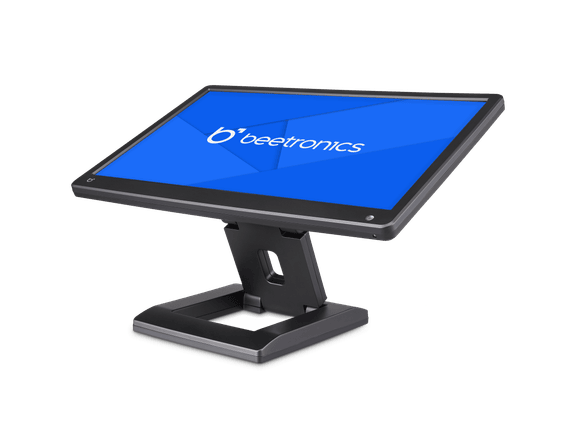

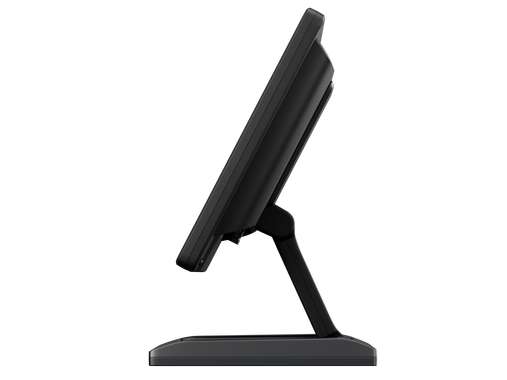

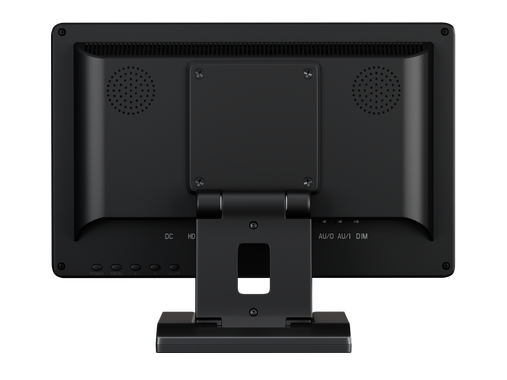

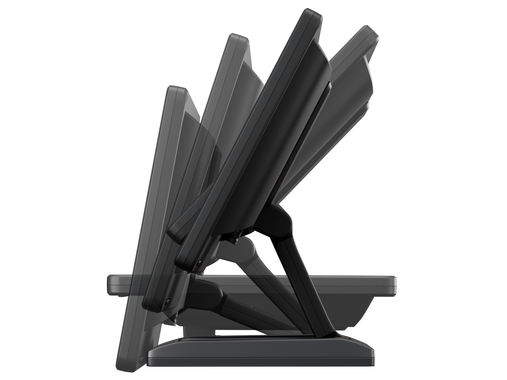

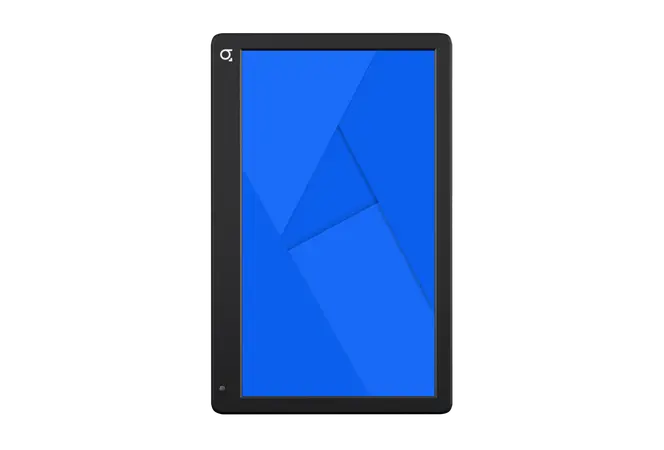

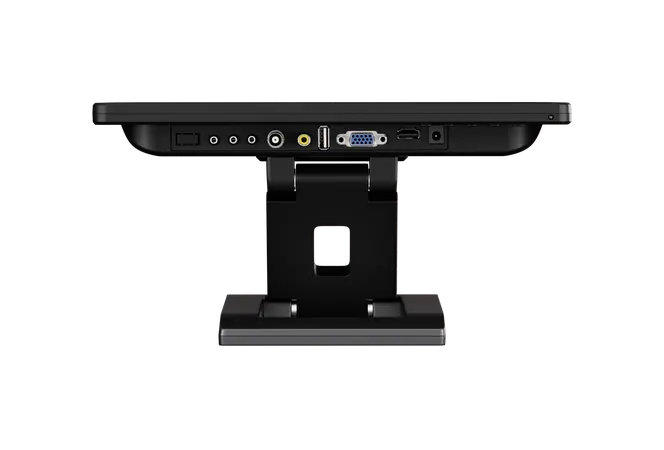

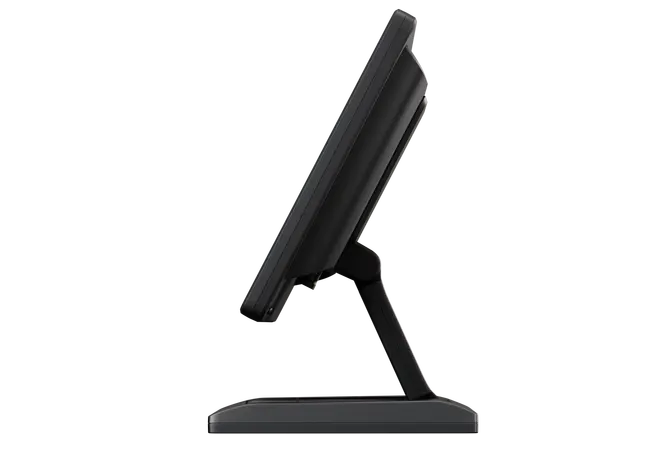

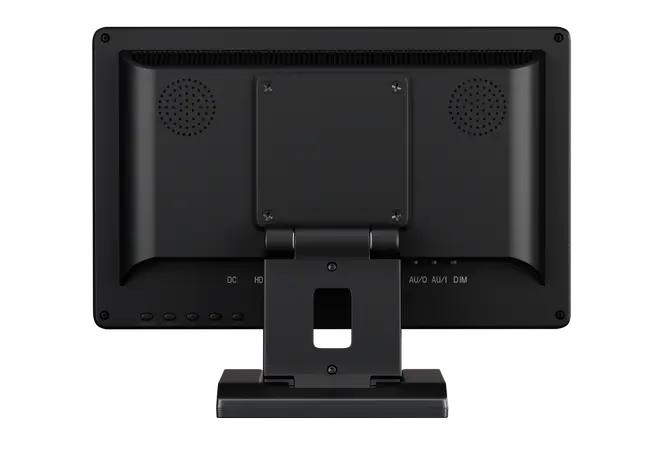

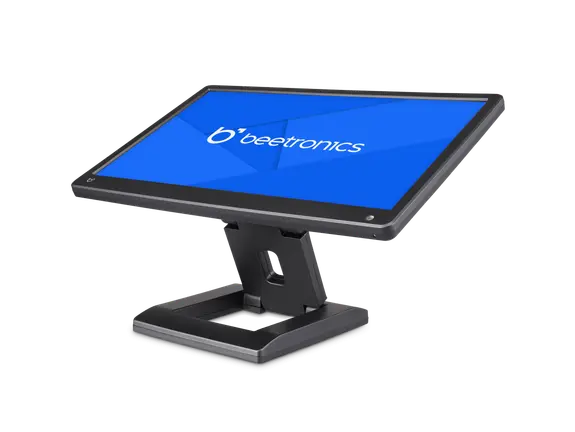

The Beetronics 12HD7 has a fully collapsible stand. The stand can be easily removed from the back, allowing access to the 75mm VESA mount. This makes it possible to attach the monitor to a universal wall bracket, in either landscape or portrait mode.

12 Inch Monitor
General
Manufacturer
Beetronics
Item number
12HD7
Product name
12 Inch Monitor
Warranty
2 years
Datasheet
User Manual
Quickstart
Panel
Diagonal size
11.6 inches (296 mm)
Panel type
IPS-LCD
16:9 (4:3 adjustable)
Response time
10 ms
MTBF
50K
1920 x 1080 (max), 640 x 480 (min)
Backlight
LED
Brightness
500 cd/m2
Contrast
1000:1
Color encoding system
PAL/NTSC/SECAM
178° horizontal, 178° vertical
Connectivity
HDMI
1x
VGA
1x
RCA video
1x
AUX input
1x
AUX output
1x
1x integrated USB media player
Size & weight
Colour
Black

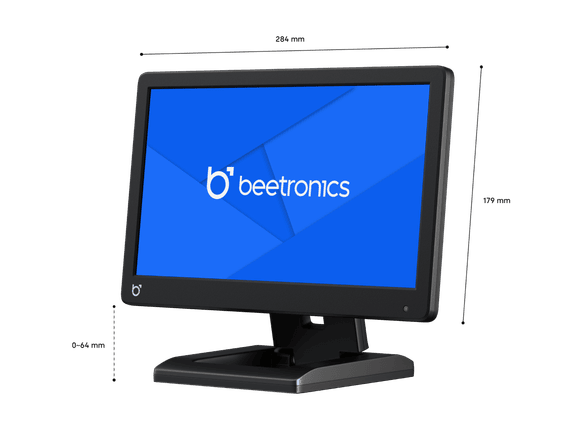

Dimensions (without stand)
284 x 177 x 27 mm
Image size
258 x 142 mm
Weight
600 grams (1000 grams with stand
Technical drawing
3D Drawing
Features and functions
Audio
Integrated speakers
Key-lock
The control buttons can be blocked
Auto-on
Automatically powers on when it receives current or a signal
Dimmable
Adjustable backlight brightness
Mirroring
Image can be mirrored, horizontally and vertically

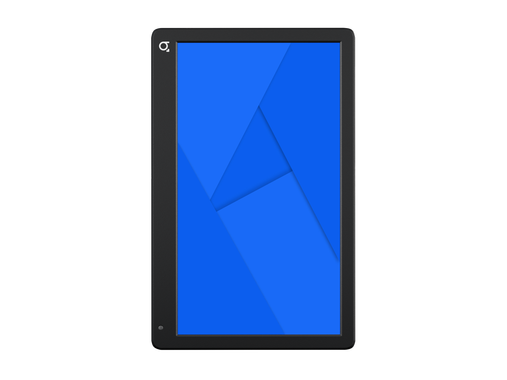

Orientation
Landscape, portrait, face-up
The monitor is equipped with a built-in USB media player.
Power
Input voltage
DC 9-33V
Consumption
Typical 10.2 W (on), 0.4 W (standby)
Power supply
External DC (power adapter included)
Power adapter
Input: AC100-240V, 50/60Hz , Output: 12V-2A
Power adapter output connector
DC barrel plug 2.1mm x 5.5mm
Environmental
Max. non-stop operating time
24/7
Operating temperature
-20°C to +60°C
Storage temperature
-20°C to +70°C
Operating humidity
20% - 85% non-condensing
Mounting
VESA (75 mm)
Flush mount
Possible, no accessories available
Stand
Adjustable and detachable
Certifications & Standards
Certifications
CE, FCC, RoHS, REACH, WEEE, IC, UKCA, e-Mark, EN50155, EN60601, CCC
Package content

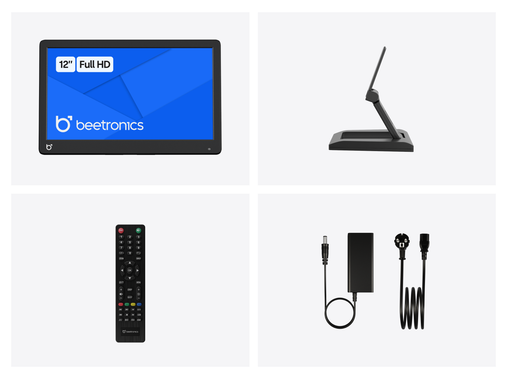

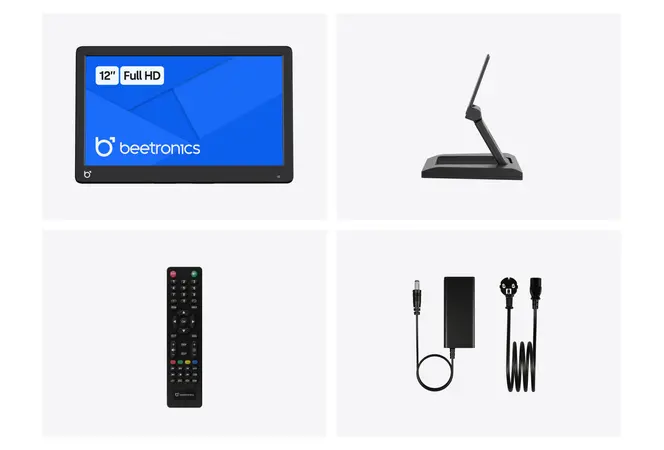

Includes
Monitor, Manual, Remote control, AC power adapter, Stand
Compatible accessories
Rack mounting
Compatible with 19 inch rack mount kit (RMK2)
Wall mounting
Compatible with flat wall mount bracket (VWB1)
Stand
VDK3 included as standard
12 Inch Monitor
Downloads
User Manual
Quickstart
Technical drawing
3D Drawing
Datasheet
Product name Model In Stock Quantity Price
12 Inch Monitor
12 Inch Monitor € 275,00
12HD7
€ 275,00
Wall Mount Bracket, Flat
VWB1
€ 25,00
HDMI Cable - 2m
HDMI Cable - 2m € 15,00
KHD2
€ 15,00
