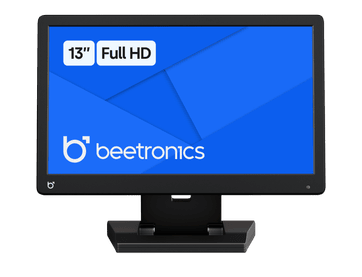

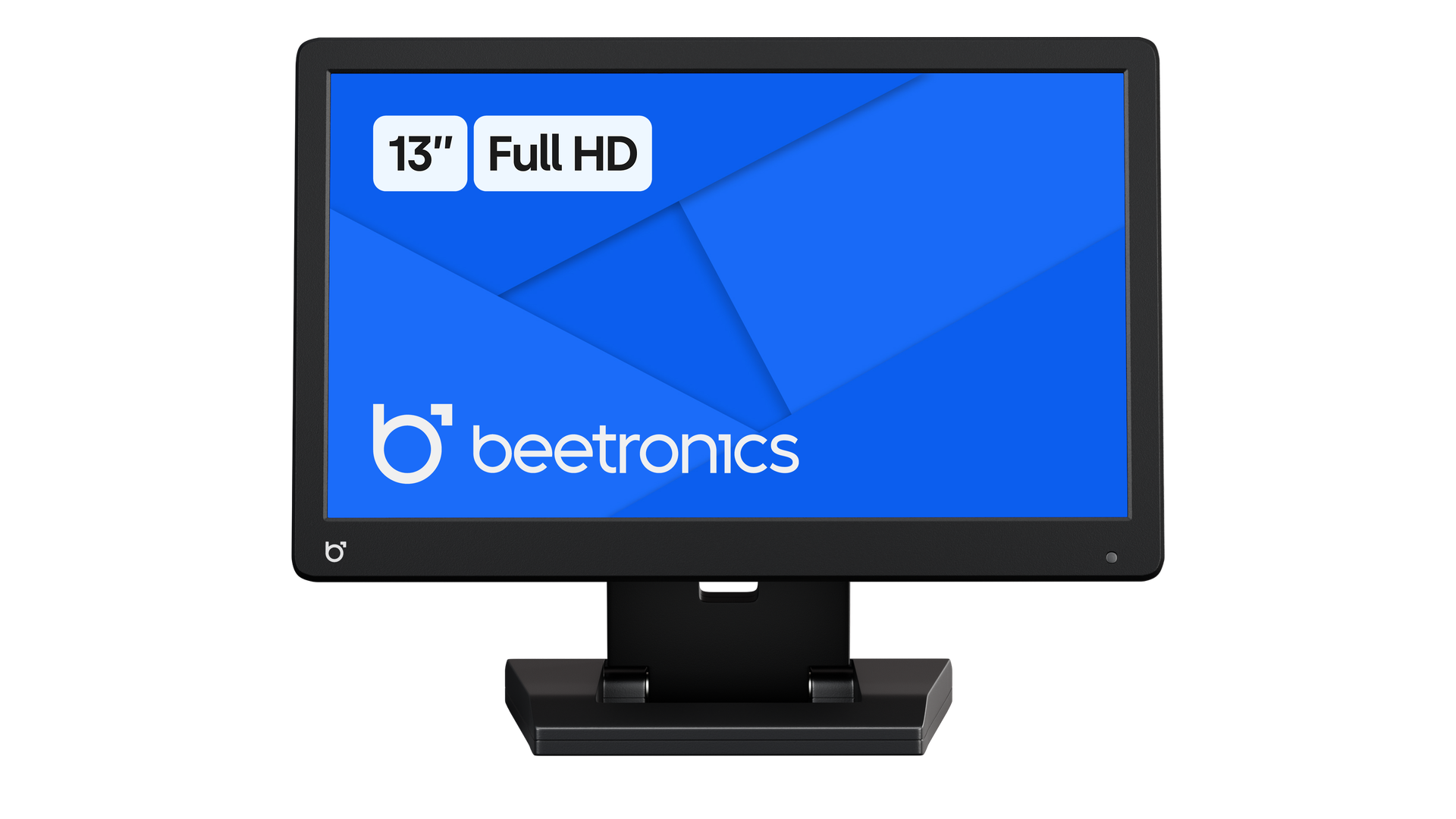

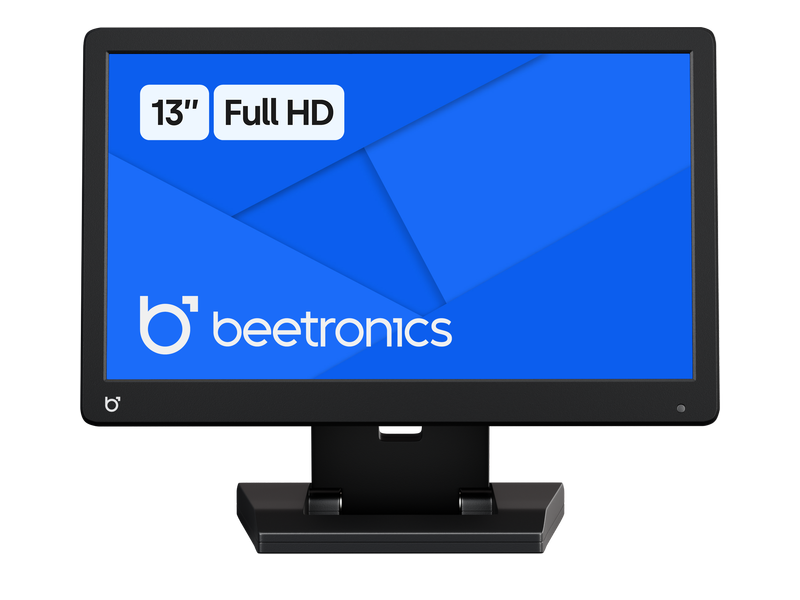

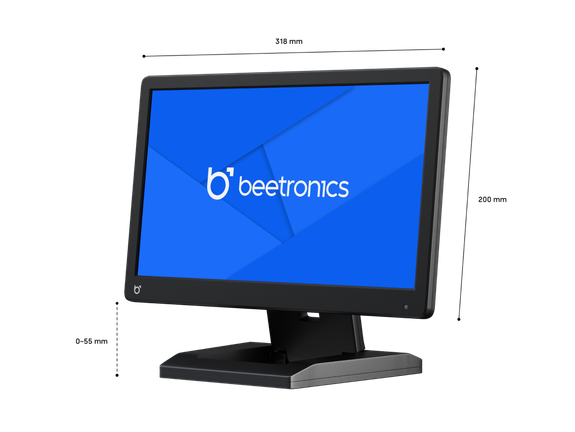

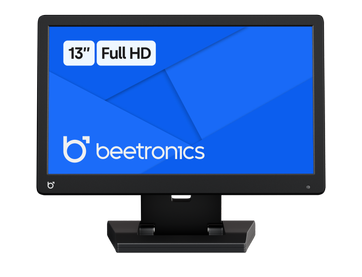

13 Inch Monitor

Model: 13HD7
14 units in stock

Features

  1. 1920 x 1080 resolution (Full HD)
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Wall, desktop

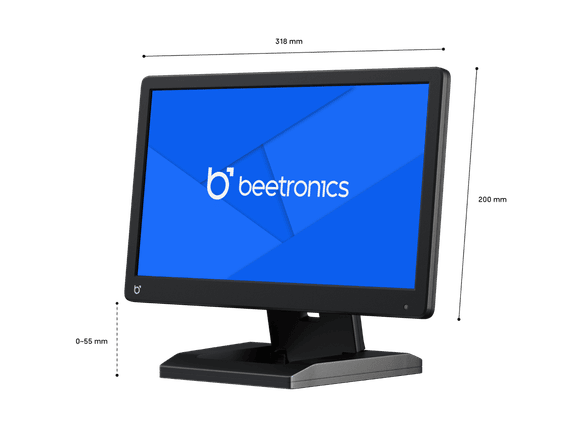

  4. External dimensions: 318 x 200 x 33 mm

This 13 inch Full HD monitor delivers best-in-class picture quality with excellent 178° viewing angles. The 13 inch monitor has a lightweight housing and is ideal for desktop and wall mounting. The 13HD7 can be connected via HDMI, VGA, BNC or RCA connections.

Display Type
€ 329,00
€ 398,09 Incl.
Order by 15:00 for delivery on Monday.
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

Product Highlights

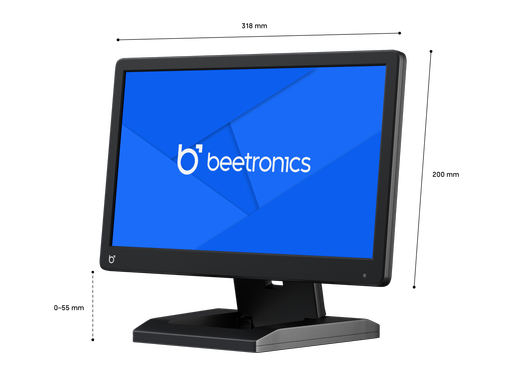

13 Inch Monitor

Outstanding Full HD Image Quality

Fitted with a native Full HD IPS panel, the monitor delivers superior image quality, vibrant colours and excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor displays all common resolutions up to 1080p.

13 Inch Monitor

Versatile Connectivity

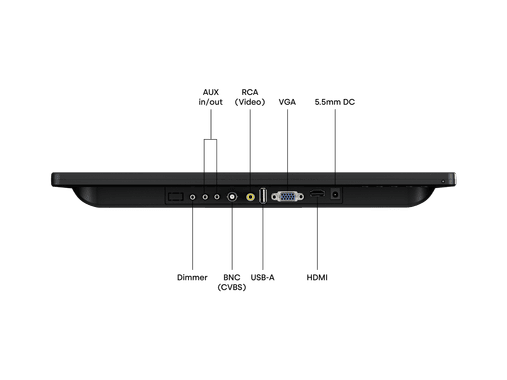

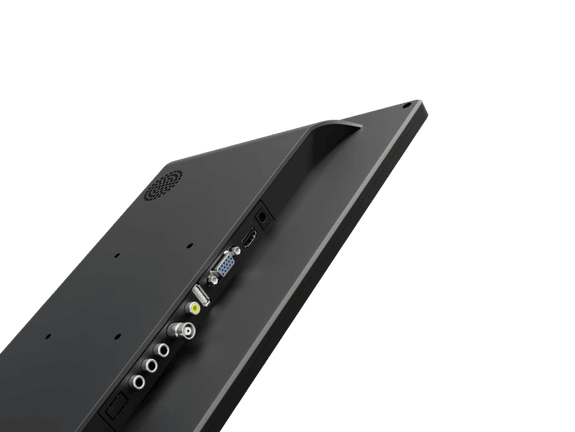

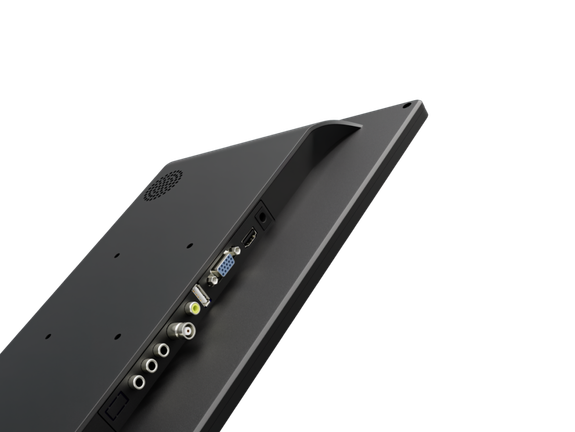

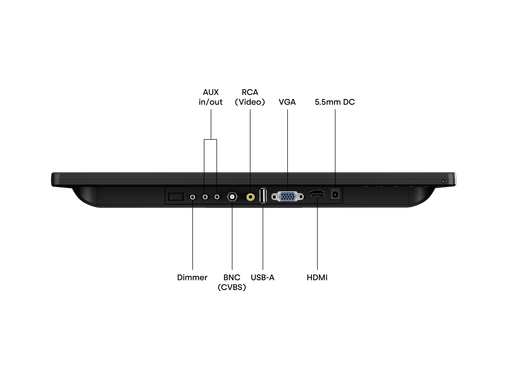

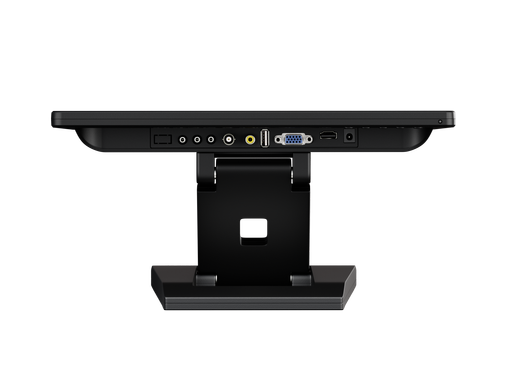

The 13HD7 has HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on when it detects current or a video signal.

13 Inch Monitor

Designed for Professional Use

The 13HD7 is designed for continuous operation in professional applications. Built with industrial-grade components, it delivers reliable performance across a wide range of operating conditions. The monitor features a fully dimmable backlight and supports a wide 9–36V DC input range, providing flexibility for professional installations.

Mounting Options

Wall Mount

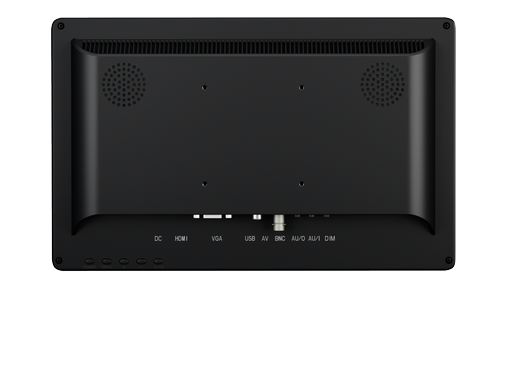

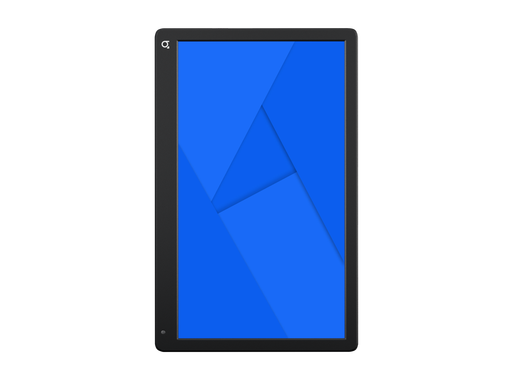

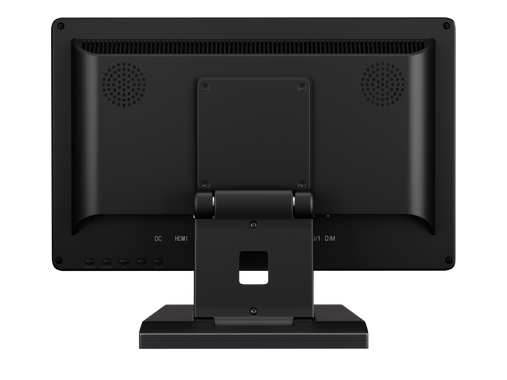

The included stand can be easily removed, giving you access to the universal 75mm VESA mount on the back of the monitor. This makes it possible to mount the monitor in either landscape or portrait orientation using a wide range of universal mounting options, such as monitor arms, wall brackets, ceiling mounts, or pole brackets.

Stand

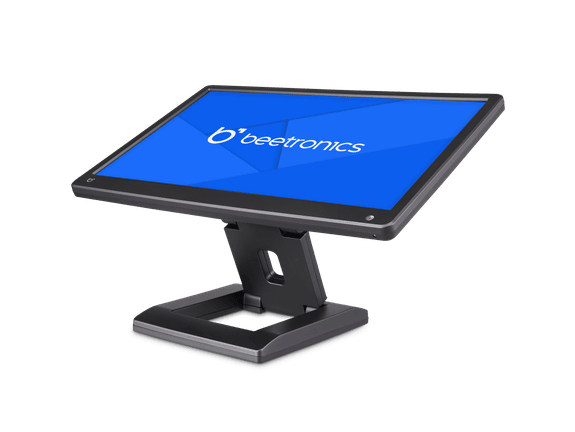

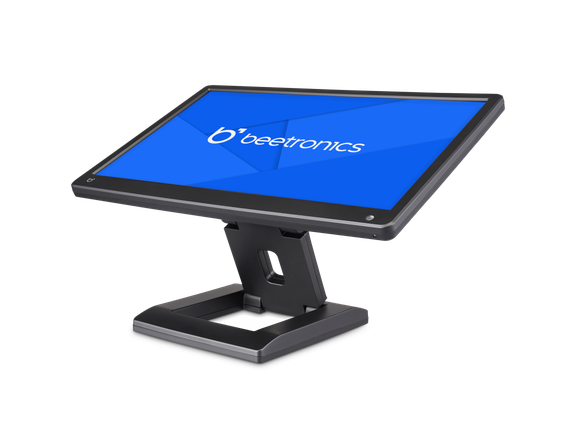

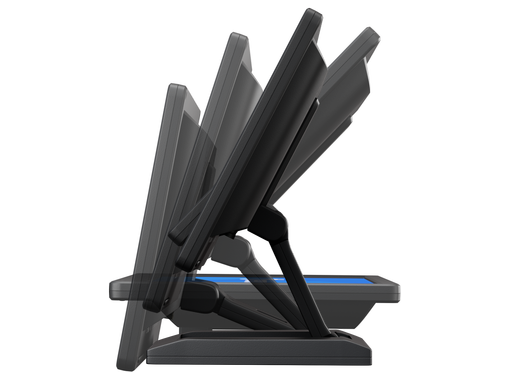

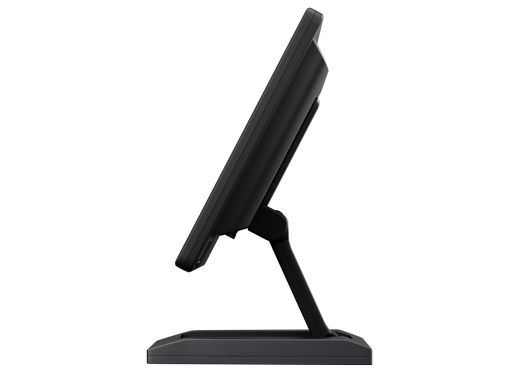

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications

General

Manufacturer
Beetronics
Product Line
Monitor Series
Product Name
13 Inch Monitor
Item Number
13HD7
Previous Model
13HD5
Product Type
Monitor
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF

Display Architecture

Diagonal Size
13.3 Inches (339 mm)
Aspect Ratio
16:9 (4:3 Adjustable)
Native Resolution
1920 x 1080
Pixels Per Inch
166 PPI
Panel Type
IPS-LCD
Backlight
LED
Surface
Anti-Glare Hard Coating (3H)
Supported Orientation
Landscape, Portrait, Face-up

Display Performance

Maximum Brightness
300 nits (typical)
Minimum Brightness
1 nit
Contrast
1400:1
Viewing Angle
178° Horizontal, 178° Vertical
Response Time
10 ms
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Colour Encoding System
PAL/NTSC/SECAM

Operational Features

Audio
Dual Integrated Speakers
USB Media Player
Built-in USB media player with auto-play on power-up and continuous loop playback. Supports common video formats such as: MP4, AVI, MKV, MOV, MPG.
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.

Connectivity

HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA Video
1x
USB-A
1x Integrated USB Media Player
AUX Output (3.5 mm)
1x

Mechanical

Dimensions (Without Stand)
318 x 200 x 33 mm
Image Size
295 x 167 mm
Weight
600 Grams (1000 Grams With Stand)
Colour
Black
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP

Mounting

Wall Mount
VESA 75x75mm
Flush Mount
Possible, no accessories available
Stand
Adjustable and Detachable
Supported Mounting Orientations
Landscape, Portrait, Face-up

Power

Input Voltage
19V DC
Operating Voltage Range
9-36V DC
Power Consumption
12 W (On), 0.4 W (Standby)
Power Supply
External DC Power Supply Included
Included Power Adapter
Input: 100-240V AC, 50/60Hz, Output: 19V DC, 1.5A
Power Connector
5.5 mm × 2.1 mm DC Barrel Connector
DC Cable Length
1.5 m
AC Power Cord Length
1.0 m

Environmental

Max. Non-Stop Operating Time
24/7
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Operating Humidity
10% - 90% Non-Condensing
MTBF
50K

Compliance & Regulations

Regional Standards
CE, UKCA, FCC (Part 15), ISED (ICES-003)
Environmental Standards
RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards
Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455
Compliance Scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement
Download PDF

Package Content

Includes

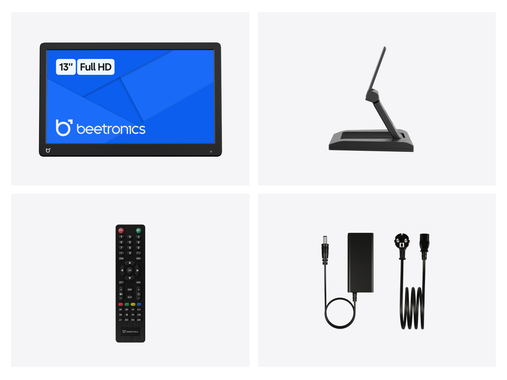

Monitor, Stand, Remote Control, Power Adapter, Quickstart

Compatible Accessories

Rack Mounting
Compatible With 19 Inch Rack Mount Kit (RMK2)
Wall Mounting
Compatible With Flat Wall Mount Bracket (VWB1)
Stand
VDK4 Included as Standard

FAQ

Does the 13HD7 provide good visibility in different viewing conditions?

Yes. The 13 Inch Monitor uses an IPS panel with 178° horizontal and vertical viewing angles, helping maintain a clear and consistent image when viewed from different positions. The matte front panel helps reduce reflections and glare in brighter conditions, while the adjustable screen brightness can be reduced to approximately 1 nit for comfortable viewing in dark or low-light environments.

What video and audio connections does the 13HD7 support?

The 13 Inch Monitor supports HDMI, VGA, RCA, and BNC (CVBS) video inputs, allowing it to connect directly to a wide range of modern and legacy video sources. Multiple sources can remain connected at the same time, with the active input selected using the monitor controls or included remote control. The monitor includes a separate audio input and audio output. The audio input can be used alongside video-only connections such as VGA, RCA, or BNC, while the audio output can route sound from the active source to external speakers, headphones, or another audio device.

Can the 13HD7 monitor be mounted using a universal VESA mount?

Yes. The 13 Inch Monitor includes a fully collapsible desktop stand for positioning on a desk or work surface. The stand can also be removed to access the 75x75 VESA mounting pattern on the back, making the monitor compatible with selected Beetronics mounts as well as compatible universal VESA mounts, including monitor arms, wall mounts, pole mounts, and ceiling mounts.

Does the 13HD7 have a built-in media player?

Yes. The 13 Inch Monitor includes an integrated USB media player for playing videos or displaying images directly from a USB drive, without requiring an external source device. It supports common media file formats and can be configured for continuous playback. The monitor can also be set to power on automatically when power is applied and resume media playback.

Can the physical buttons and remote control on the 13HD7 monitor be disabled?

Yes. The 13 Inch Monitor allows the physical buttons and remote control to be disabled through the on-screen display (OSD) menu. This prevents accidental or unauthorized changes to the display settings while still allowing the controls to be re-enabled when needed.

Accessories

Choose your accessories to complete your purchase.

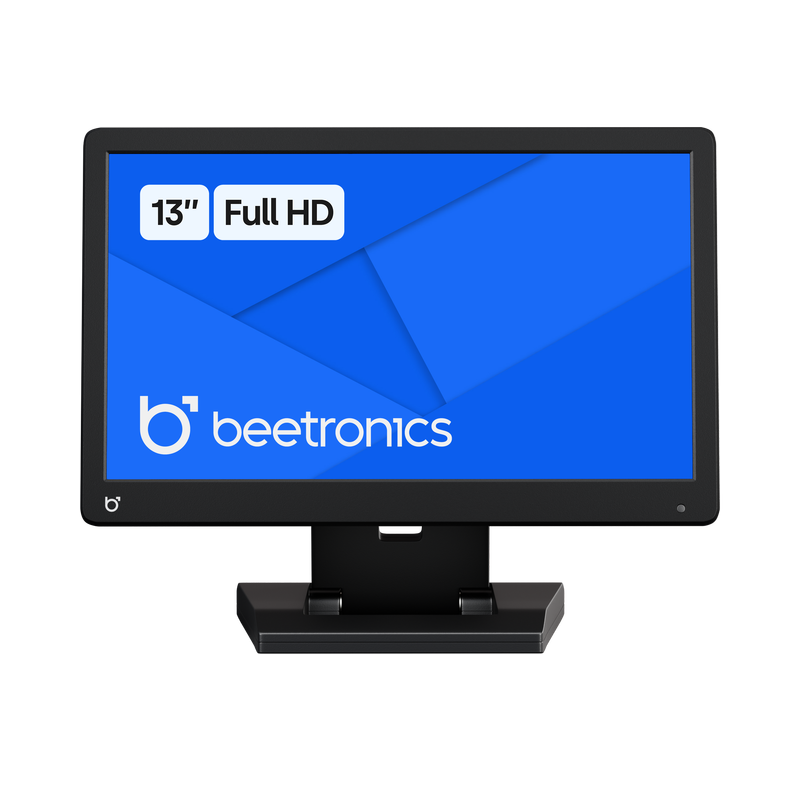

13 Inch Monitor
