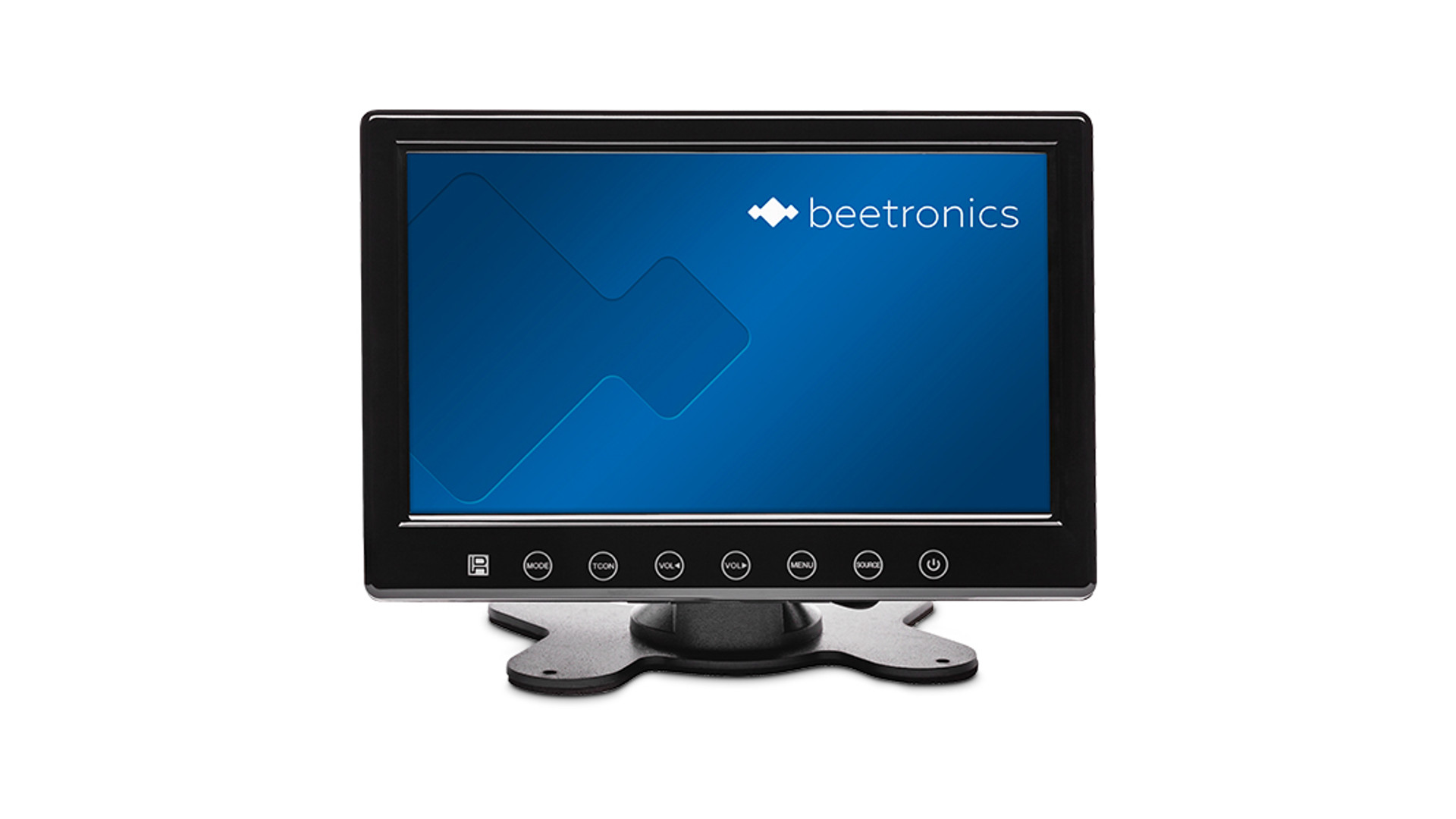

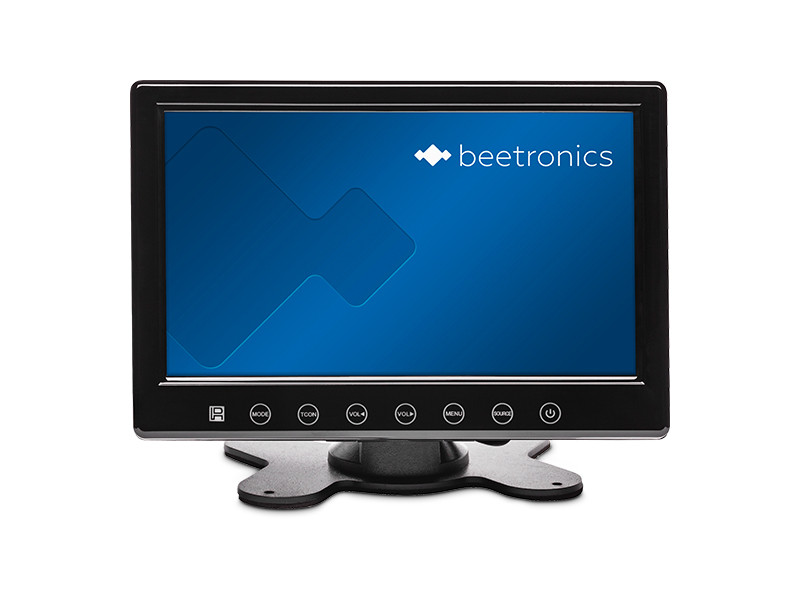

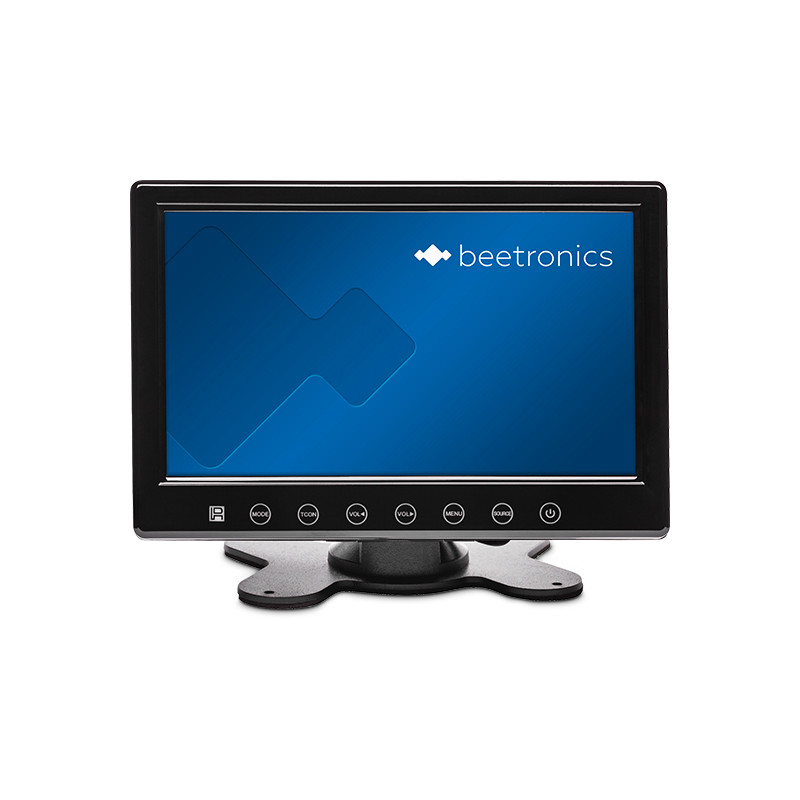

7 inch monitor
Features
- Excellent image quality (up to Full HD)
- Input: HDMI, VGA and RCA
- Desktop, flush and wall mountable
- 179 x 119 x 22 mm
Specifications
General
Manufacturer
Beetronics
Item Number
7TF4
Product Name
7 inch monitor
Warranty
2 Years
Datasheet
Panel
7.0 Inches (178 mm)
16:10 (16:9, 4:3 Adjustable)
1280 x 800
1920 x 1080 (max), 640 x 480 (min)
215 PPI
300 cd/m2
350:1
PAL/NTSC/SECAM
178° Horizontal, 178° Vertical
Size & Weight
Colour
Black
Monitor size (WxHxD)
179 x 119 x 22 mm
Mounting frame (outer)
200 x 139 x 25 mm
Mounting frame (inner)
184 x 124 x 23 mm
Technical Drawing (2D)
Features & Functions
Integrated Speakers
Automatically powers on when it receives current or a signal.
Image can be mirrored, horizontally and vertically
Mounting
Montageframe inbegrepen
Flush Mount
Montageframe inbegrepen
Stand
Adjustable and Detachable
Downloads
Download Technical Documentation
