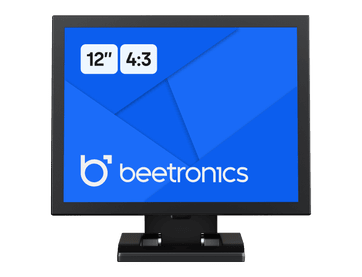

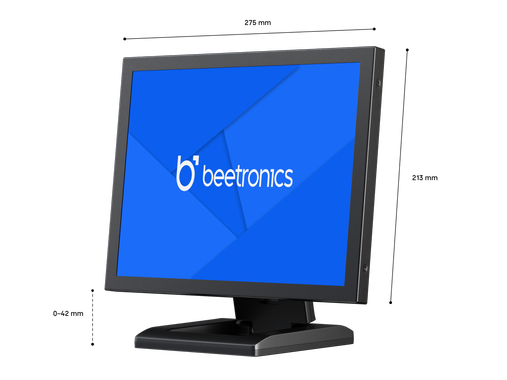

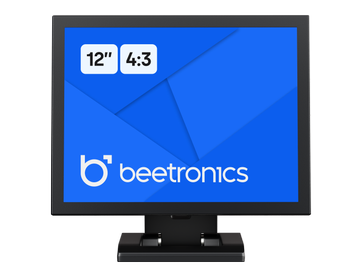

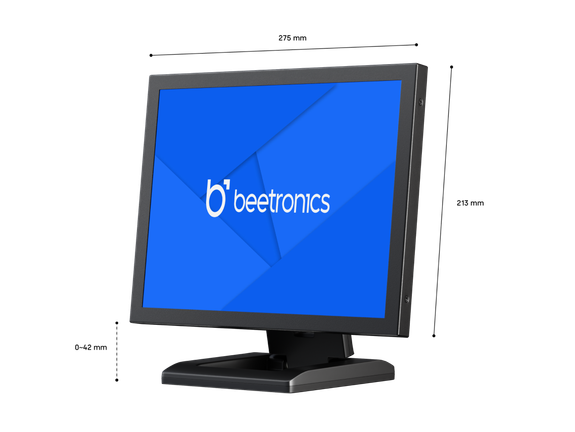

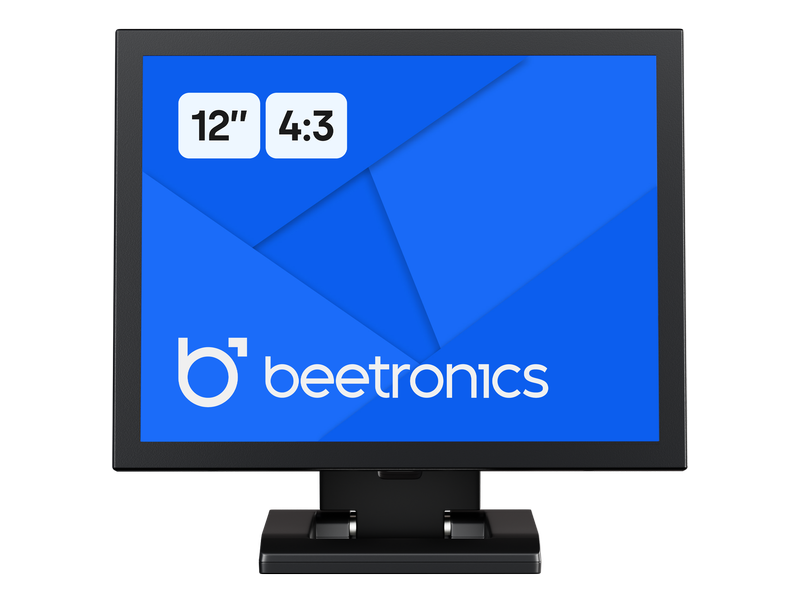

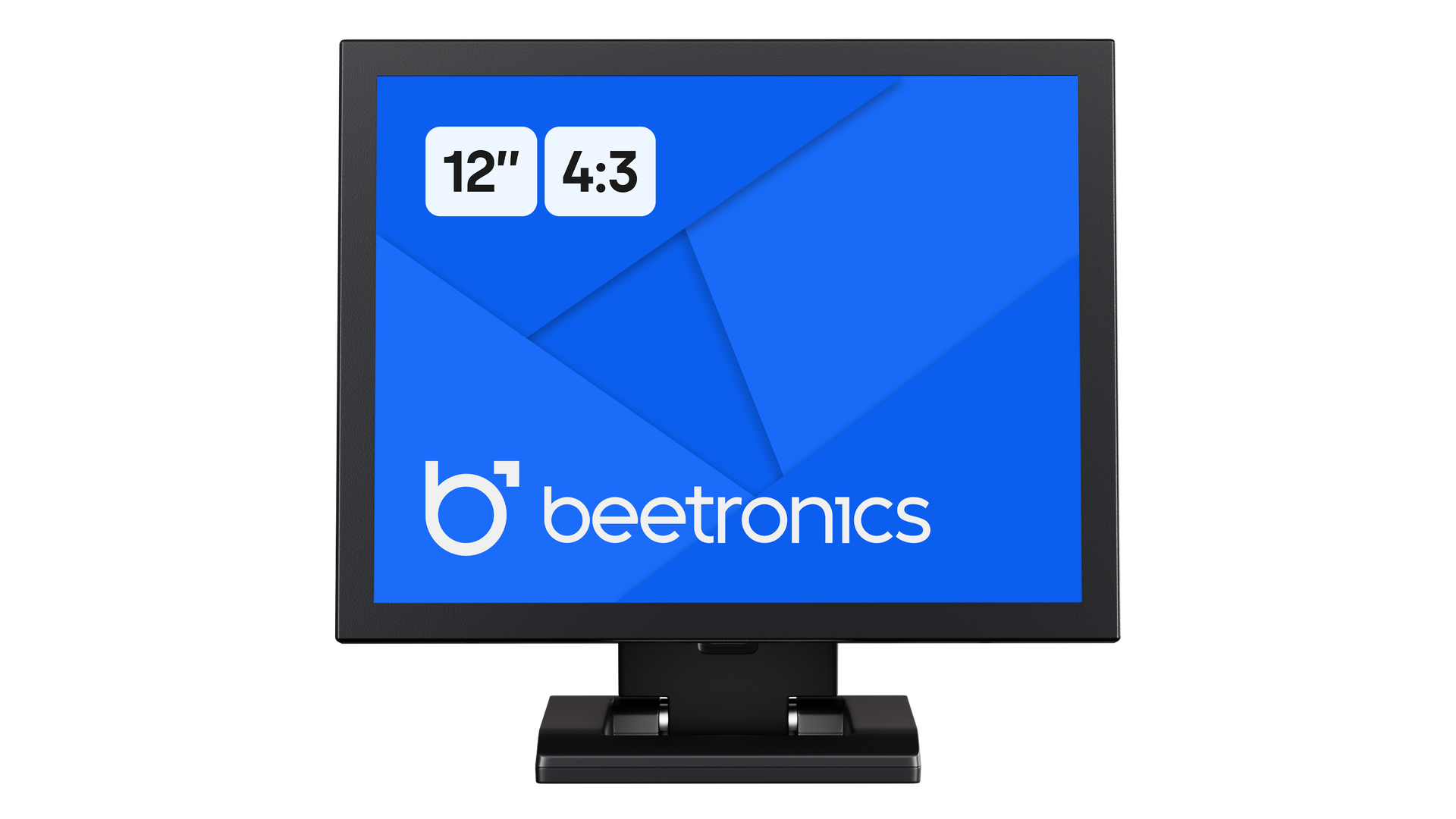

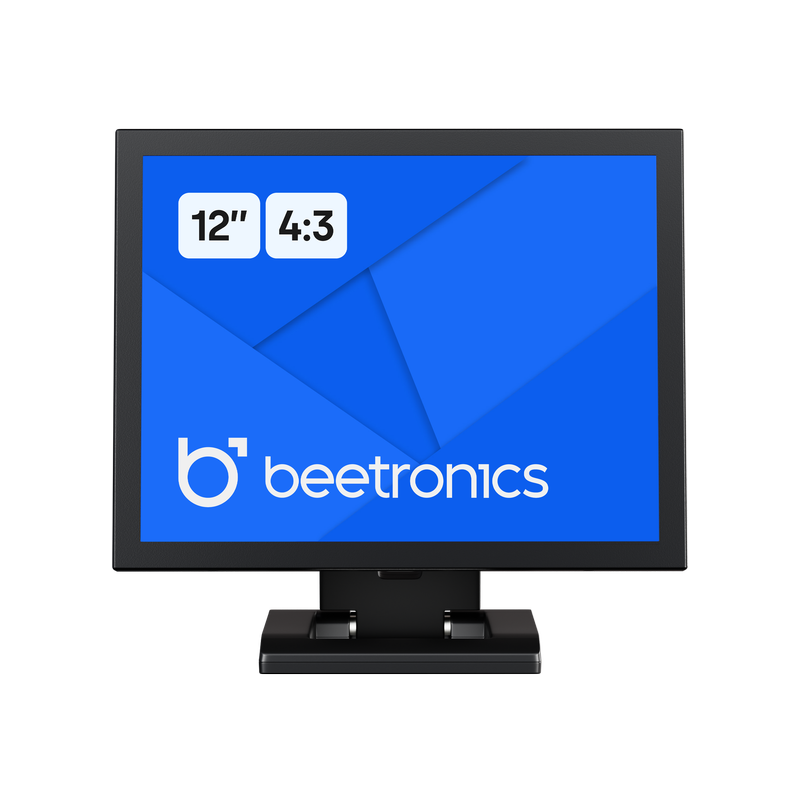

12 Inch Monitor Metal (4:3)

Model: 12VG7M
100+ units in stock
Features
  1. 4:3 aspect ratio
  2. Input: HDMI, VGA, BNC, RCA
  3. Mounting: Flush, embedded, wall, desktop

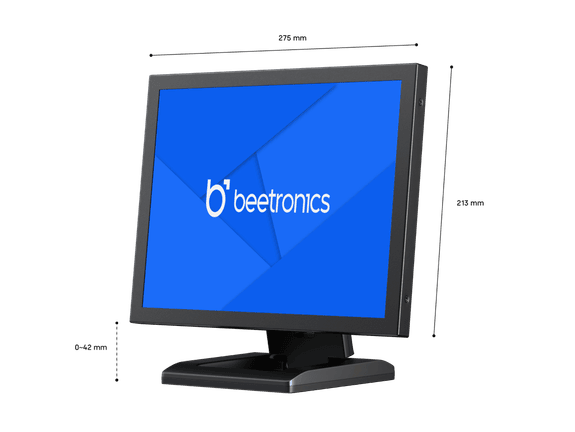

  4. External dimensions: 275 x 213 x 38 mm

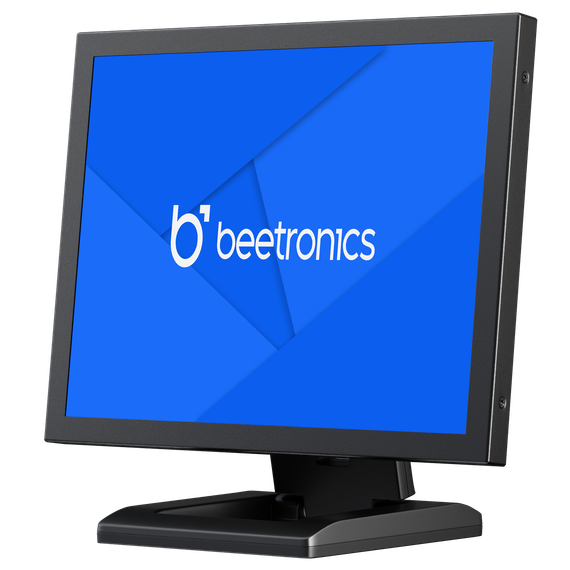

This 12 inch monitor has a matte IPS panel with a 4:3 aspect ratio. The monitor delivers a crisp image quality with excellent 178° viewing angles. The 12 inch monitor has a sturdy metal housing and is ideal for desktop, flush and wall mounting.

Display Type
€ 349,00
€ 422,29 Incl.
Order by 16:00 for delivery on Monday.
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Product Highlights
12 Inch Monitor Metal (4:3)

4:3 Aspect Ratio

This 12 inch monitor is equipped with a 4:3 aspect ratio IPS panel. The monitor delivers a crisp image with excellent 178° viewing angles. The matte screen ensures that reflections are kept to a minimum, while contrast, colour and brightness are all very easy to adjust. The monitor is designed to display 4:3 ratio resolutions and is able to scale any resolution up to 1080p.

12 Inch Monitor Metal (4:3)

Versatile Connectivity

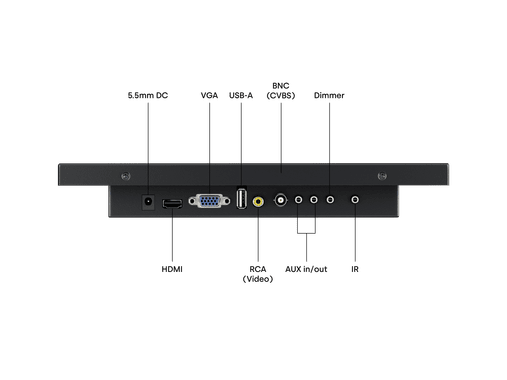

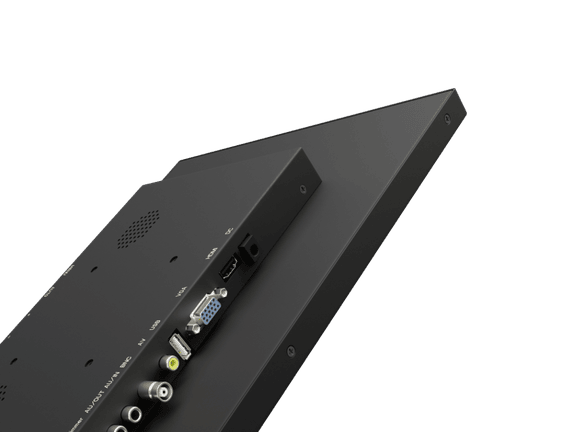

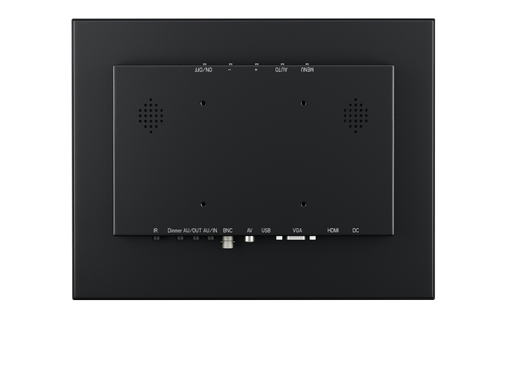

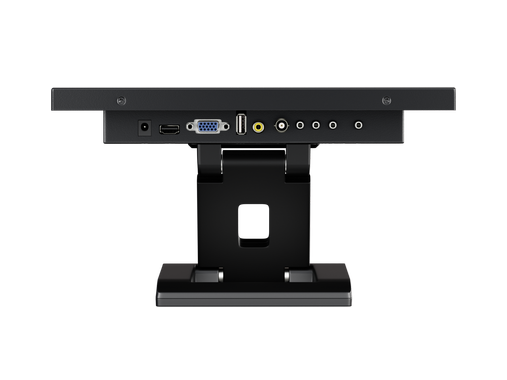

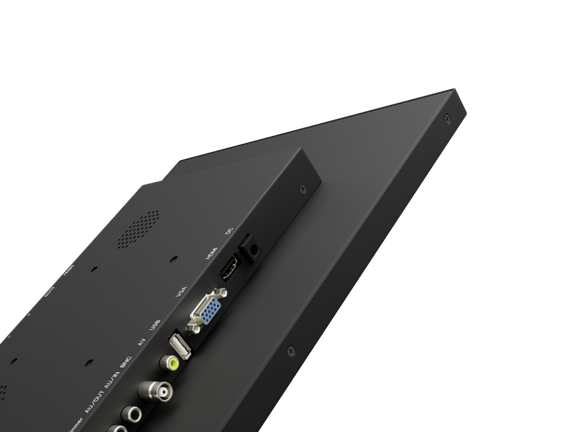

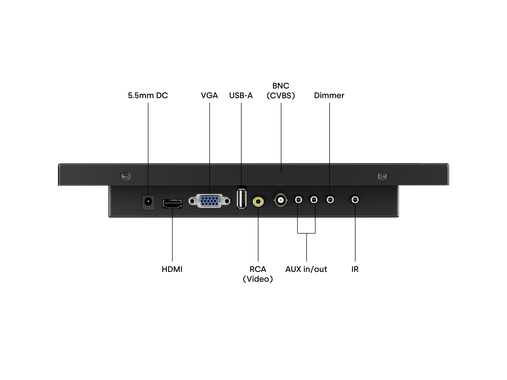

The Beetronics 12VG7M features HDMI, VGA, BNC and RCA connections. The connections are located at the back of the monitor, facing downwards, making installation easy in any situation. The monitor can be configured to automatically switch on or off when it detects current or a video signal.

12 Inch Monitor Metal (4:3)

Designed for Professional Use

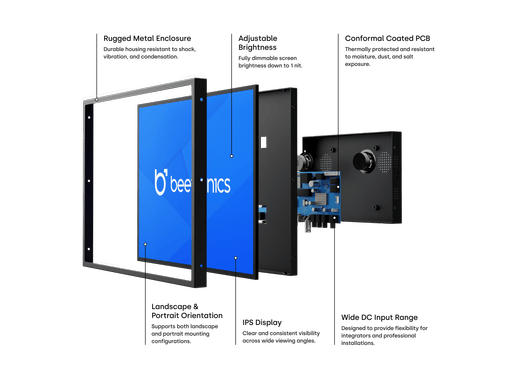

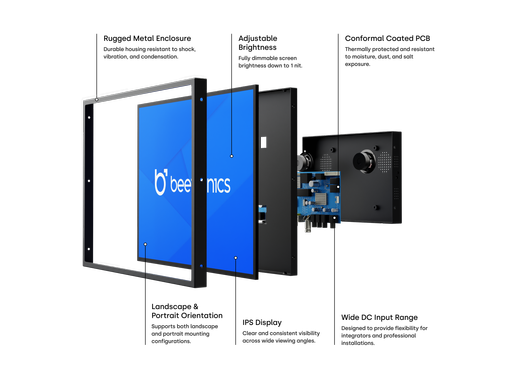

The 12VG7M is designed for continuous operation in professional applications. Built with industrial-grade components, it delivers reliable performance across a wide range of operating conditions. The monitor features a fully dimmable backlight and supports a wide 9–36V DC input range, providing flexibility for professional installations.

Mounting Options

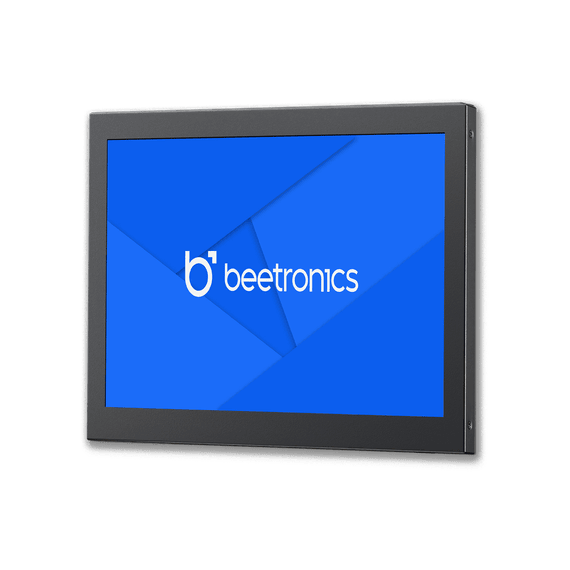

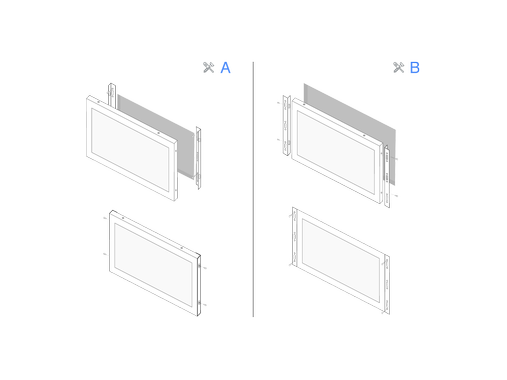

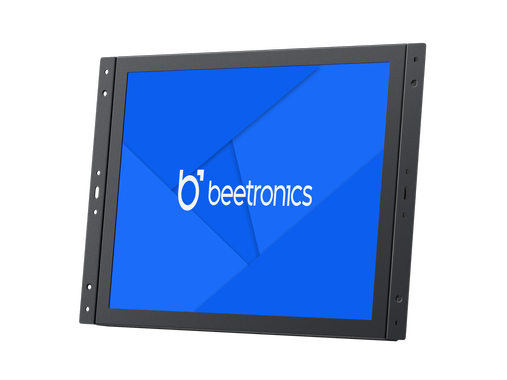

Flush-Mount

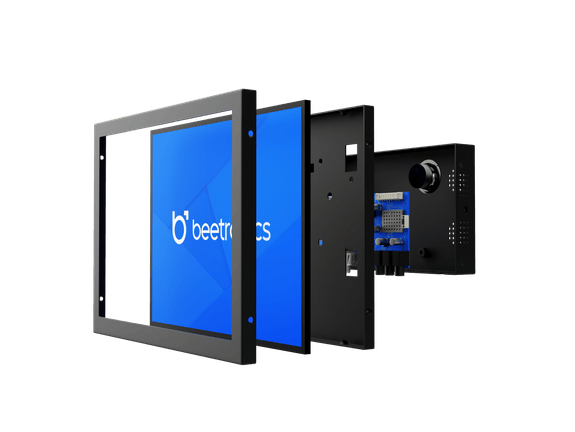

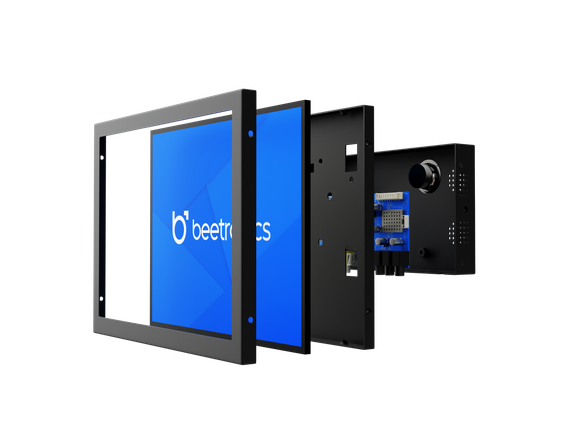

The monitor is designed for flush mounting, requiring no cooling or ventilation. It includes mounting strips as a standard feature, and its housing can be easily disassembled. This design provides exceptional flexibility, offering various installation options for smooth, seamless integration into nearly any environment.

Wall Mount

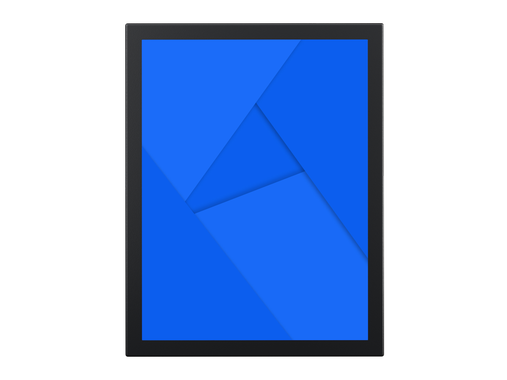

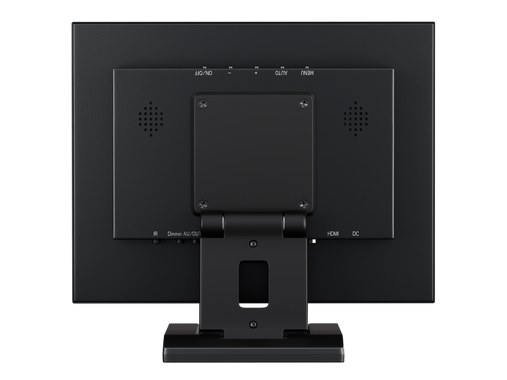

The monitor includes a universal 75mm VESA mount on the back, making it highly adaptable for various mounting configurations. It can be securely attached in either landscape or portrait orientation to a range of universal mounting brackets, such as monitor arms, wall brackets, ceiling mounts, or pole mounts.

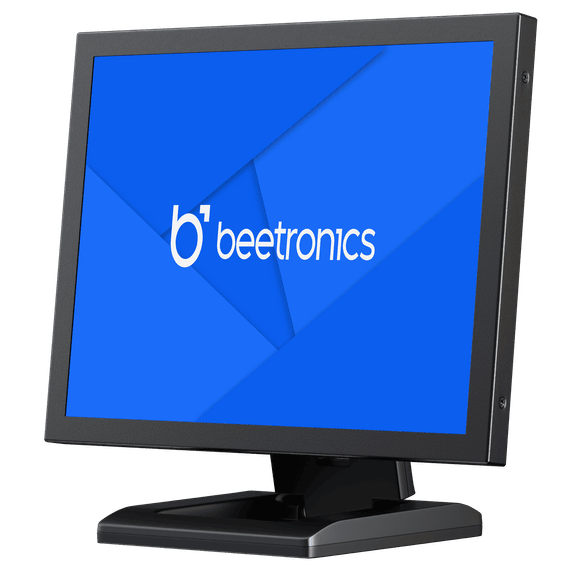

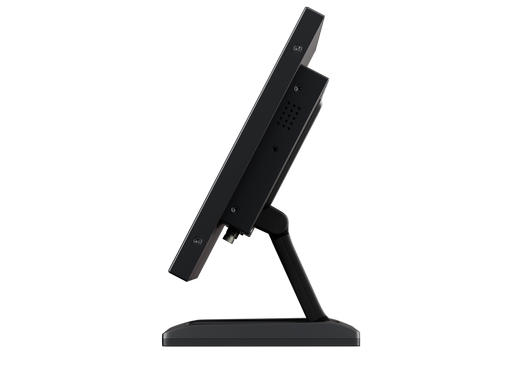

Stand

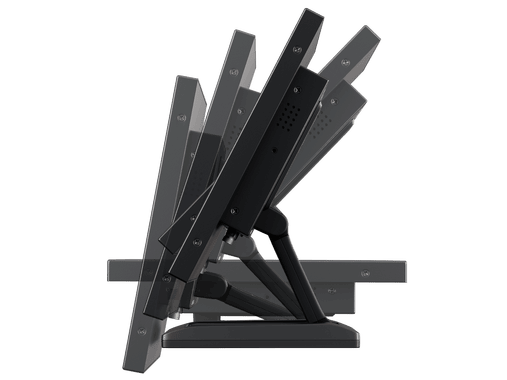

The monitor comes with a versatile stand that folds completely flat for easy storage or portability. The base is equipped with pre-drilled screw holes, making it suitable not only for secure attachment but also for wall and ceiling mounting. If needed, the stand can be quickly removed, providing access to the universal 75mm VESA mount. This allows the monitor to be installed on a wide range of universal stands or brackets in either landscape or portrait orientation.

Specifications
General
Manufacturer
Beetronics
Product Line
Monitor Series
Product Name
12 Inch Monitor Metal (4:3)
Item Number
12VG7M
Previous Model
12VG3
Product Type
Monitor
Warranty
2 Years
Datasheet
Download PDF
User Manual
Download PDF
Quickstart
Download PDF
Display Architecture
Diagonal Size
12.1 Inches (310 mm)
Aspect Ratio
4:3
Native Resolution
1024 x 768
Pixels Per Inch
83 PPI
Panel Type
IPS-LCD
Backlight
LED
Surface
Anti-Glare Hard Coating (3H)
Supported Orientation
Landscape, Portrait, Face-up
Display Performance
Maximum Brightness
350 nits (typical)
Minimum Brightness
1 nit
Contrast
800:1
Viewing Angle
178° Horizontal, 178° Vertical
Response Time
10 ms
Supported Resolutions
1920 x 1080 (max), 640 x 480 (min)
Colour Encoding System
PAL/NTSC/SECAM
Operational Features
Audio
Dual Integrated Speakers
USB Media Player
Built-in USB media player with auto-play on power-up and continuous loop playback. Supports common video formats such as: MP4, AVI, MKV, MOV, MPG.
Key-Lock
The control buttons can be blocked.
Auto-On
Automatically powers on when it receives current or a signal.
Dimmable
Adjustable backlight brightness via remote control or optional dimmer.
Mirroring
Teleprompter compatible. Image can be horizontally and vertically mirrored.
Connectivity
HDMI
1x
VGA
1x
BNC (CVBS)
1x
RCA Video
1x
USB-A
1x Integrated USB Media Player
AUX Input (3.5mm)
1x
AUX Output (3.5 mm)
1x
Mechanical
Dimensions (Without Stand)
275 x 213 x 38 mm
Image Size
247 x 186 mm
Weight
1800 Grams (2200 Grams With Stand)
Colour
Black
Technical Drawing (2D)
Download PDF
Technical Drawing (3D)
Download CAD/STP
Mounting
Wall Mount
VESA 75x75mm
Flush Mount
Mounting Strips Included
Stand
Adjustable and Detachable
Supported Mounting Orientations
Landscape, Portrait, Face-up
Power
Input Voltage
DC 9-36V
Consumption
11 W (On), 0.4 W (Standby)
Power Supply
External DC (Power Adapter Included)
Power Adapter
Input: AC100-240V, 50/60Hz , Output: 19V-1.5A
Power Adapter Output Connector
DC Barrel Plug 2.1mm x 5.5mm
Environmental
Max. Non-Stop Operating Time
24/7
Operating Temperature
-10°C to +60°C (14°F to 140°F)
Storage Temperature
-20°C to +70°C (-4°F to 158°F)
Operating Humidity
10% - 90% Non-Condensing
MTBF
50K
Compliance & Regulations
Regional Standards
CE, UKCA, FCC (Part 15), ISED (ICES-003), CCC
Environmental Standards
RoHS, REACH, WEEE, California Proposition 65, Conflict Minerals (3TG; supplier declaration-based)
Industry Standards
Maritime: IEC 60945, DNV-CG-0339 (Requires BEE-PSU1-MAR); Railway: EN 50155, EN 45545-2; Automotive: e-Mark, UN ECE R10, SAE J1113, SAE J1455; Medical: EN 60601-1, EN 60601-1-2 (Requires BEE-PSU1-MED)
Compliance Scope
Standards and certifications apply to the tested product configuration using the specified power supply. Final system-level compliance remains the responsibility of the party responsible for system integration.
Compliance Statement
Download PDF
Package Content
Includes

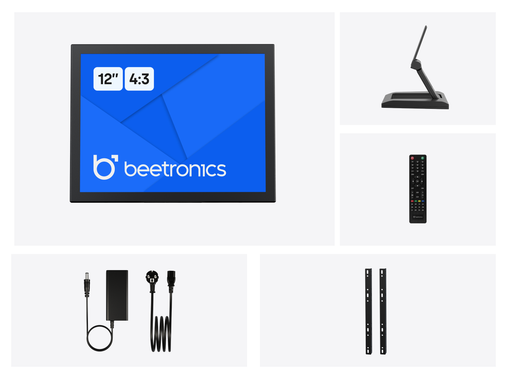

Monitor, Mounting Strips, Stand, Remote Control, Power Adapter, Quickstart
