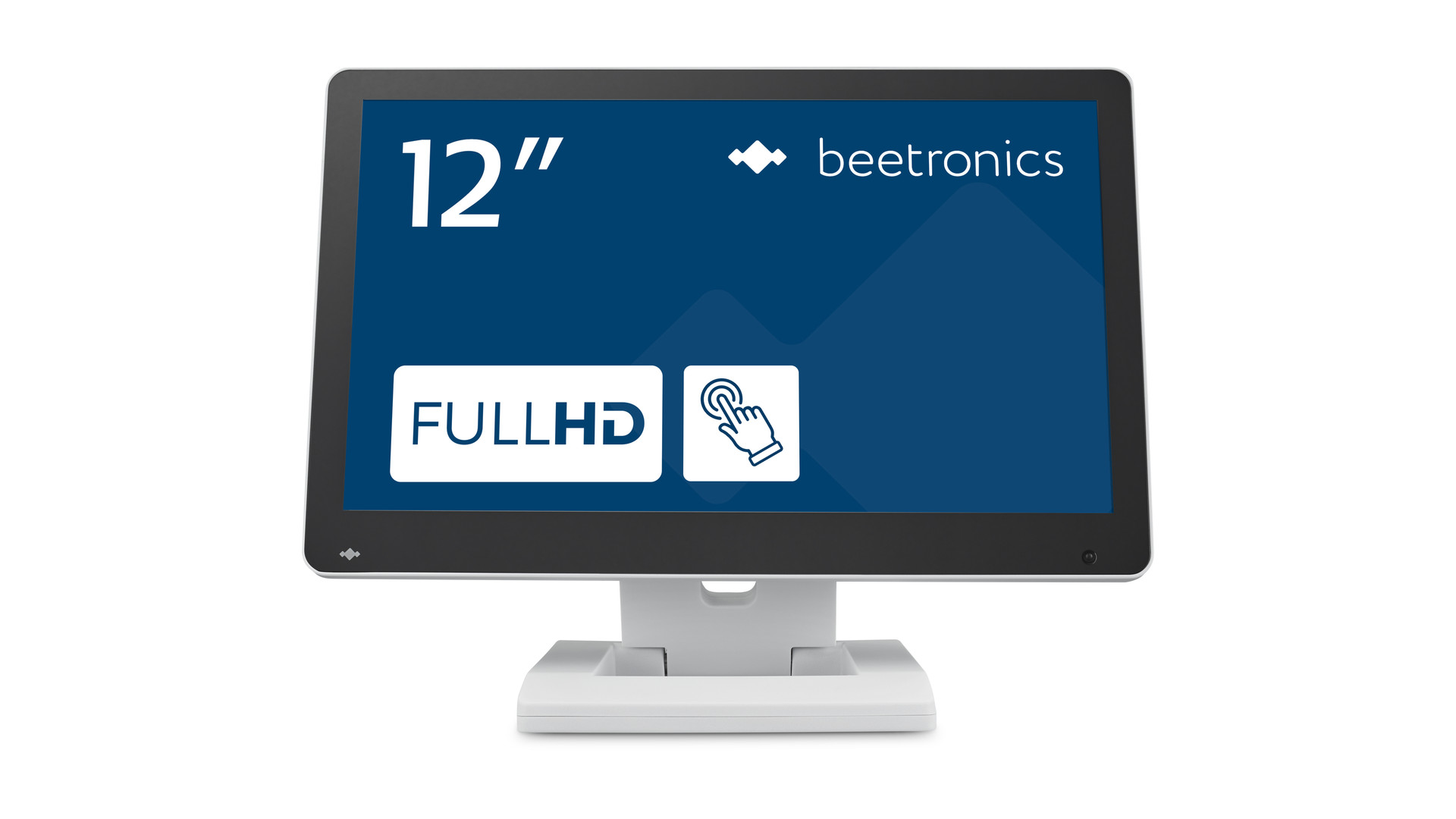

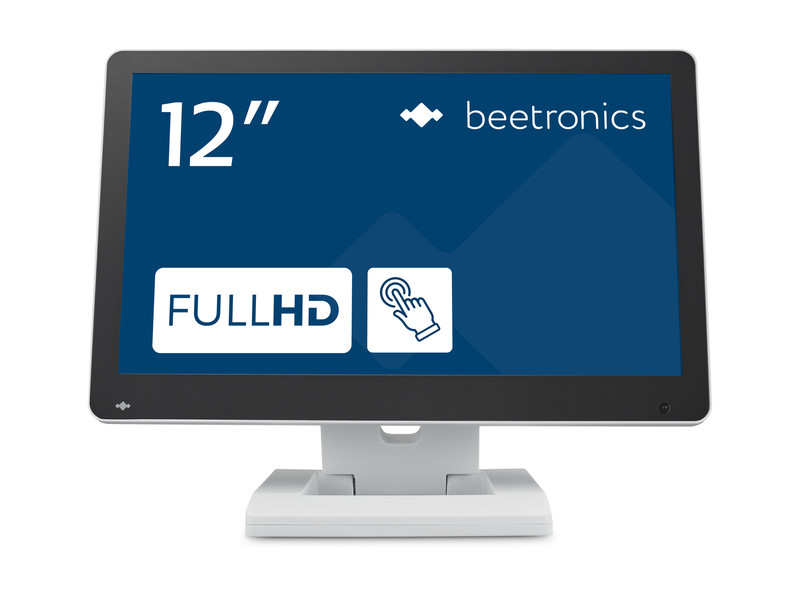

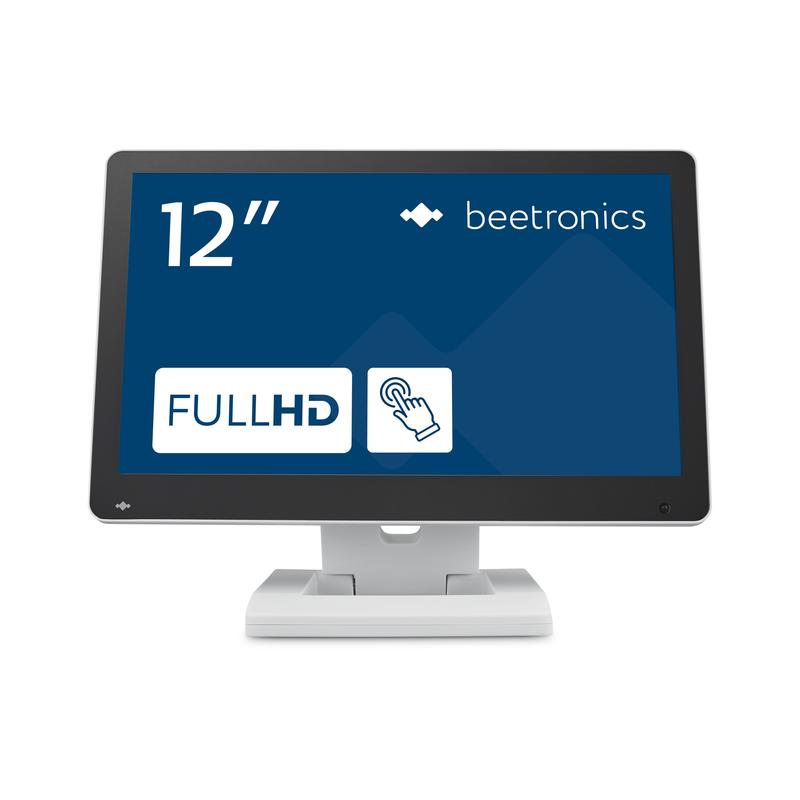

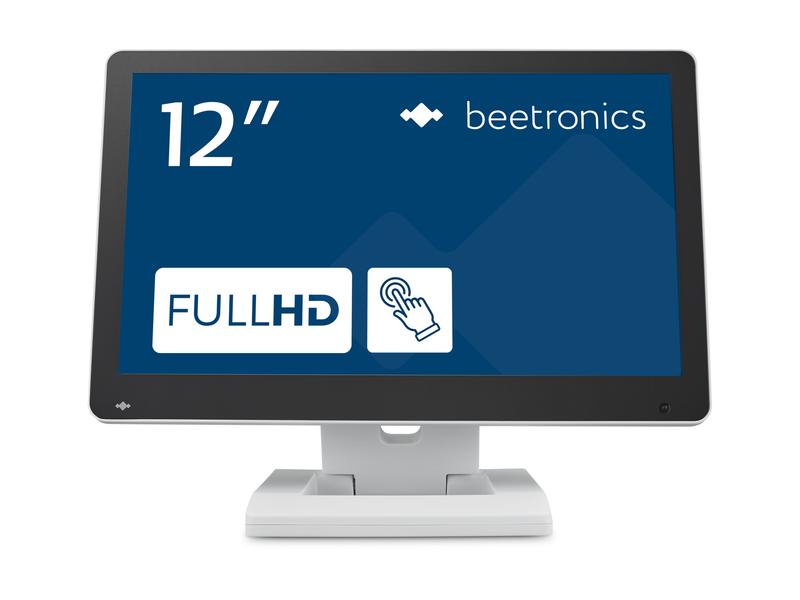

12 inch touchscreen (white)
- Full HD multi-touch panel
- Windows, Mac, Linux & Android compatible
- Desktop and wall mountable
- 284 x 179 x 35 mm
See alternative
- Description
- Specifications
- Connections
- Downloads
This white 12 inch touchscreen has a reliable multi-touch panel which ensures accurate operation. The 12TS3W provides crystal-clear image quality with excellent 178° viewing angles and is compatible with Windows, Mac, Linux & Android operating systems. The touchscreen monitor is designed for professional applications and suitable for intensive use.
Full HD multi-touch paneel
Fitted with a native Full HD IPS panel, the touchscreen delivers outstanding image quality, vibrant colours and excellent 178° viewing angles. The 12TS3 has a capacitive multi-touch screen which can process 10 pressure points simultaneously. This provides an extremely accurate operation and support of swiping, zooming, etc.
Windows, Mac, Linux & Android compatible
This touchscreen is compatible with Windows, Mac, Linux & Android operating systems. The Touchscreen comes with a wide range of connectivity options including HDMI, VGA, BNC and RCA. Connecting the supplied USB cable activates the touchscreen functionality. The touchscreen monitor is automatically recognized and is immediately ready for use.
.jpg)
Designed for professional use
The 12TS3W is suitable for continuous 24/7 operation. The monitor is manufactured using high quality components ensuring accurate operation and maximum reliability in every situation. Equipped with a sturdy casing and dimmable panel, the 12TS3W is ideal for professional use.
Desktop and wall mountable
The white monitor is supplied with a sturdy stand that is fully adjustable and can be folded flat. This stand can be easily removed to allow use of the 75mm VESA mount. The VESA mount enables the monitor to be attached to a universal wall bracket.
| General | |
|---|---|
| Manufacturer |
Beetronics
|
| Item number |
12TS3W
|
| Product name |
12 inch touchscreen (white)
|
| Warranty |
2 years
|
| Datasheet | |
| Manual | |
| Supported operating systems | |
|---|---|
| Windows |
(Windows 7, 8, 10)
|
| Windows Embedded |
(Windows embedded 7, 8, 10)
|
| Mac |
(Yosemite, El Capitan, Sierra, High Sierra, Mojave)
|
| Linux |
|
| Android |
(Android 6 Marshmallow, Android 7 Nougat, Android 8 Oreo)
|
| Drivers |
No drivers needed. Plug & Play
|
| Panel | |
|---|---|
| Type |
LED-IPS
|
| Diagonal size |
11.6 inches (295 mm)
|
| Aspect ratio |
16:9 (4:3 adjustable)
|
| Native resolution |
1920 x 1080
|
| Supported resolutions |
1920 x 1080 (max), 640 x 480 (min)
|
| Pixels per inch |
184 PPI
|
| Viewing angle |
178° horizontal, 178° vertical
|
| Colour encoding system |
PAL/NTSC/SECAM
|
| Brightness |
400 cd/m2
|
| Contrast |
700:1
|
| Touch technology |
Capacitive, 10-point multitouch (PCAP)
|
| Control |
Stylus, hand, glove
|
| Connectivity | |
|---|---|
| HDMI |
1x
|
| VGA |
1x
|
| BNC (CVBS) |
1x
|
| RCA video |
1x
|
| AUX output |
1x
|
| USB |
Only for touchscreen functionality
|
| Size & weight | |
|---|---|
| Colour |
White
|
| Weight |
780 gram (1200 gram with stand)
|
| Width |
284 mm
|
| Height |
179 mm (+0 to 39 mm with stand)
|
| Thickness |
35 mm
|
| Display dimensions |
257 x 145 mm
|
| Technical drawing | |
| Features and functions | |
|---|---|
| Audio |
Integrated speakers
|
| Key-lock |
The control buttons can be blocked
|
| Auto-on |
Automatically powers on when it receives current or a signal
|
| Dimmable |
Adjustable backlight brightness
|
| Mirroring |
Image can be mirrored, horizontally and vertically
|
| Power | |
|---|---|
| Input voltage |
DC 12V
|
| Power supply |
Input: 110-240V ~ 50/60Hz - Output: 12V-2A
|
| Consumption |
<15 Watt (0.5 Watt standby)
|
| Environmental | |
|---|---|
| Operating temperature |
-20c° to +60c°
|
| Storage temperature |
-20c° to +70c°
|
| Operating humidity |
20% - 90% non-condensing
|
| Mounting | |
|---|---|
| Wall mount |
VESA (75 mm)
|
| Flush mount |
Possible, no accessories available
|
| Stand |
Adjustable and detachable
|
| Certifications & Standards | |
|---|---|
| IP rating |
IP65 front panel
|
| Certifications |
CE, FCC, RoHS, REACH
|
| Package content | |
|---|---|
| Includes |
Touchscreen, Mains adaptor, Remote control, USB cable, Stand, Manual
|
HDMI
VGA
BNC
RCA(video)
AUX(output)
USB(touch)
| Manual | Download PDF |
| Technical drawing | Download PDF |
| Datasheet | Download PDF |
