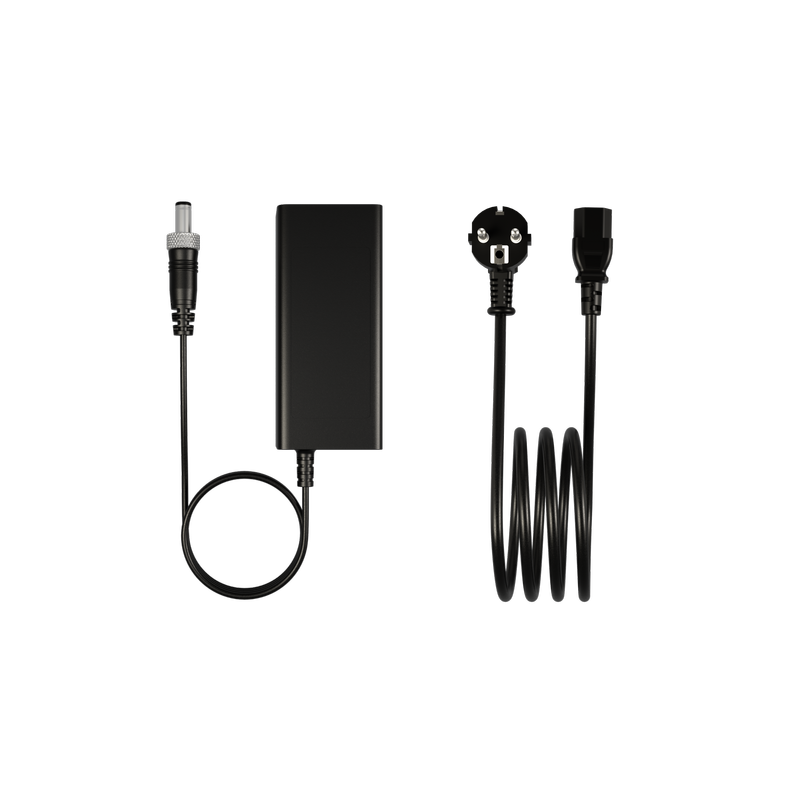

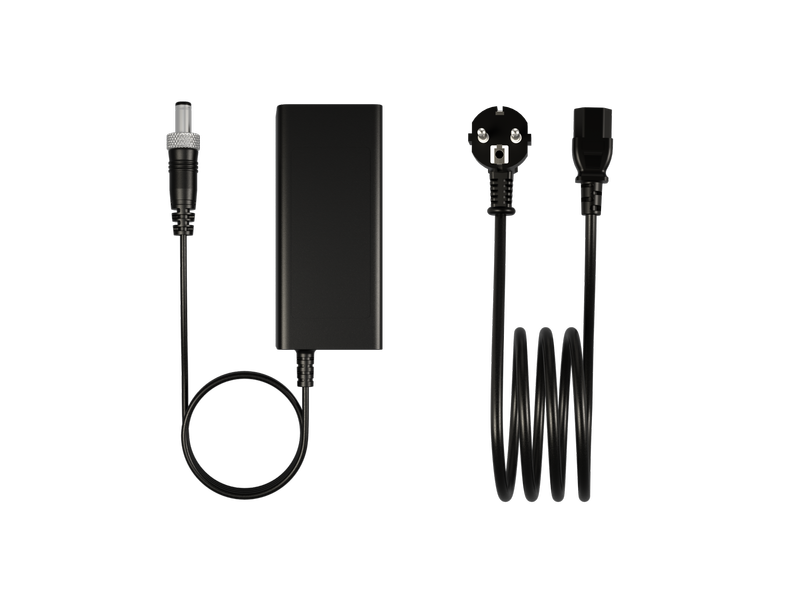

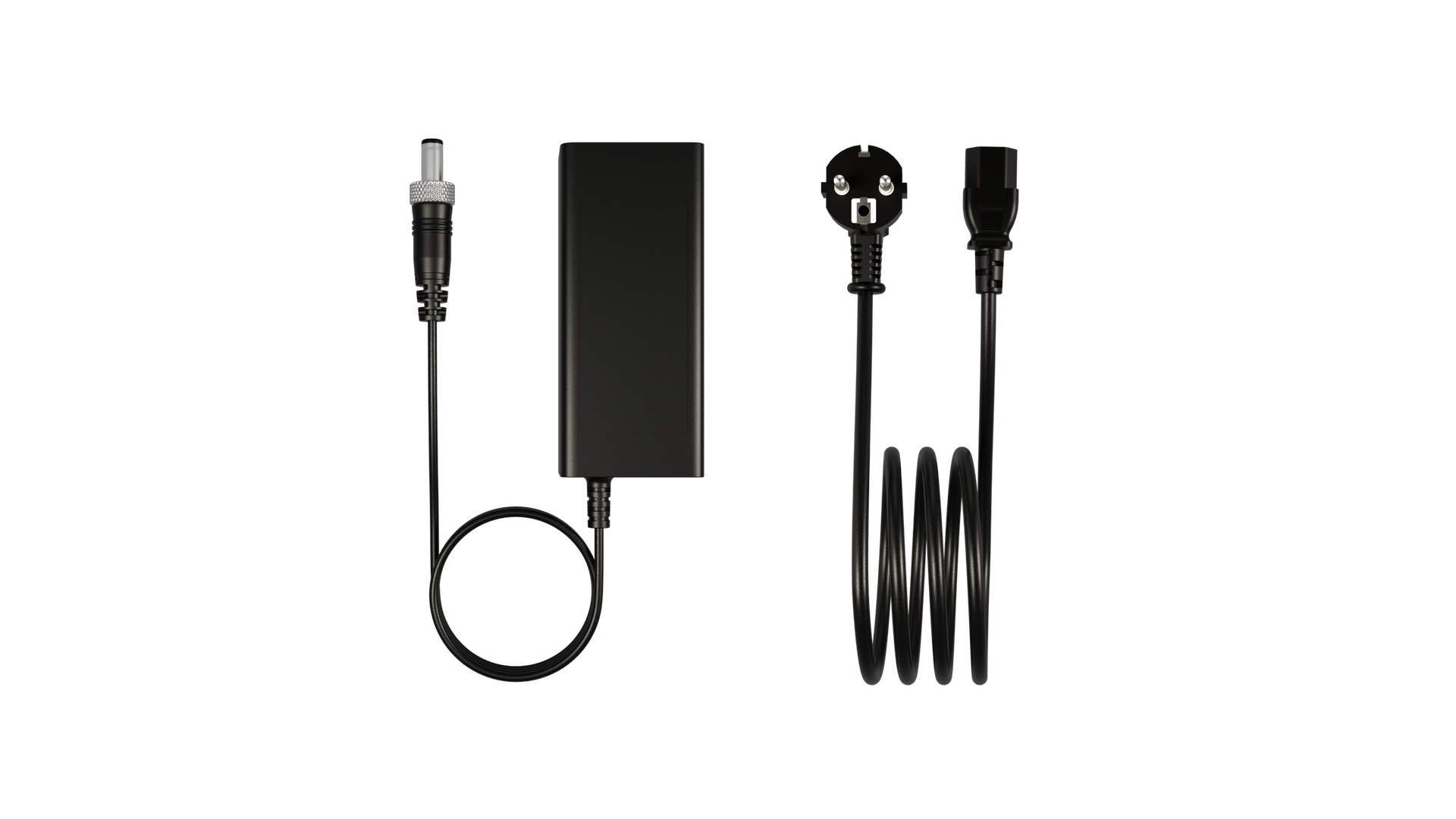

19V Power Adapter With Lock, EU Plug

Model: PSU1-LOCK-MED-EU

100+ units in stock

Features

Input: 100-240V AC ~ 50/60Hz, 1.5A Max
Output: 19V ⎓ 2.5A, 47.5W
DC Plug Size: 5.5 mm OD × 2.1 mm ID
Cable Length: 250 cm

With a wide input voltage range of 100–240V AC (50/60Hz), the PSU1-LOCK-MED-EU is designed for use with standard European AC power outlets. The power supply provides a regulated 19V DC output at 2.5A (47.5W) and features a 5.5 × 2.1 mm DC connector with a bayonet locking mechanism to ensure a secure and reliable connection. It is compatible with all HB (high-brightness) touchscreen models.

€ 19,00

€ 22,99 Incl.

Order by 16:00 for delivery on Monday.

Long-Term Availability Consistently available for years to come.

Free Shipping & Returns No shipping costs and free 30-day returns.

5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.

The PSU1-LOCK-MED-EU is intended for use with Beetronics displays that specify compatibility with this power supply in their product specifications and are deployed in medical applications requiring EN 60601-1 and EN 60601-1-2 compliance. The EN 60601-1 and EN 60601-1-2 certification of the applicable display models was obtained based on the configuration of the displays when used in combination with this specific power supply. Final certification and system-level compliance remain the responsibility of the system integrator or end-product manufacturer.

General
