The PSU1-MAR-UK is intended for use with Beetronics displays that specify compatibility with this power supply in their product specifications and are deployed in marine applications requiring DNV Type Approval. The DNV Type Approval of the applicable display models was obtained based on the configuration of the displays when used in combination with this specific power supply. Final certification and system-level compliance remain the responsibility of the system integrator or end-product manufacturer.

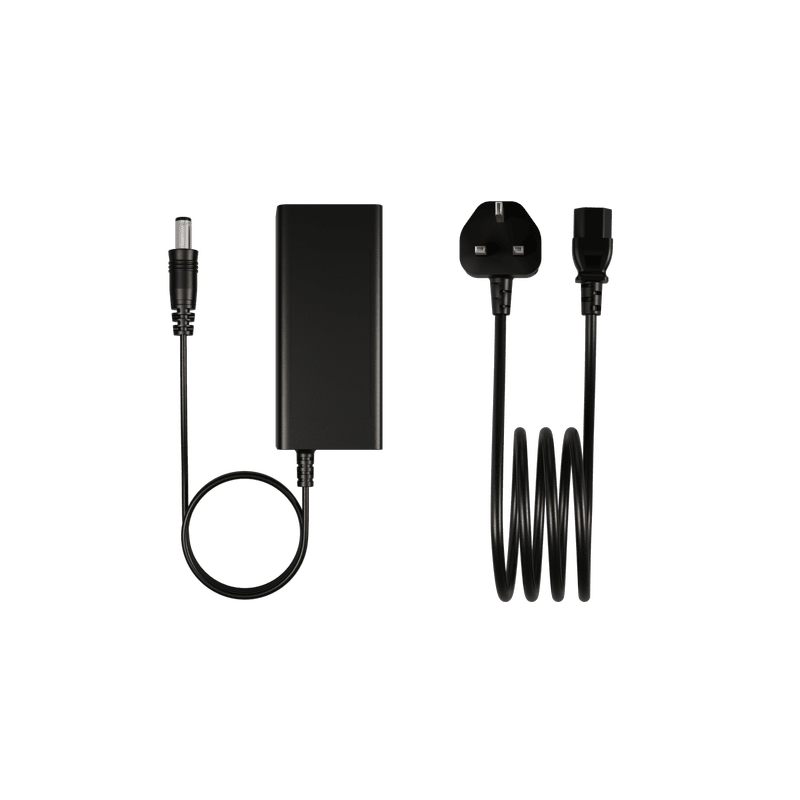

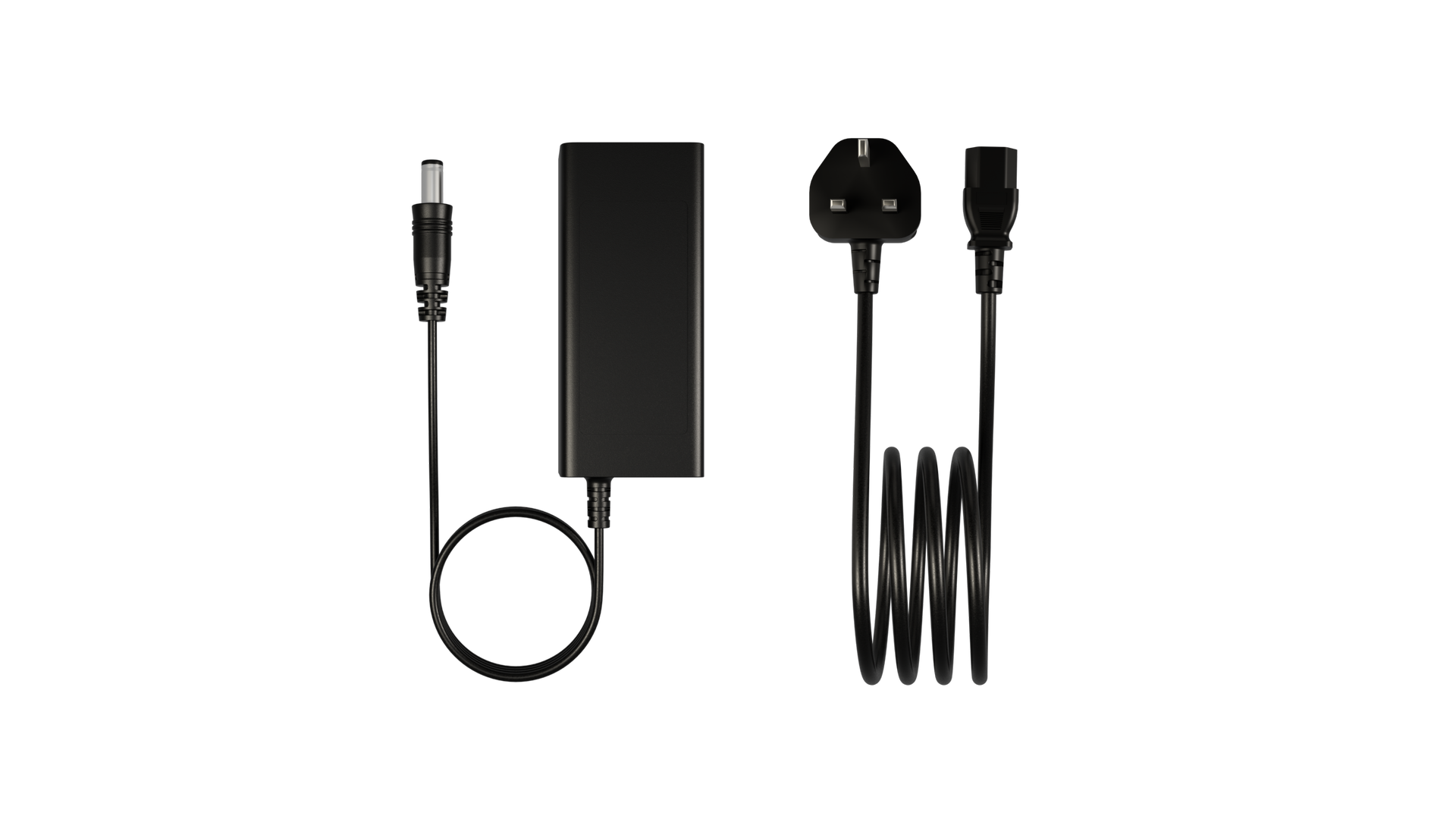

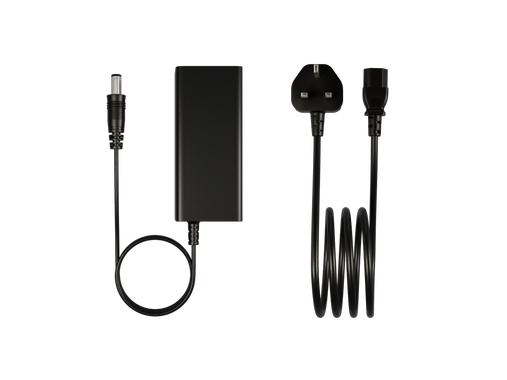

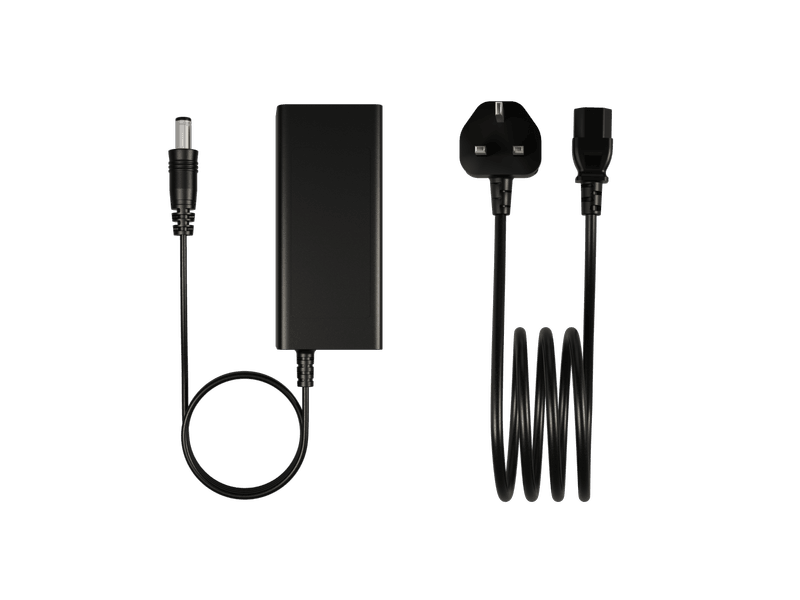

19V External Power Adapter, UK Plug
Features
- Input: 100-240V AC ~ 50/60Hz, 1.5A Max
- Output: 19V ⎓ 2.5A, 47.5W
- DC Plug Size: 5.5 mm OD × 2.1 mm ID
- Cable Length: 250 cm
With a wide input voltage range of 100–240V AC (50/60Hz), the PSU1-MAR-UK is designed for use with standard United Kingdom AC power outlets. The power supply provides a regulated 19V DC output at 2.5A (47.5W) and features a 5.5 × 2.1 mm DC connector. It is compatible with all Beetronics display models.
€ 19,00
€ 22,99 Incl.
Long-Term Availability Consistently available for years to come.
Free Shipping & Returns No shipping costs and free 30-day returns.
5.000+ Reviews, Rated 4.8/5 Trusted by industry leaders worldwide.
Product Highlights
Specifications
General
- Manufacturer
- Beetronics
- Item Number
- PSU1-LOCK-UK
- Product Name
- 19V External Power Adapter, UK Plug
- Warranty
- 2 Years
- Datasheet
- Download PDF
Size & Weight
- Colour
- Black
- Weight
- 300 Grams
- Technical Drawing (2D)
- Download PDF
- Technical Drawing (3D)
- Download CAD/STP
- Cable length
- 250 cm (AC: 100 cm / DC: 150 cm)
Power
- Inner diameter
- 2.1 mm
- Outer diameter
- 5.5 mm
- Connector type
- UK
- Voltage
- 19 Volt
- Amperage
- 2.5 Ampere
- Polarity
- - outside / + inside
Compliance
- Standards & Certifications
- CE, FCC, RoHS, REACH, WEEE, UKCA, DNV
Package Content
- Includes
- Power Supply
Compatibility
- Compatible with
- 10HB9M/U1, 12HB9M/U1, 15HB9M/U1, 17HB9M/U1, 19HB9M/U1, 22HB9M/U1, 24HB9M/U1, 27HB9M/U1
Downloads
Download Technical Documentation
